Product Description:

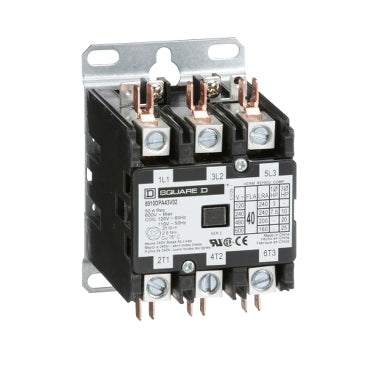

The Square D 8910DPA43V14Y244 is a Class 8910 Contactor designed for 600V 3-phase applications. It features a 40A rating and 3 poles, with horsepower ratings ranging from 3 hp at 115V AC to 25 hp at 575V AC. This starter includes a 24V coil and is suitable for various motor control applications.
Key Features:
✔ Part Number: 8910DPA43V14Y244
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 24V
✔ Full Load Amps: 40
✔ Coil Voltage Minimum: 24V
✔ Frequency: 50/60 Hz
✔ UPC: 785901005889
✔ GTIN: 00785901005889
✔ Country of Origin: Mexico
✔ Dimensions: Depth 4.22 in (107.19 mm) Width 3.50 in (88.90 mm) Height 6.81 in (172.96 mm)
✔ Certification: UL Recognized || CSA
