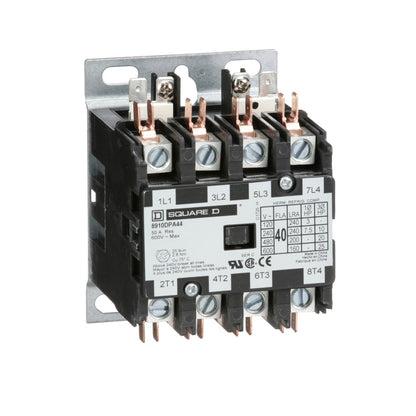

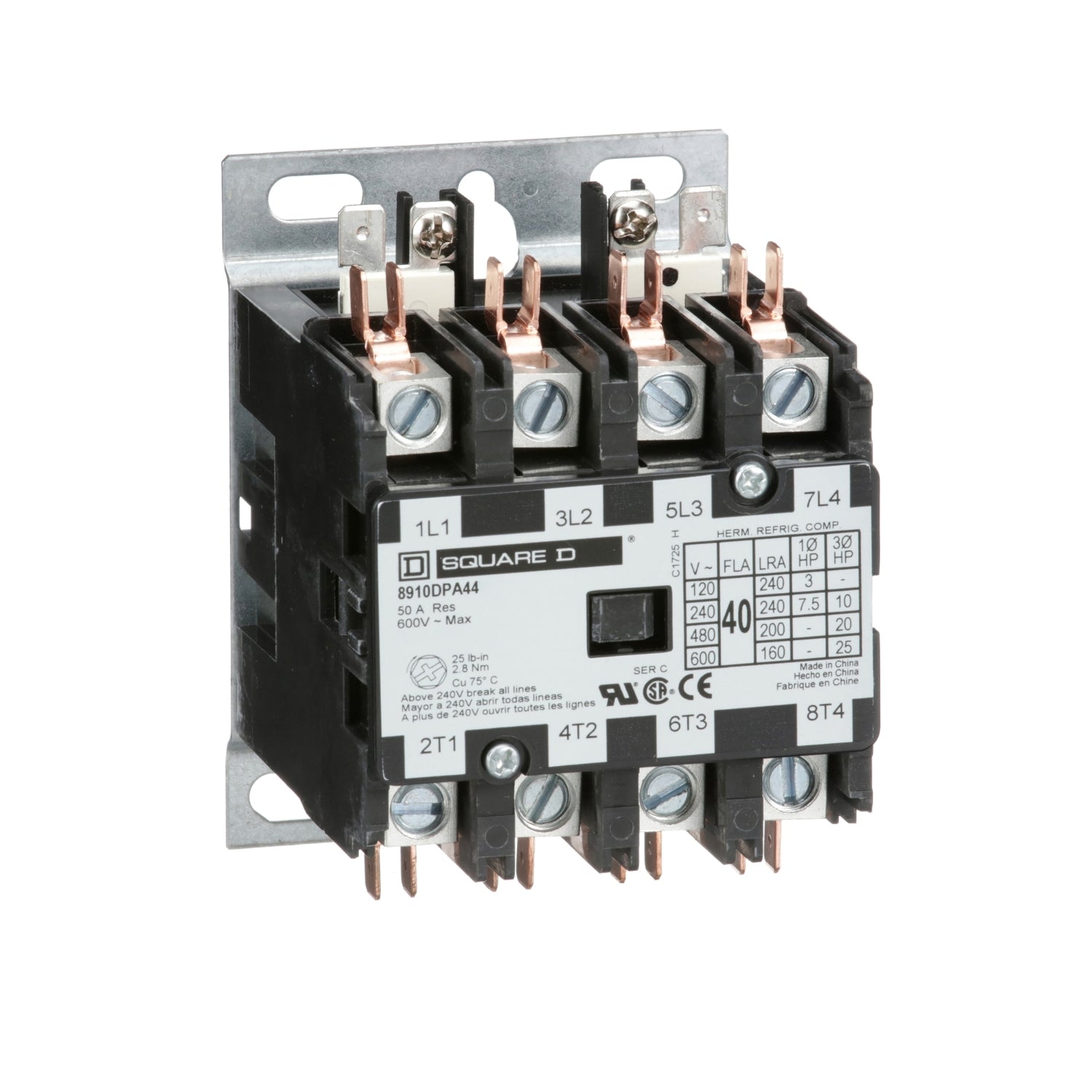

Square D 8910DPA44V04 Contactor | 4 Pole 3 Phase 600V 40A 277V Coil Class 8910

Product Description:
The Square D 8910DPA44V04 is a Class 8910 definite purpose contactor designed for robust motor control applications. It operates at 600V and 40A with a 3-phase configuration and 4 poles, making it suitable for a wide range of industrial uses. This unit includes a 277V AC coil and is built to handle various horsepower ratings across different voltages.

Key Features:
✔ Part Number: 8910DPA44V04
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 4
✔ Horse Power: 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
✔ Aux Contacts: 4 NO
✔ Coil Voltage Maximum: 277V
✔ Full Load Amps: Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
✔ Coil Voltage Minimum: 277V
✔ Frequency: 60 Hz
✔ UPC: 785901342717
✔ GTIN: 00785901342717
✔ Country of Origin: China
✔ Dimensions: 3.17 in x 4 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
