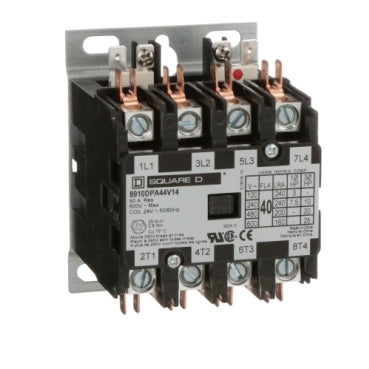

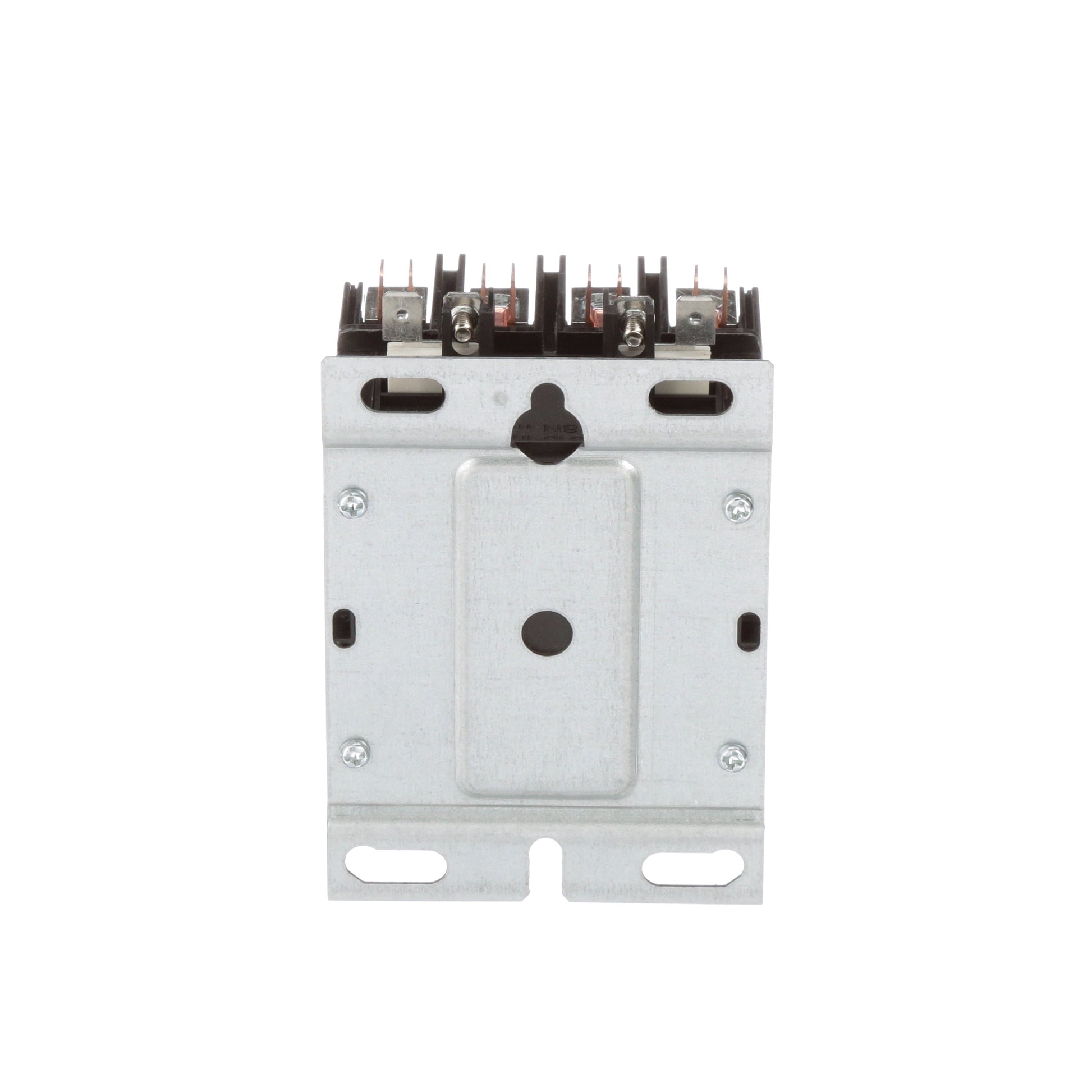

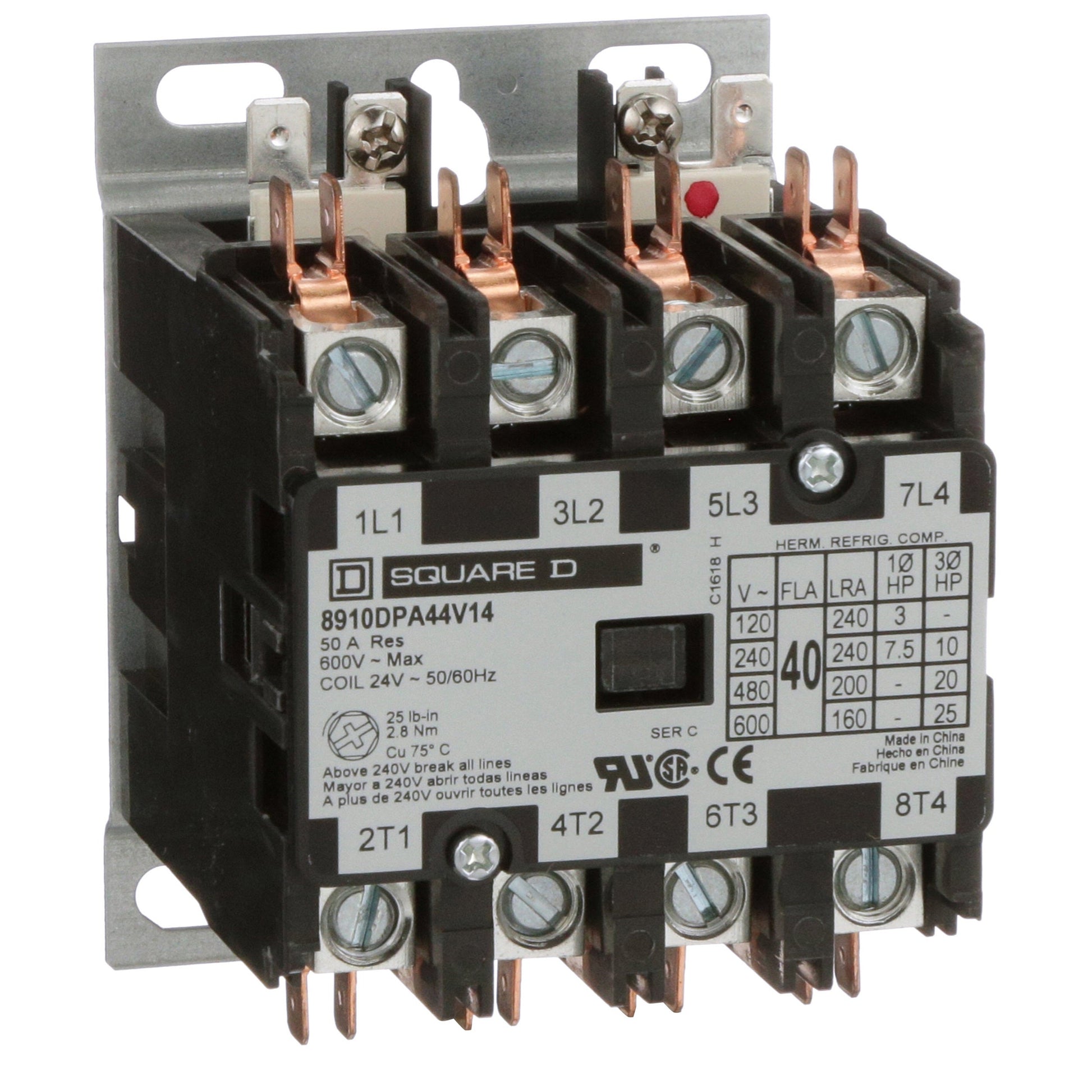

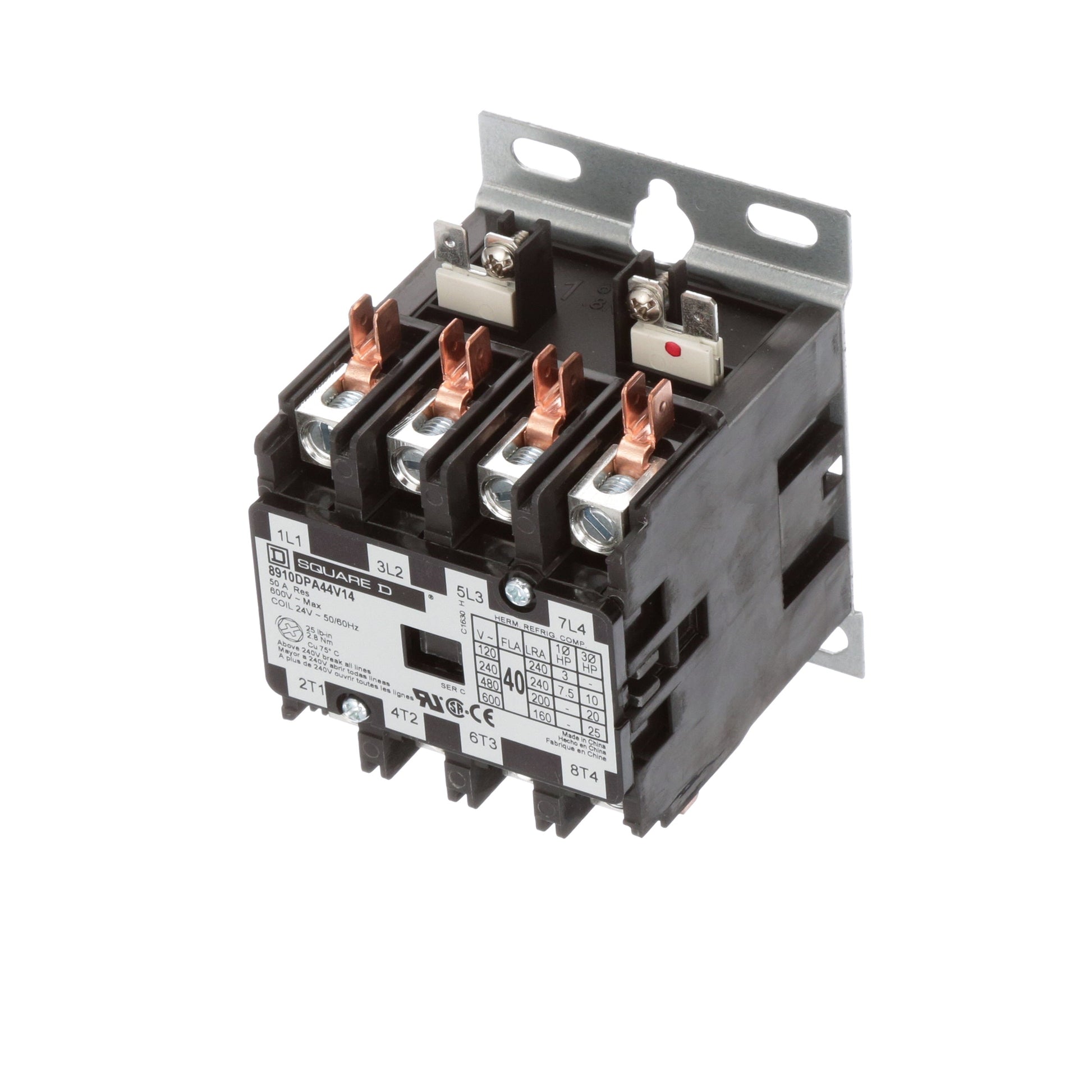

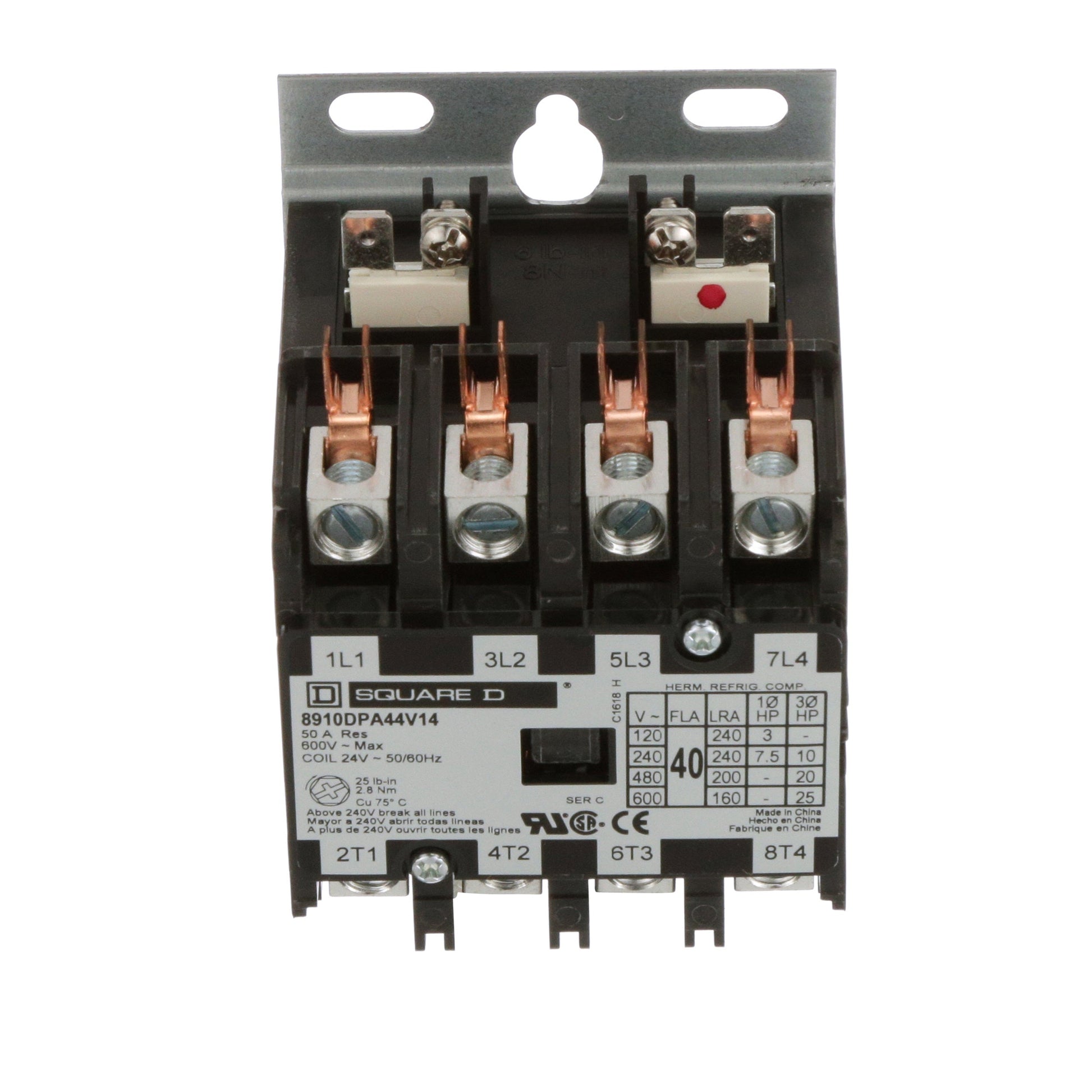

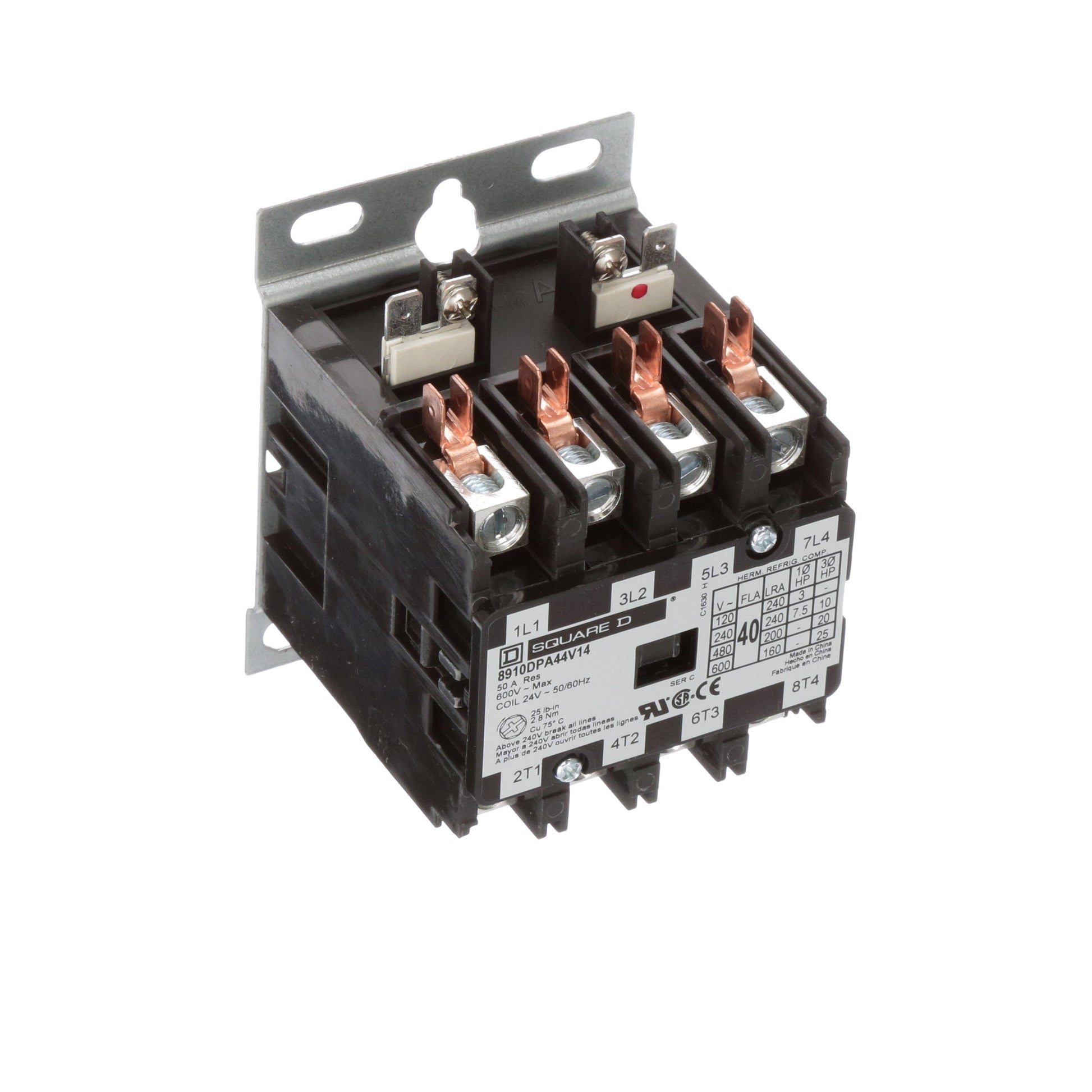

Square D 8910DPA44V14 Contactor 4P 6V 4A 24V Coil Class 8910
Square D 8910DPA44V14 Contactor 4P 6V 4A 24V Coil Class 8910
Price:
Sale
Sold out
Regular price
$186.52 USD
Regular price
$145.28 USD
Sale price
$186.52 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 1 left
Couldn't load pickup availability
Product Description:
The Square D 8910DPA44V14 is a Class 8910 definite purpose contactor designed as a 4-pole starter with a 6V, 4A rating. It supports a wide range of horsepower ratings across different voltages and phases, including 3 hp at 115V AC single-phase up to 25 hp at 575V AC three-phase. This unit is equipped with a 24V coil and includes four normally open auxiliary contacts for versatile motor control applications.
Key Features:
✔ Part Number: 8910DPA44V14
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 6
✔ Amperage: 4
✔ Poles: 4
✔ Horse Power: 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
✔ Aux Contacts: 4 NO
✔ Coil Voltage Maximum: 24V
✔ Full Load Amps: Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
✔ Coil Voltage Minimum: 24V
✔ Frequency: 50/60 Hz
✔ UPC: 785901024491
✔ GTIN: 00785901024491
✔ Country of Origin: China
✔ Dimensions: 3.17 in x 4 in
✔ Weight: 1 lb
✔ Certification: CSA, RoHS, UL Listed
The Square D 8910DPA44V14 is a Class 8910 definite purpose contactor designed as a 4-pole starter with a 6V, 4A rating. It supports a wide range of horsepower ratings across different voltages and phases, including 3 hp at 115V AC single-phase up to 25 hp at 575V AC three-phase. This unit is equipped with a 24V coil and includes four normally open auxiliary contacts for versatile motor control applications.
