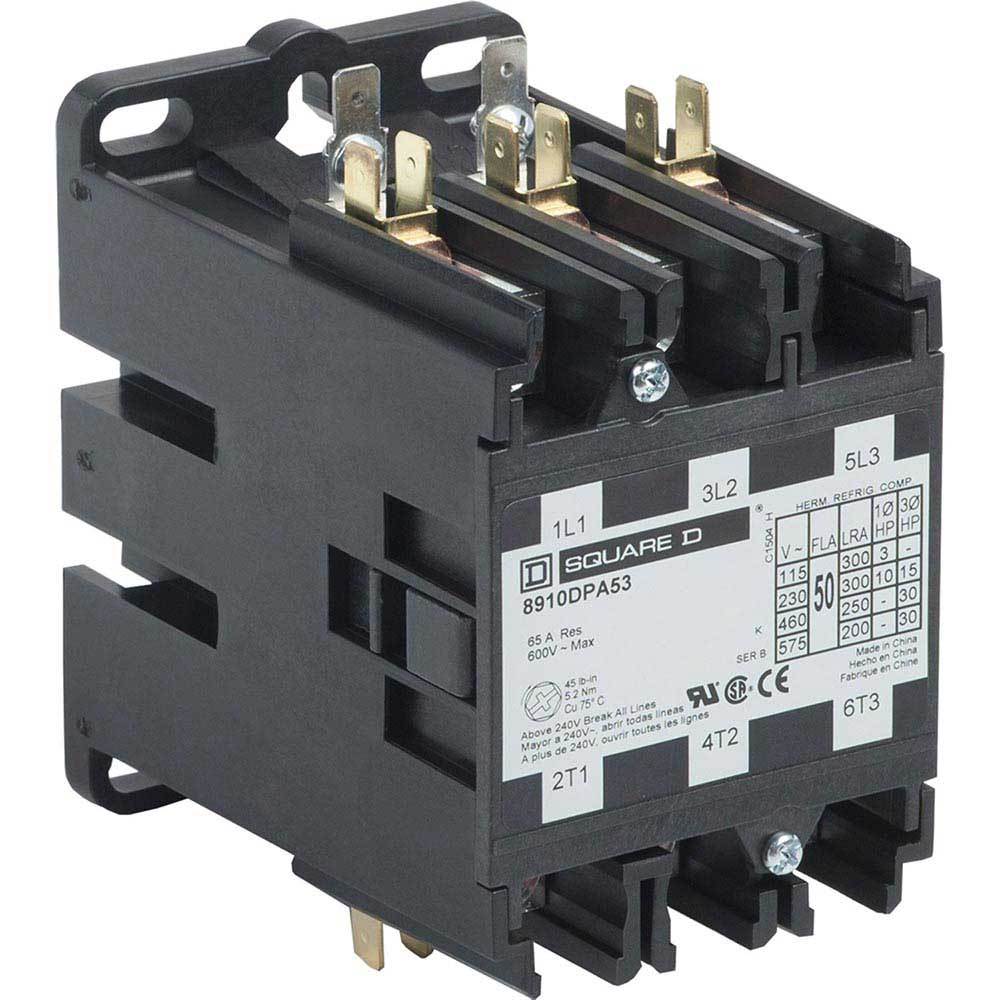

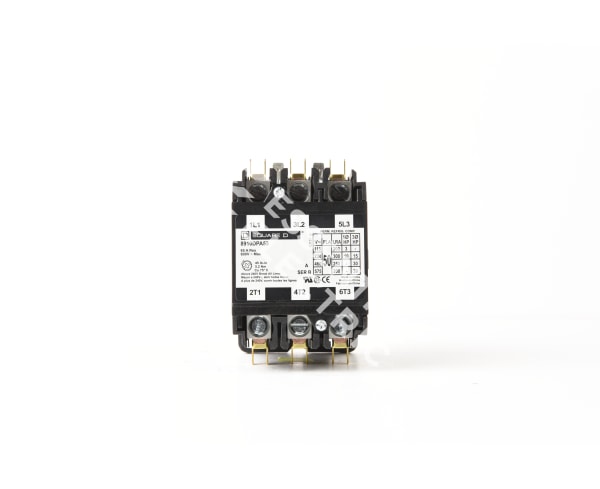

Square D 8910DPA53V06 Contactor 3P 600V 50A 440V Coil Class 8910

Product Description:
The Square D 8910DPA53V06 is a Class 8910 definite purpose contactor designed for 600V, 3-phase, and 50A applications. It is a 3-pole starter with a horsepower rating of up to 30 hp depending on the voltage and phase configuration. This unit comes complete with a 440V AC coil for reliable operation.

Key Features:
✔ Part Number: 8910DPA53V06
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA5
✔ Voltage: 600
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 3 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-15 hp 230 V AC, 3 phases-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 480V
✔ Full Load Amps: Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
✔ Coil Voltage Minimum: 440V
✔ Frequency: 50/60 Hz
✔ UPC: 785901081128
✔ GTIN: 00785901081128
✔ Country of Origin: China
✔ Dimensions: 2.56 in x 4.06 in
✔ Weight: 1
✔ Certification: CSA, REACH, RoHS, UL Listed
