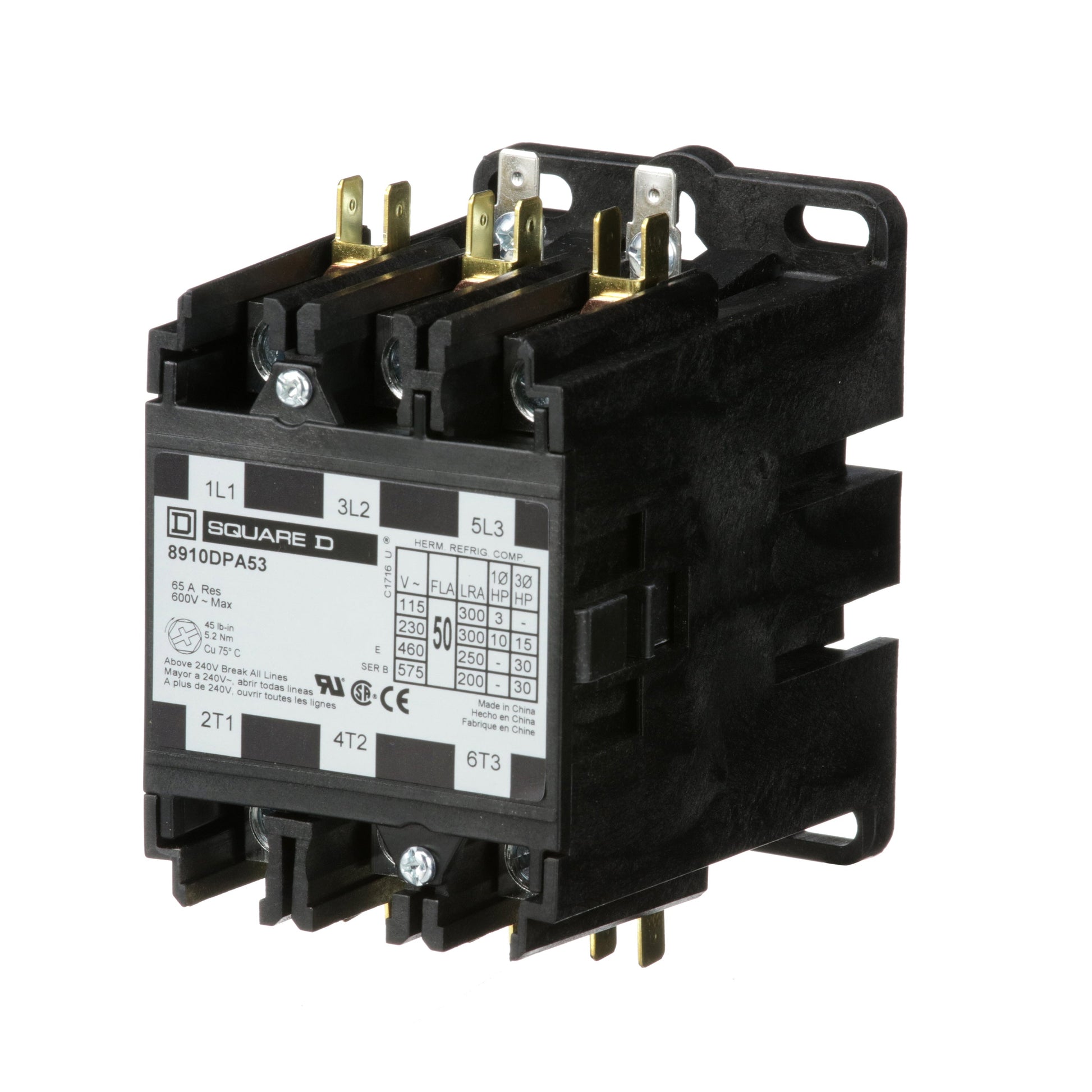

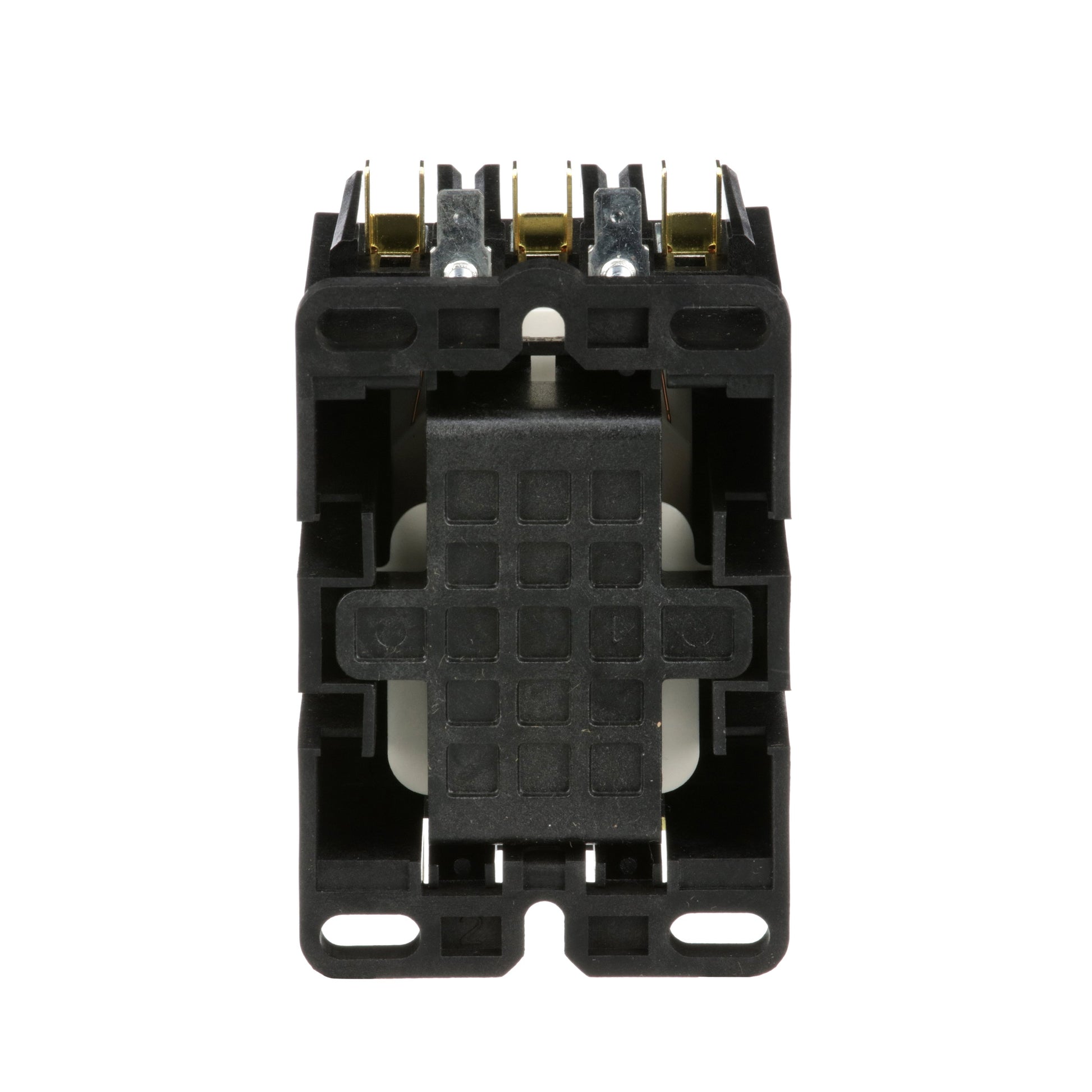

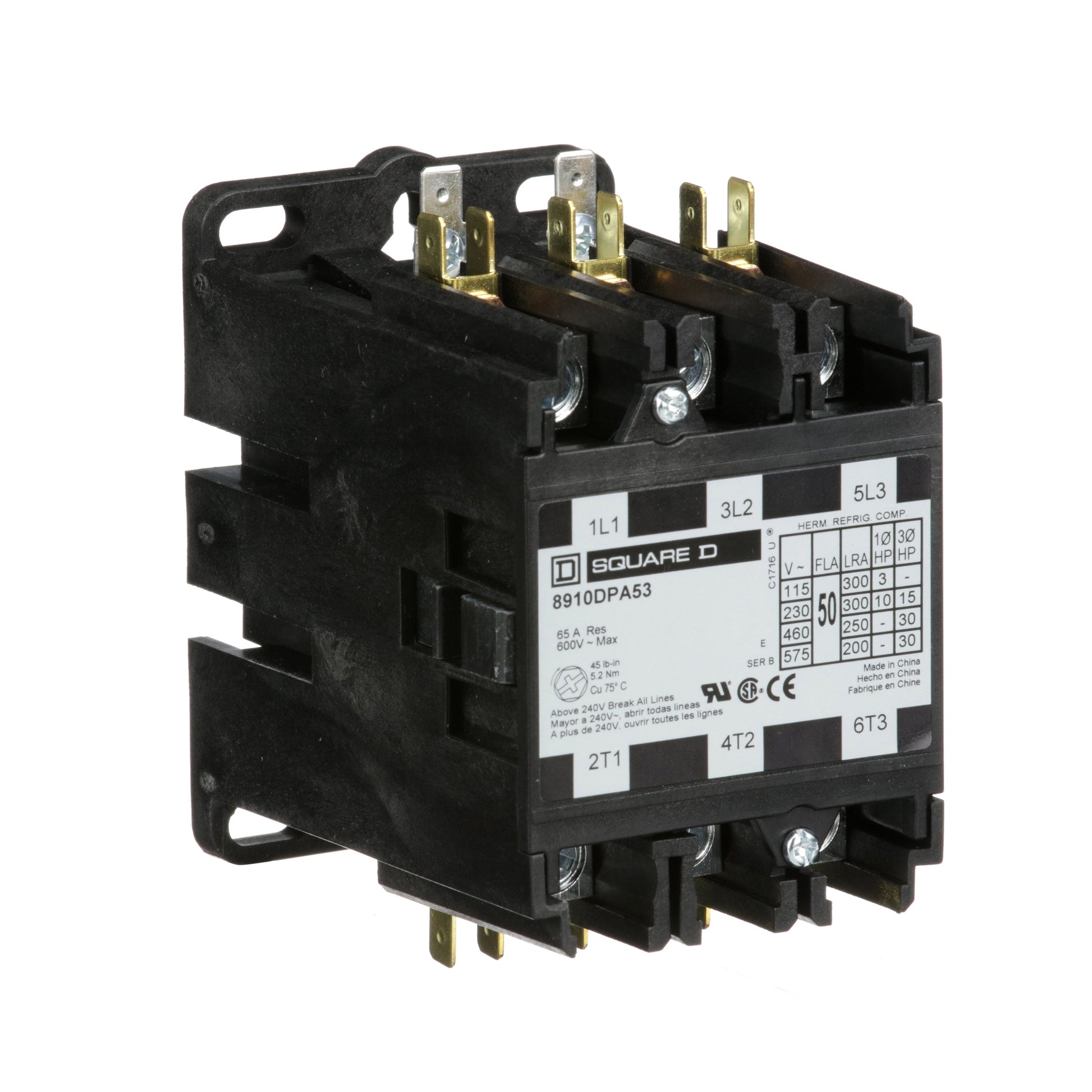

Square D 8910DPA53V14 Contactor | 3P 600V 50A 24V Coil Class 8910

Product Description:
The Square D 8910DPA53V14 is a Class 8910 definite purpose contactor designed for motor control applications. It is a 3-pole, 50A starter rated for 600V and supports a range of horsepower ratings across different voltages and phases. This unit comes complete with a 24V coil for reliable operation.

Key Features:
✔ Part Number: 8910DPA53V14
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA5
✔ Voltage: 600
✔ Amperage: 50
✔ Poles: 3
✔ Horse Power: 3 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-15 hp 230 V AC, 3 phases-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 24V
✔ Full Load Amps: Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
✔ Coil Voltage Minimum: 24V
✔ Frequency: 50/60 Hz
✔ UPC: 785901080770
✔ GTIN: 00785901080770
✔ Country of Origin: China
✔ Dimensions: 2.56 in x 4.06 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
