Square D 8910DPA63V06 Contactor | 3P 3Pole 600V 60A 440V Coil Class 8910

Product Description:

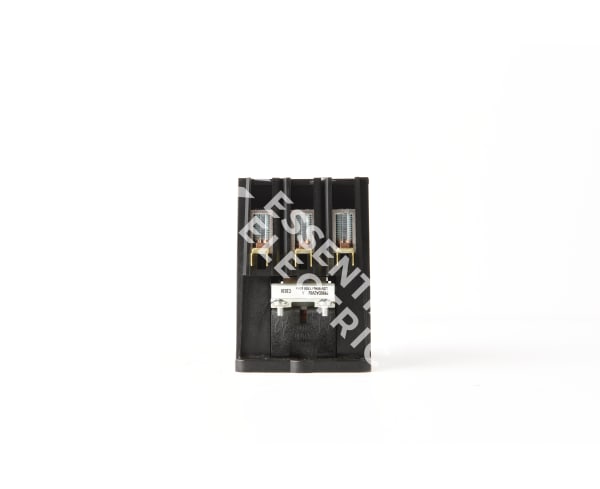

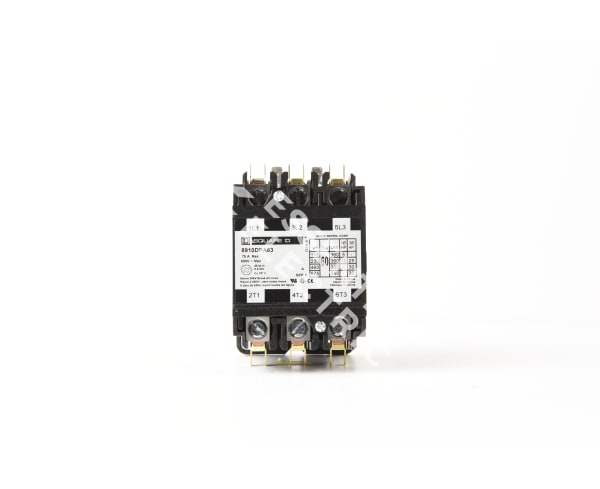

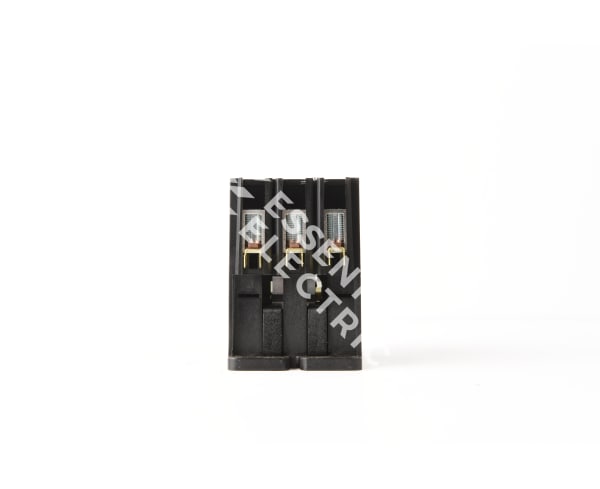

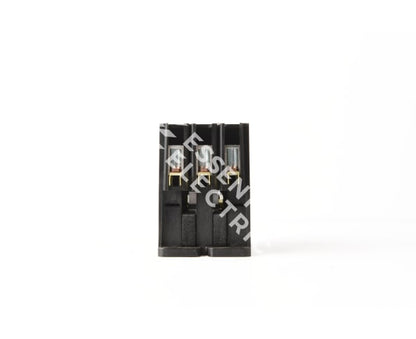

The Square D 8910DPA63V06 is a Class 8910 definite purpose contactor designed for robust motor control applications. It is a 3-pole, 3-phase starter rated for 600V and 60A, supporting a range of horsepower ratings across different voltages. This unit is equipped with a 440VAC coil and includes three normally open auxiliary contacts for enhanced control functionality.

Key Features:
✔ Part Number: 8910DPA63V06
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA6
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 5 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases-25 hp 230 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 480V
✔ Full Load Amps: Full Load Amps-Inductive 60A Full Load Amps-Resistive 75A
✔ Coil Voltage Minimum: 440V
✔ Frequency: 50/60 Hz
✔ UPC: 785901081135
✔ GTIN: 00785901081135
✔ Country of Origin: China
✔ Dimensions: 2.56 in x 4.06 in
✔ Weight: 1
✔ Certification: CSA, REACH, RoHS, UL Listed
