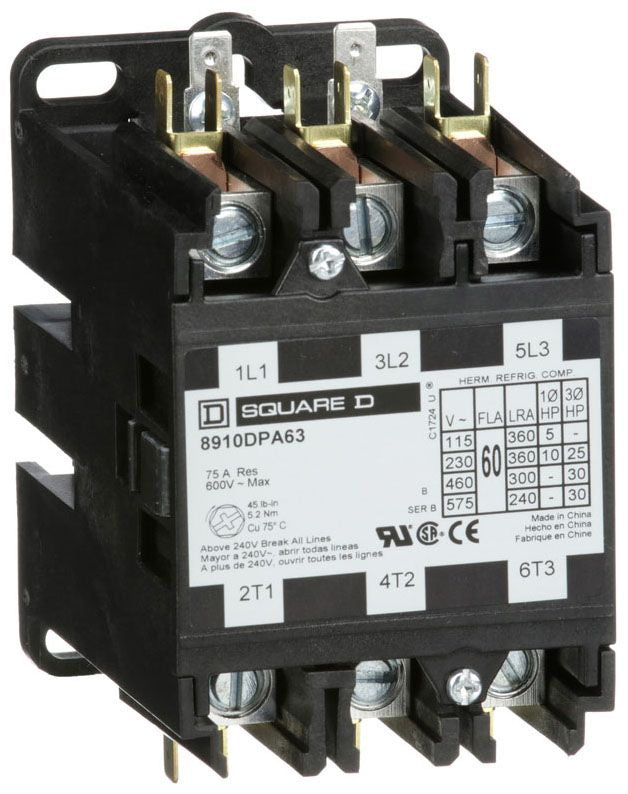

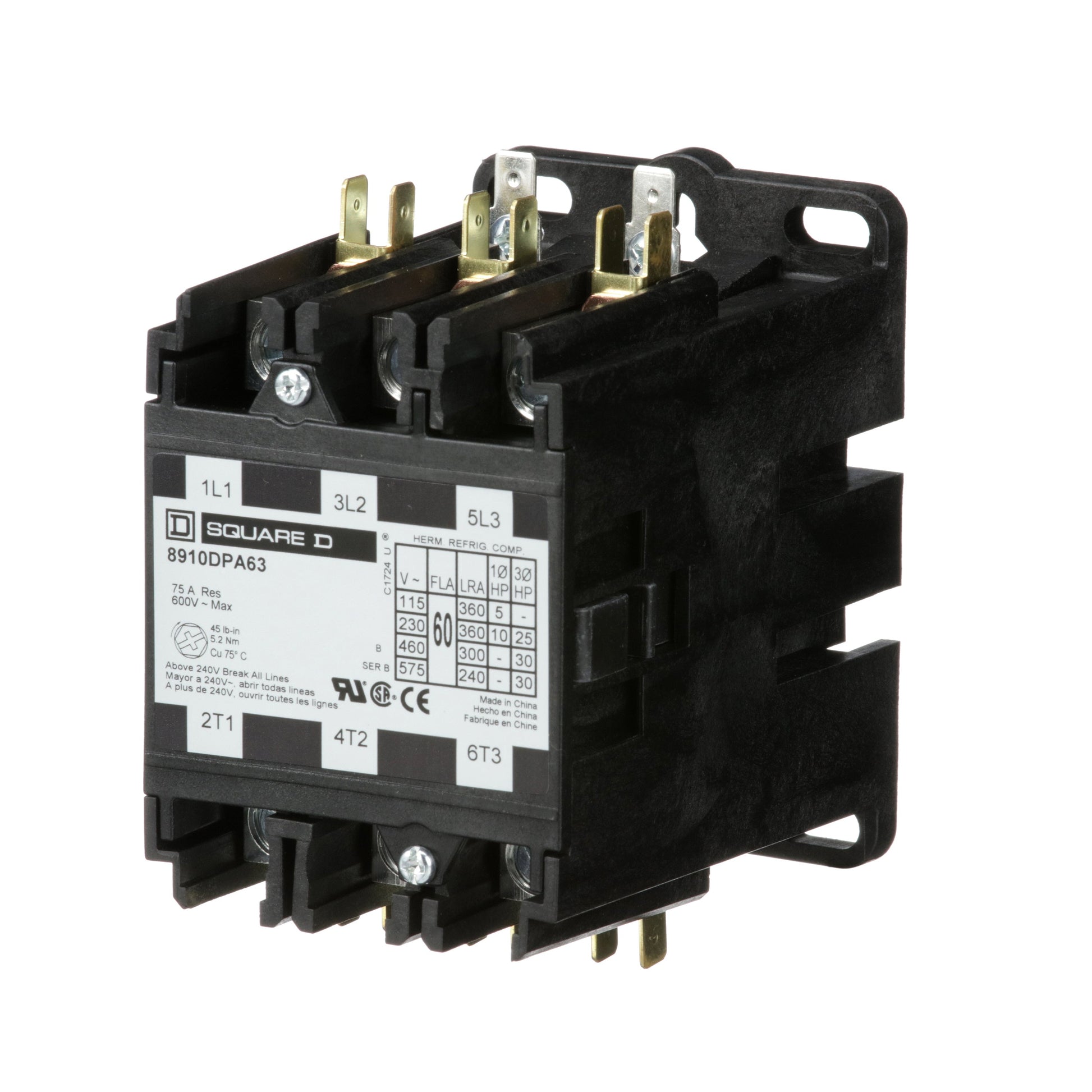

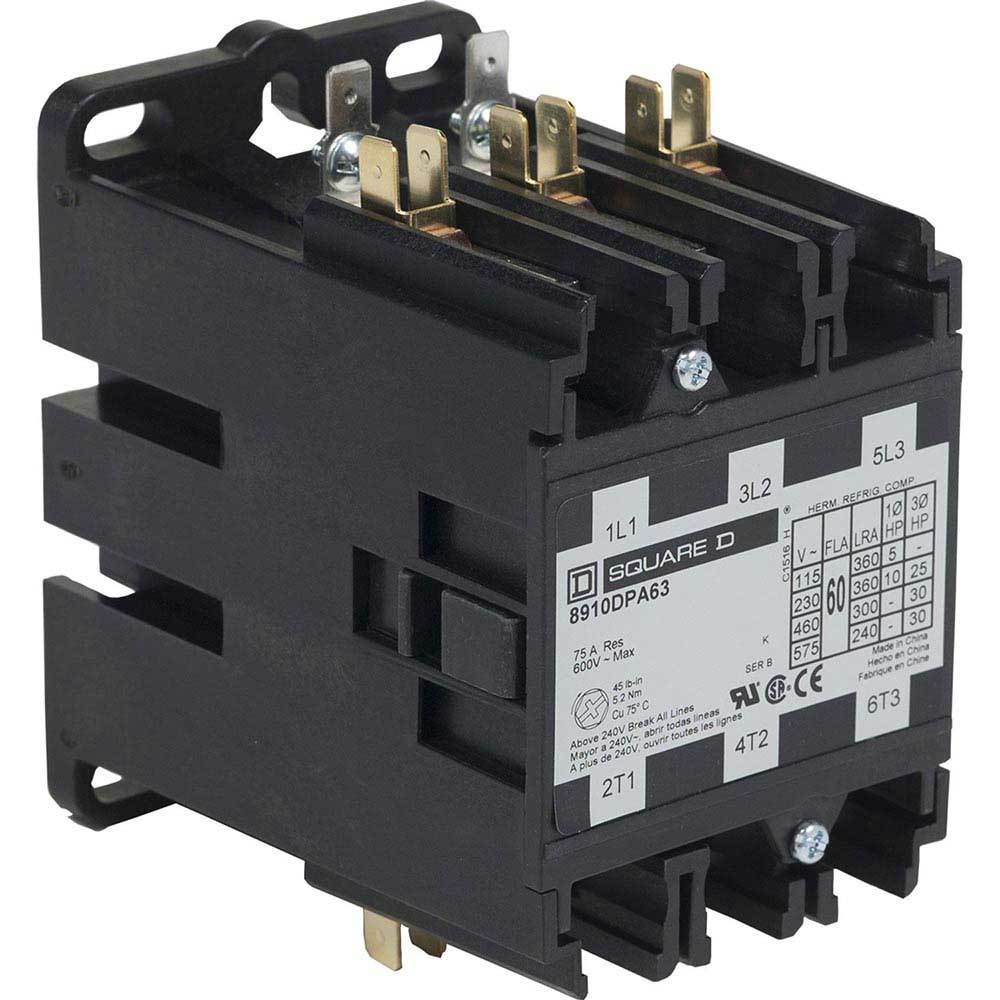

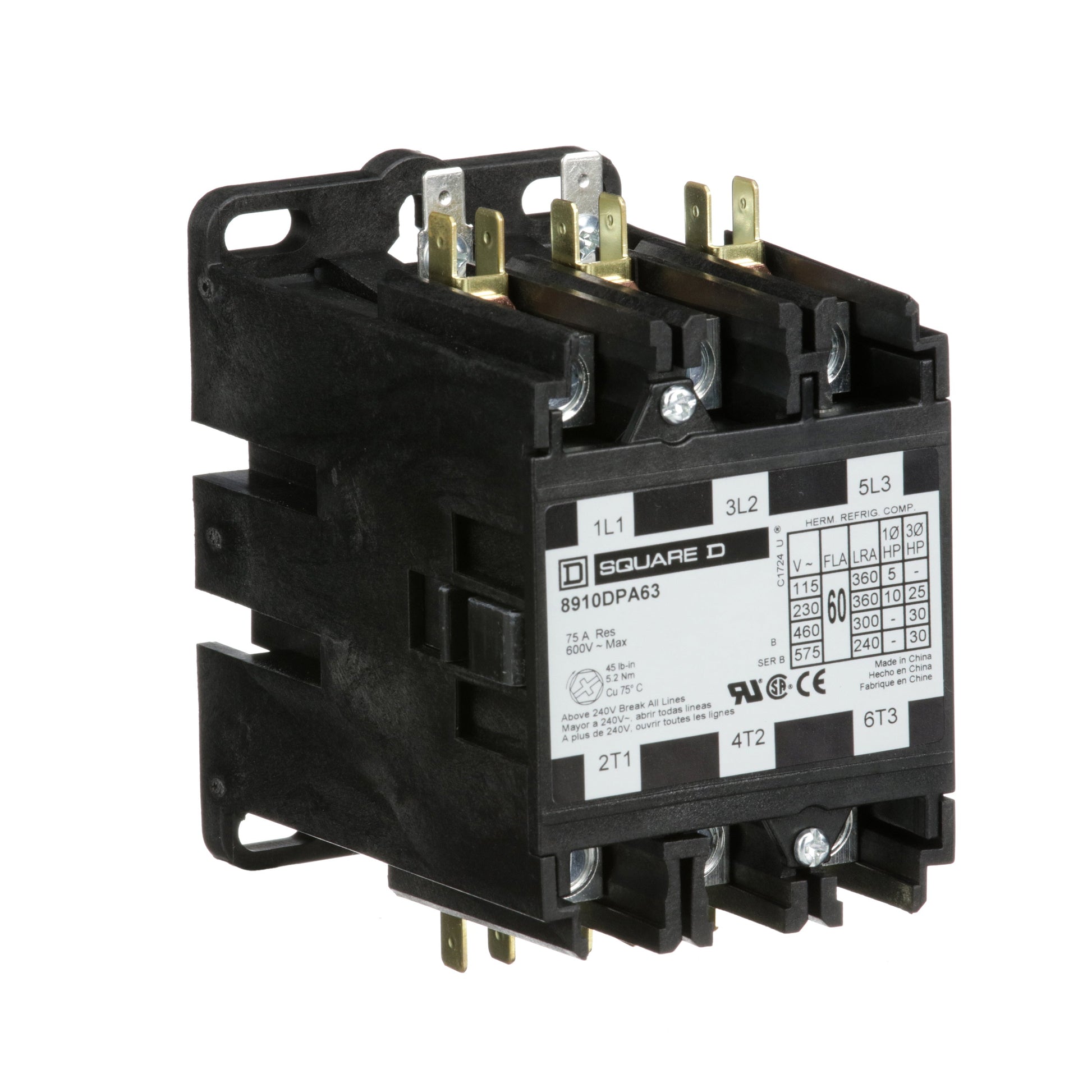

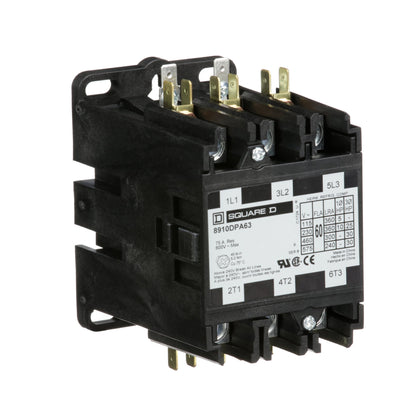

Square D 8910DPA63V09 Contactor | 3P 3P 600V 60A 220V Coil Class 8910

Product Description:
The Square D 8910DPA63V09 is a Class 8910 definite purpose contactor designed for 600V, 3-phase applications. It handles up to 60A and supports a range of horsepower ratings across different voltages and phases. This 3-pole starter includes a 220V AC coil and is built for reliable motor control.

Key Features:
✔ Part Number: 8910DPA63V09
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA6
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 5 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases-25 hp 230 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 220V
✔ Full Load Amps: Full Load Amps-Inductive 60A Full Load Amps-Resistive 75A
✔ Coil Voltage Minimum: 220V
✔ Frequency: 50 Hz
✔ UPC: 785901080794
✔ GTIN: 00785901080794
✔ Country of Origin: China
✔ Dimensions: 2.56 in x 4.06 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
