Product Description:

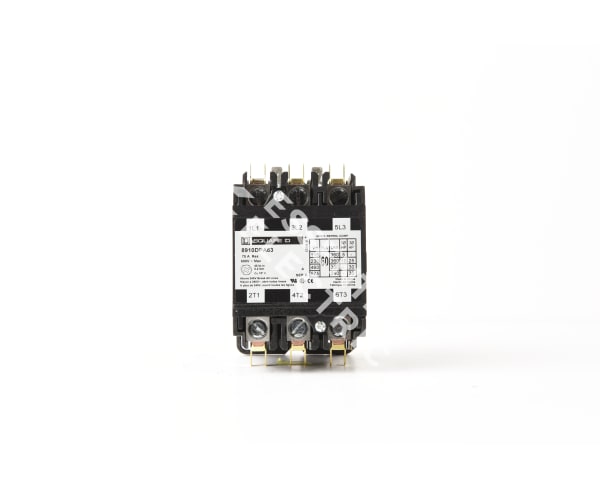

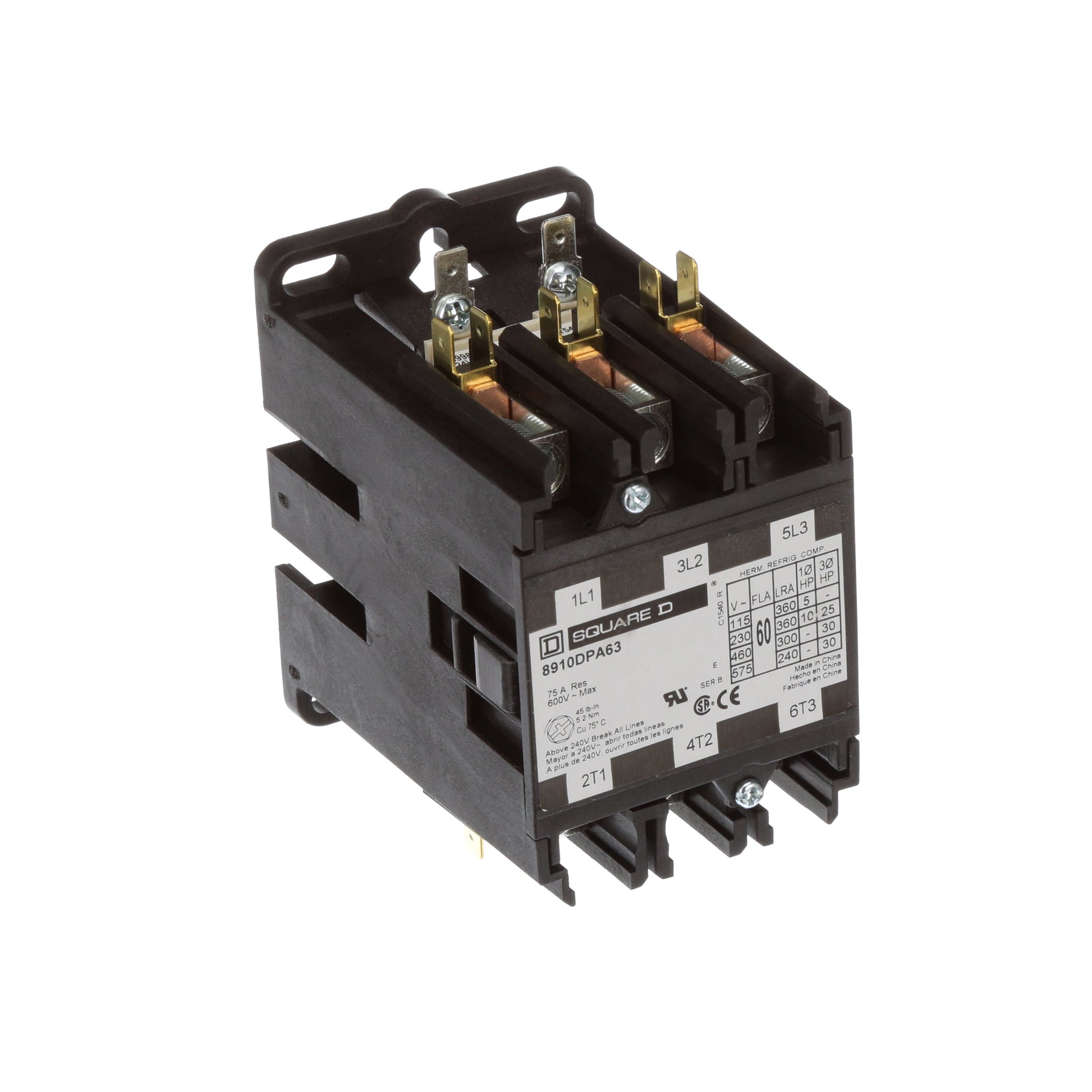

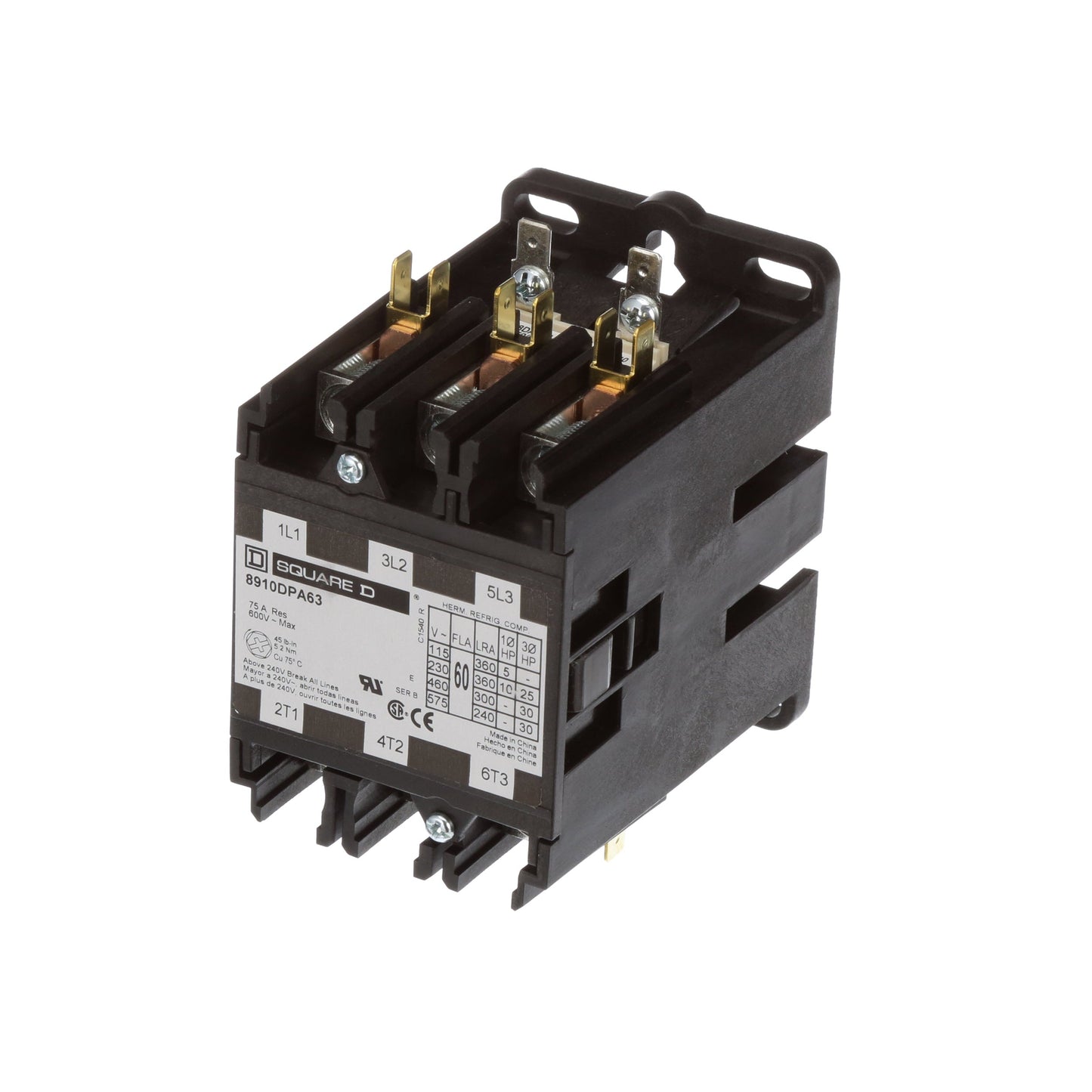

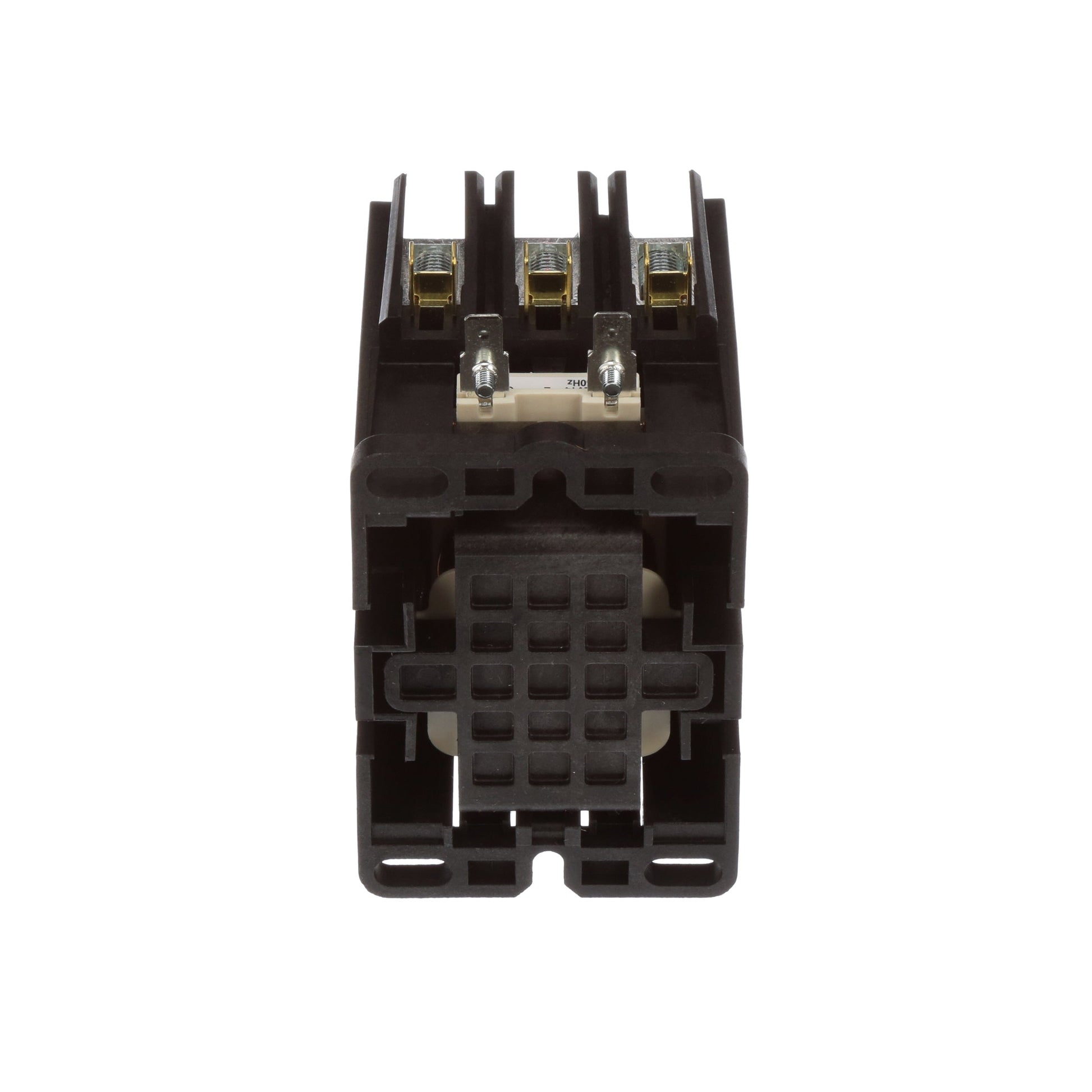

The Square D 8910DPA63V14 is a 600V 3-phase 60A 3-pole definite purpose contactor. It features a 24V coil and supports various horsepower ratings across different voltage configurations. This contactor is ideal for motor control applications in industrial settings. It includes 3 normally open auxiliary contacts and operates at 50/60 Hz.
Key Features:
✔ Part Number: 8910DPA63V14
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA6
✔ Voltage: 600
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 5 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases-25 hp 230 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 24V
✔ Full Load Amps: Full Load Amps-Inductive 60A Full Load Amps-Resistive 75A
✔ Coil Voltage Minimum: 24V
✔ Frequency: 50/60 Hz
✔ UPC: 785901080831
✔ GTIN: 00785901080831
✔ Country of Origin: China
✔ Dimensions: 2.56 in x 4.06 in
✔ Weight: 1
✔ Certification: CSA, RoHS, UL Listed
