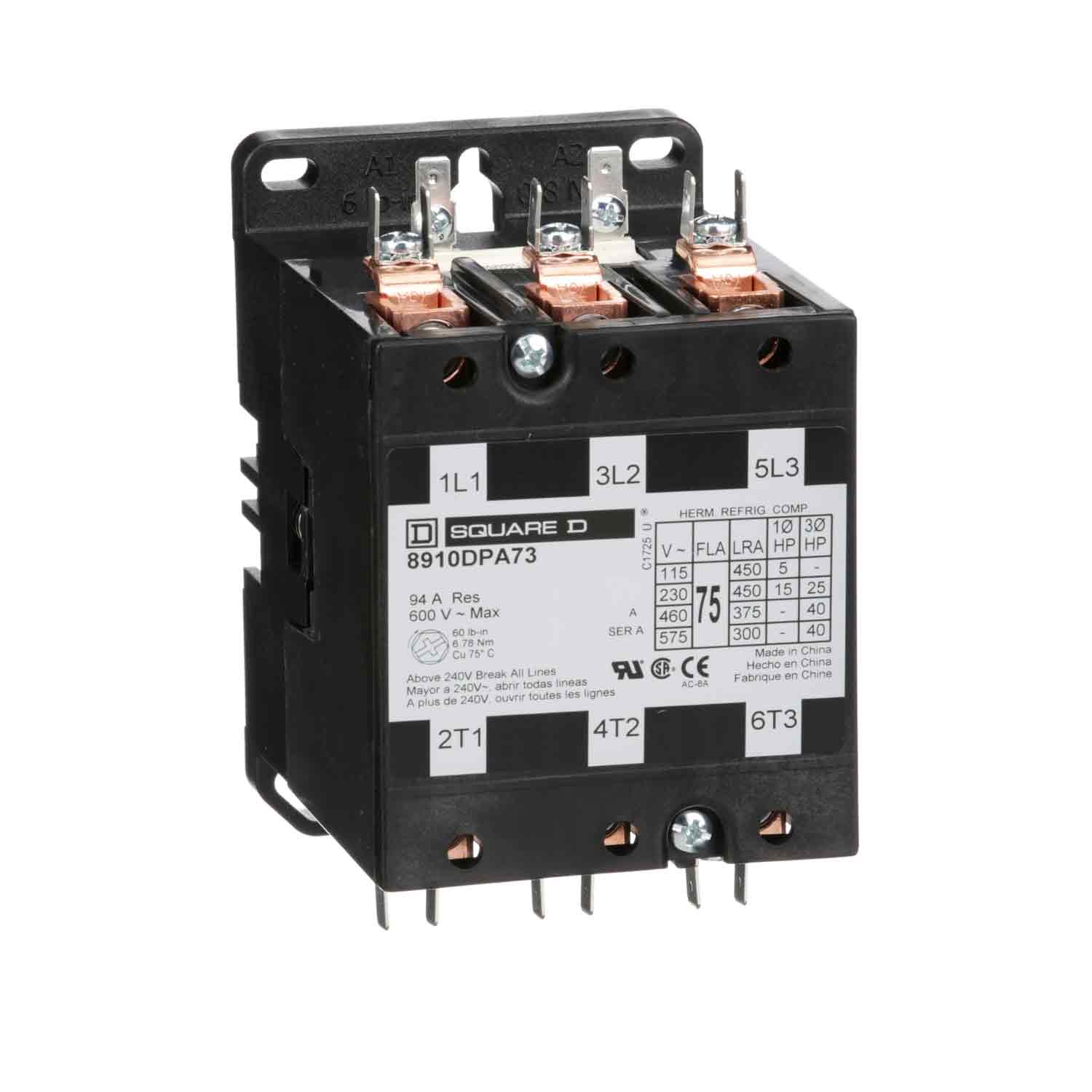

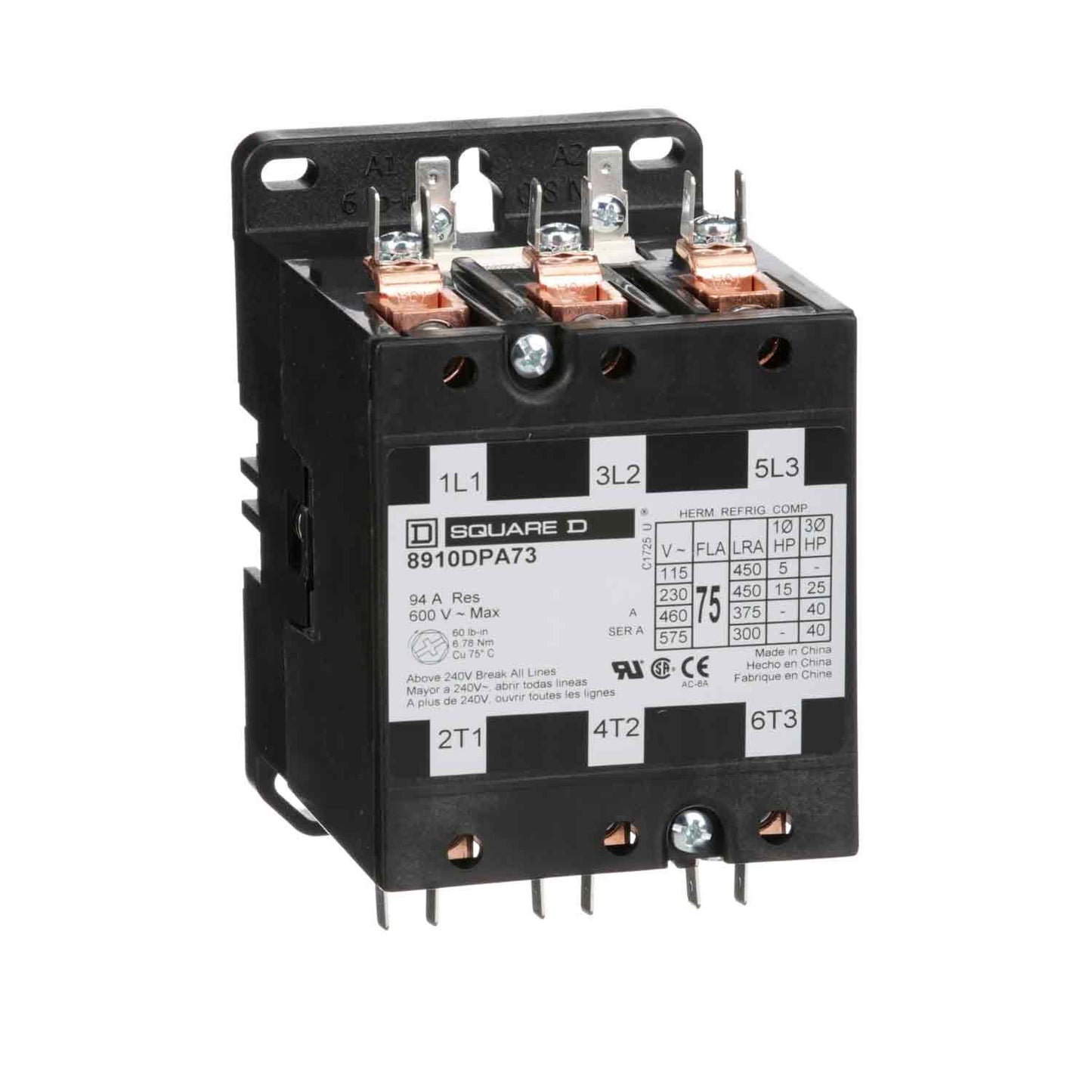

Square D 8910DPA73V09 Contactor | 3P 3PH 600V 75A 220VV Class 8910

Product Description:
The Square D 8910DPA73V09 is a 600V 3-phase contactor with a 75A rating and 3 poles. It supports various horsepower ratings, including 5 hp at 115V AC (1 phase) up to 40 hp at 575V AC (3 phases). This Class 8910 contactor comes with a 220V coil and includes 3 normally open auxiliary contacts.

Key Features:
✔ Part Number: 8910DPA73V09
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600
✔ Amperage: 75
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 5 hp 115 V AC, 1 phase-15 hp 230 V AC, 1 phase-25 hp 230 V AC, 3 phases-40 hp 460 V AC, 3 phases-40 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 220V
✔ Full Load Amps: Full Load Amps-Inductive 75A Full Load Amps-Resistive 94A
✔ Coil Voltage Minimum: 220V
✔ UPC: 785901118374
✔ GTIN: 00785901118374
✔ Country of Origin: Mexico
✔ Dimensions: Depth 4.37 in (111 mm) Width 4.02 in (102 mm) Height 2.64 in (67 mm)
✔ Weight: 1.66
✔ Certification: UL RECOGNIZED-CSA
