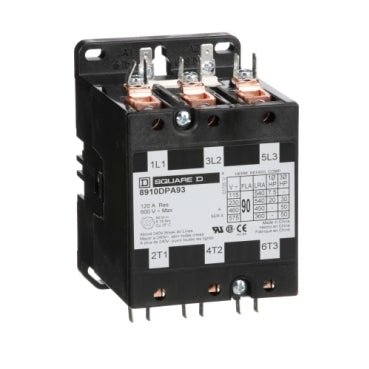

Square D 8910DPA93V09 Contactor 3P 600V 90A 220V Coil Class 8910

Product Description:
The Square D 8910DPA93V09 is a Class 8910 definite purpose contactor designed for robust motor control applications. It operates at 600V and handles 90A across 3 poles and 3 phases. This unit is equipped with a 220V AC coil and supports a wide range of horsepower ratings for various voltage configurations.

Key Features:
✔ Part Number: 8910DPA93V09
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA9
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 7.5 hp 115 V AC, 1 phase-20 hp 230 V AC, 1 phase-30 hp 230 V AC, 3 phases-50 hp 460 V AC, 3 phases-50 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 220V
✔ Full Load Amps: Full Load Amps-Inductive 90A Full Load Amps-Resistive 120A
✔ Coil Voltage Minimum: 220V
✔ Frequency: 50 Hz
✔ UPC: 785901118404
✔ GTIN: 00785901118404
✔ Country of Origin: China
✔ Dimensions: 3.39 in x 5.2 in
✔ Weight: 1.64
✔ Certification: CSA, RoHS, UL Listed
