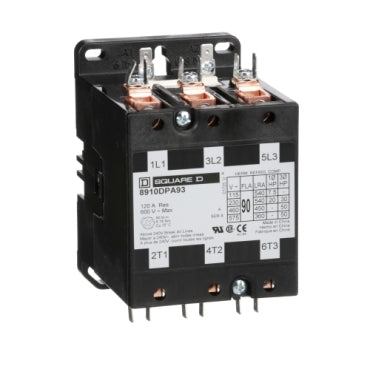

Square D 8910DPA93V14 Contactor | 3P 3PH 600V 90A 24VV Class 8910

Product Description:
The Square D 8910DPA93V14 is a 600V 3 phase 90A 3 pole starter with a 24VV coil. It offers horsepower ratings from 7.5 hp at 115V AC to 50 hp at 575V AC, suitable for various motor control applications. This Class 8910 contactor includes 3 NO auxiliary contacts and operates at 50/60 Hz.

Key Features:
✔ Part Number: 8910DPA93V14
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA9
✔ Voltage: 600
✔ Amperage: 90
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 7.5 hp 115 V AC, 1 phase-20 hp 230 V AC, 1 phase-30 hp 230 V AC, 3 phases-50 hp 460 V AC, 3 phases-50 hp 575 V AC, 3 phases
✔ Aux Contacts: 3 NO
✔ Coil Voltage Maximum: 24V
✔ Full Load Amps: Full Load Amps-Inductive 90A Full Load Amps-Resistive 120A
✔ Coil Voltage Minimum: 24V
✔ Frequency: 50/60 Hz
✔ UPC: 785901024583
✔ GTIN: 00785901024583
✔ Country of Origin: China
✔ Dimensions: 3.39 in x 5.2 in
✔ Weight: 1.64
✔ Certification: CSA, RoHS, UL Listed
