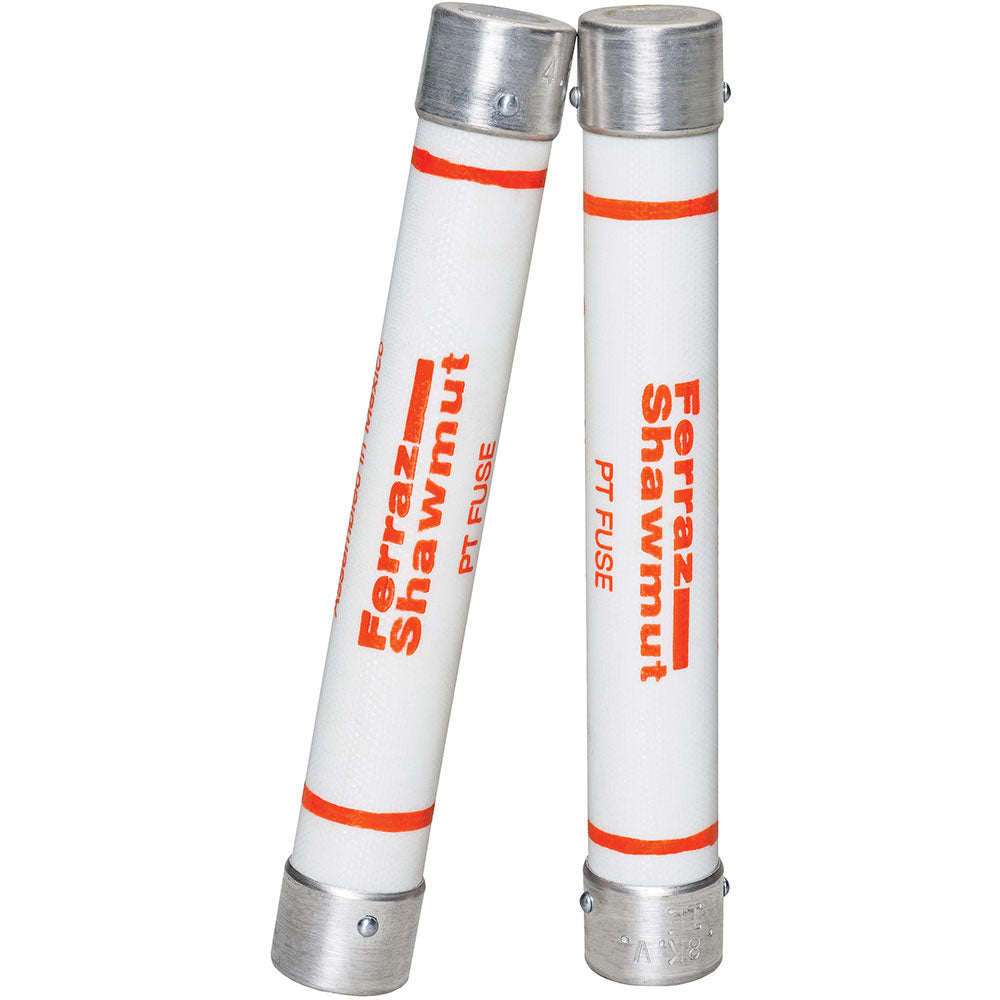

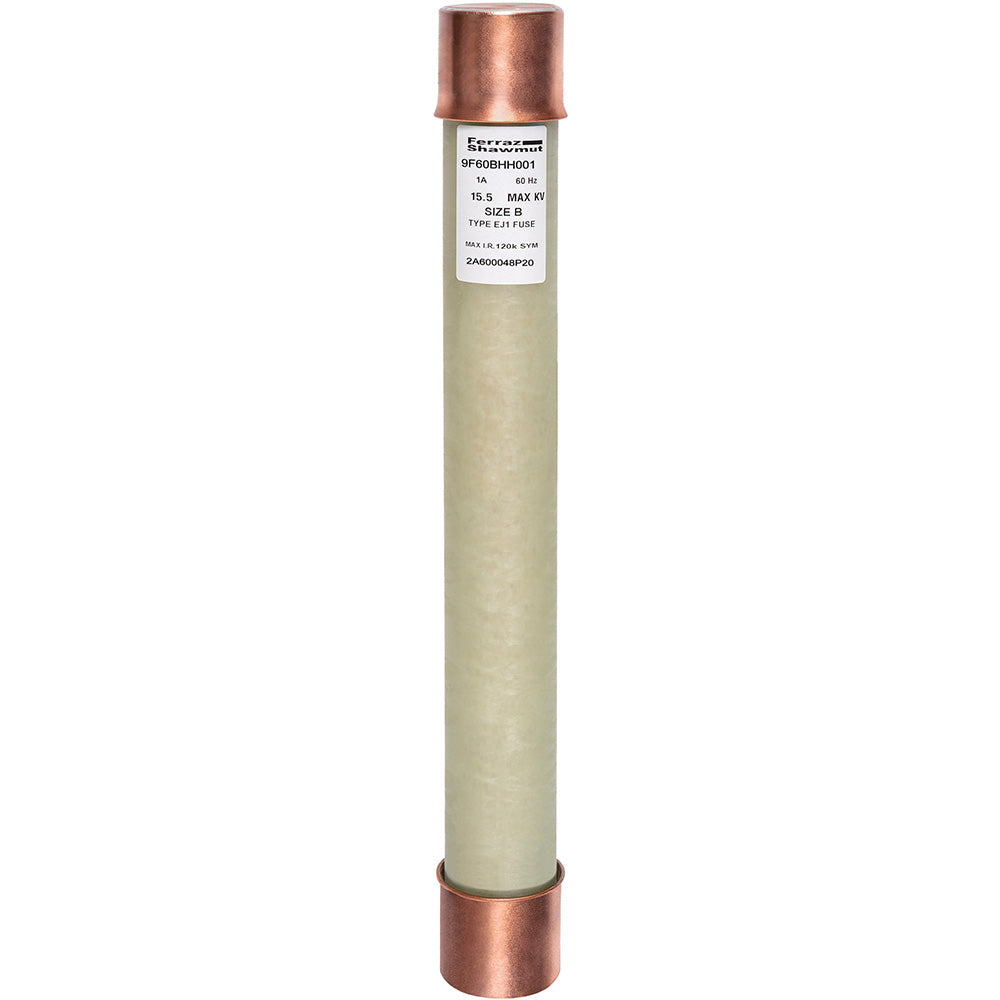

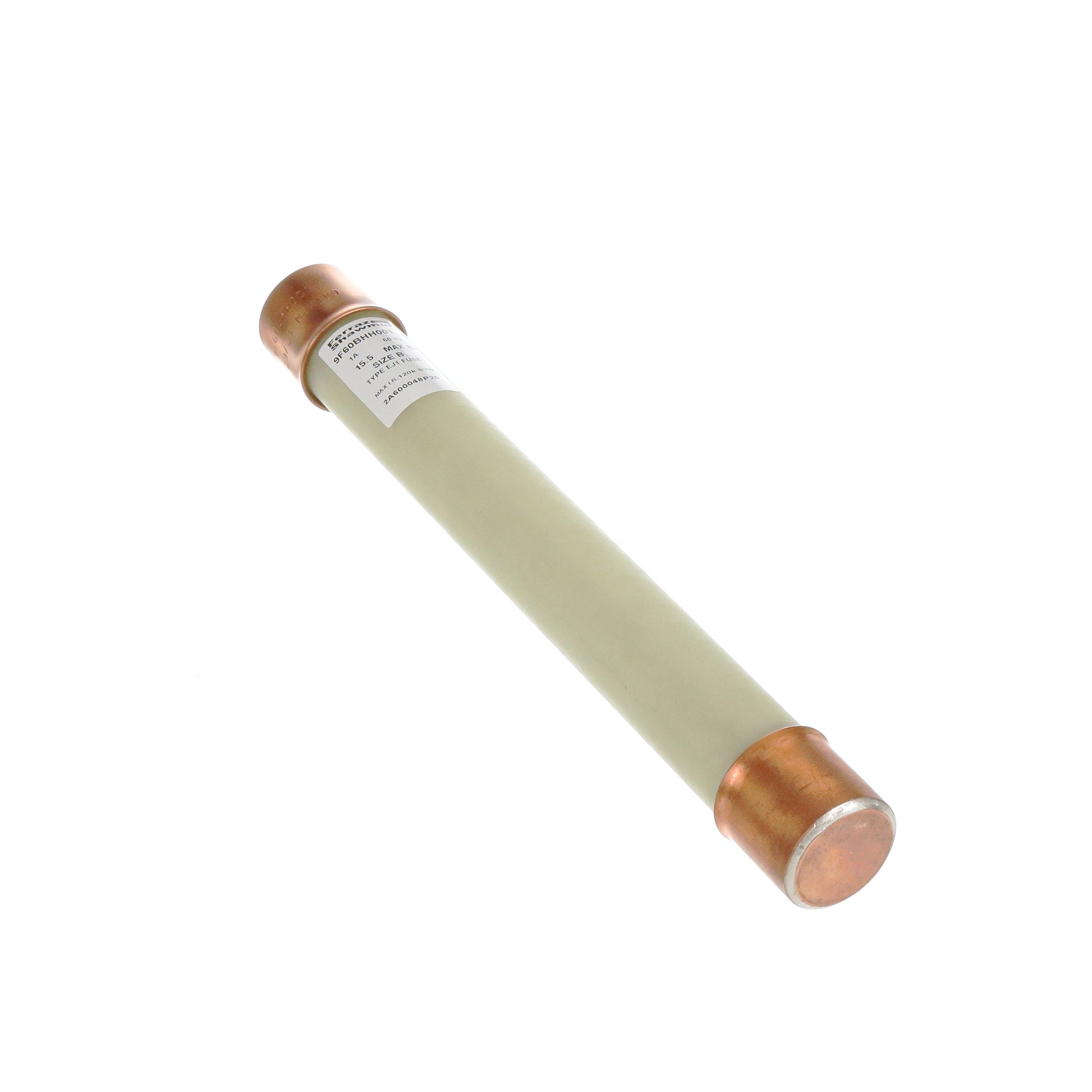

9F60BHH001 Mersen 1A 15.5kV PT Fuse, Ferrule Clip Mount, 120kA IR

9F60BHH001 Mersen 1A 15.5kV PT Fuse, Ferrule Clip Mount, 120kA IR

Pulling a blown PT fuse out of your 15.5kV gear? The Mersen 9F60BHH001 drops straight into standard fuse clips and handles primary protection on potential transformers and control power transformers. It is a 1A, 15500V current-limiting fuse with a 120kA interrupting rating, so it clears hard faults and keeps let-through energy off your downstream gear.

This is the 9F60-series (BHH) Amp-Trap build with copper ferrule ends, an epoxy body that holds up in dirty switchgear, and a visual indicator so you can spot an open fuse at a glance. E-rated EJ-1, UL listed, and built to interchange with other brands' ferrule clips.

Common Applications

• Primary protection on potential transformers
• Control power transformer circuits
• 15.5kV switchgear and metering cabinets
• Medium-voltage current-limiting fuse replacements

Key Features

• Drop-in ferrule fit: Goes right into standard clips, no adapters needed.
• 120kA interrupting: Clears serious faults in medium-voltage circuits.
• Current-limiting: Cuts let-through energy to protect the transformer.
• Visual indicator: Tells you at a glance which fuse is open.
• Epoxy body: Takes the heat and grime of real switchgear.

Specifications

• Manufacturer: Mersen (formerly Ferraz Shawmut)
• Catalog Number: 9F60BHH001
• Series: 9F60 Amp-Trap, BHH
• Fuse Type: Potential Transformer, Current-Limiting
• Rating Class: E-Rated EJ-1
• Amps: 1 A
• Voltage: 15500 VAC (15.5 kV)
• Interrupting Rating: 120 kA AC
• Frequency: 50/60 Hz
• Mounting: Clip
• Terminal: Copper Ferrule
• Indicator: Visual
• Body: Epoxy
• Listings: UL Listed, RoHS

Product Identification

• Country of Origin: Mexico
• Dimensions: 1.56 in Dia x 12.88 in L
• Weight: 1.8 lb
• UPC/EAN: 782001398040

FAQ

Will this drop into my existing clips? Yes. It is a standard ferrule fuse that mounts in standard 15.5kV clips.

What does it protect? Primary windings on potential transformers and control power transformers.

What is the interrupting rating? 120 kA AC.

How do I know when it is blown? The visual indicator pops to show an open fuse.

Is it UL listed? Yes, UL listed and E-rated EJ-1.
