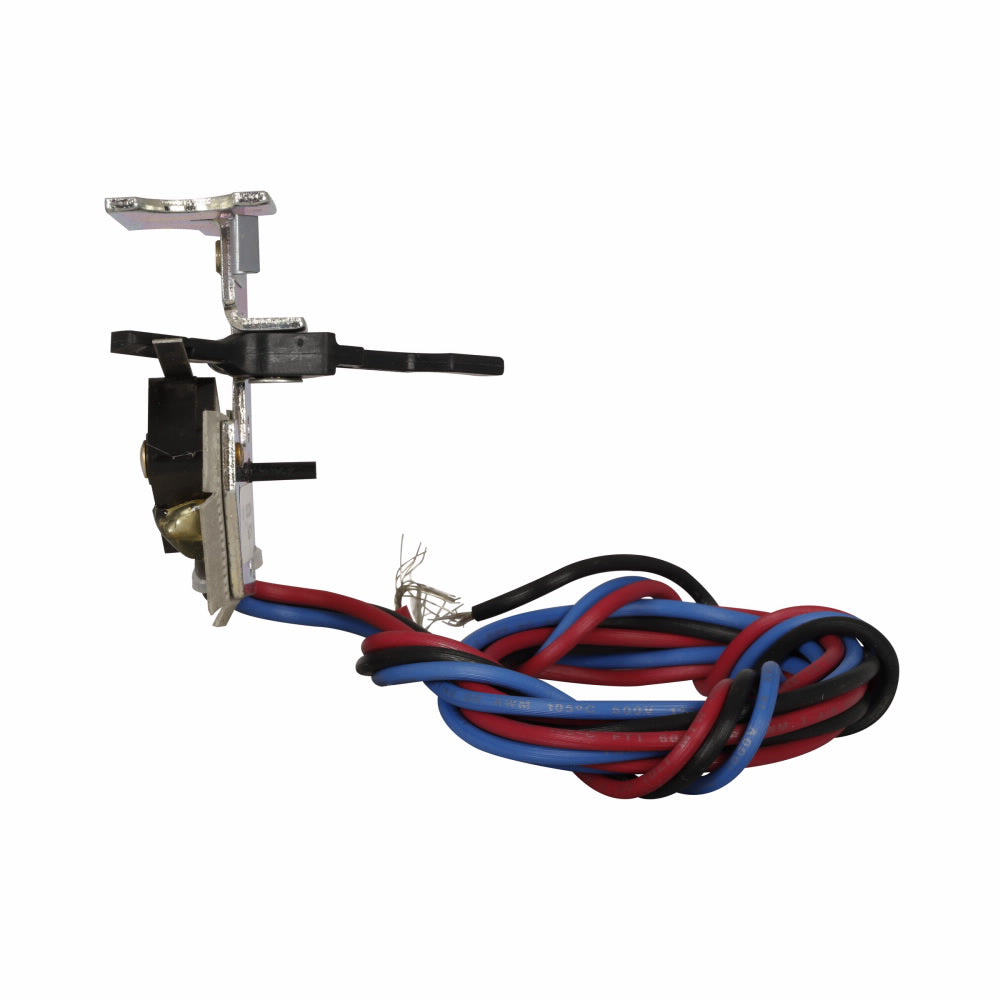

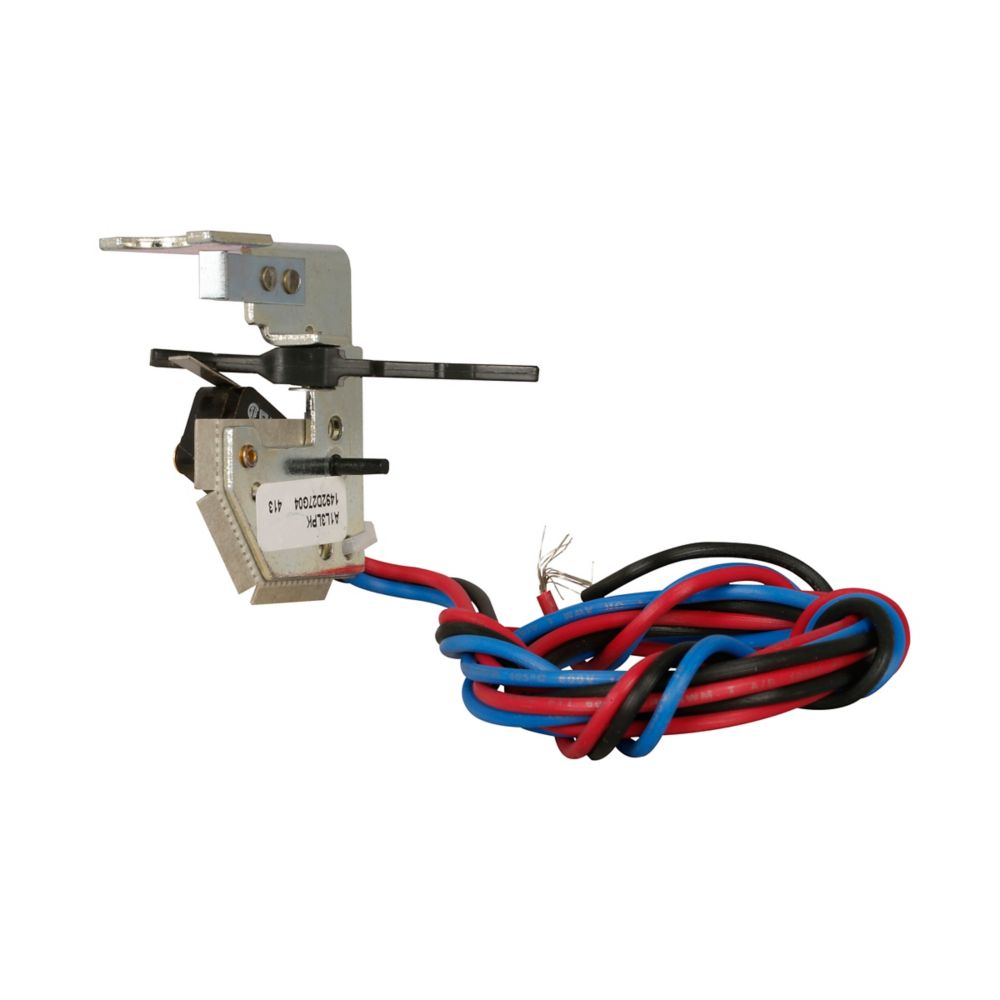

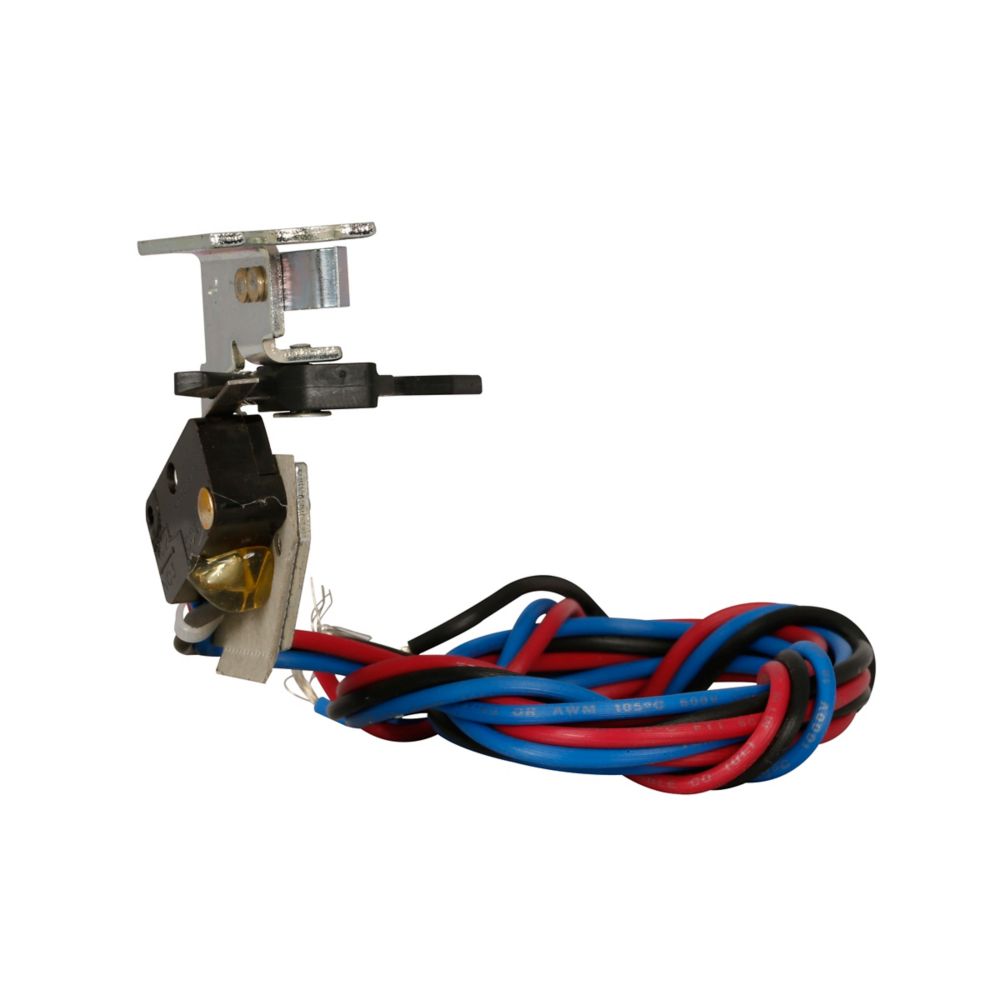

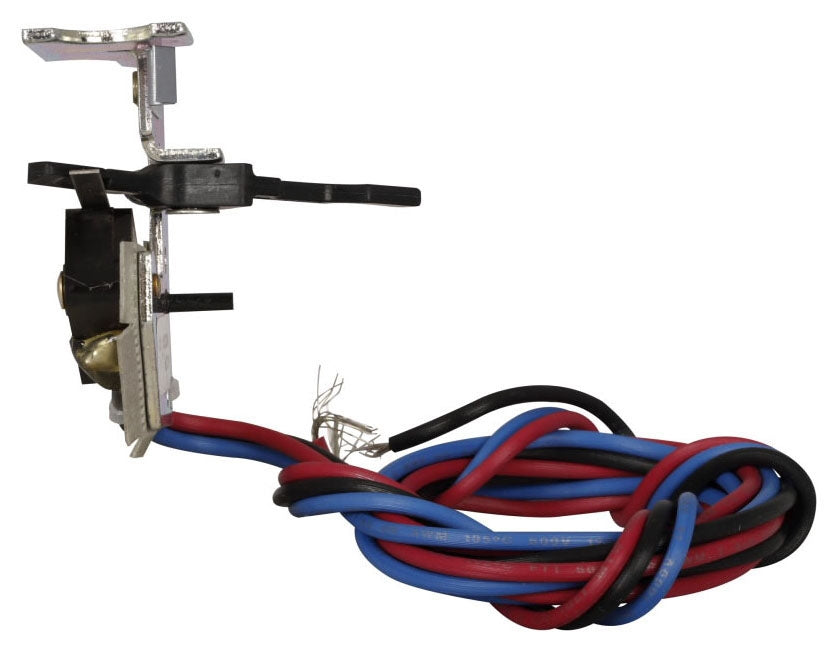

Eaton A1L3LPK Circuit Breaker Bell Alarm | 2MK-1BK Contact Configuration Series C

Product Description:
The Eaton/Cutler-Hammer A1L3LPK is a left-side mounted alarm and lockout switch accessory designed for Series C molded case breakers. It provides remote indication of breaker trip status using a 2MK-1BK contact configuration with two make contacts and one break contact. This field-installable switch is rated for up to 600 VAC or 125-250 VDC and includes pigtail leads for quick connection. It is ideal for monitoring, safety interlocks, and lockout applications where multiple signal outputs are required.

Key Features:
✔ Part Number: A1L3LPK
✔ Manufacturer: Eaton
✔ Category: Circuit Breaker
✔ Subcategory: Bell Alarm
✔ Family: Series C Accessories
✔ Type: A1L
✔ Compatible Frames: KD, DK, KDB, HKD, HKDB, KDC, CKD, CHKD, KW, HKW, KWC, KG, E2K, E2KM
✔ Contact Configuration: 2MK-1BK (two make, one break)
✔ Voltage Rating: 600 VAC, 125/250 VDC
✔ Amperage Rating: 0.25/0.5/6 A depending on voltage
✔ UPC: 786679148877
✔ GTIN: 00786679148877
✔ Country of Origin: Dominican Republic
✔ Weight: 0.35 lb
