Mersen A550X20E-1 Medium Voltage Fuse | 5500V 20A 63kA CS-3 Series

Product Description:

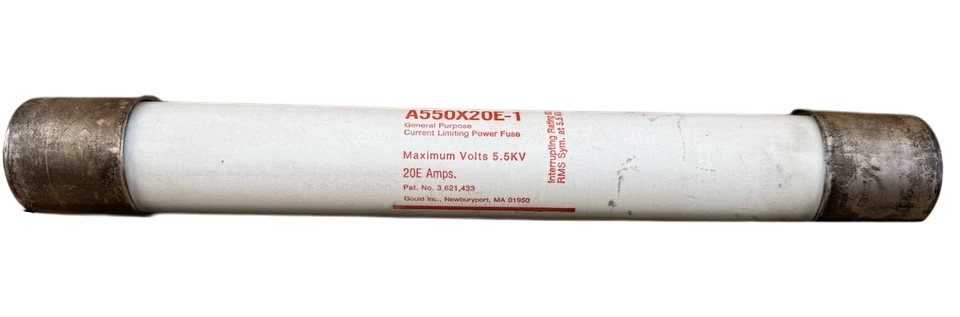

The Mersen A550X20E-1 is a CS-3 Series medium voltage fuse rated for 5500V and 20A. It is a single-barrel fuse with a ferrule connection and a 3-inch diameter. This fuse is designed for reliable protection in medium voltage electrical systems with an interrupting rating of 63kA at 5.5kV.

Key Features:
✔ Part Number: A550X20E-1
✔ Manufacturer: Mersen||Ferraz Shawmut
✔ Category: Fuse
✔ Subcategory: Medium Voltage
✔ Family: CS-3 Series
✔ Type: A055
✔ Voltage: 5500
✔ Amperage: 20
✔ AIC rating: [email protected]
✔ Connection: Ferrule
✔ Diameter: 3
✔ Class Rating: E
✔ Barrels: 1
✔ Clip Center: 12
✔ Weight: 4
