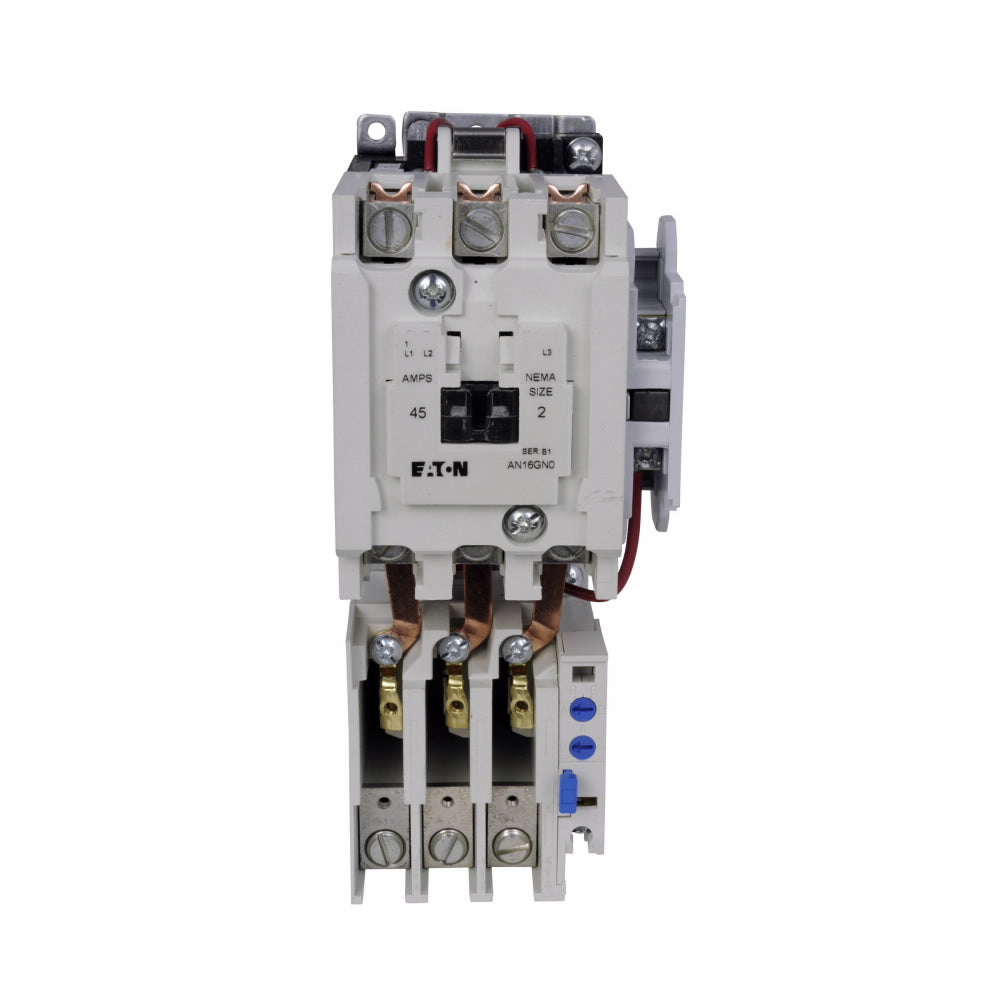

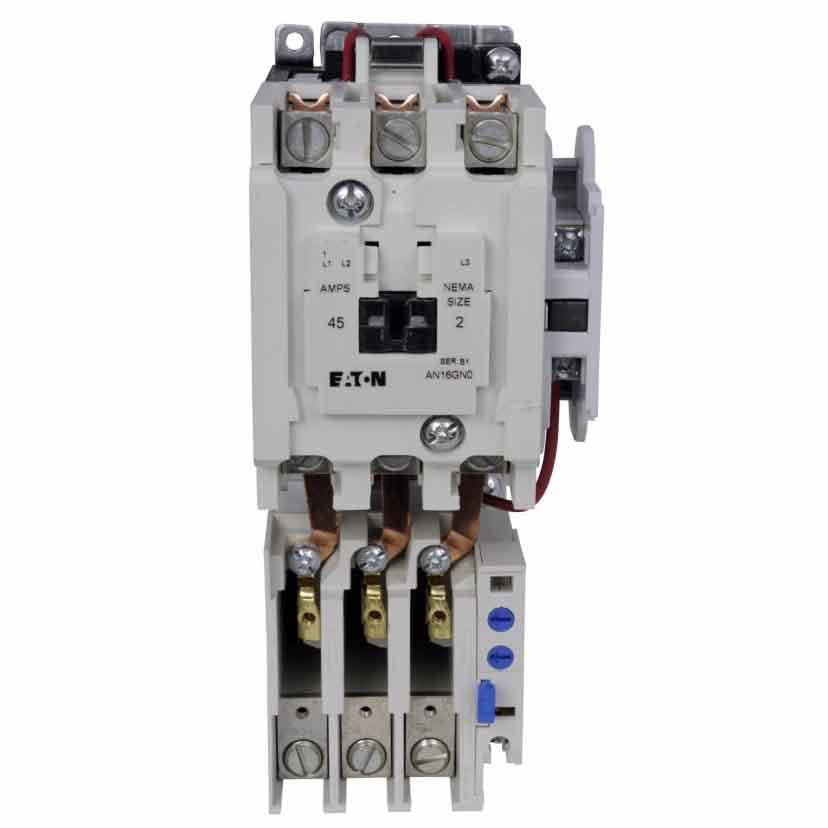

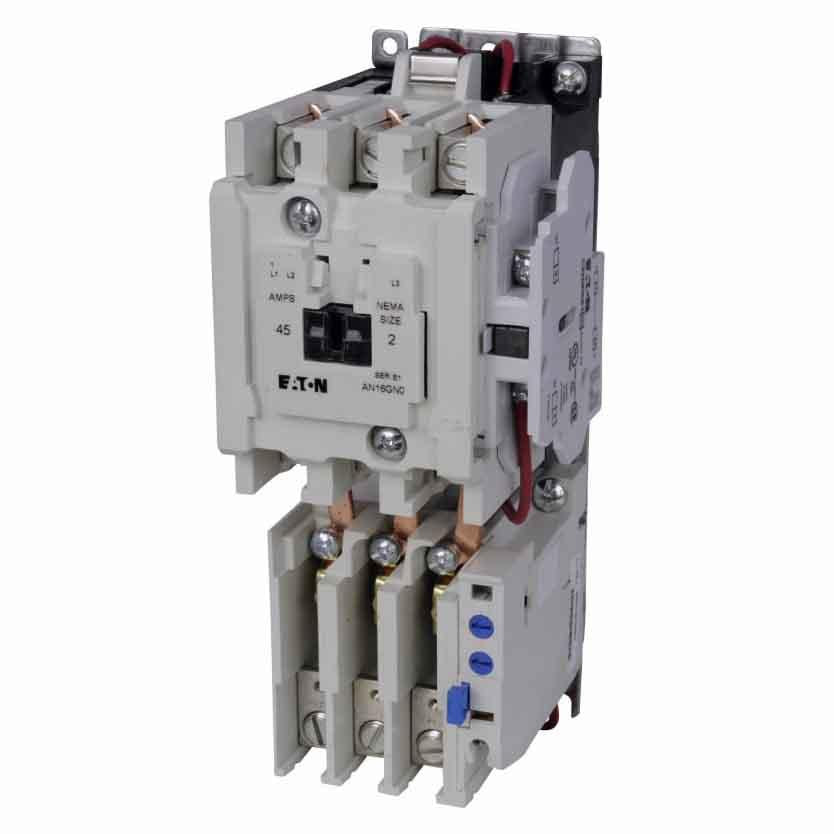

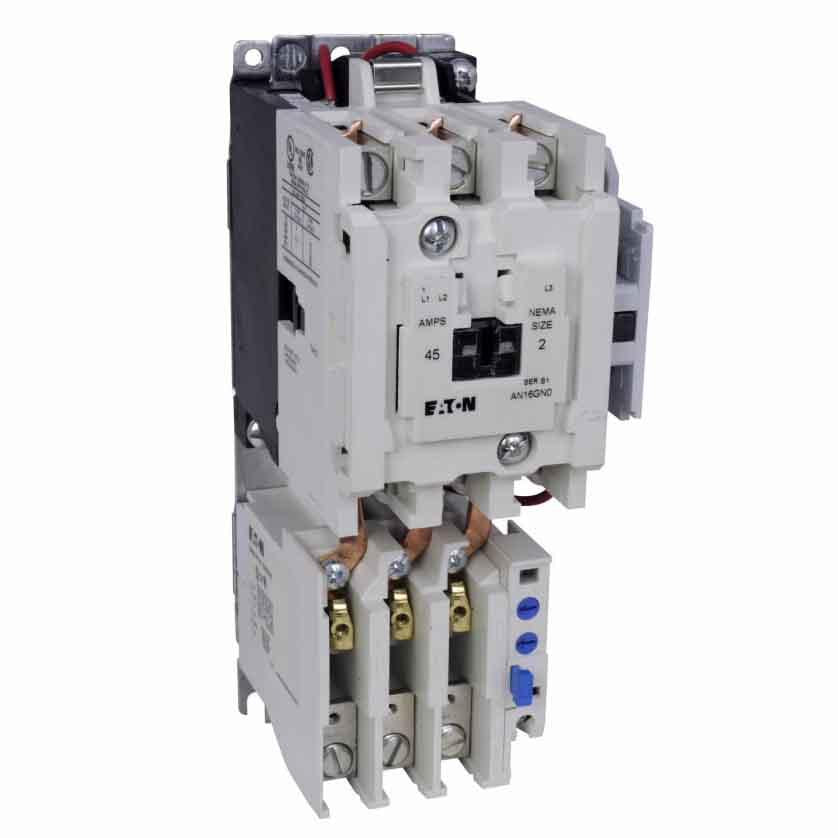

Eaton AN16GN0CB Motor Starter 3 pole 3 phase 600V 45A 240V coil Freedom AN16

Product Description:
The Eaton Freedom NEMA motor starter is designed for across-the-line starting on 600 VAC systems. It features a 3-pole non-reversing contactor with built-in overload protection for reliable motor control. This Size 2 starter supports a wide range of horsepower ratings from 3 HP at 115V up to 25 HP at 480/600V. Its accessory-ready design allows for easy integration of auxiliary contacts and interlocks.

Key Features:
✔ Part Number: AN16GN0CB
✔ Manufacturer: Eaton
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Freedom AN16 (NEMA)
✔ Type: Non-reversing
✔ Voltage: 600
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 3 HP @ 115V; 7.5 HP @ 230V; 10 HP @ 208V; 15 HP @ 240V; 25 HP @ 480/600V
✔ Coil Voltage: 240V 60Hz / 220V 50Hz
✔ Nema Starter Size: 2
✔ System Voltage: 600 VAC
✔ Certification: UL Listed and CSA Certified
✔ UPC: 782113971865
✔ GTIN: 00782113971865
✔ Country of Origin: Dominican Republic
✔ Dimensions: 4.94" X 3.31" X 4.38"
✔ Weight: 10 lb
