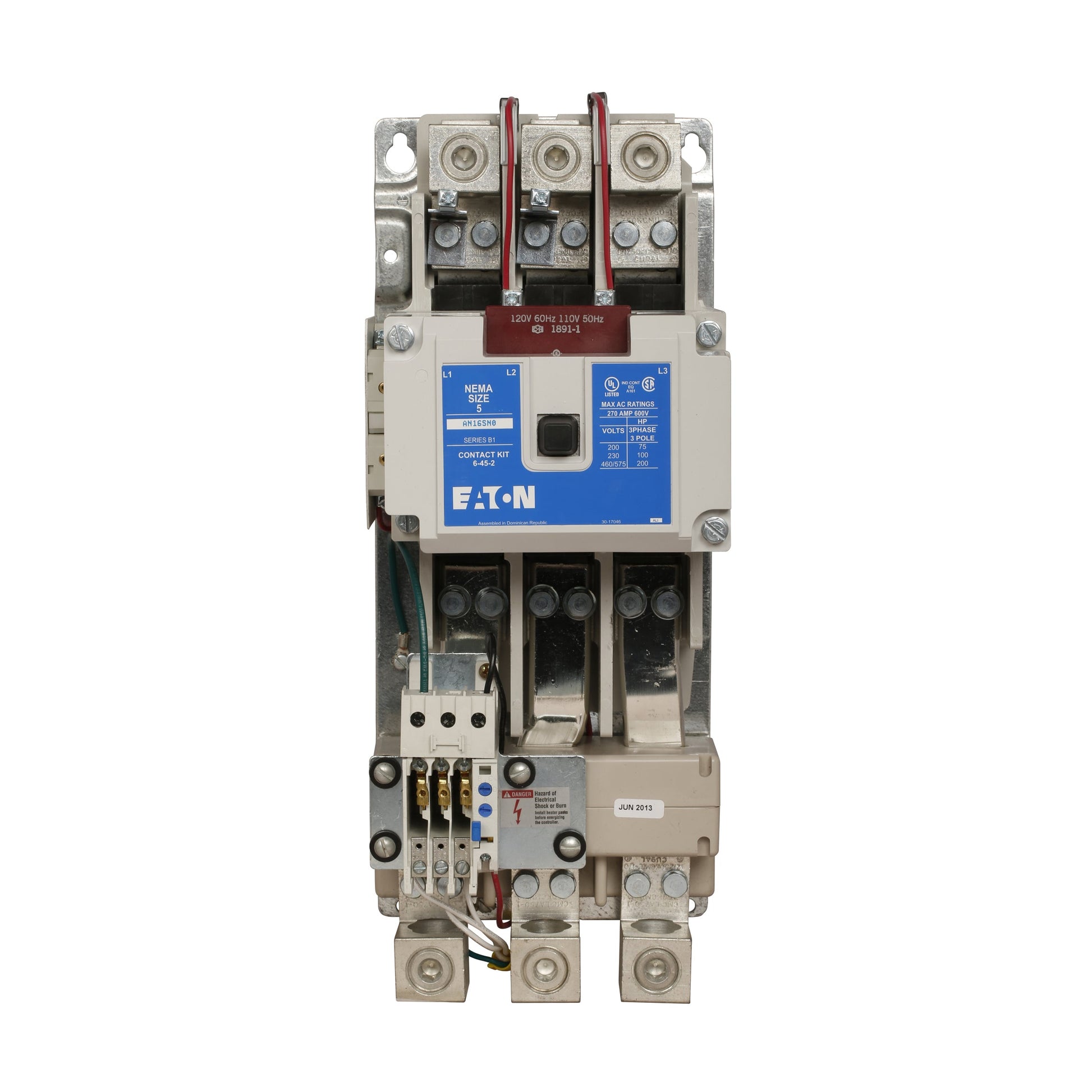

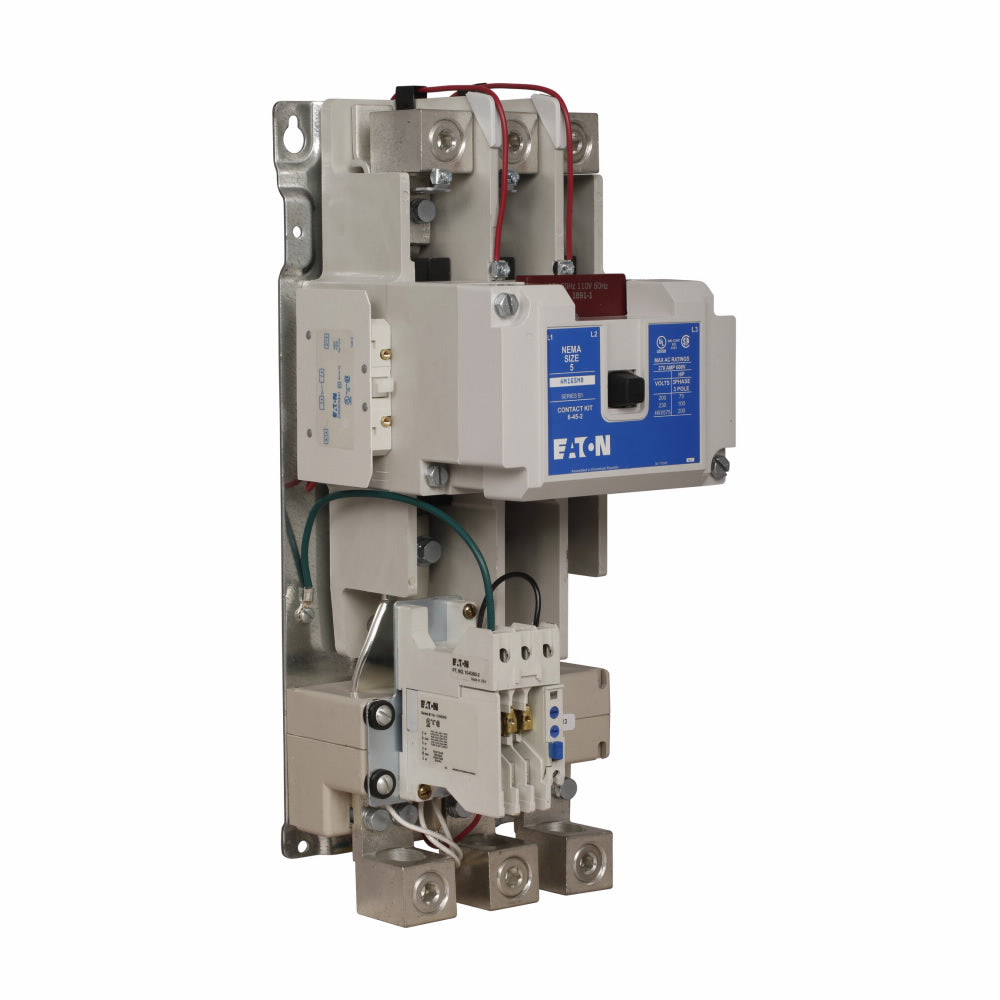

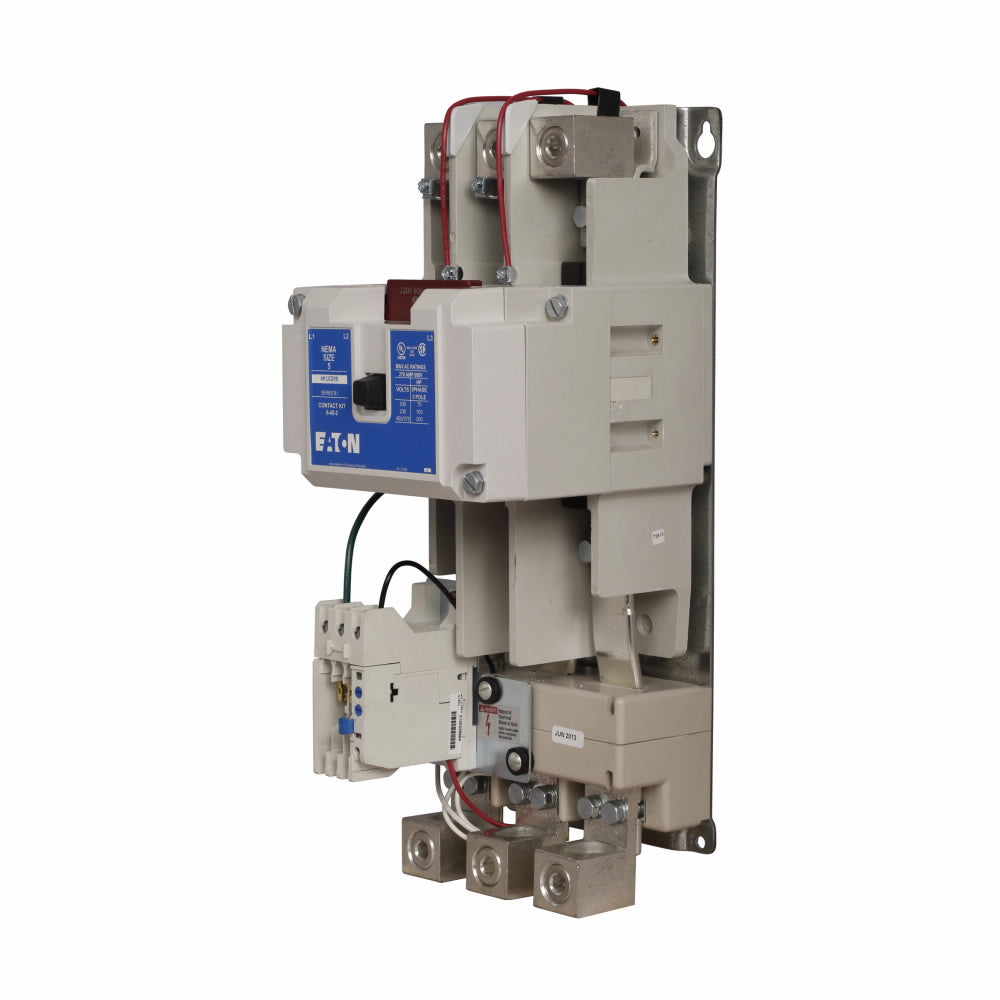

Eaton AN16SN0AB Motor Starter | 600V 270A 3P 3PH Size 5 Freedom AN16

Product Description:
The Eaton Freedom NEMA motor starter AN16SN0AB is designed for across-the-line starting on 600 VAC systems. It features a 3-pole non-reversing contactor with built-in overload protection for reliable motor control. This Size 5 starter supports a range of horsepower ratings, including up to 200 HP at 480/600V. It is accessory-ready and built to meet industry standards.

Key Features:
✔ Part Number: AN16SN0AB
✔ Manufacturer: Eaton
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Freedom AN16 (NEMA)
✔ Type: Non-reversing
✔ Voltage: 600
✔ Amperage: 270
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: 75 HP @ 208V; 100 HP @ 240V; 200 HP @ 480/600V
✔ Coil Voltage: 120V 60Hz / 110V 50Hz
✔ Nema Starter Size: 5
✔ System Voltage: 600 VAC
✔ Certification: CSA Certified, UL Listed
✔ UPC: 782113971889
✔ GTIN: 00782113971889
✔ Country of Origin: Dominican Republic
✔ Dimensions: 7.75 in length 7.22 in Height 12 in Width
✔ Weight: 42 lb
