Product Description:

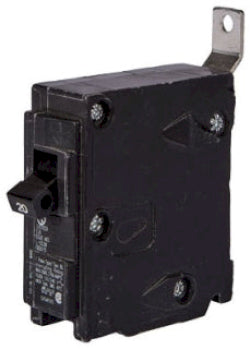

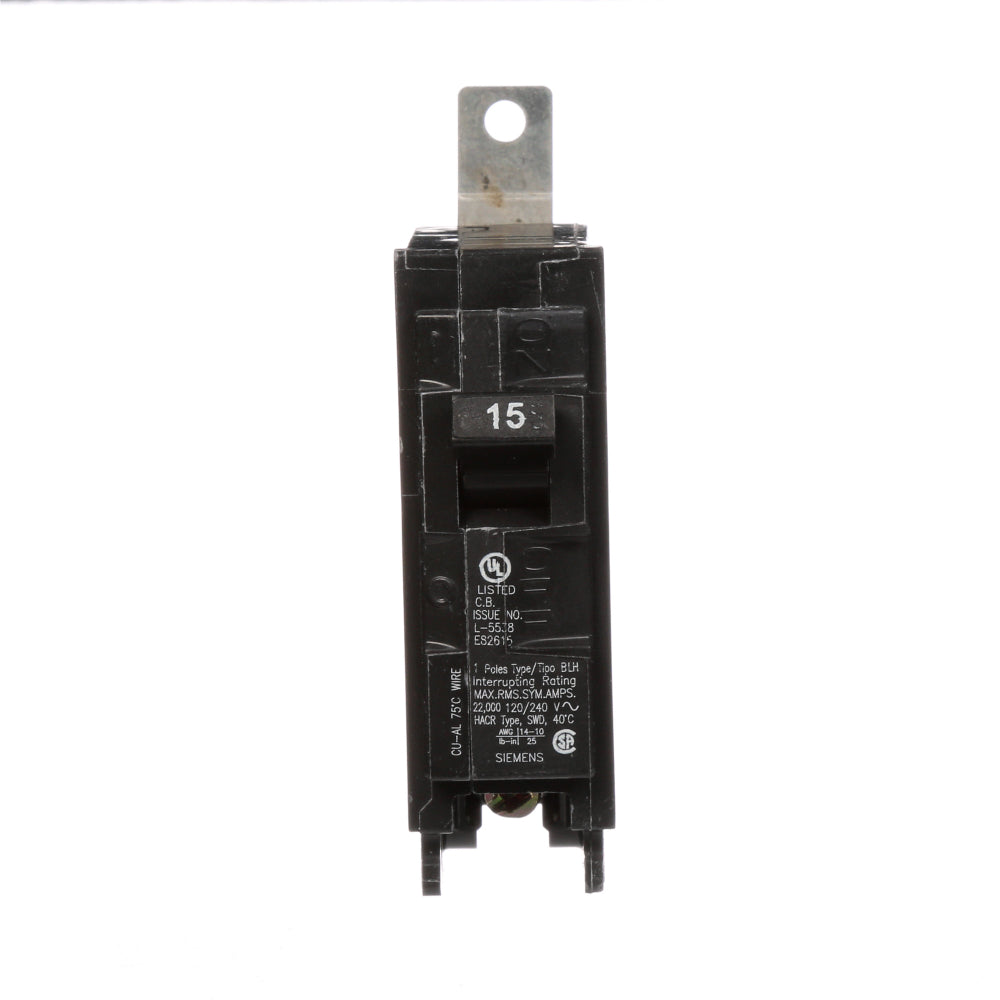

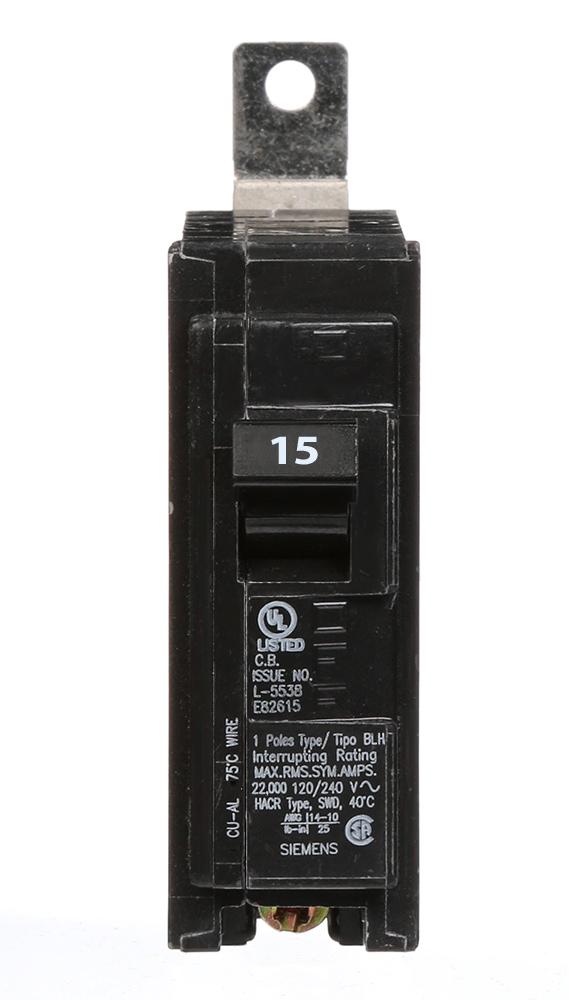

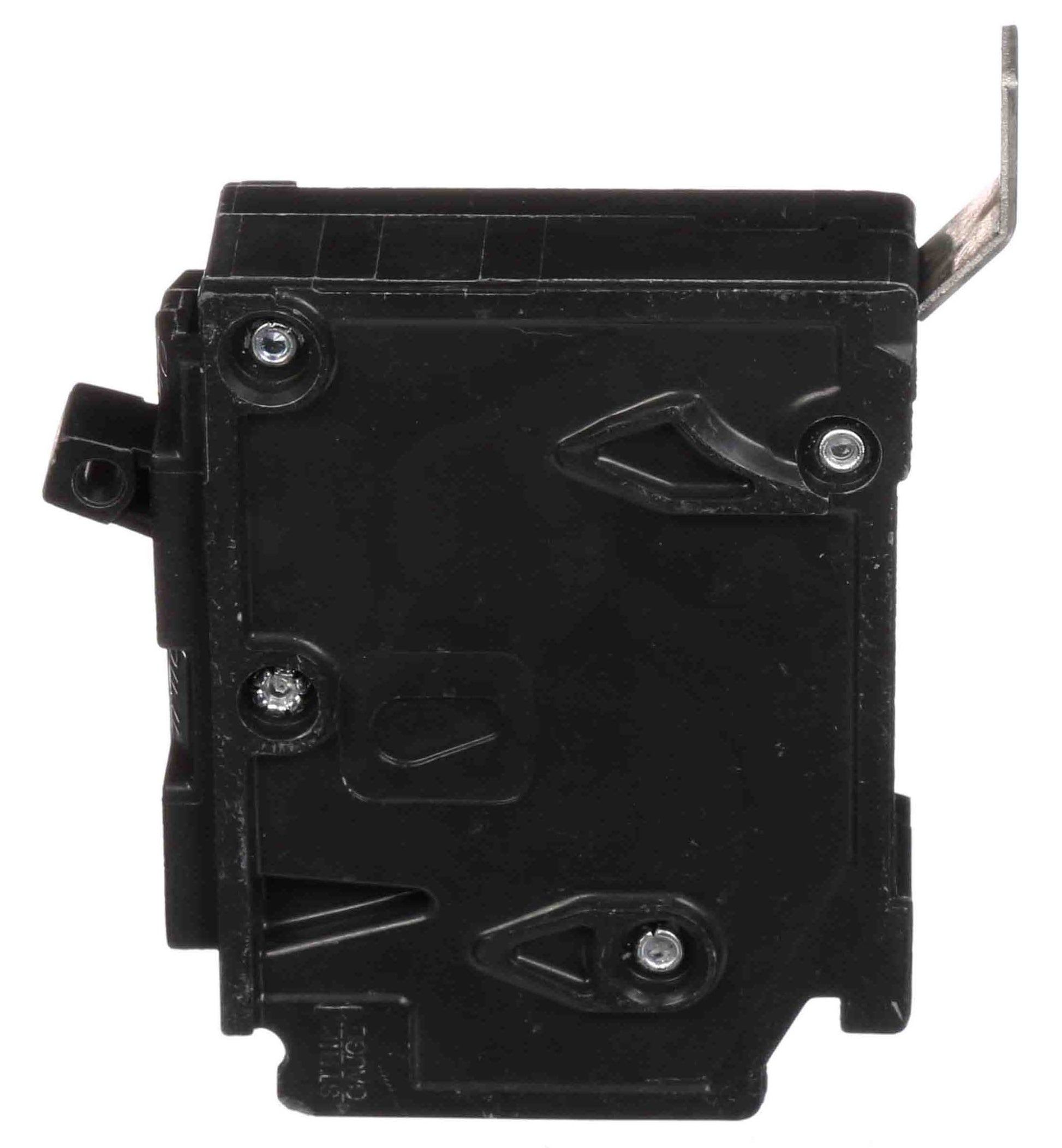

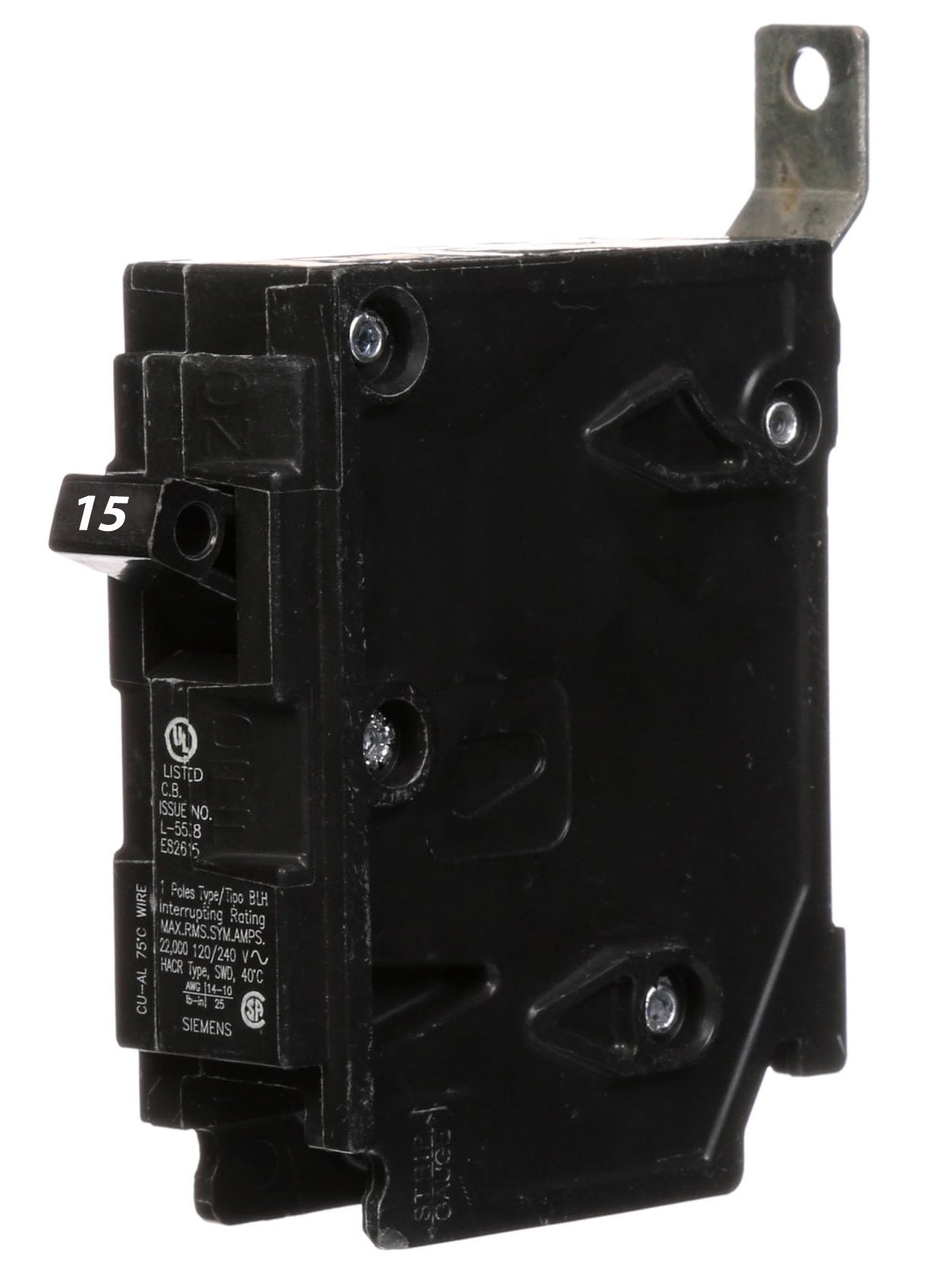

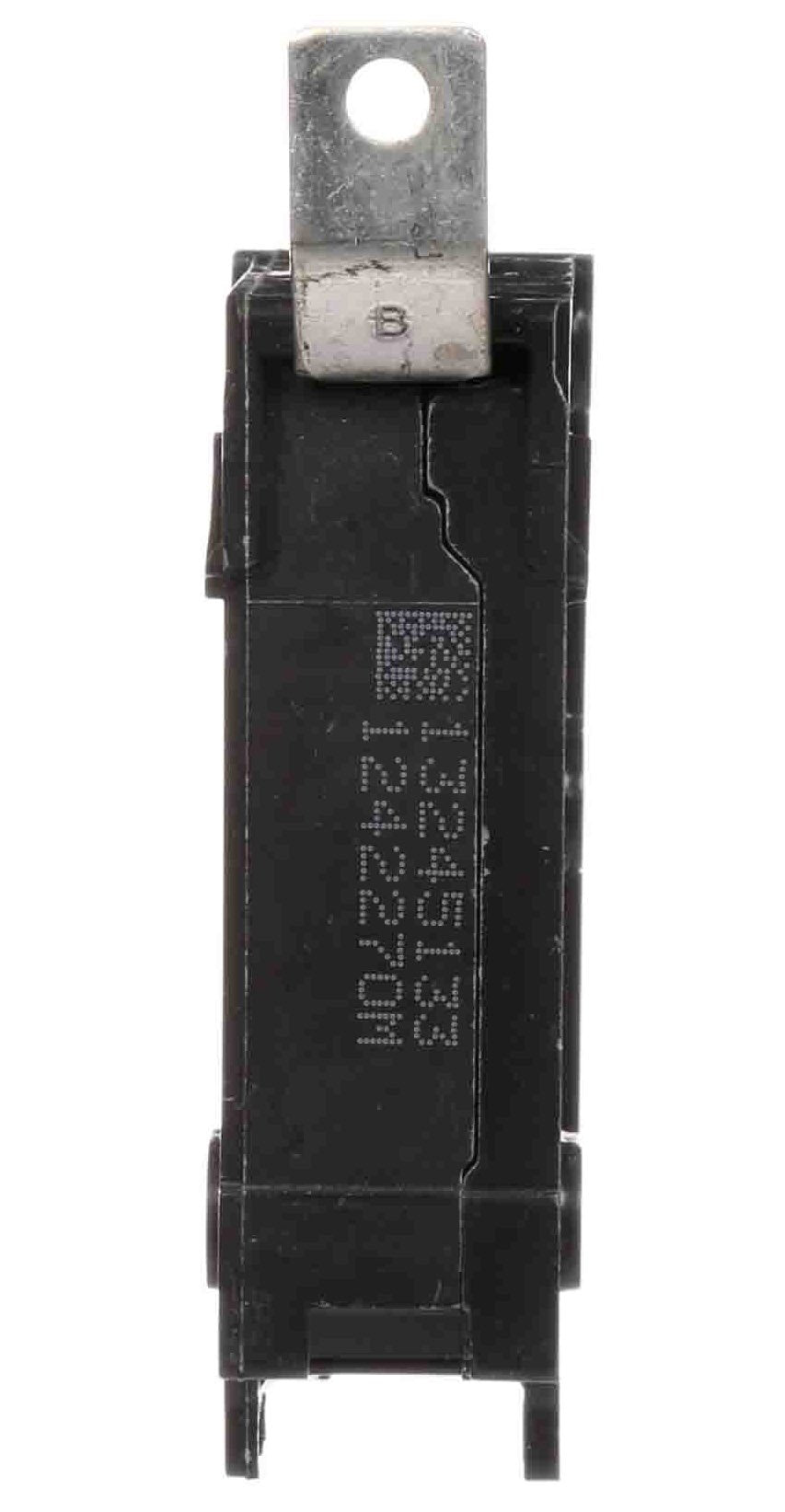

The Siemens B115H is a Molded Case Circuit Breaker from the BL Series family. It features 1 pole, 120VAC voltage, and a 15 amp rating with a 22kA@240V AIC rating. This breaker uses a bolt-on connection and offers thermal magnetic protection. It is compatible with Siemens P1 Panelboards and meets UL standards.
Key Features:
✔ Part Number: B115H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 120VAC
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263819
✔ GTIN: 00783643263819
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 1 in x 1 in
✔ Weight: 0.27
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL Listed
✔ Certification: UL Listed
