Product Description:

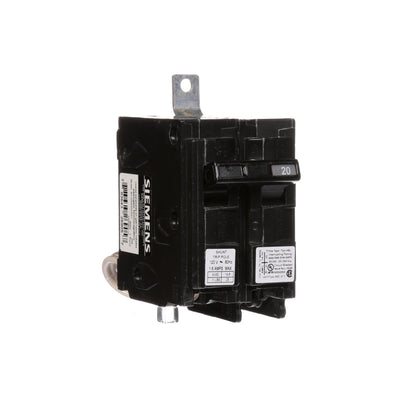

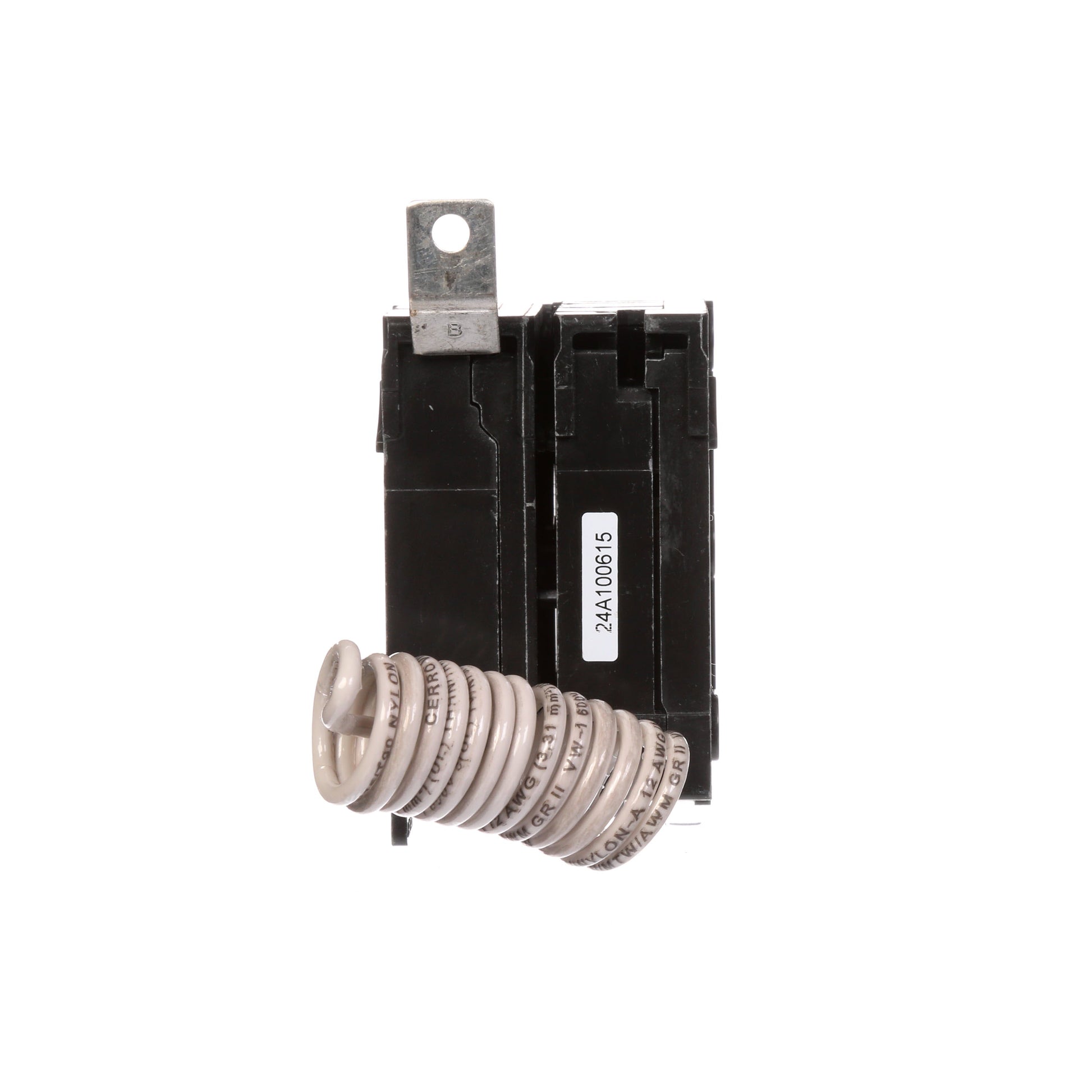

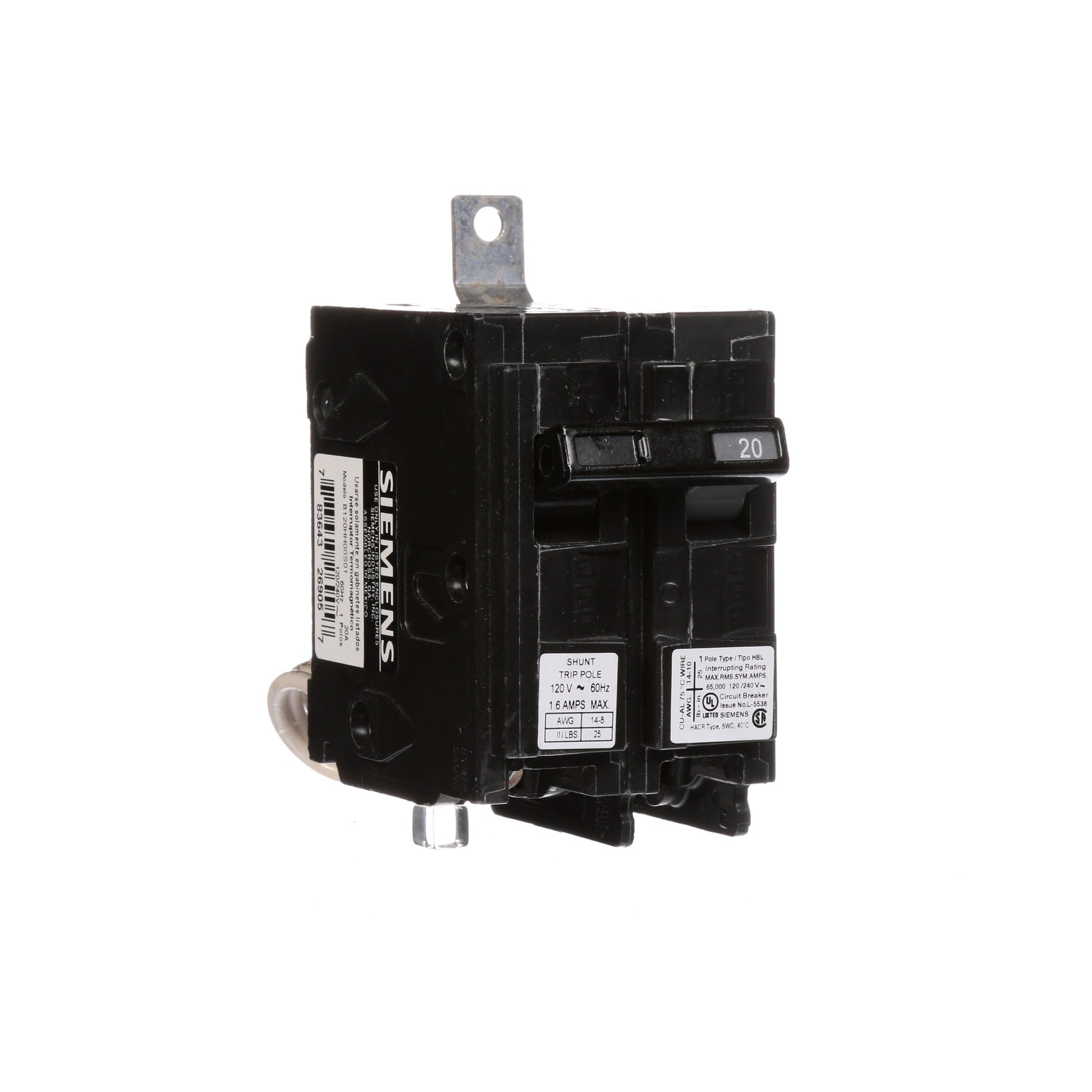

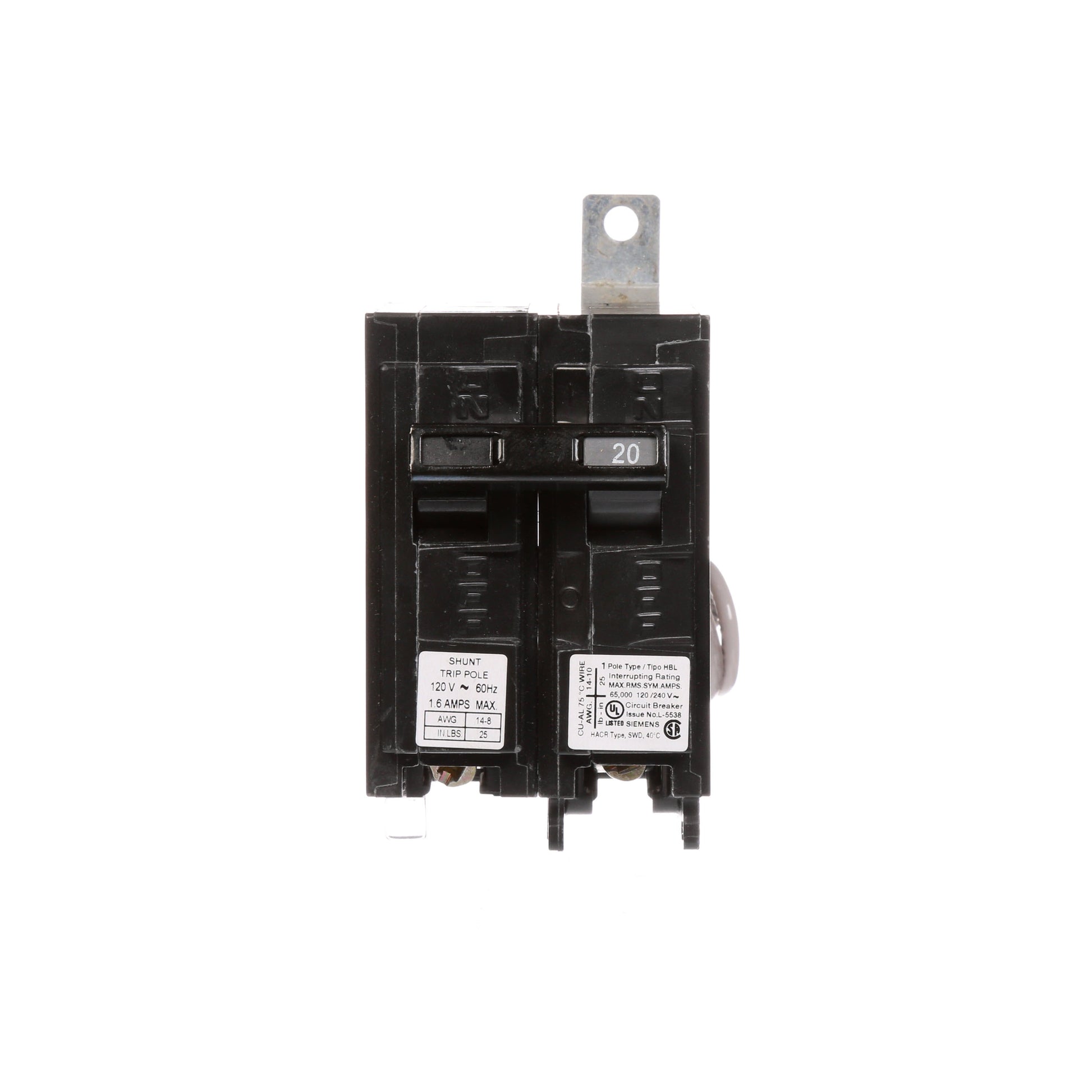

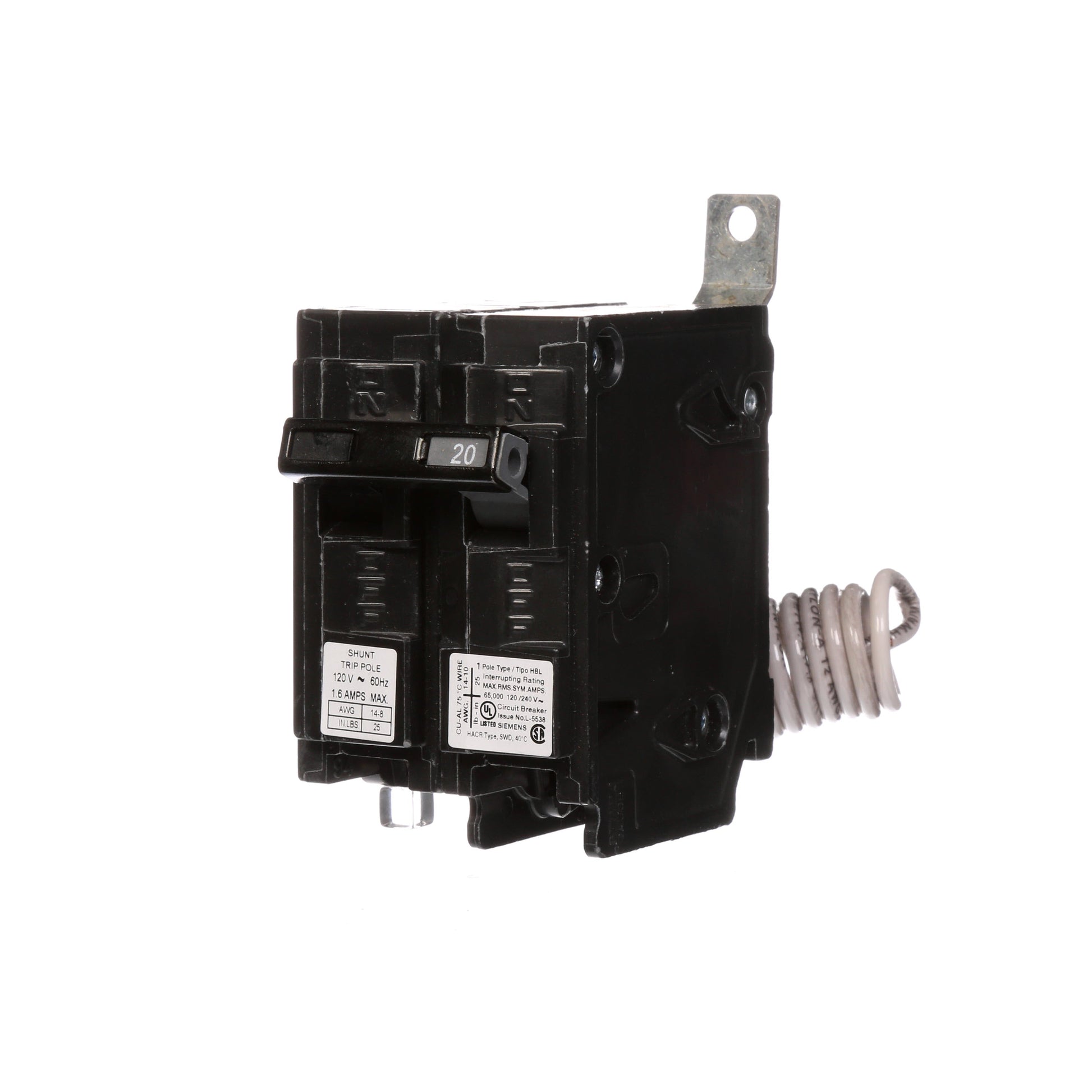

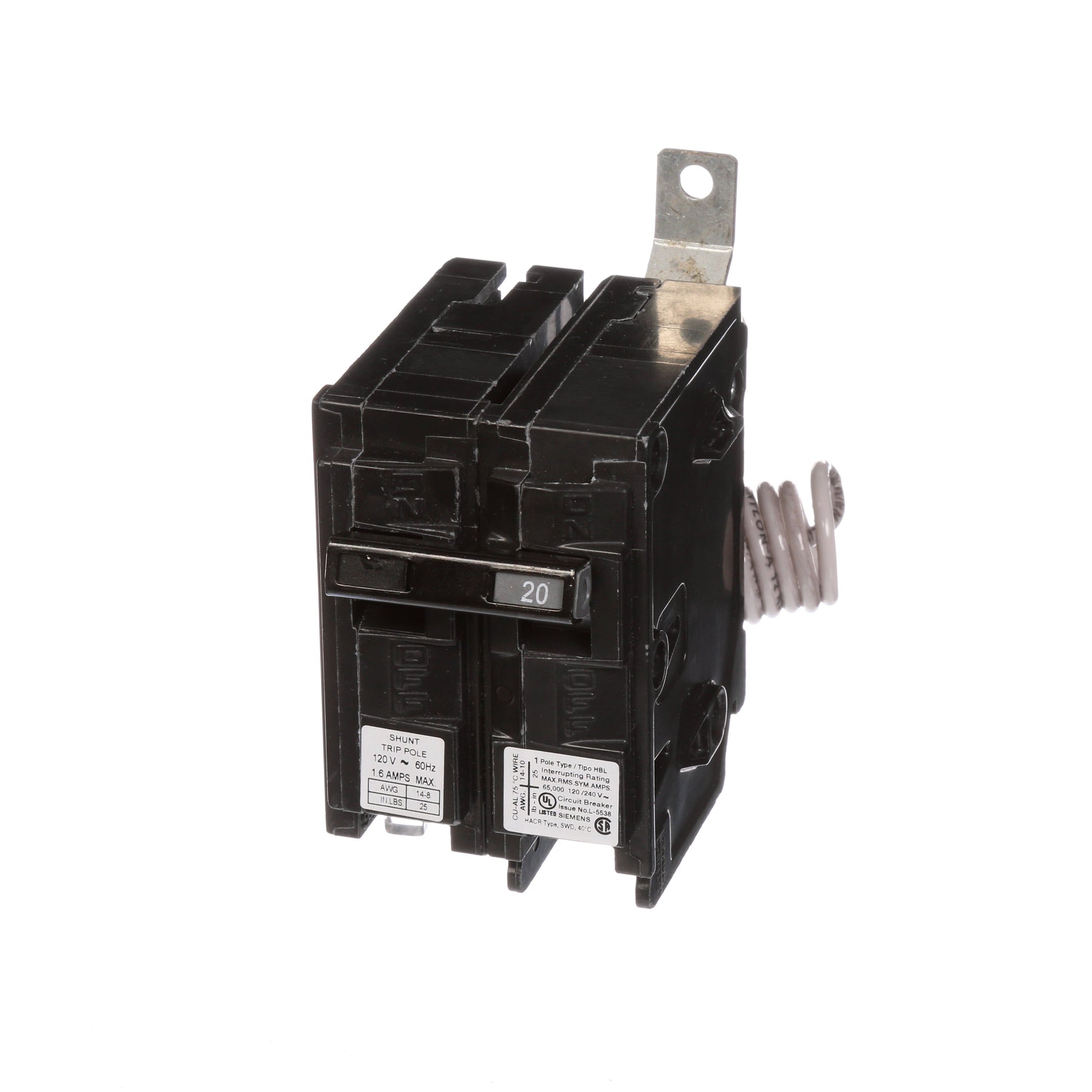

The Siemens B120HH00S01 is a Molded Case Circuit Breaker from the BL Series family. It is a 1 pole, 120 Volt, 20 amp rated breaker with a 65kA@240V AIC rating and uses a bolt-on connection. This HBL type breaker provides thermal magnetic protection and is compatible with Siemens P1 Panelboards.
Key Features:
✔ Part Number: B120HH00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 120
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643269057
✔ GTIN: 00783643269057
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 0.88
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL Listed
✔ Certification: UL Listed
