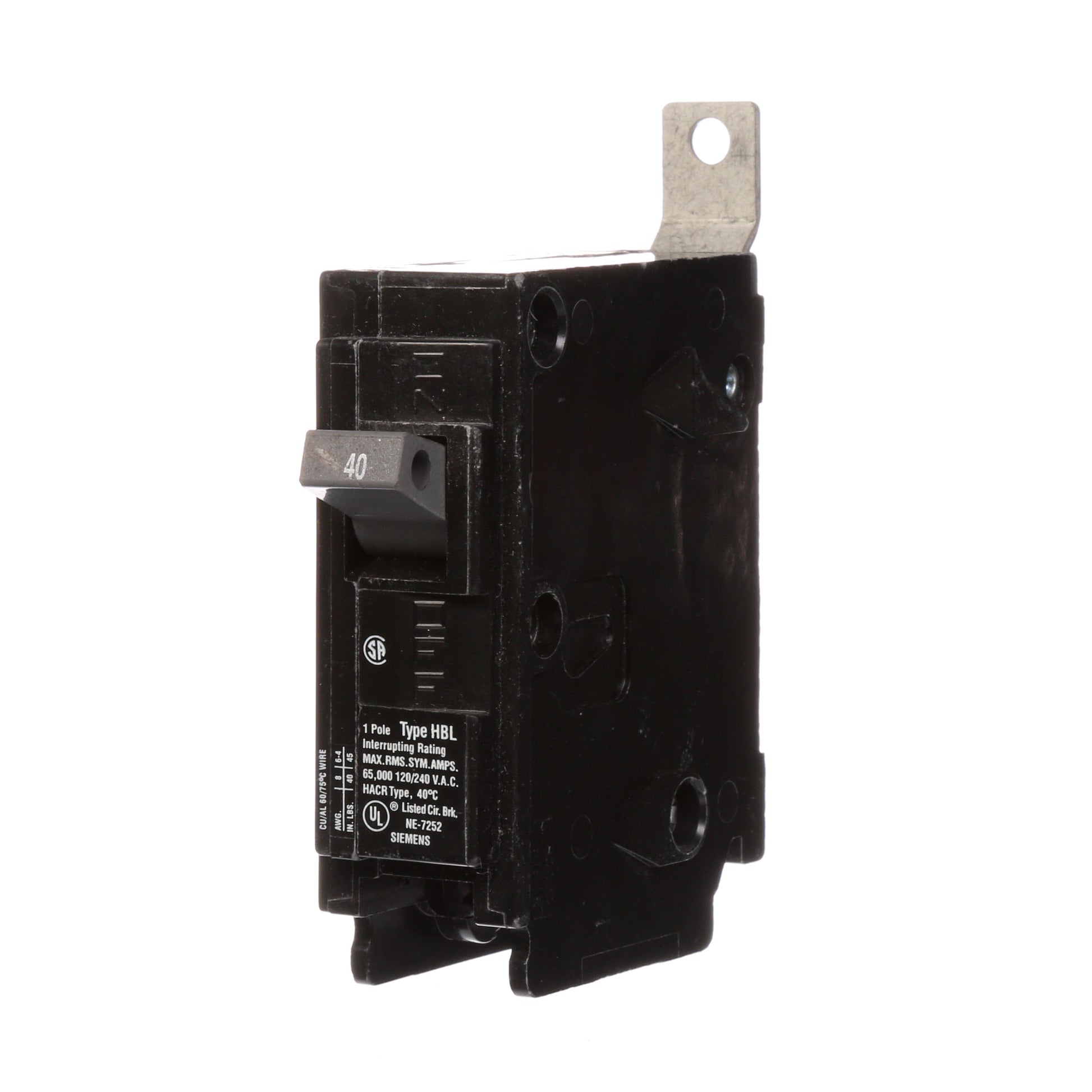

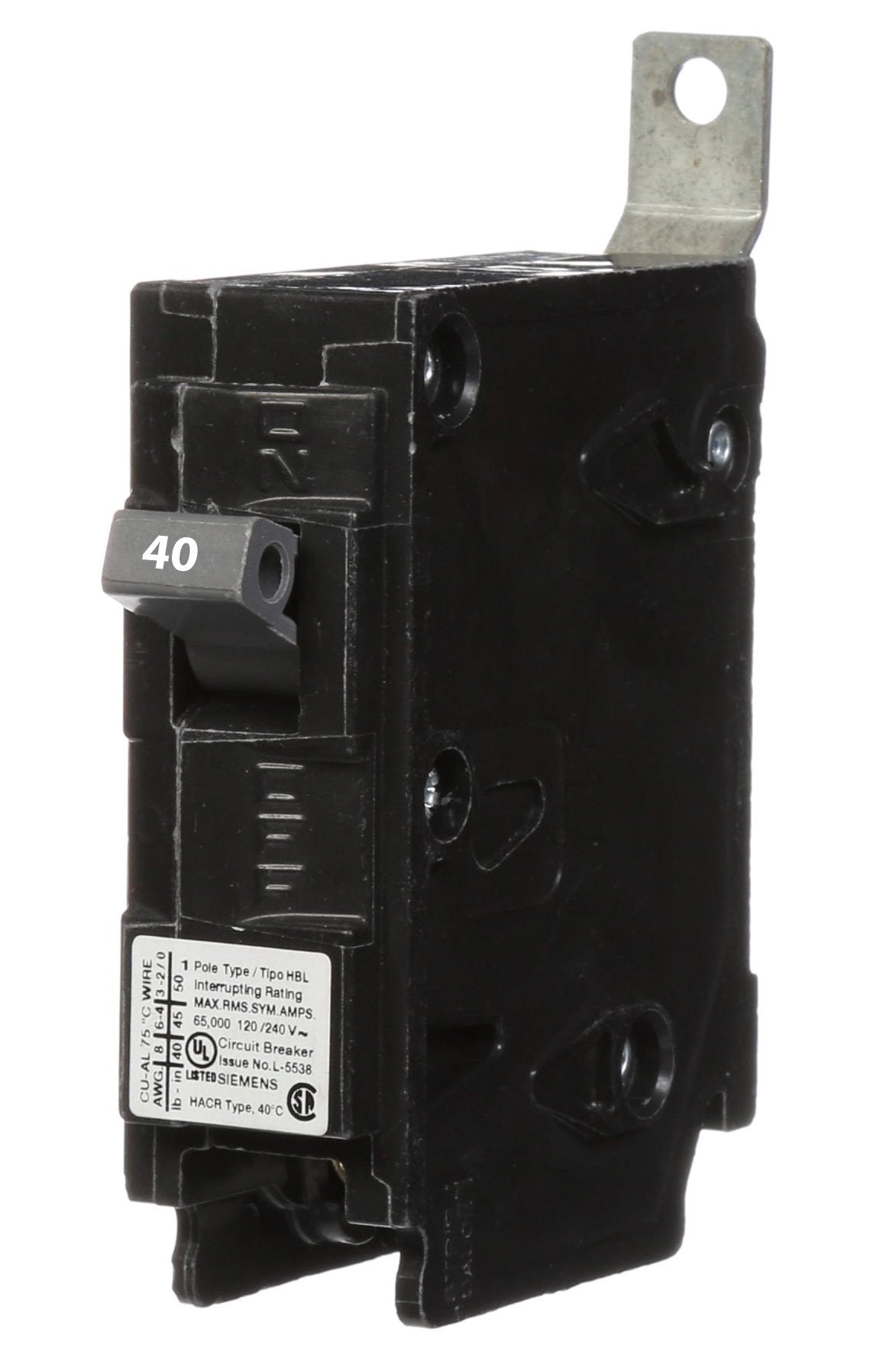

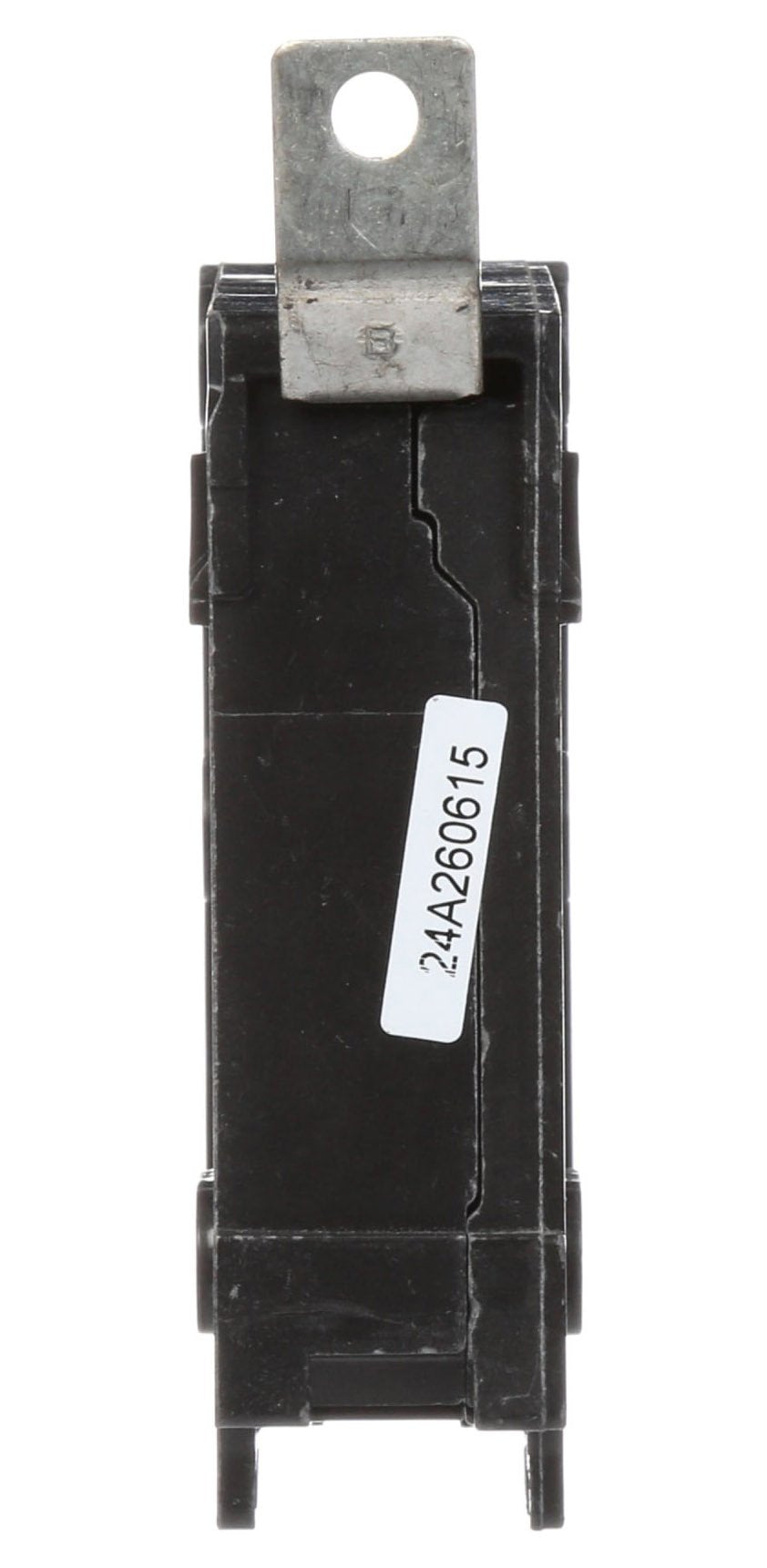

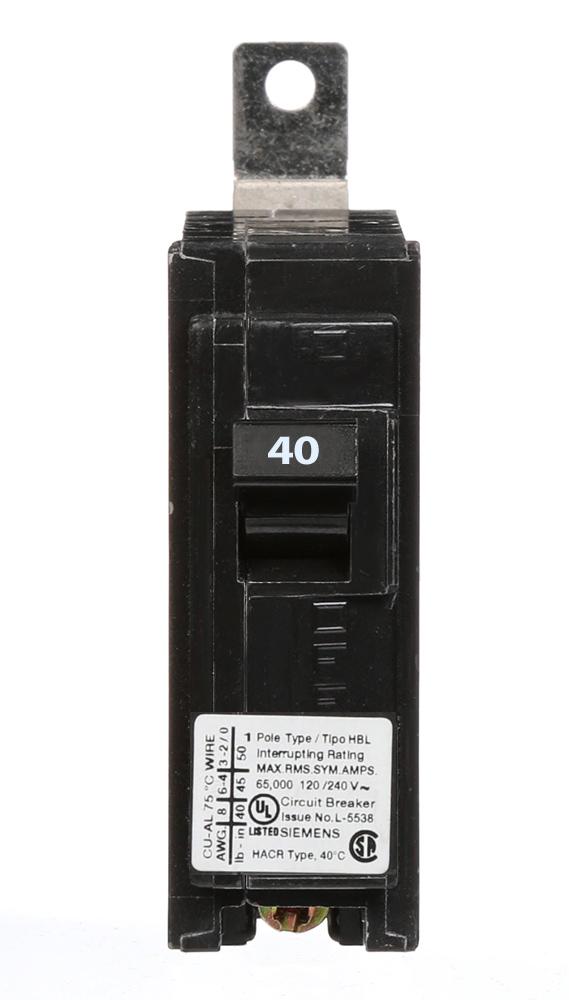

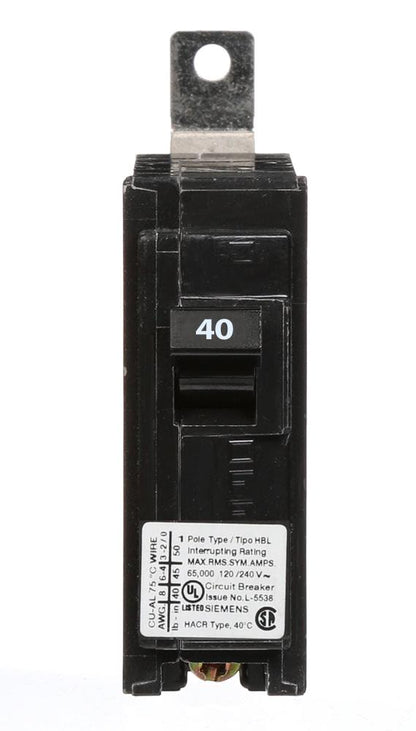

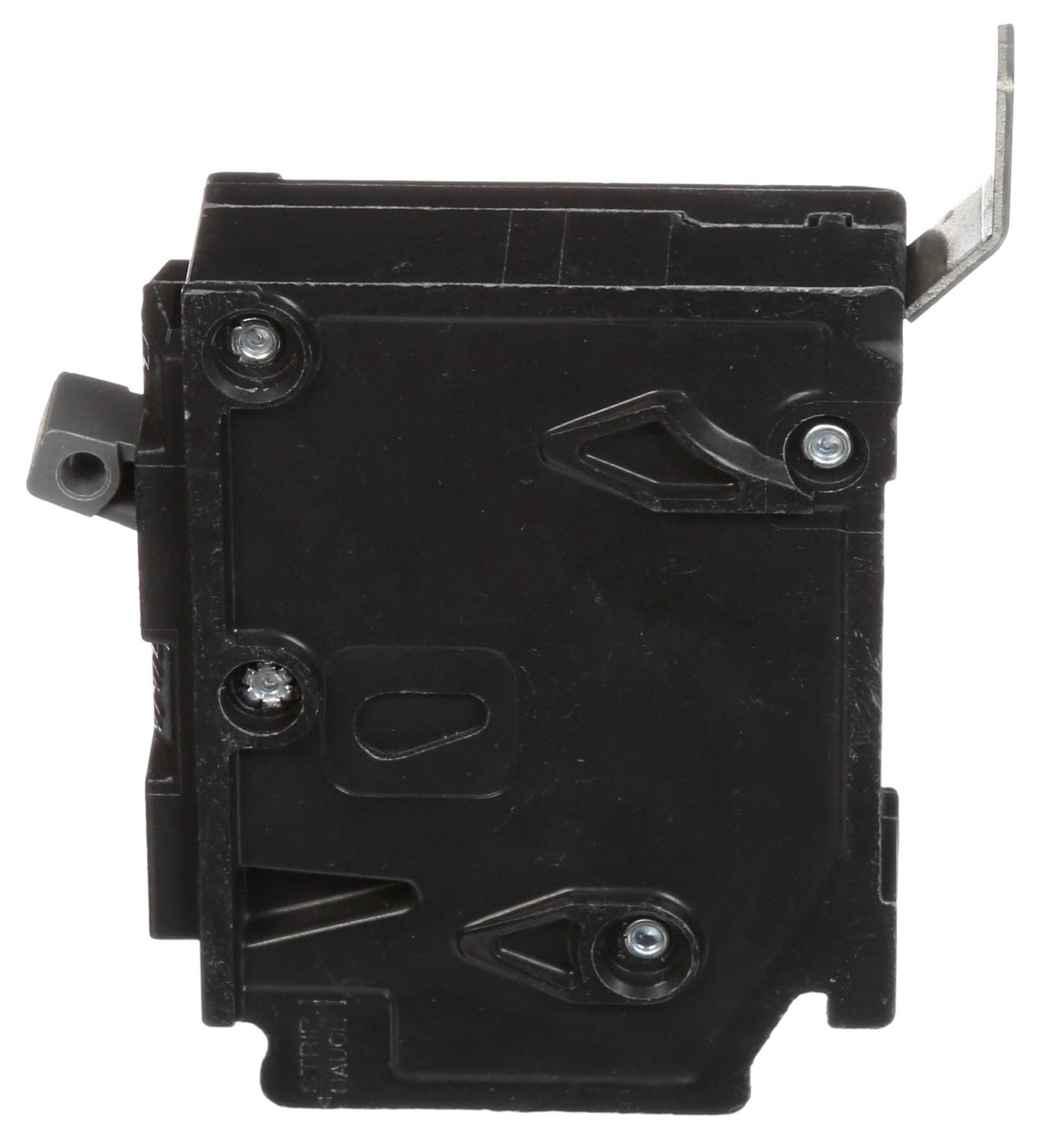

Siemens B140HH Circuit Breaker | 120V 40A 1P 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B140HH is a Molded Case Circuit Breaker from the BL Series family. This 1-pole breaker is rated for 120 Volts and 40 amps, with an AIC rating of 65kA@240V. It features a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: B140HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 120
✔ Amperage: 40
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643264113
✔ GTIN: 00783643264113
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 1 in x 1 in
✔ Weight: 0.31
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL Listed
✔ Certification: UL Listed
