Product Description:

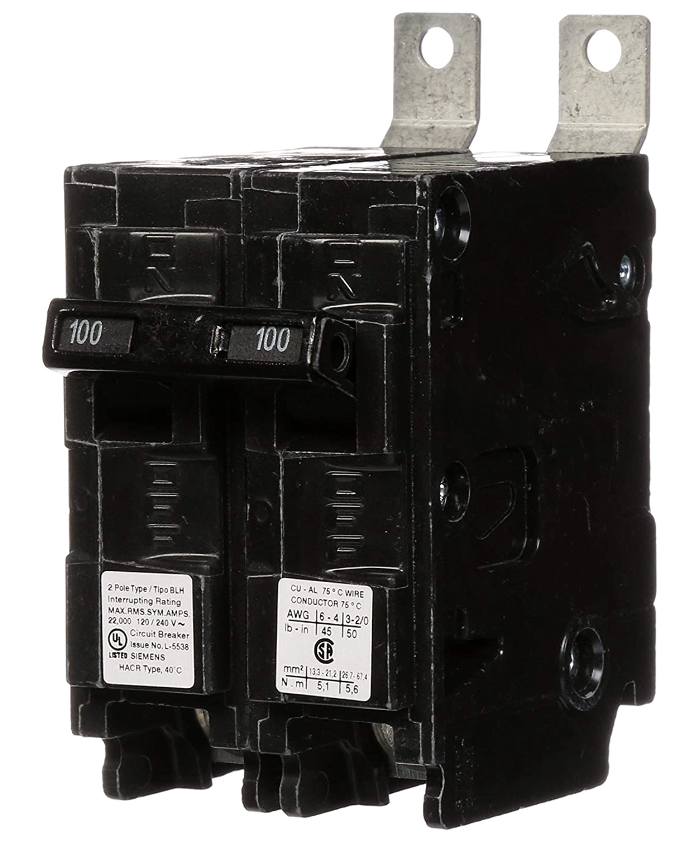

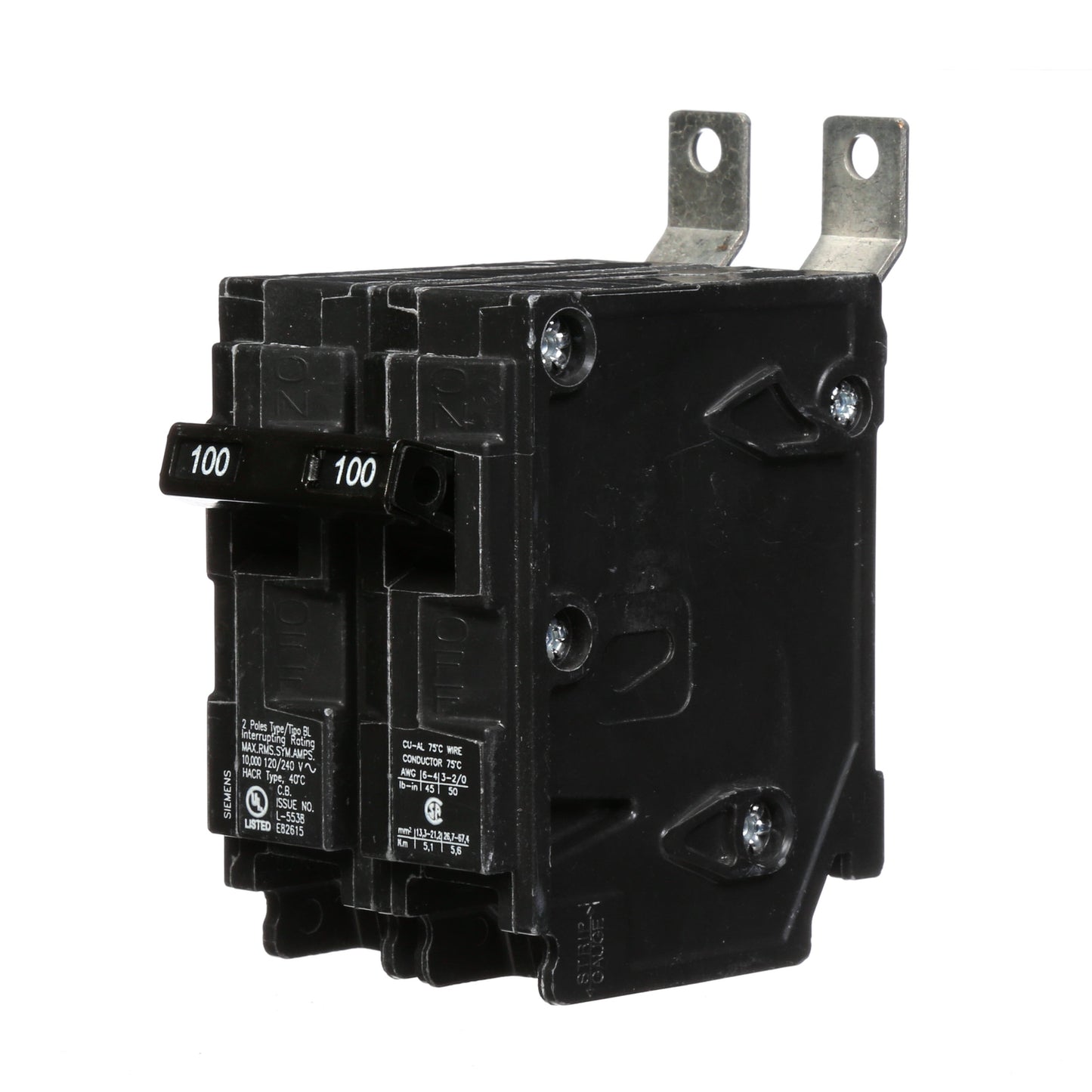

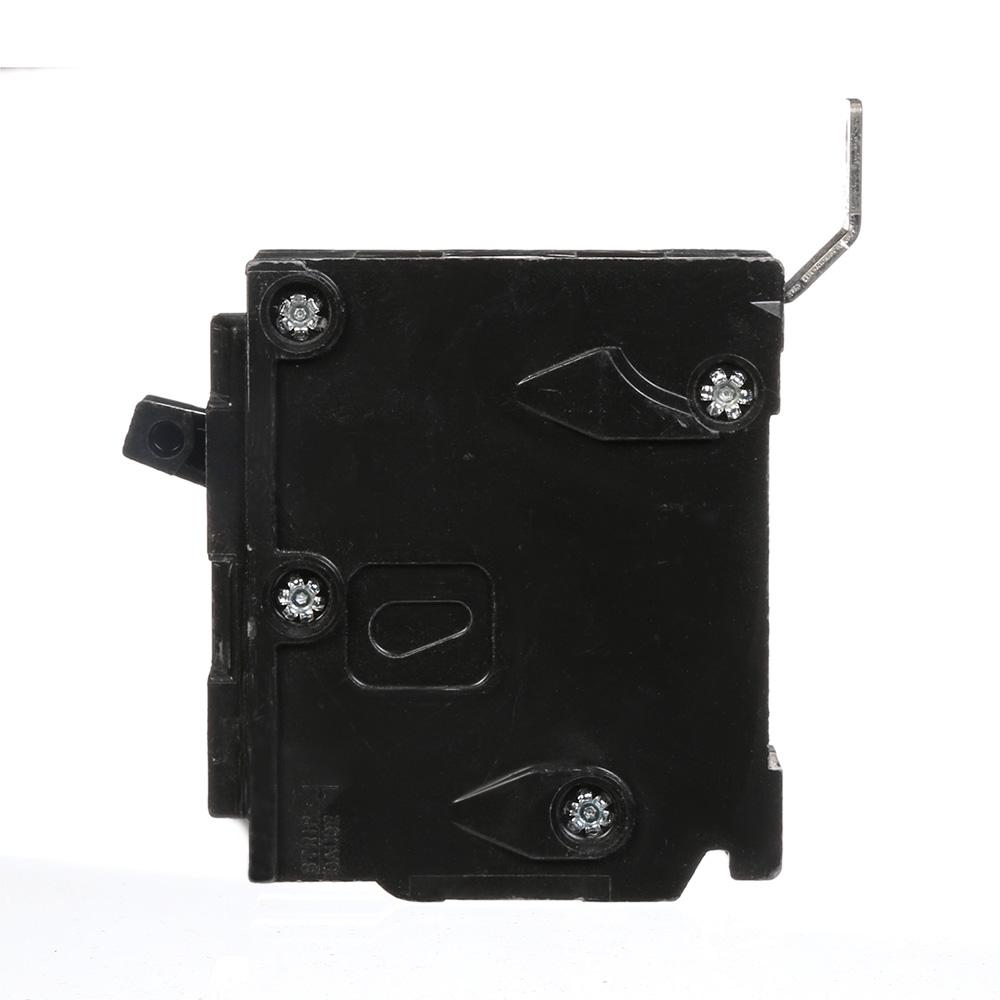

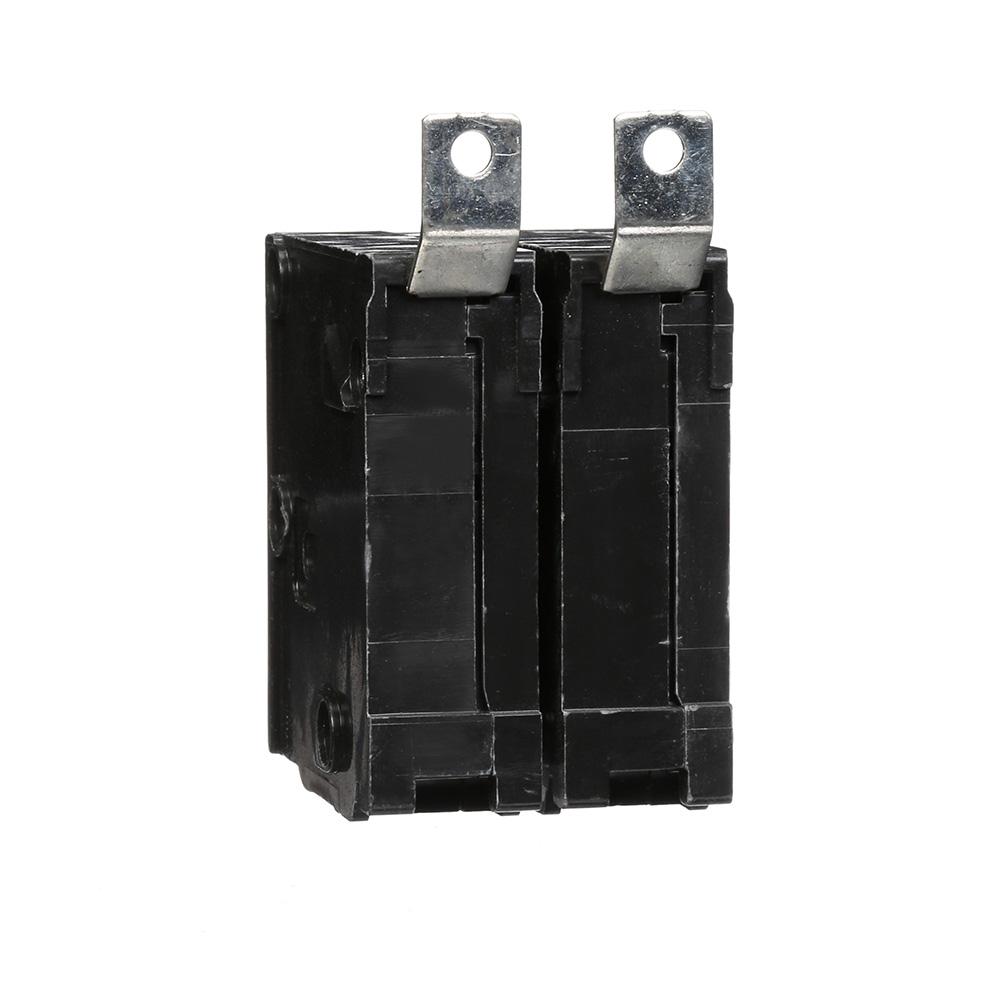

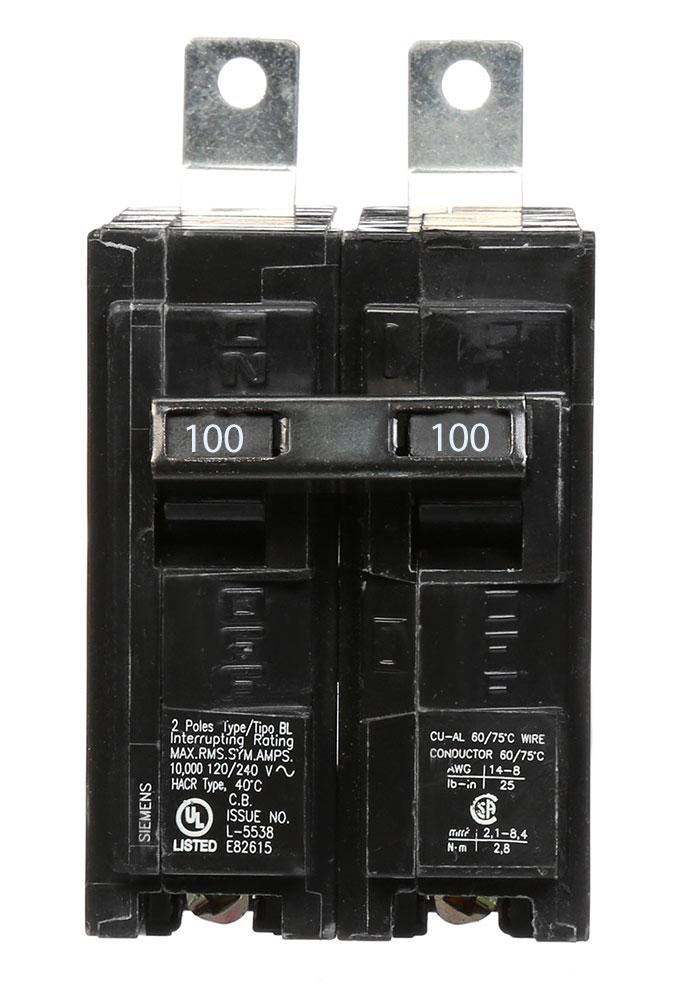

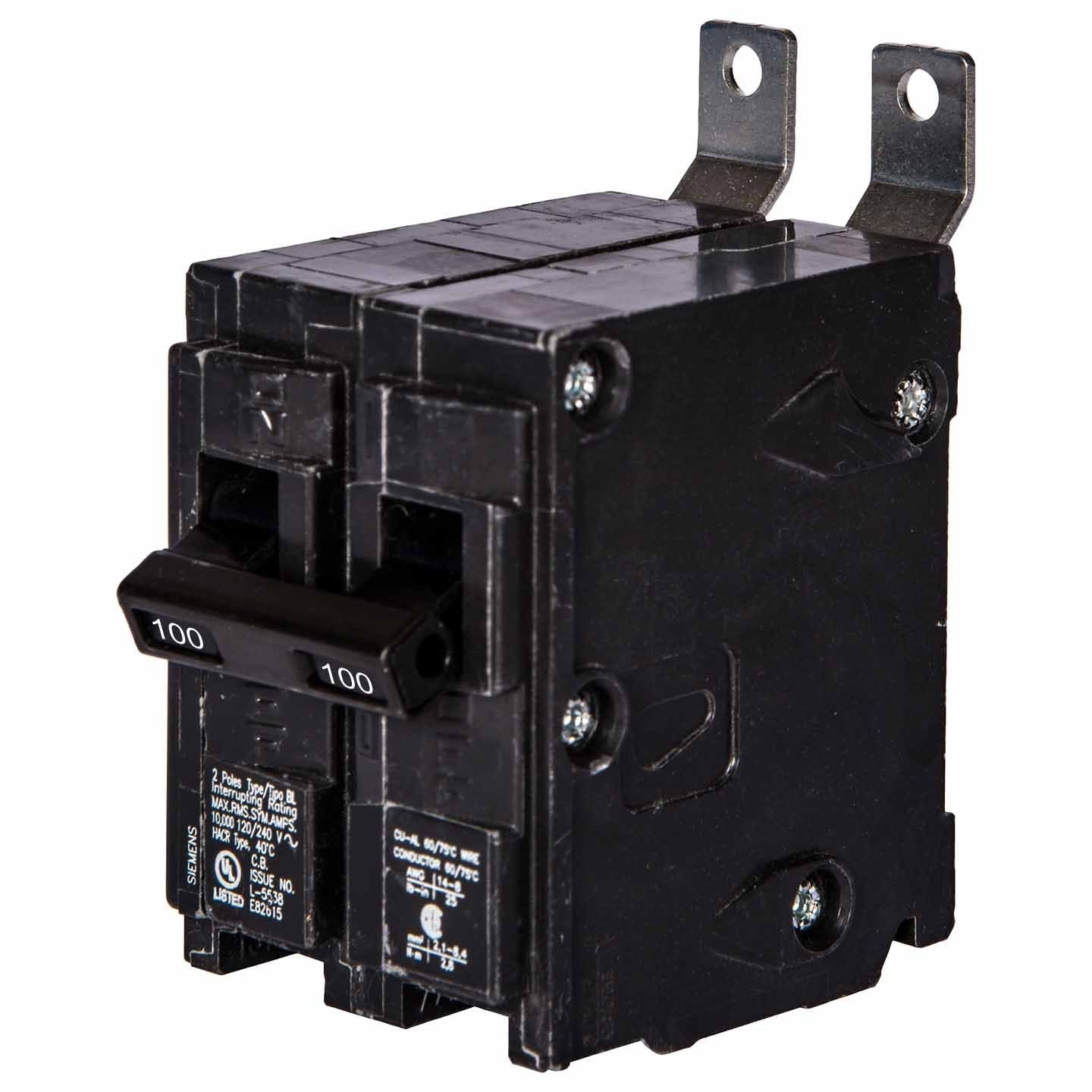

The Siemens B2100 is a Molded Case Circuit Breaker from the BL Series family. It features 2 poles, 240V voltage, and a 100 amp rating with a 10kA@240V AIC rating. This breaker uses a Plug-In connection and offers Thermal Magnetic protection. It is compatible with Siemens P1 Panelboards.
Key Features:
✔ Part Number: B2100
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263642
✔ GTIN: 00783643263642
✔ Country of Origin: Mexico
✔ Dimensions: 3 in L x 3 in W x 2 in H
✔ Weight: 0.3
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
