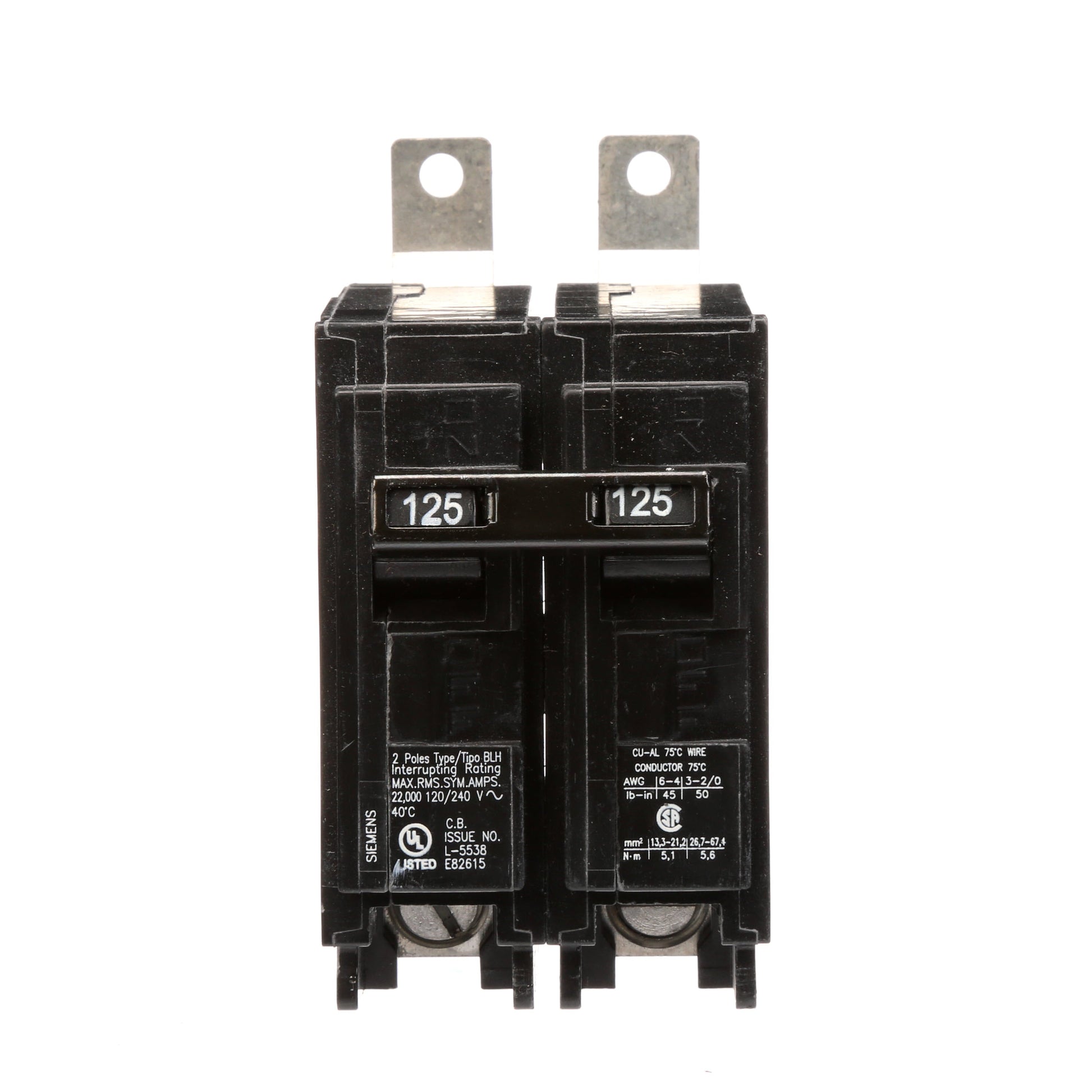

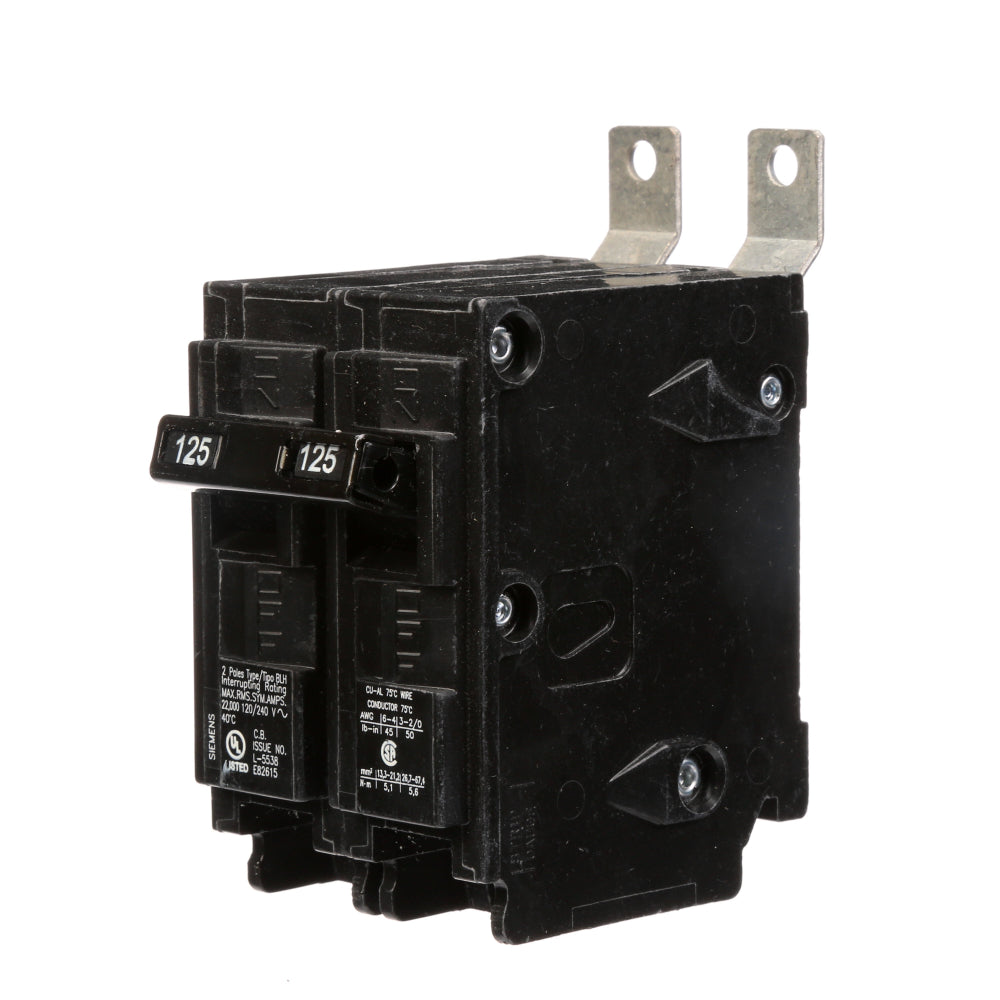

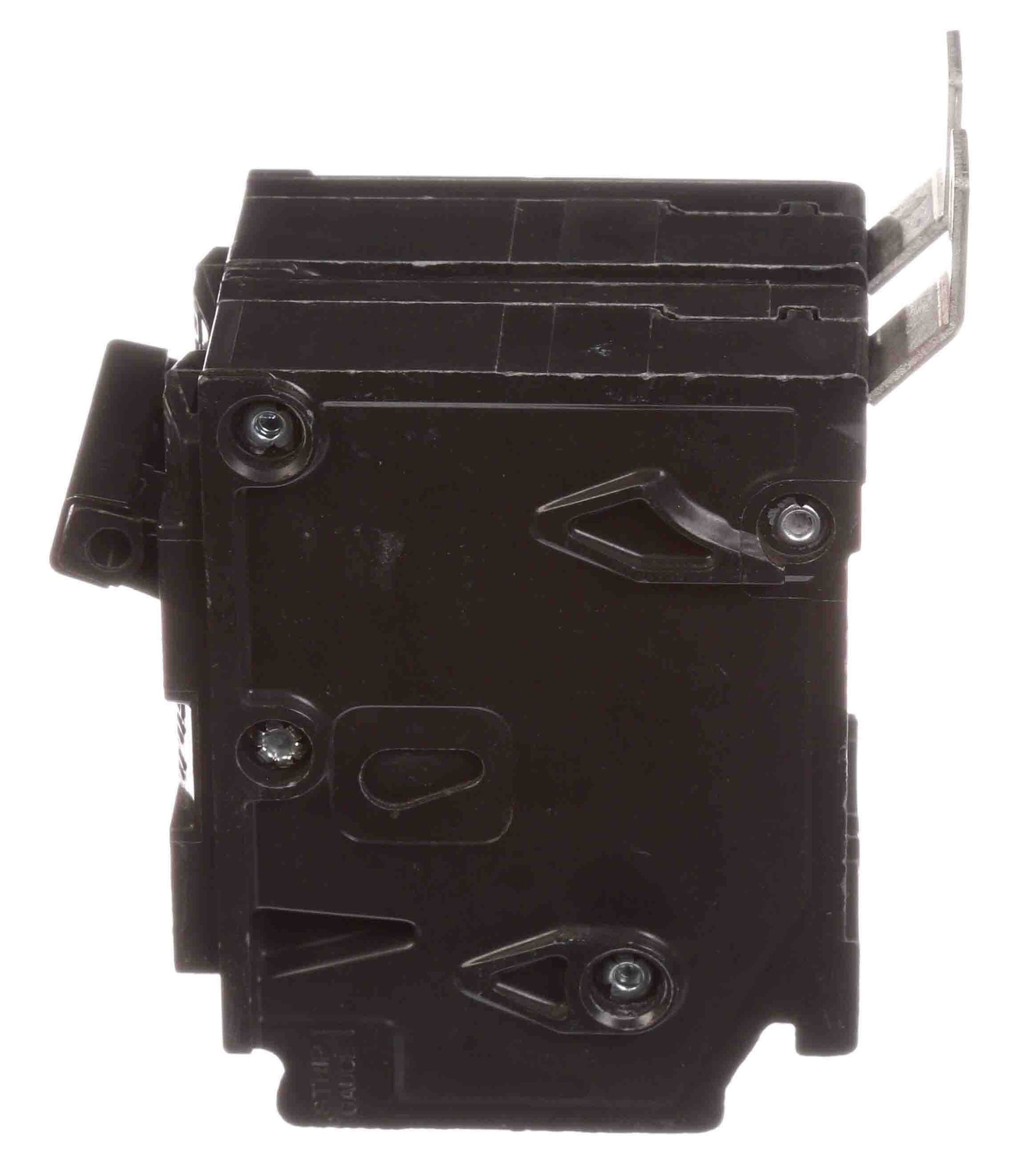

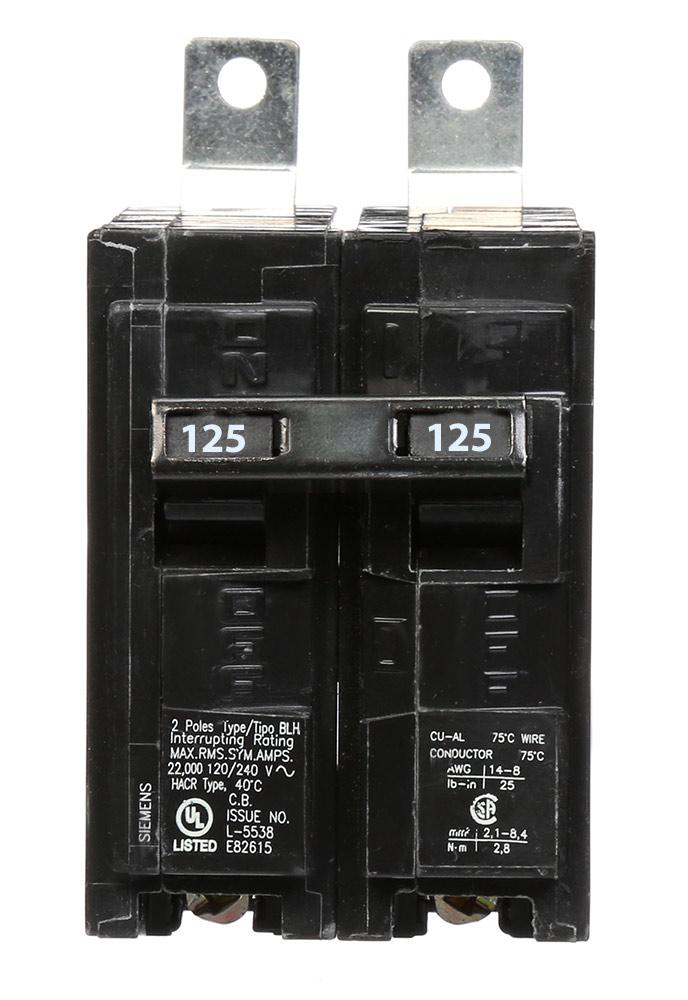

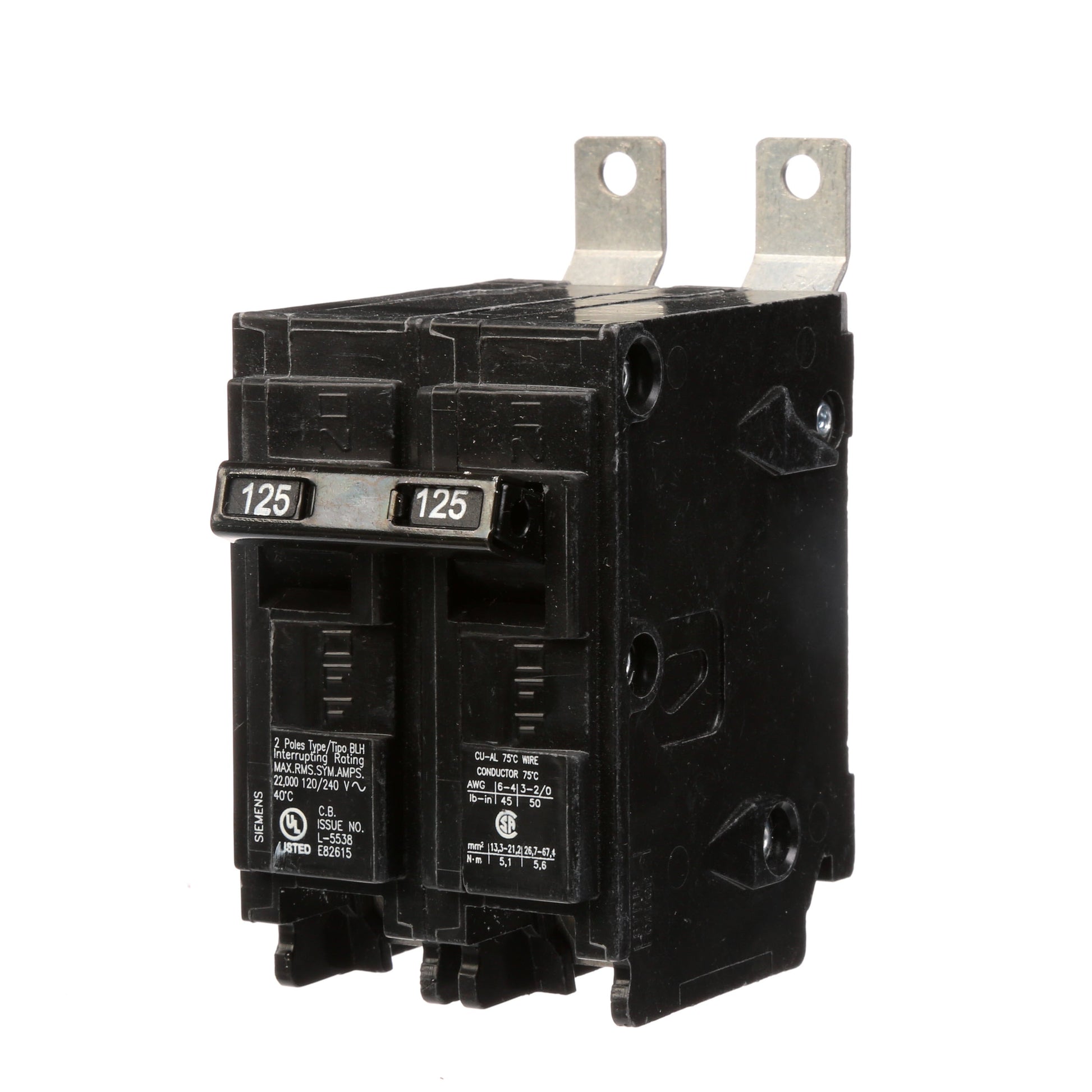

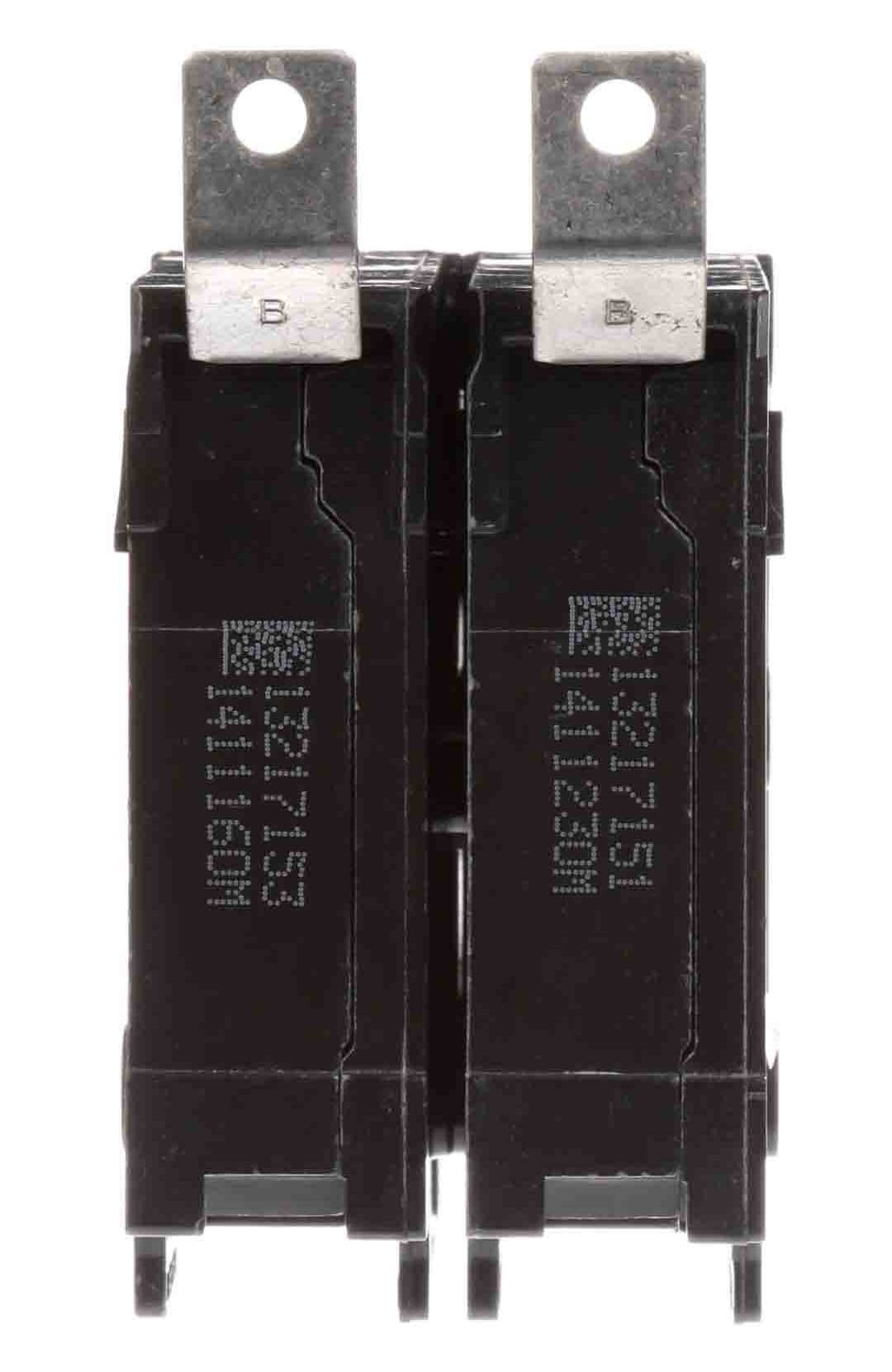

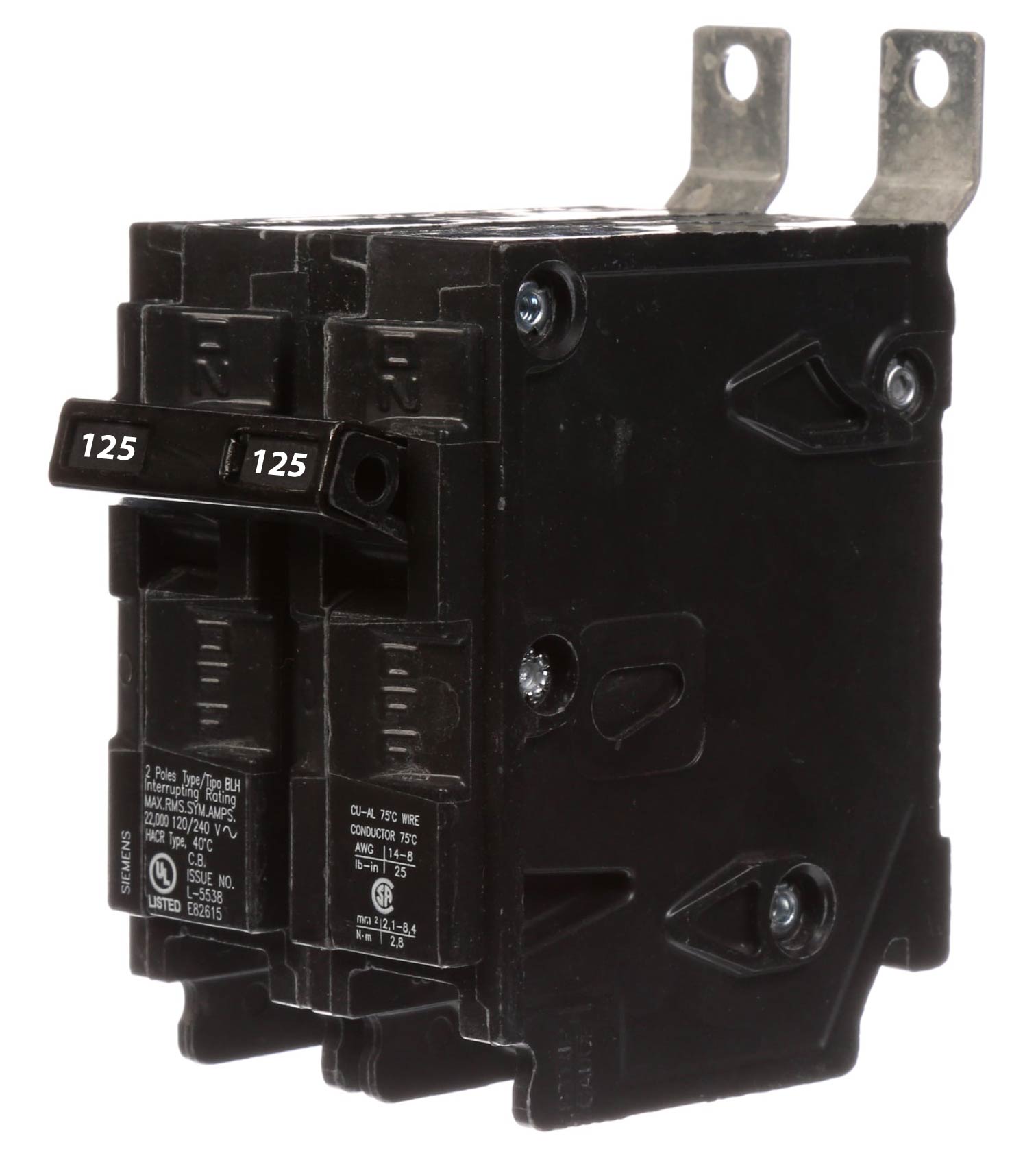

Siemens B2125H Circuit Breaker | 120/240V 125A 2P 22kA@240V Bolt-on BL Series

Product Description:

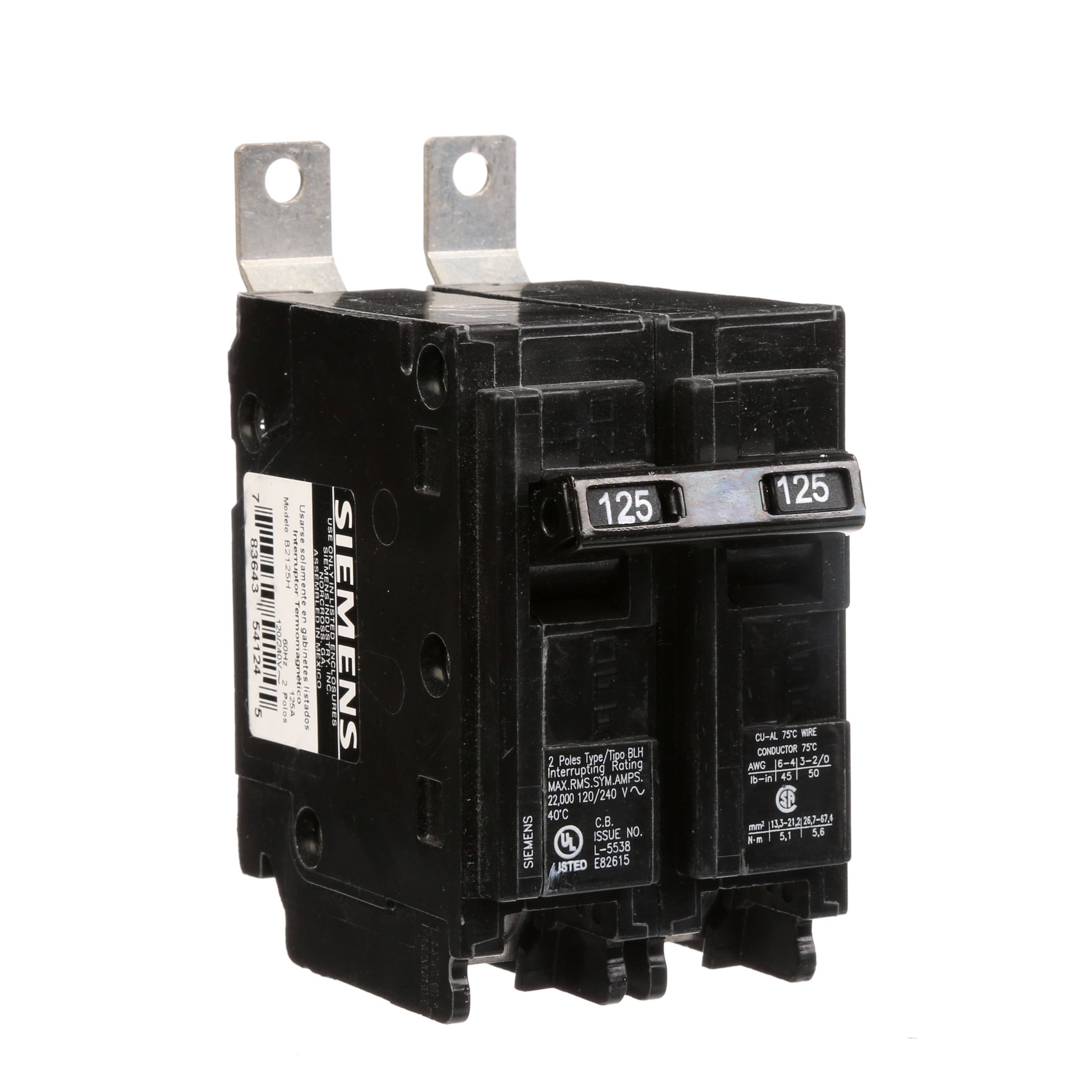

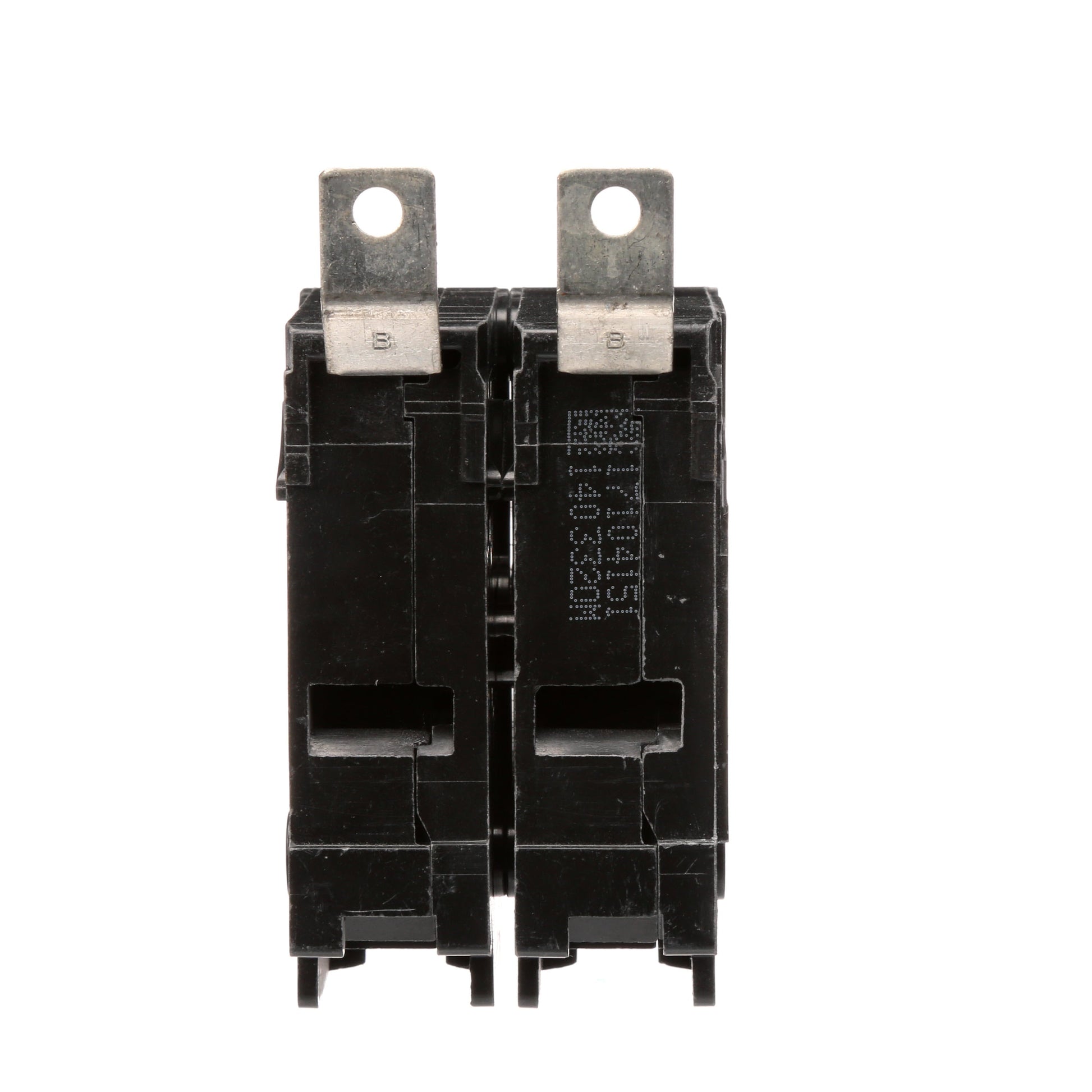

The Siemens B2125H is a Molded Case Circuit Breaker from the BL Series family. This 2-pole, 125 amp breaker is rated for 120/240V and features a 22kA@240V AIC rating. It utilizes a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: B2125H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 120/240
✔ Amperage: 125
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Terminal Connection: Lug
✔ Phase: 1
✔ Functions: LI - Long-Time and Instantaneous
✔ UPC: 783643541245
✔ GTIN: 00783643541245
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 2 in x 2 in
✔ Weight: 0.75
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
