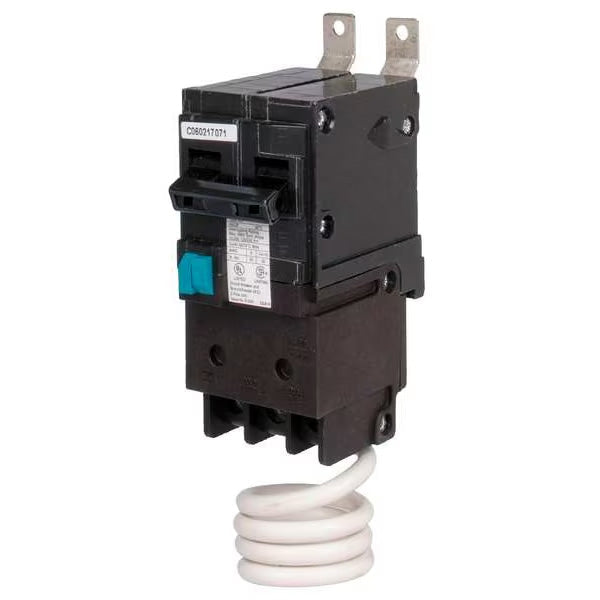

Siemens B215AFH Molded Case Circuit Breaker | 120/240V 15A 2P 22kA@120/240V Bolt-On BL Series

Product Description:
The Siemens B215AFH is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 15 amp breaker rated for 120/240V with an AIC rating of 22kA. This model uses a bolt-on connection and provides thermal magnetic protection. It is designed for use in Siemens P1 panelboards and complies with UL 489 standards.

Key Features:
✔ Part Number: B215AFH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BAFH
✔ Voltage: 120/240
✔ Amperage: 15
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@120/240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 20/BAFH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
✔ Breaker Type: Arc Fault Circuit Interrupter
✔ Protection: Thermal Magnetic
✔ UPC: 783643463899
✔ GTIN: 00040892005686
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 6 in x 6 in
✔ Weight: 1
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL 489
✔ Certification: UL 489
