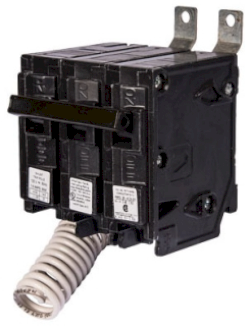

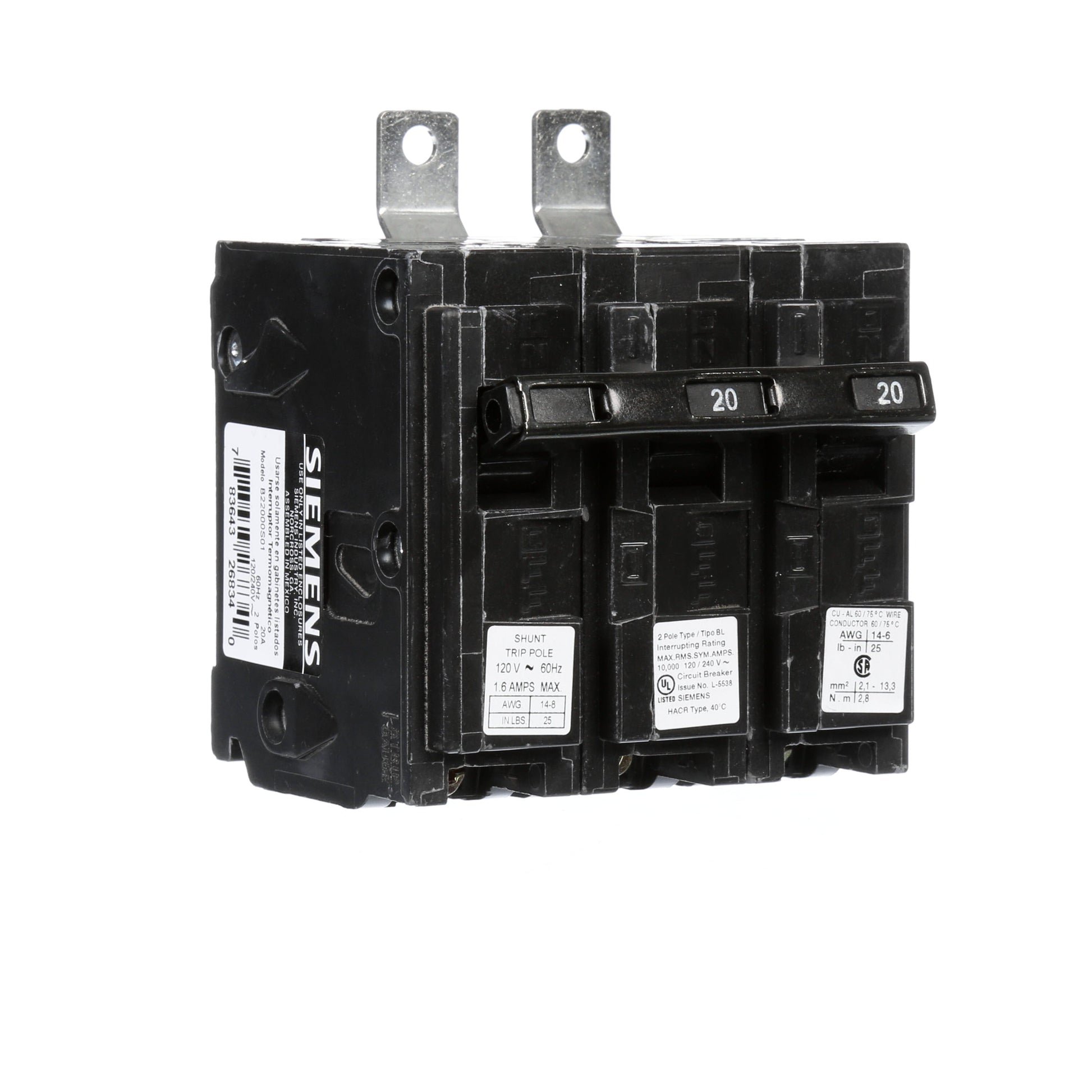

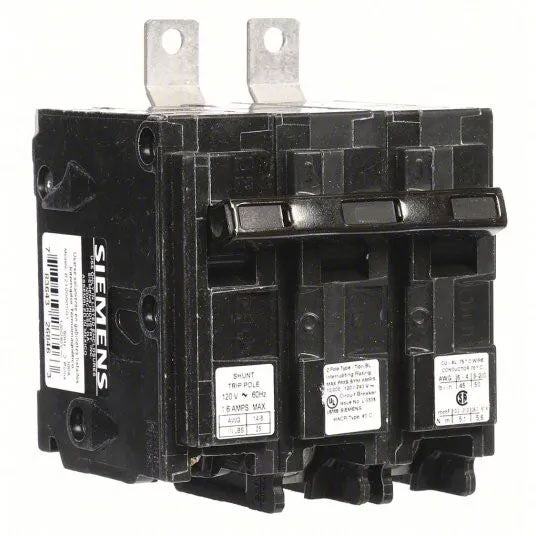

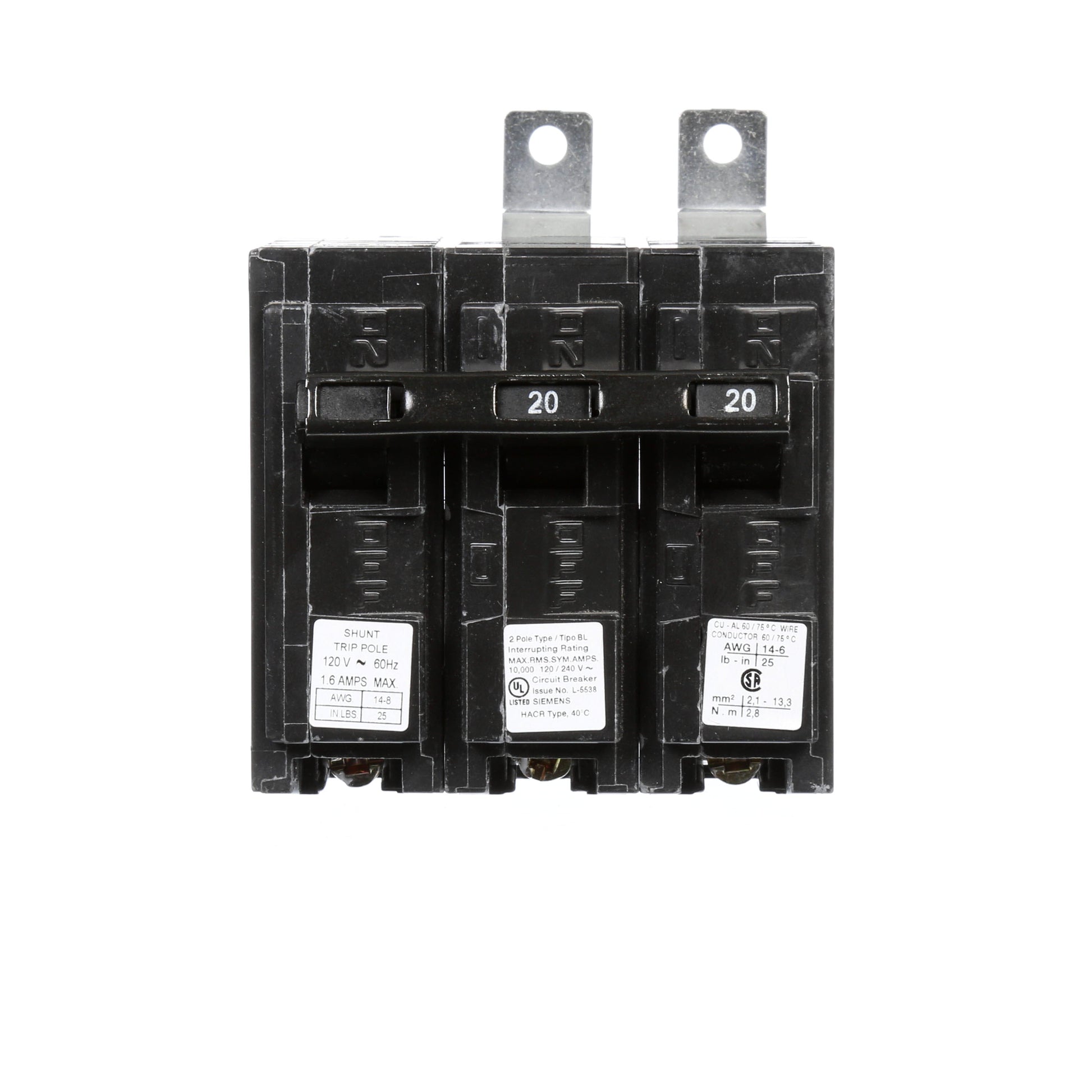

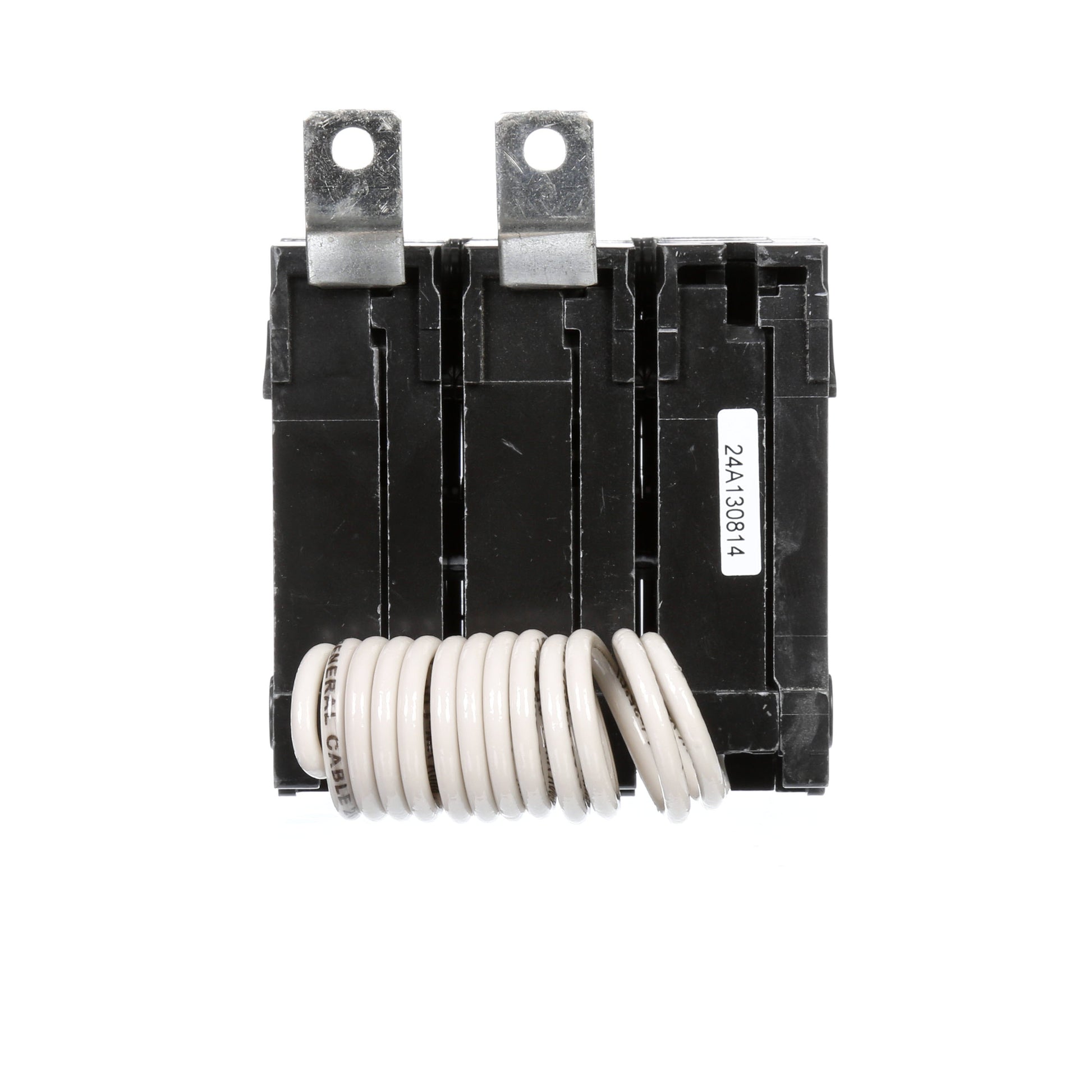

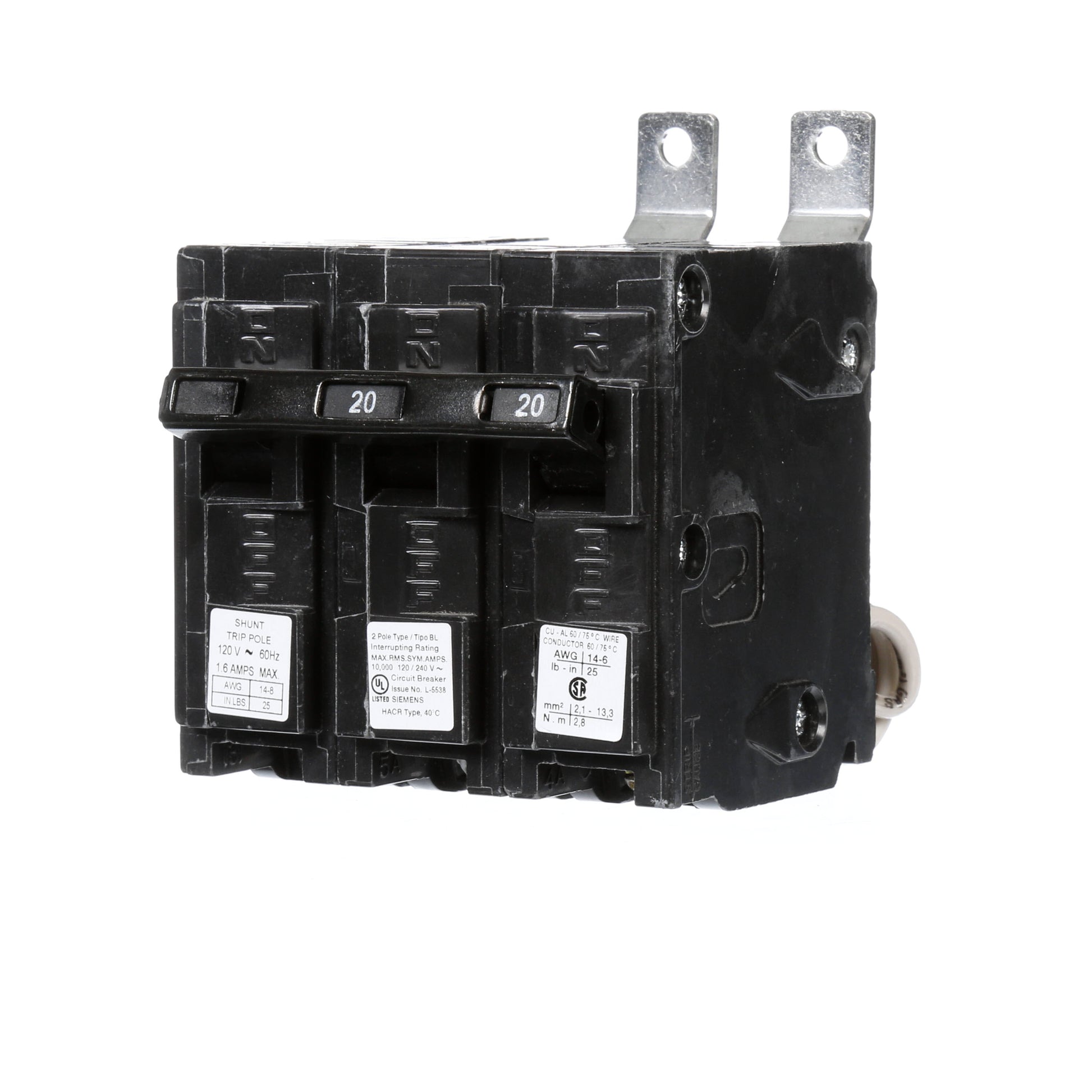

Siemens B22000S01 Molded Case Circuit Breaker | 120/240V 20A 2P 10kA@240V Bolt-on BL Series

Product Description:
The Siemens B22000S01 is a molded case circuit breaker from the BL Series family. It is a 2-pole, 20 amp breaker rated for 120/240 volts with an AIC rating of 10kA@240V. This model uses a bolt-on connection and provides thermal magnetic protection. It is designed for use in Siemens P1 panelboards and meets CSA, HACR, and UL standards.

Key Features:
✔ Part Number: B22000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 120/240
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268340
✔ GTIN: 00783643268340
✔ Country of Origin: Mexico
✔ Dimensions: 4.3 in x 3.8 in x 3.8 in
✔ Weight: 0.86
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
