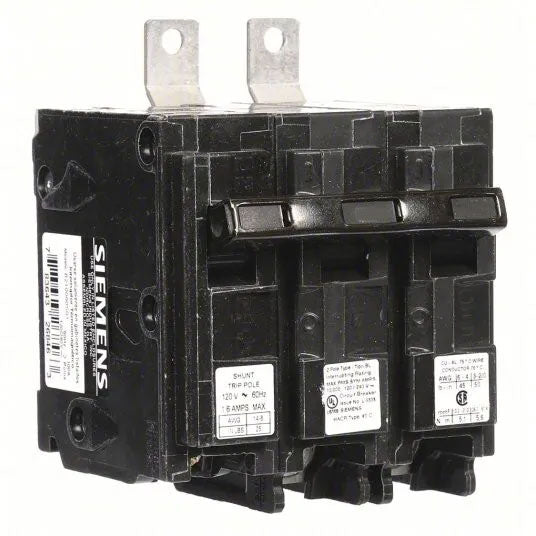

Siemens B23000S01 Circuit Breaker | 120/240V 30A 2P 10kA@240V Bolt-on BL Series

Product Description:
The Siemens B23000S01 is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 30 amp breaker rated for 120/240V with a 10kA@240V AIC rating and bolt-on connections. This model includes thermal magnetic protection and is complete with a 120V shunt trip. It is designed for use in Siemens P1 Panelboards and meets CSA, HACR, and UL standards.

Key Features:
✔ Part Number: B23000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 120/240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268364
✔ GTIN: 00783643268364
✔ Country of Origin: Mexico
✔ Dimensions: 4.3 in x 3.8 in x 3.8 in
✔ Weight: 1.15
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
