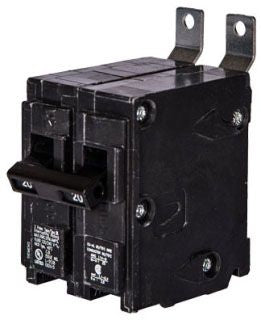

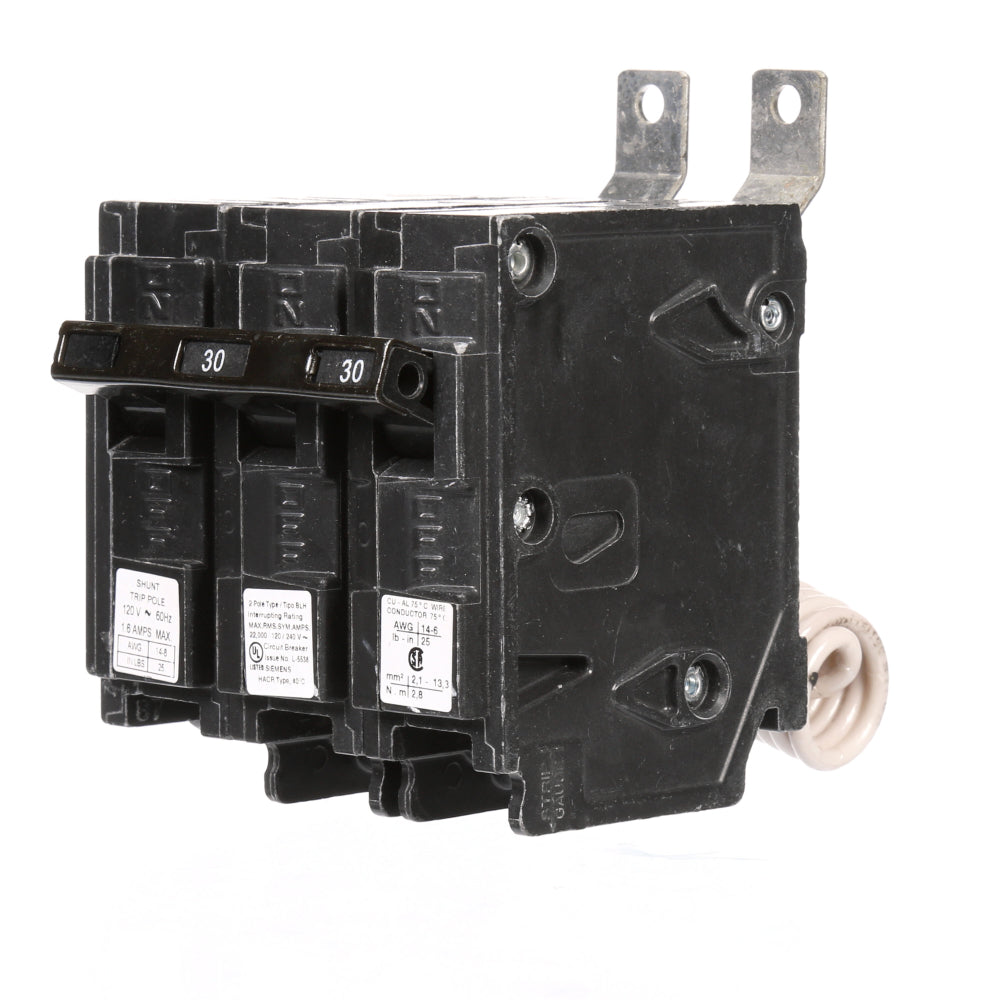

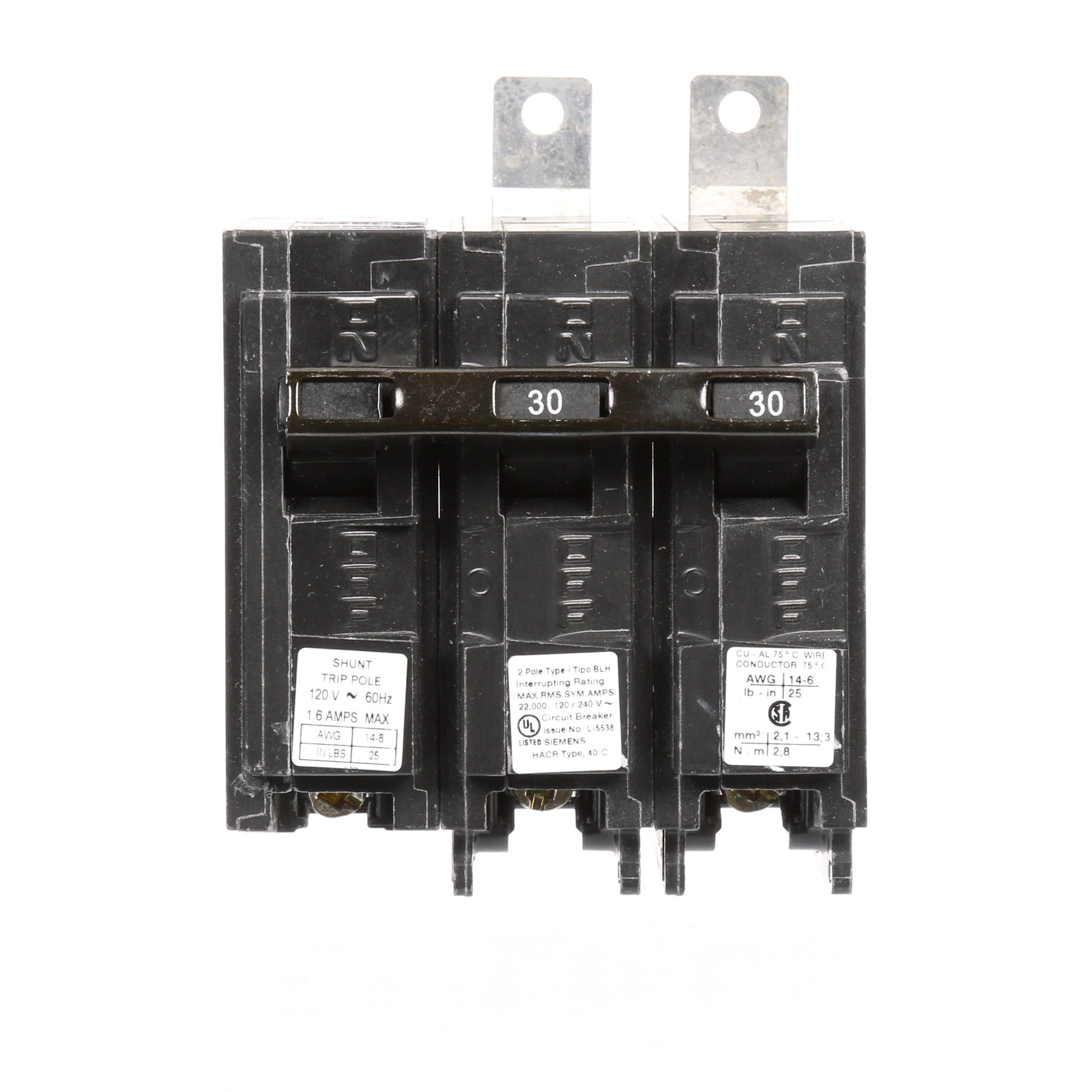

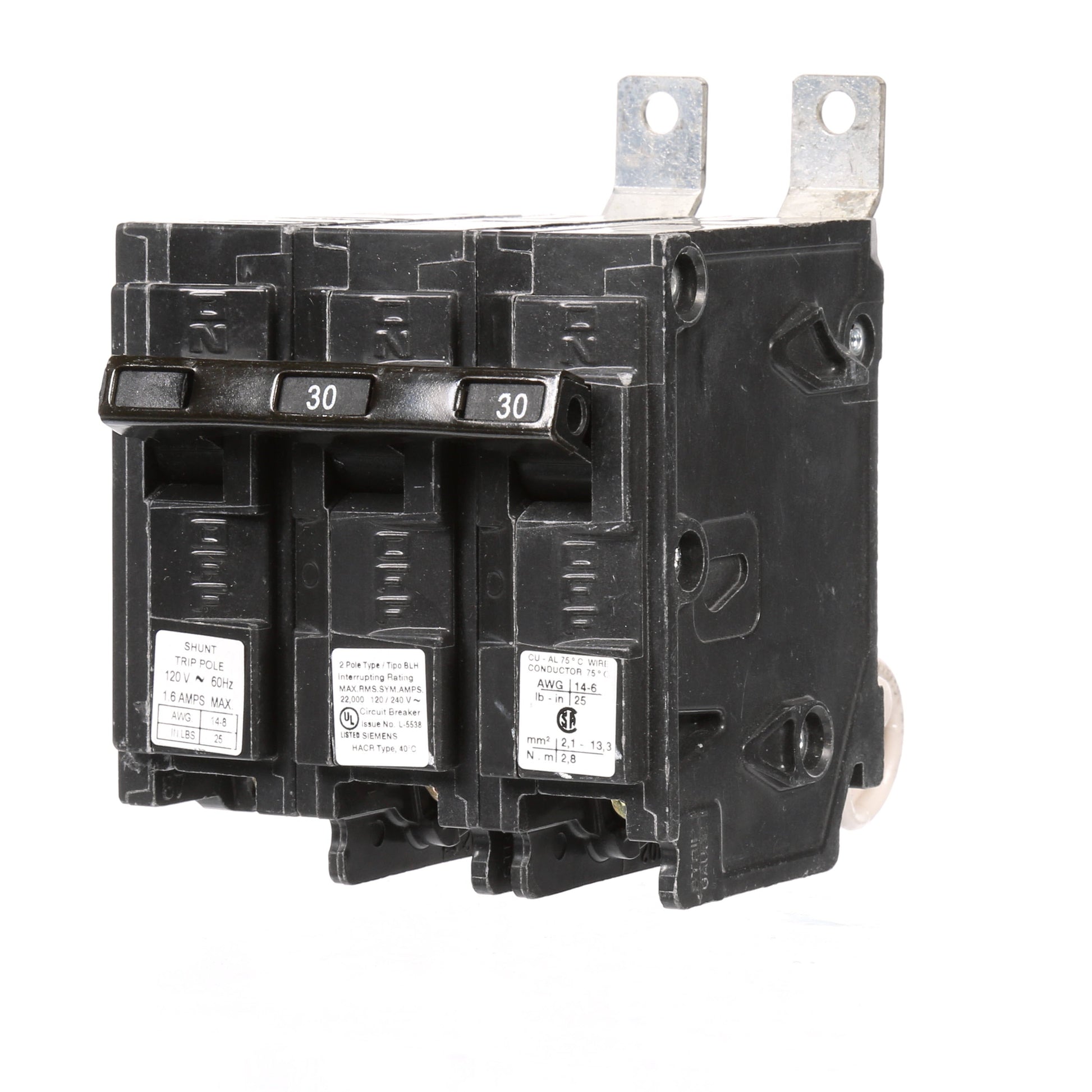

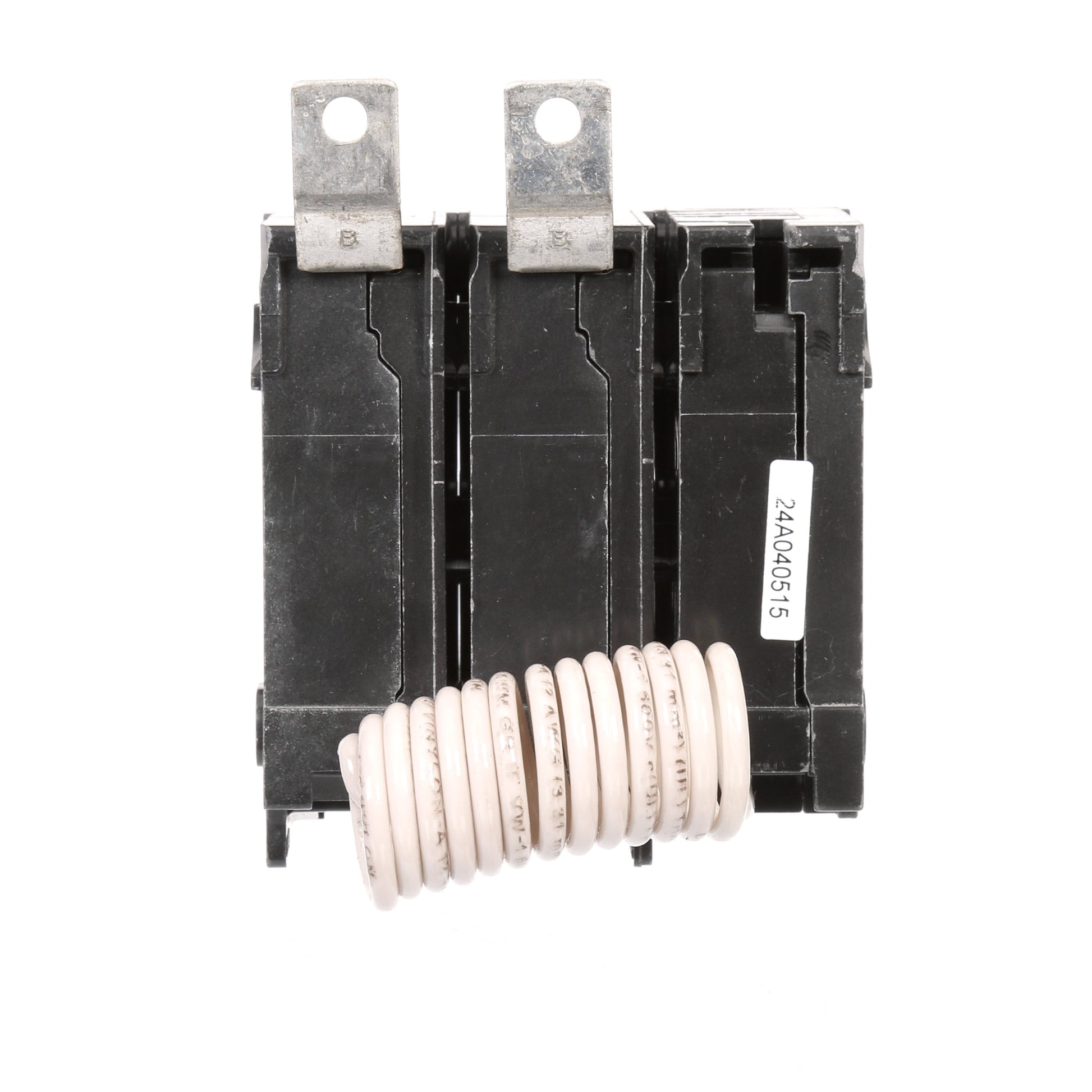

Siemens B230H00S01 Molded Case Circuit Breaker 120/240V 30A 2 Pole 22kA@240V BL Series

Product Description:
The Siemens B230H00S01 is a molded case circuit breaker designed for reliable electrical protection. It is a 2-pole, 30 amp breaker rated for 120/240V systems with an interrupting capacity of 22kA at 240V. This thermal magnetic circuit breaker features a bolt-on connection and includes a 120V shunt trip function. It is compatible with Siemens P1 panelboards and meets CSA, HACR, and UL standards.

Key Features:
✔ Part Number: B230H00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 120/240
✔ Amperage: 30
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268777
✔ GTIN: 00783643268777
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 1.26
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
