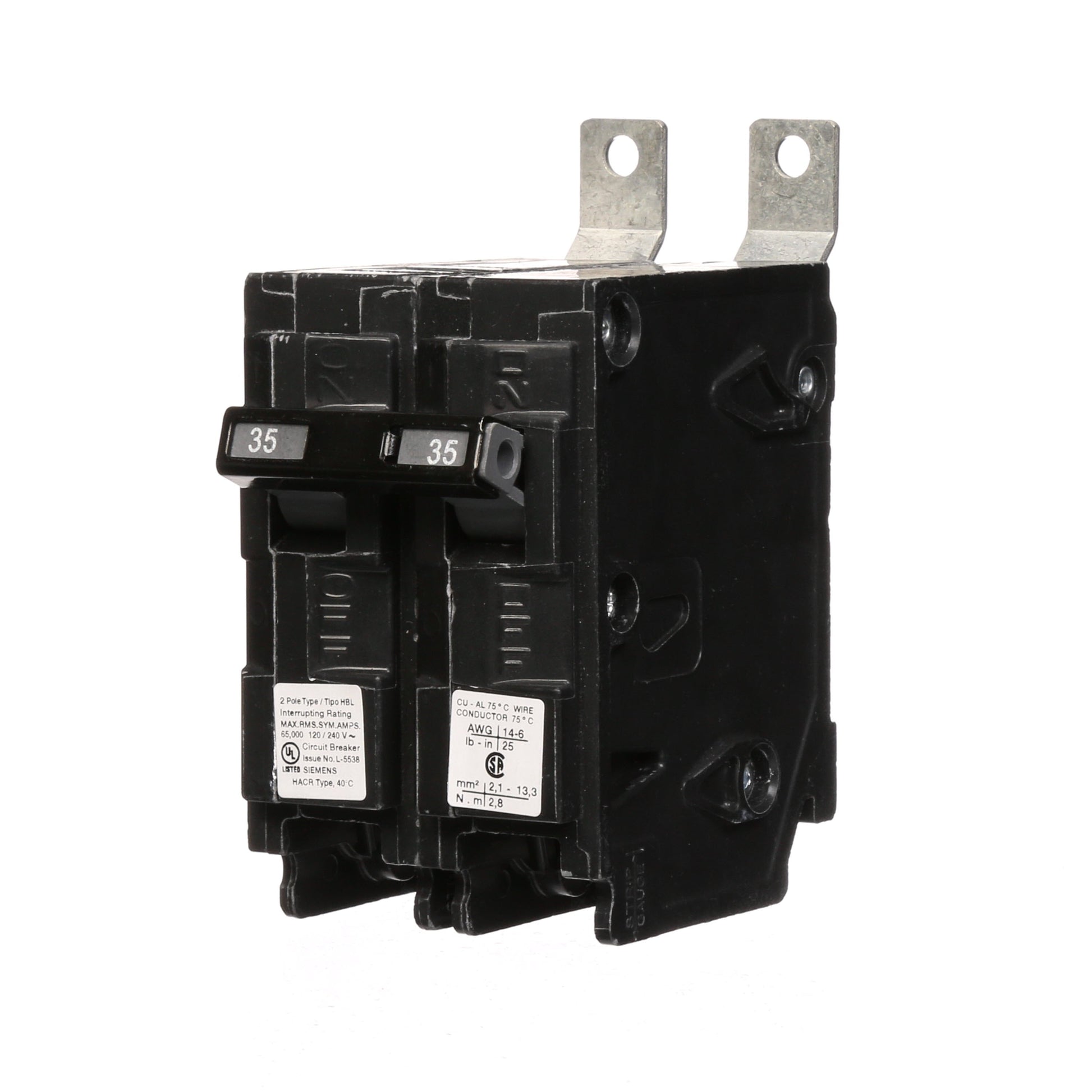

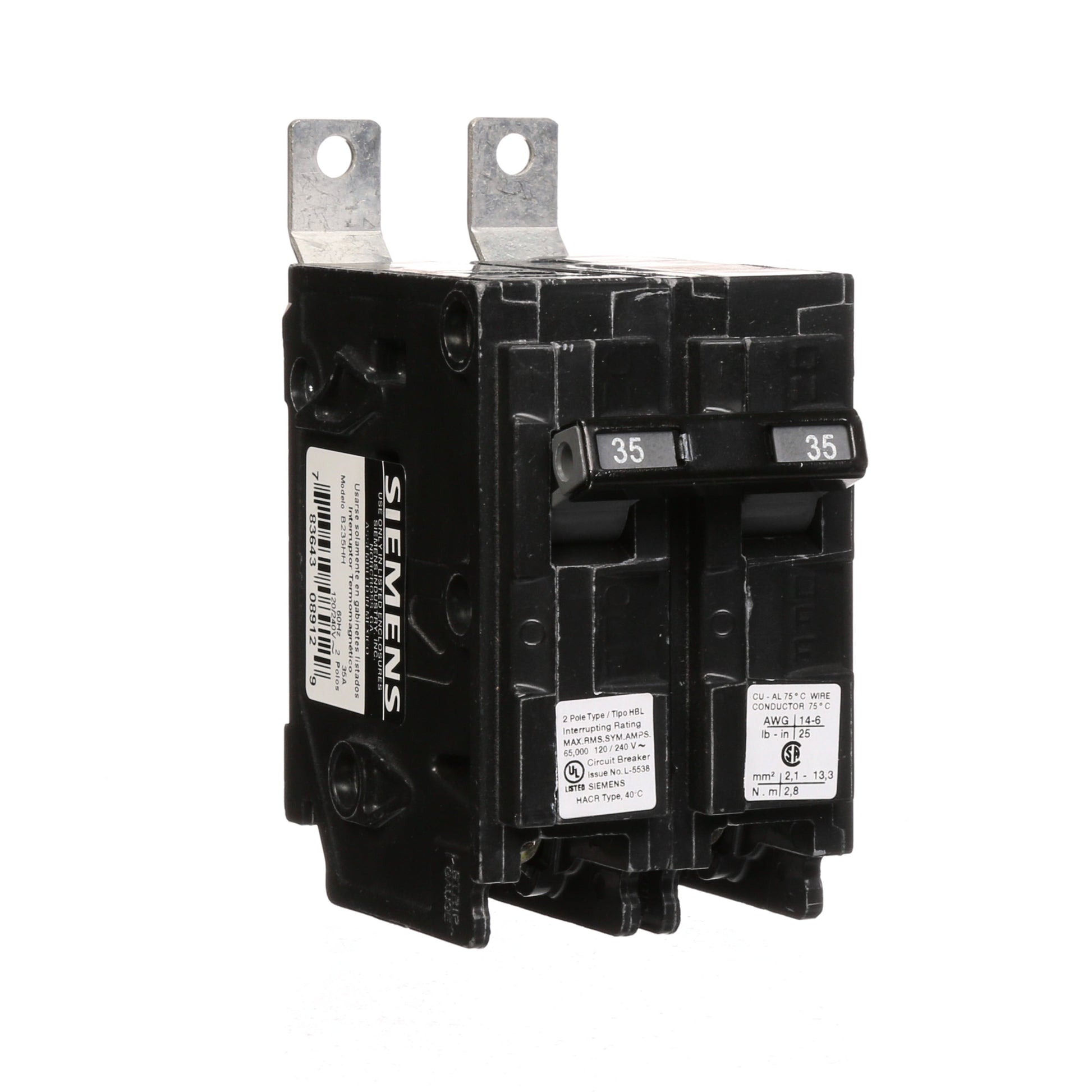

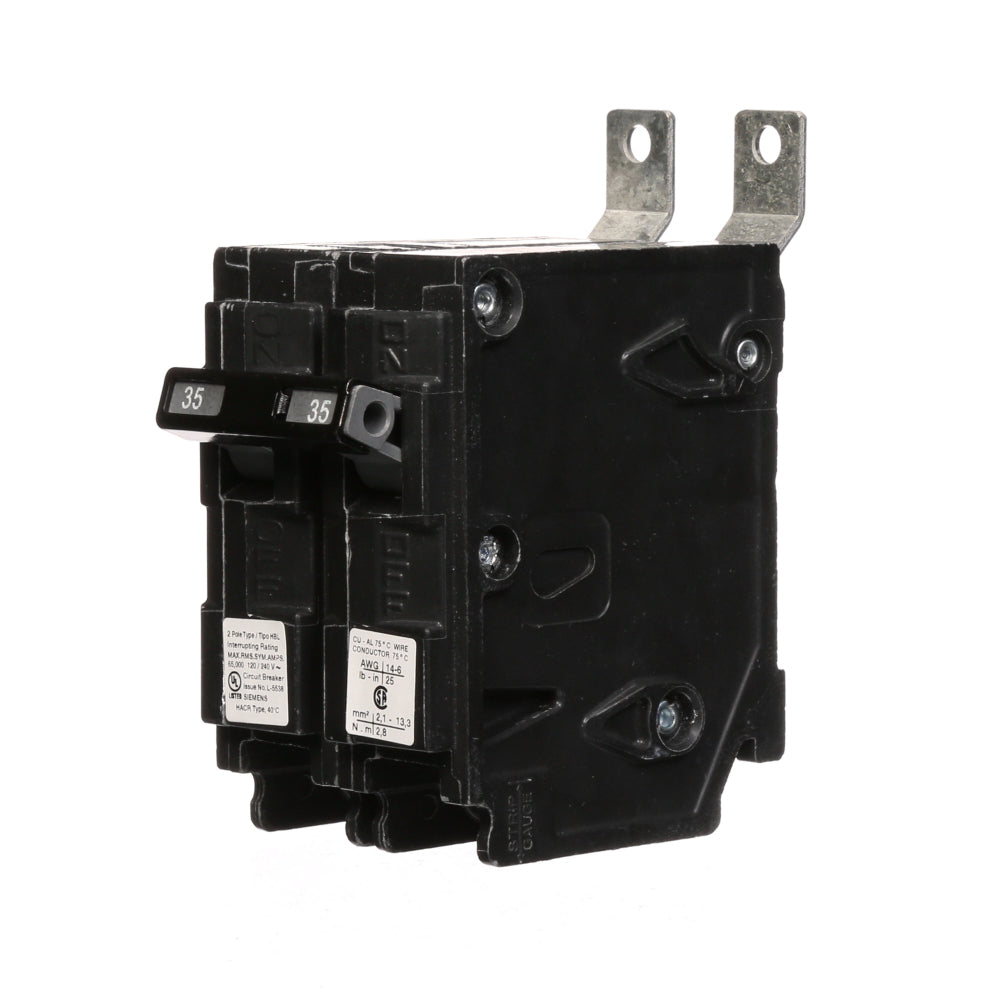

Siemens B235HH Circuit Breaker | 120/240V 35A 2P 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B235HH is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 35 amp breaker rated for 120/240 volts with an AIC rating of 65kA@240V. This model features bolt-on connections and thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: B235HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 120/240
✔ Amperage: 35
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/HBL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643089129
✔ GTIN: 00783643089129
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 3 in x 3 in
✔ Weight: 0.66
✔ Panel Type: P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
