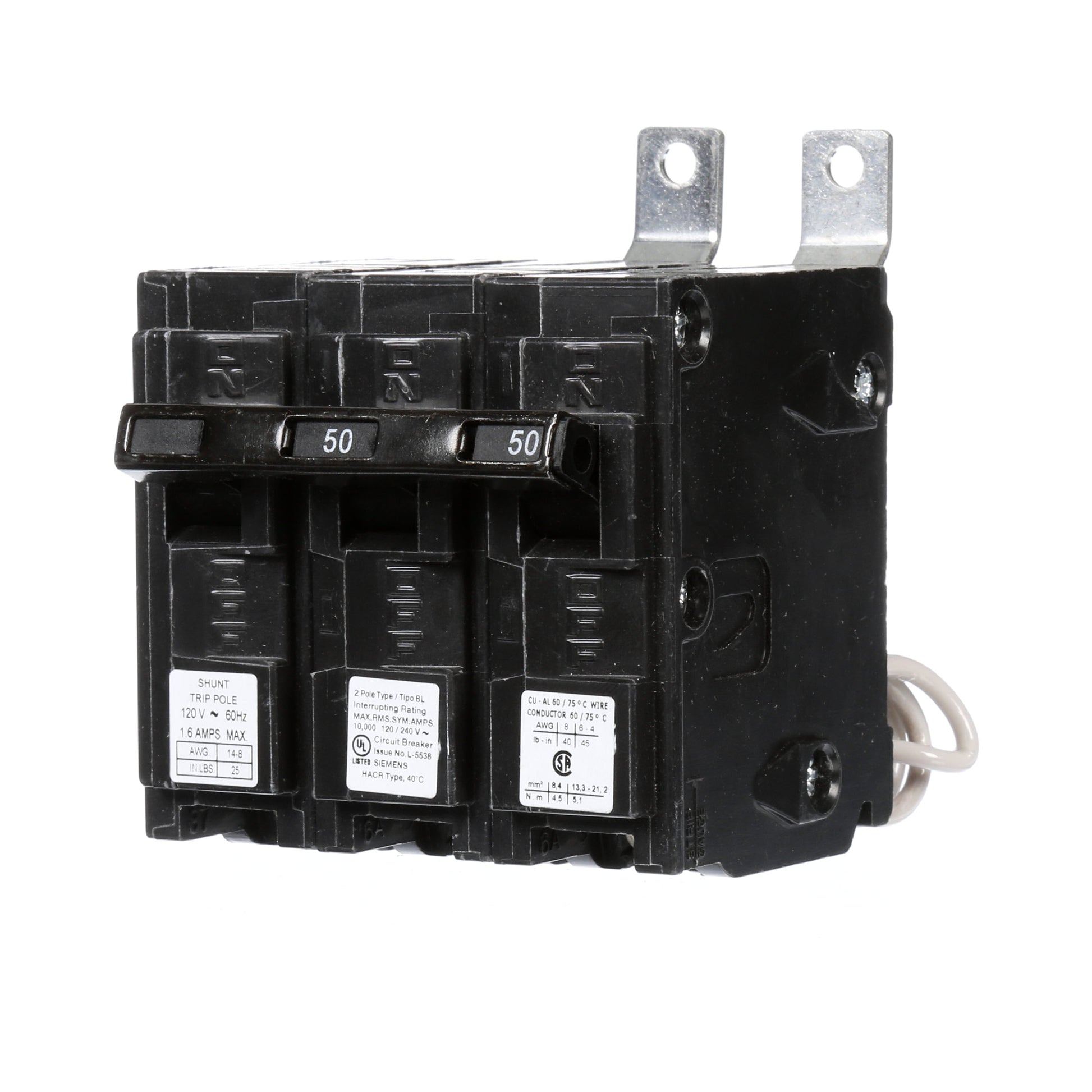

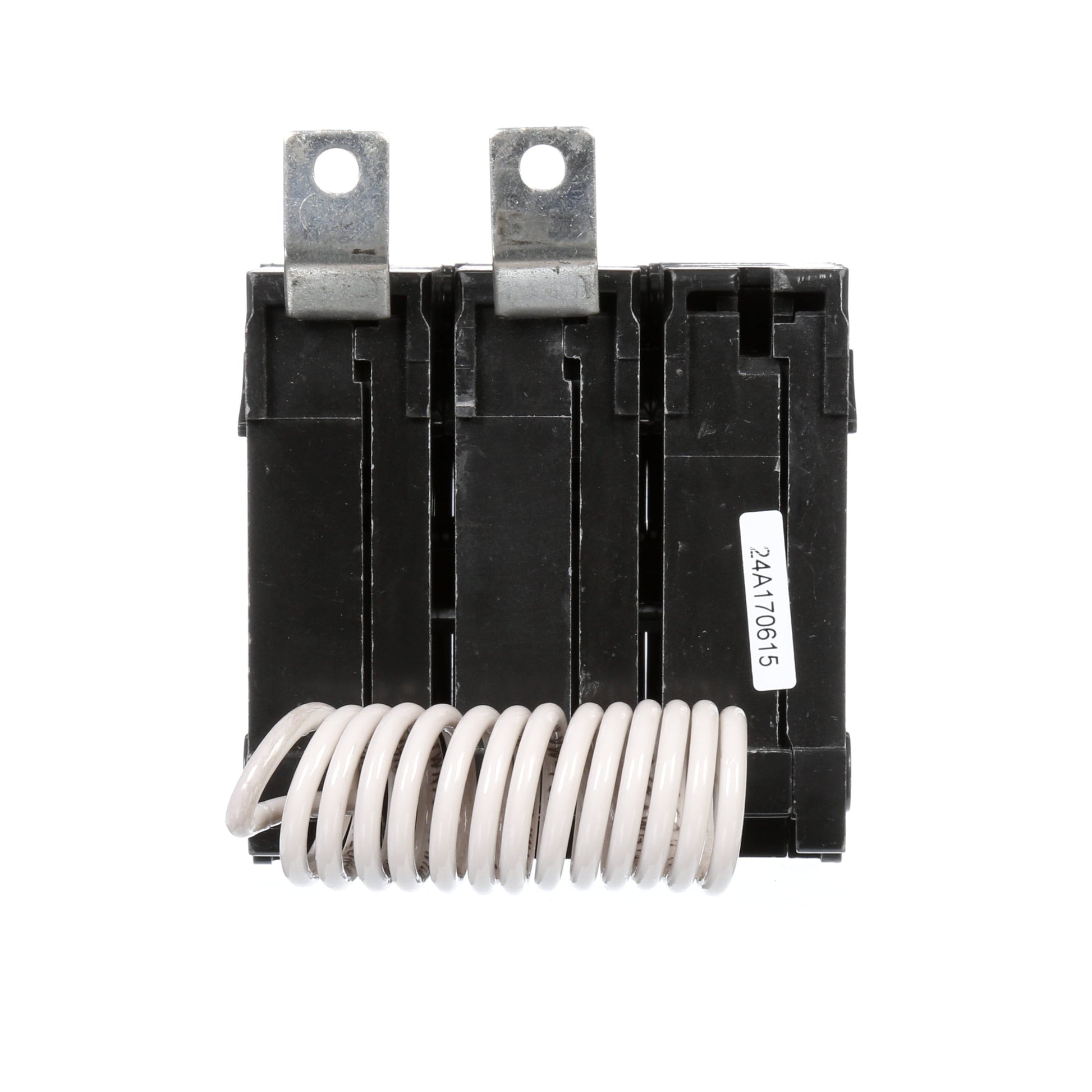

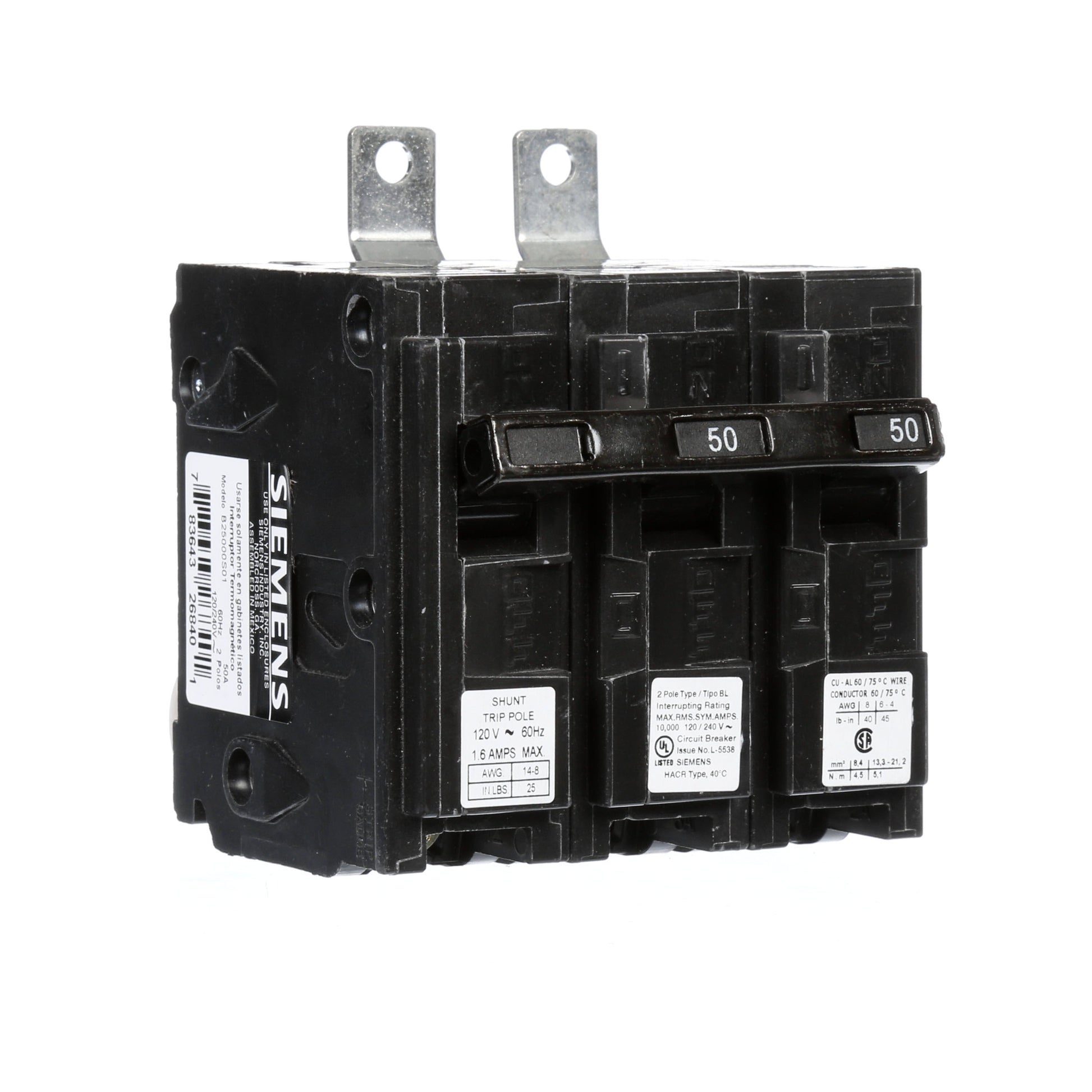

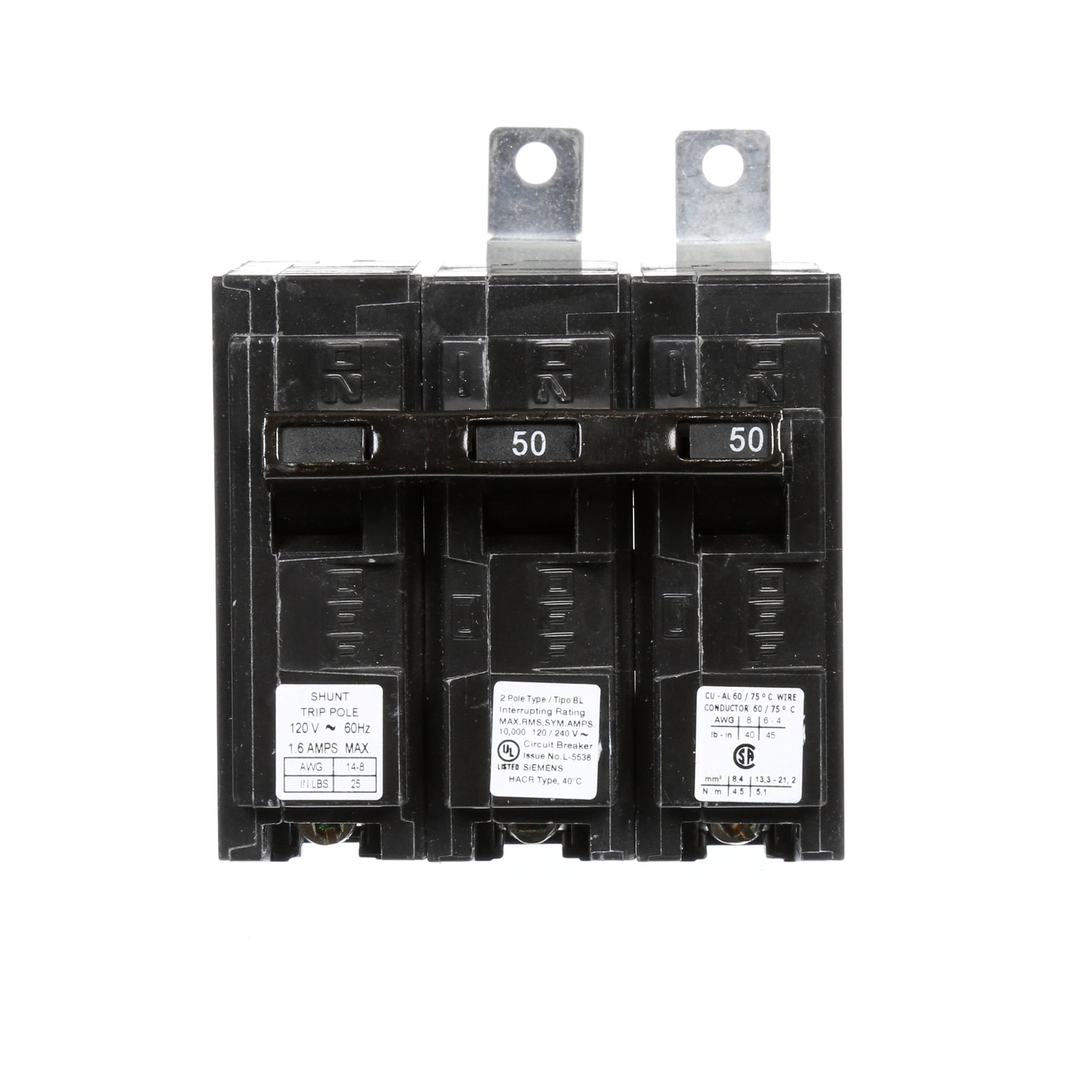

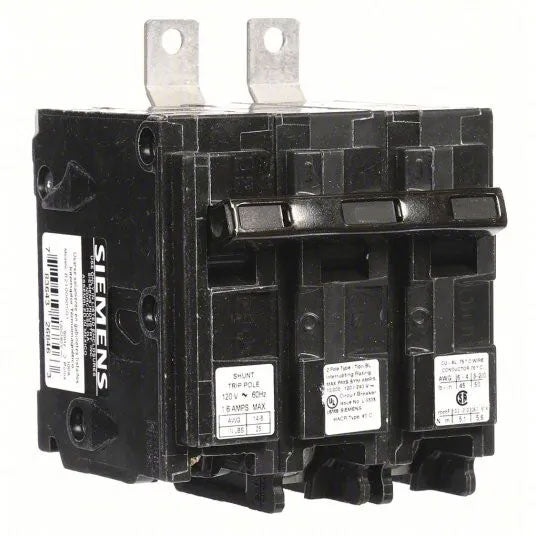

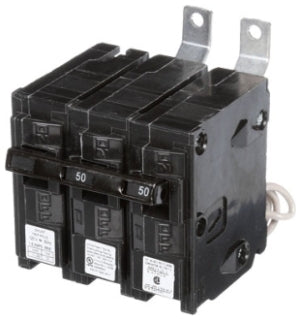

Siemens B25000S01 Molded Case Circuit Breaker | 120/240V 50A 2P 10kA@240V BL Series

Product Description:
The Siemens B25000S01 is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 50 amp breaker rated for 120/240V with an AIC rating of 10kA@240V. This thermal magnetic circuit breaker uses a bolt-on connection and is designed for use in Siemens P1 panelboards.

Key Features:
✔ Part Number: B25000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 120/240
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268401
✔ GTIN: 00783643268401
✔ Country of Origin: Mexico
✔ Dimensions: 4.5 in x 3.8 in x 3.8 in
✔ Weight: 1.21
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
