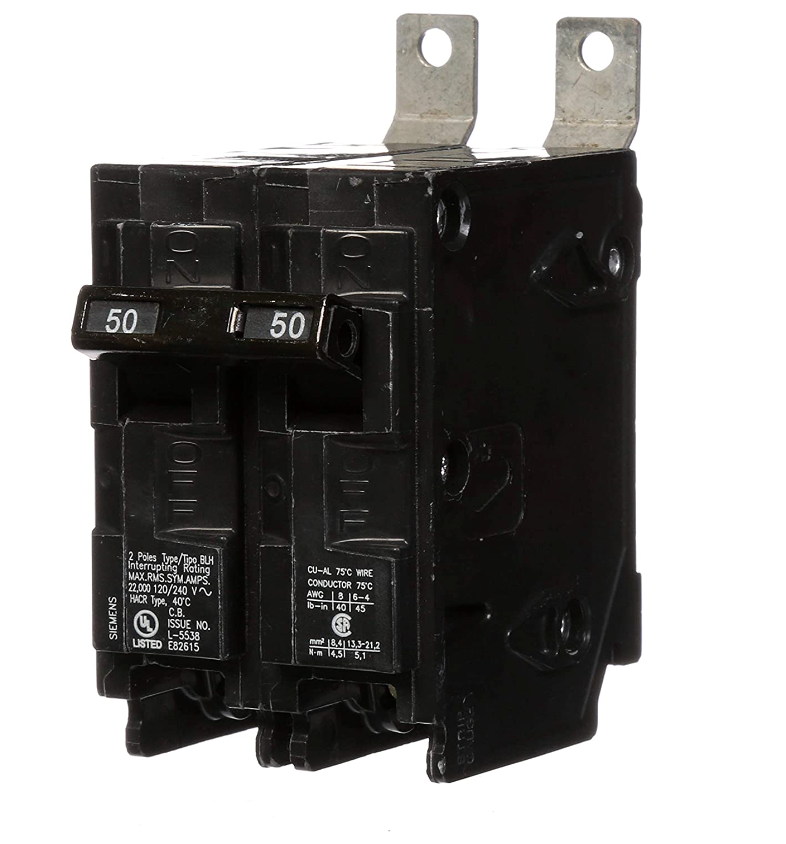

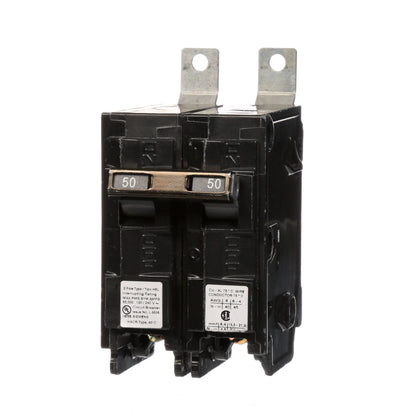

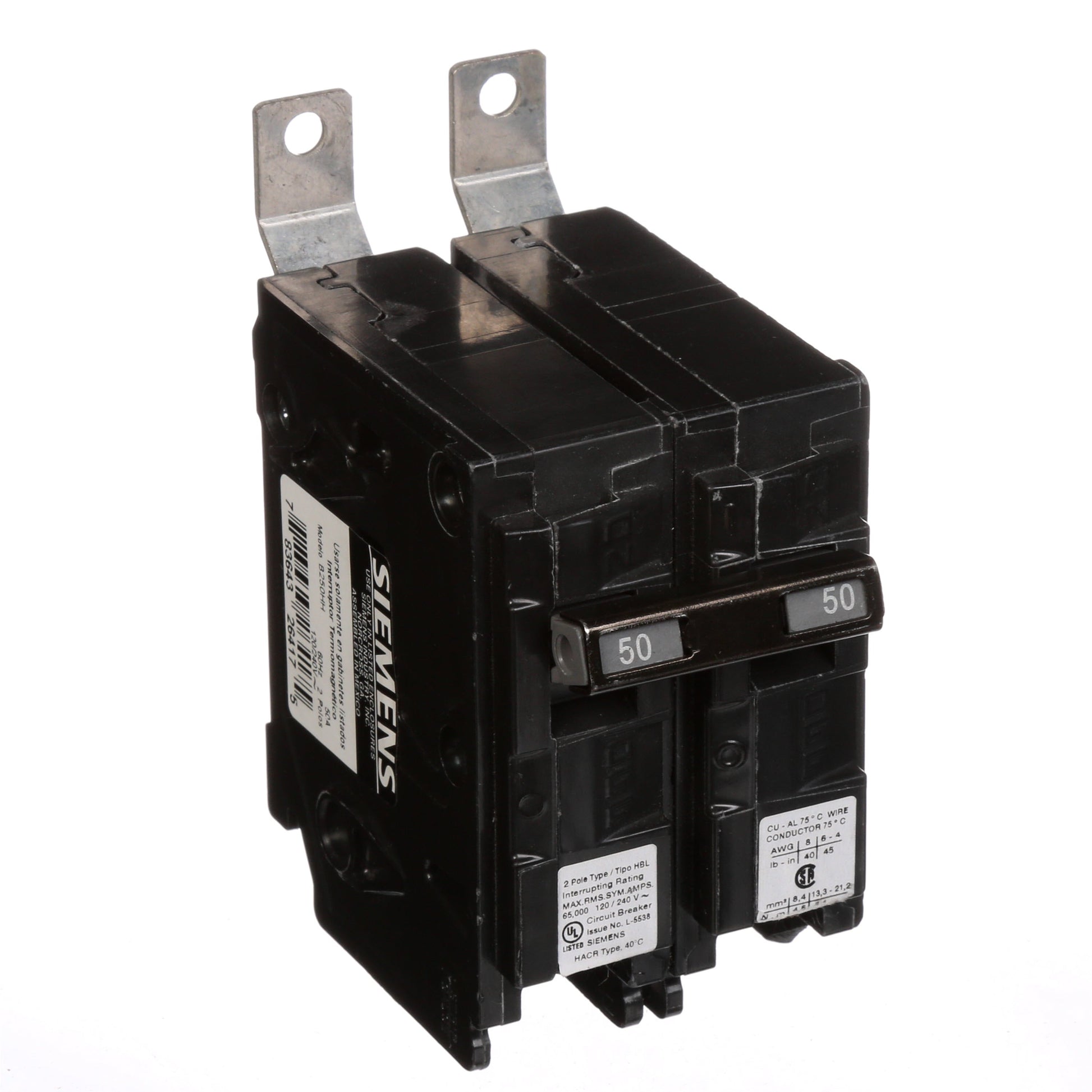

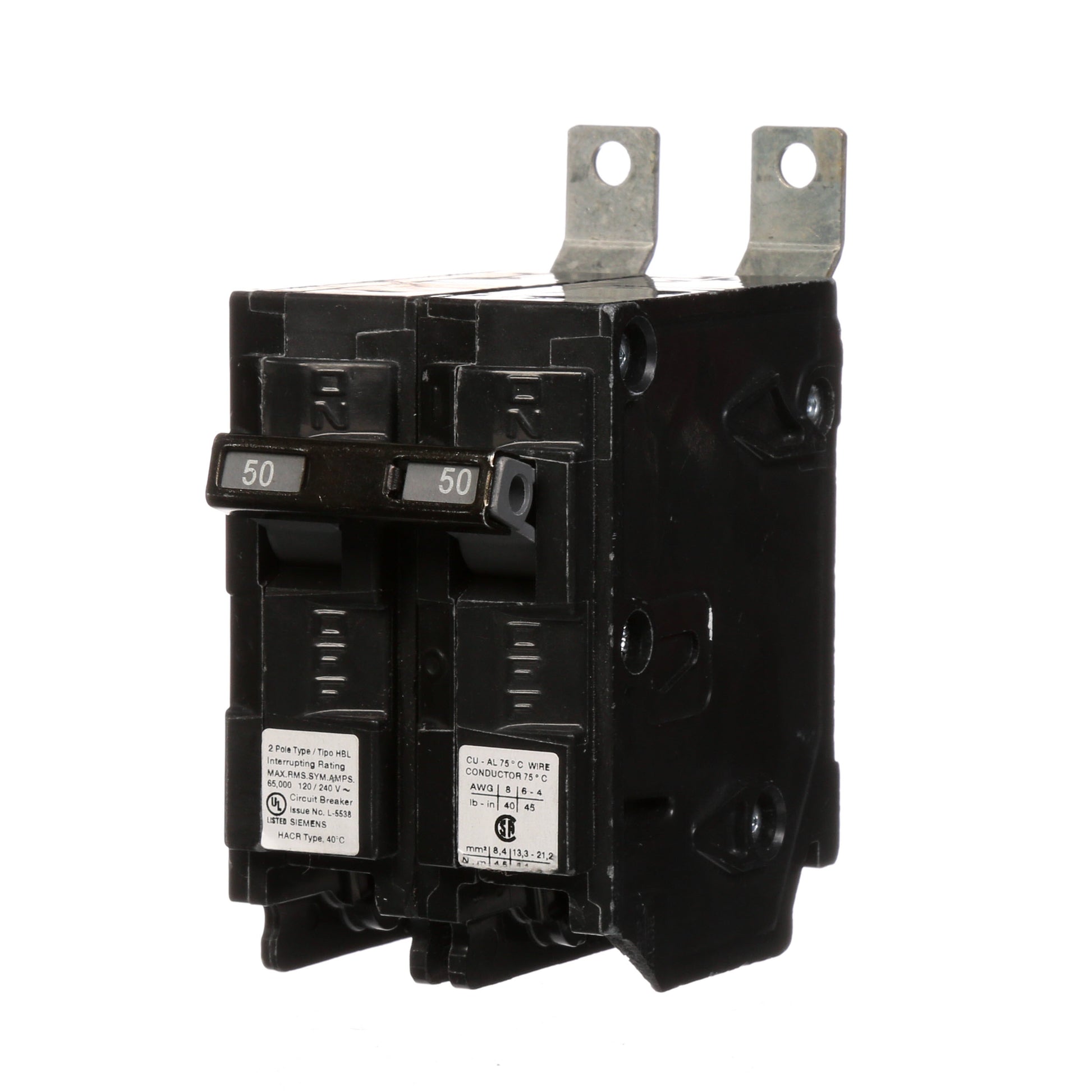

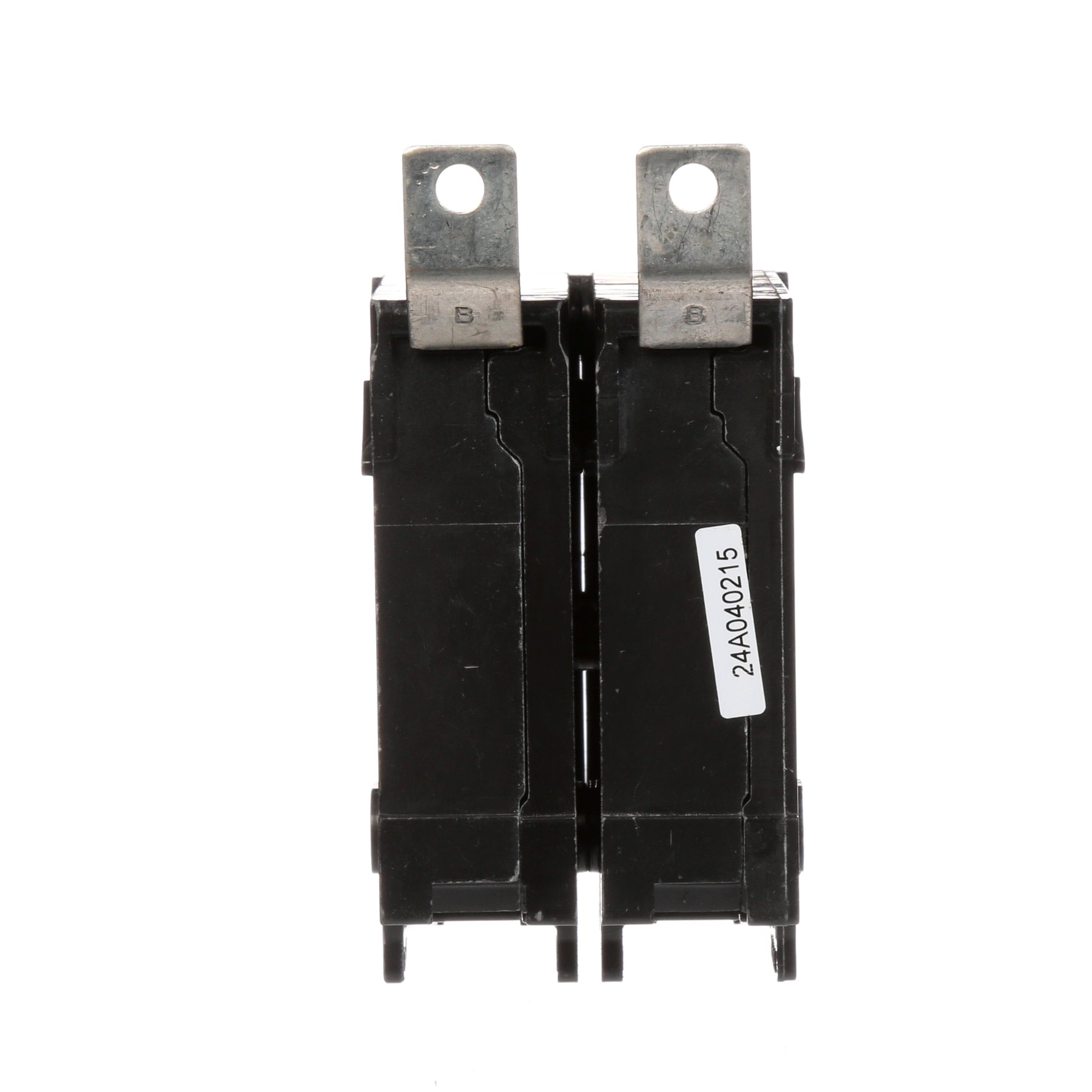

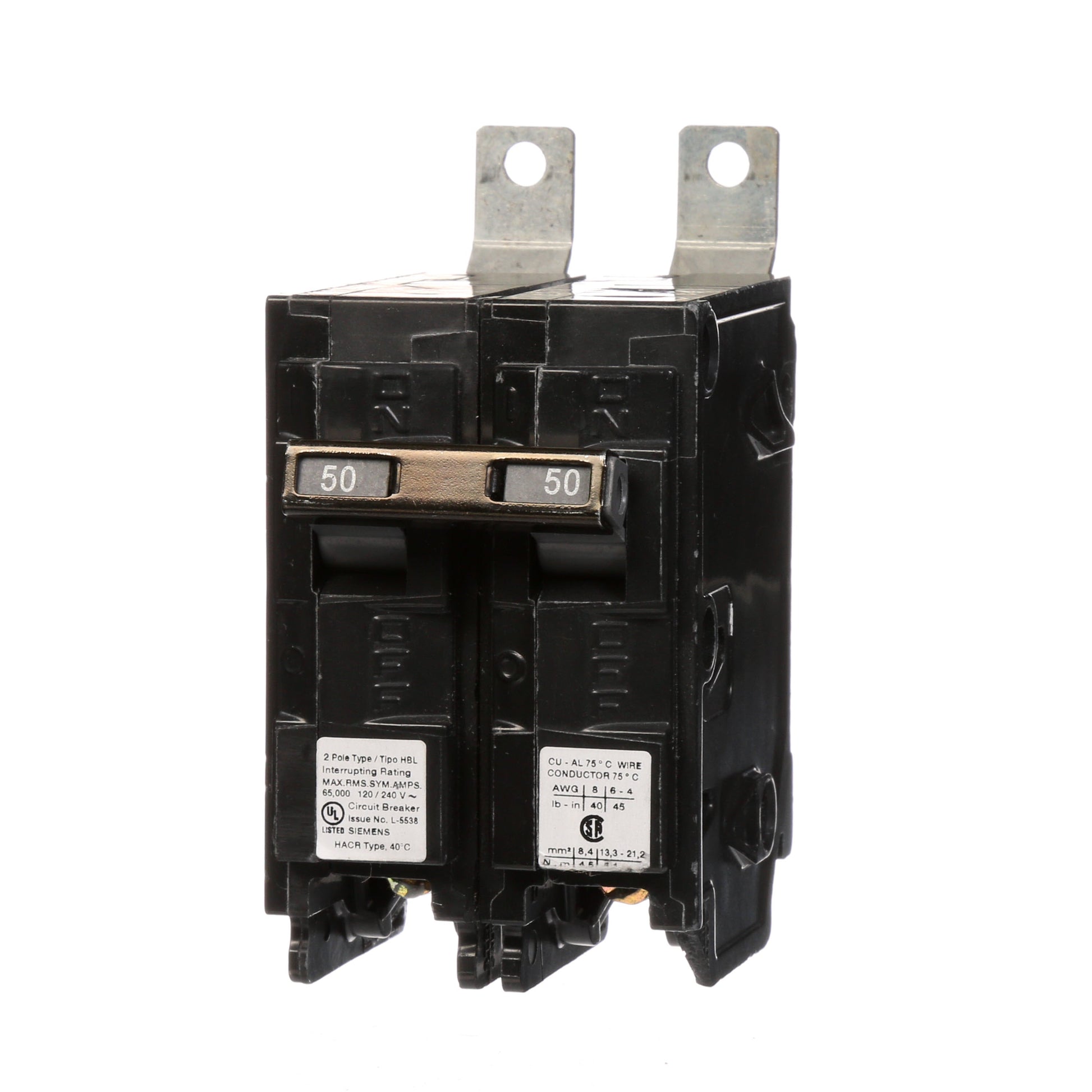

Siemens B250HH Circuit Breaker | 120/240V 50A 2P 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B250HH is a Molded Case Circuit Breaker from the BL Series family. It is a 2-pole, 50 amp breaker rated for 120/240V applications with a high interrupting capacity of 65kA@240V. This thermal magnetic circuit breaker uses a bolt-on connection for secure installation. It is designed for use in P1 panelboards and complies with CSA, HACR, and UL standards.

Key Features:
✔ Part Number: B250HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 120/240
✔ Amperage: 50
✔ Poles: 2
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Lug
✔ Frame Size: 125A/HBL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Panel Type: P1 Panelboards
✔ Certification: CSA, HACR, UL
✔ UPC: 783643264175
✔ GTIN: 00783643264175
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 0.66
