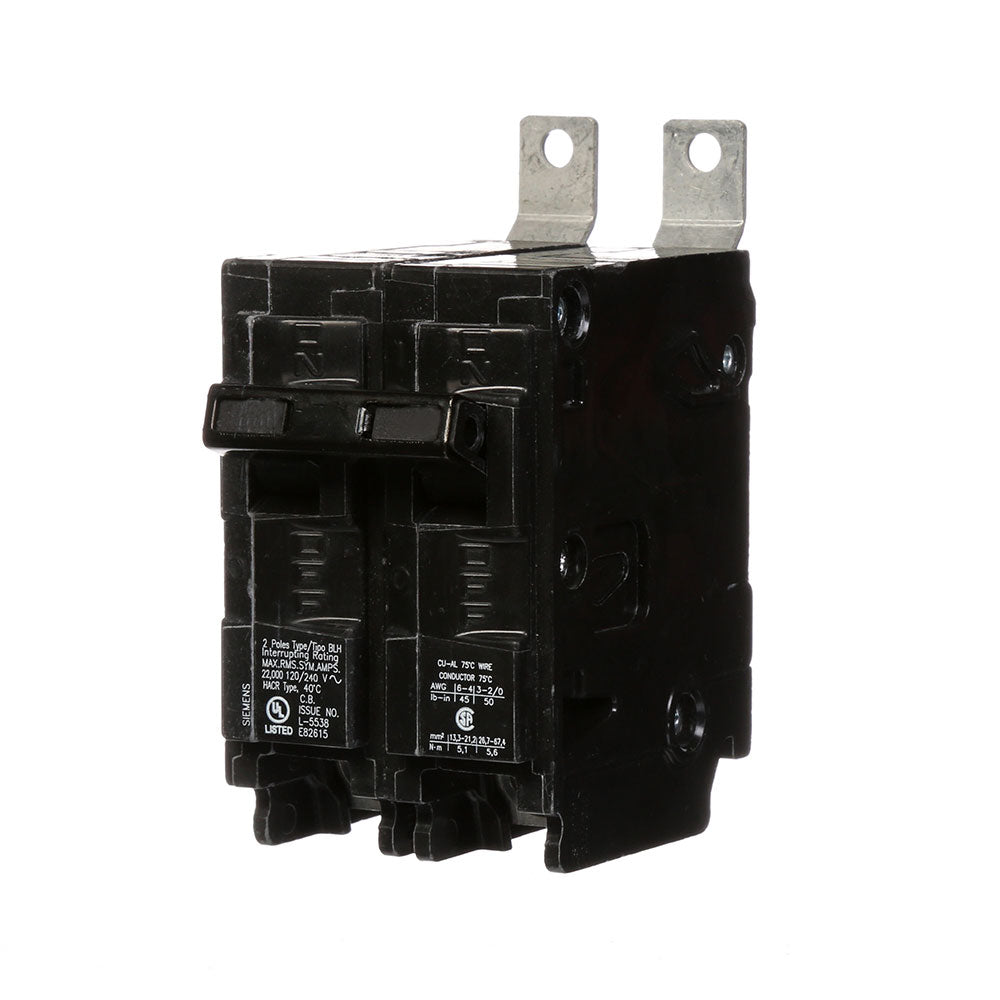

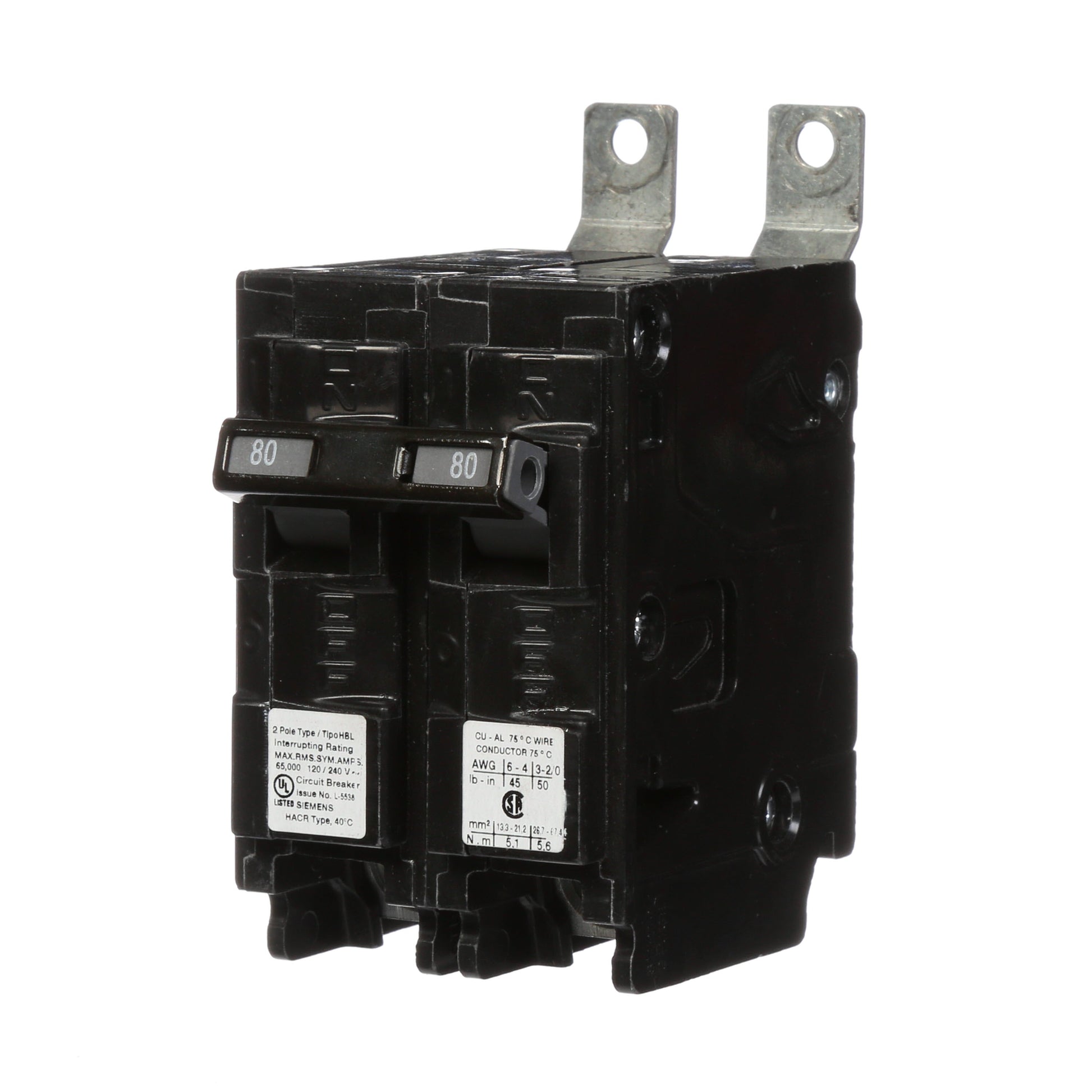

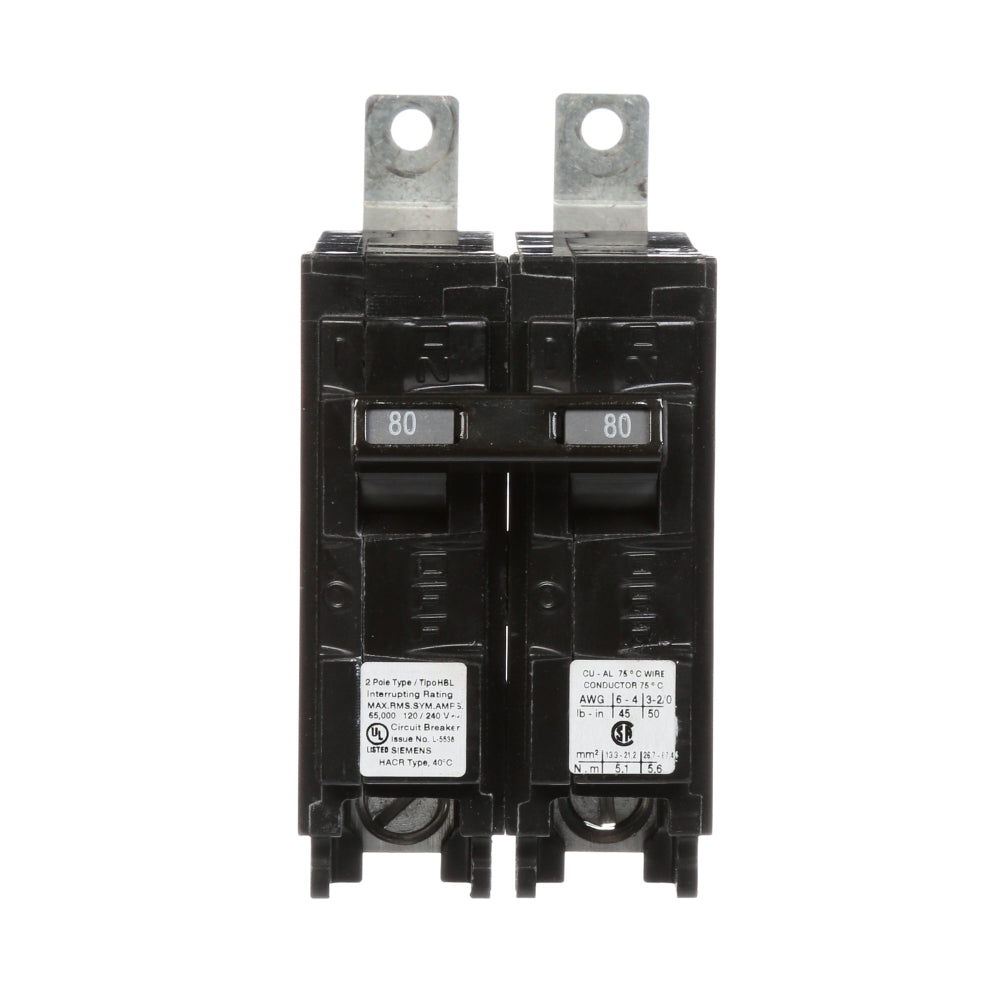

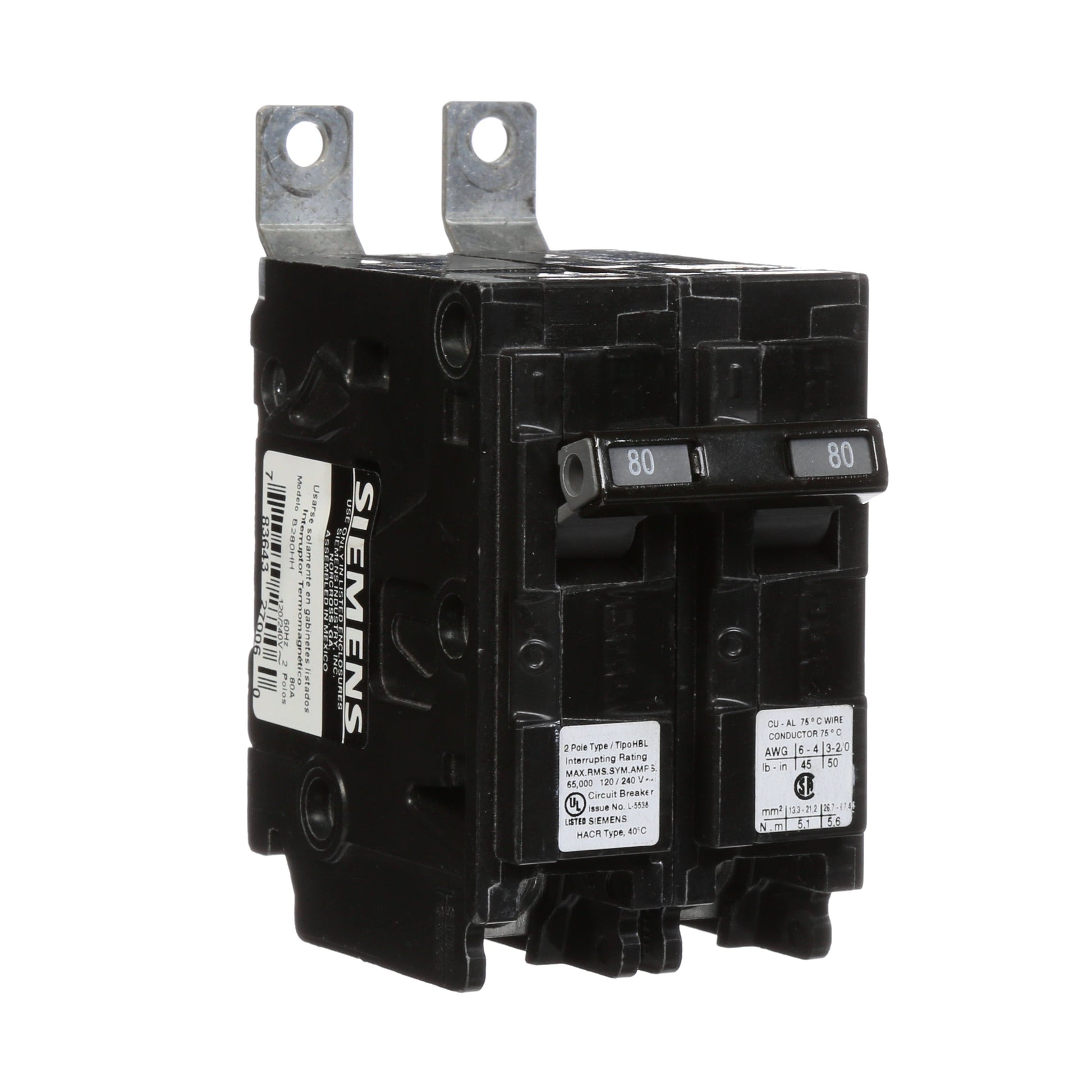

Siemens B280HH Circuit Breaker | 120/240V 80A 2P 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B280HH is a Molded Case Circuit Breaker from the BL Series family. This 2-pole, 80 amp breaker is rated for 120/240V and features a 65kA@240V AIC rating. It uses a bolt-on connection and provides thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: B280HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 120/240
✔ Amperage: 80
✔ Poles: 2
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/HBL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643270060
✔ GTIN: 00783643270060
✔ Country of Origin: Mexico
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 0.75
✔ Panel Type: P1 Panelboards
✔ Standards: CSA, HACR, UL
✔ Certification: CSA, HACR, UL
