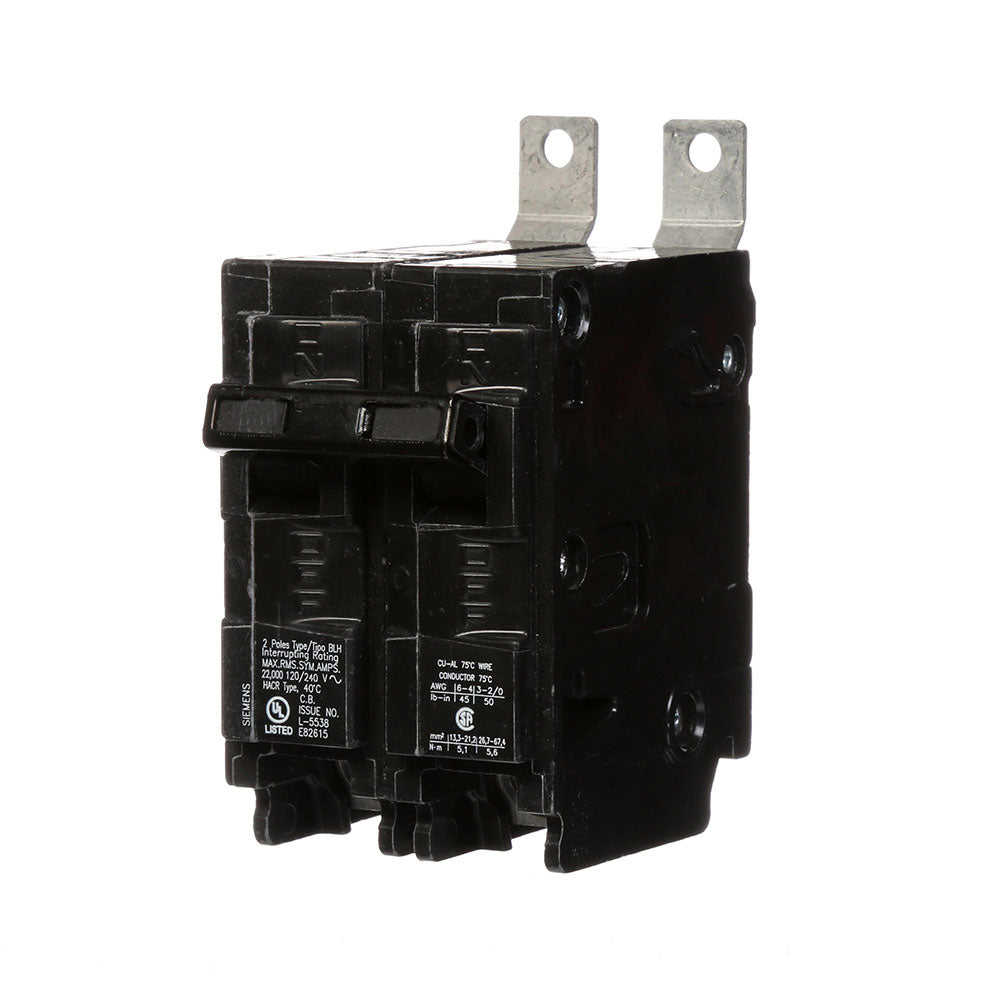

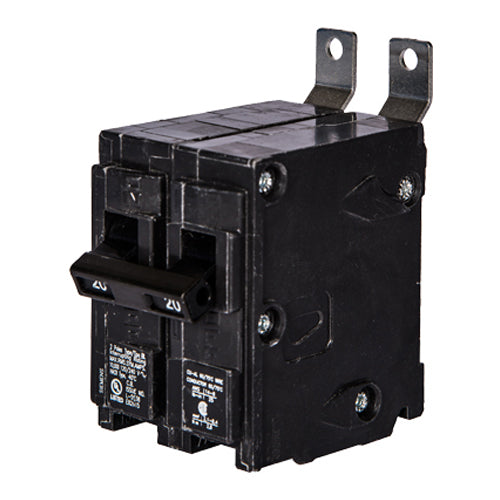

Siemens B290HH Circuit Breaker | 240V 90A 2 Pole 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B290HH is a Molded Case Circuit Breaker from the BL Series family, designed as a 2-pole HBL type. It operates at 240 volts with a 90 amp rating and provides reliable thermal magnetic protection. This bolt-on connection breaker is suitable for various electrical panel applications, ensuring safety and performance.

Key Features:
✔ Part Number: B290HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 240
✔ Amperage: 90
✔ Poles: 2
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/HBL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643270077
✔ GTIN: 00783643270077
✔ Country of Origin: Mexico
✔ Dimensions: 2.756 x 3.937 x 1.969
✔ Weight: 0.71
✔ Panel Type: P1 Panelboards
✔ Standards: CSA, HACR, UL
