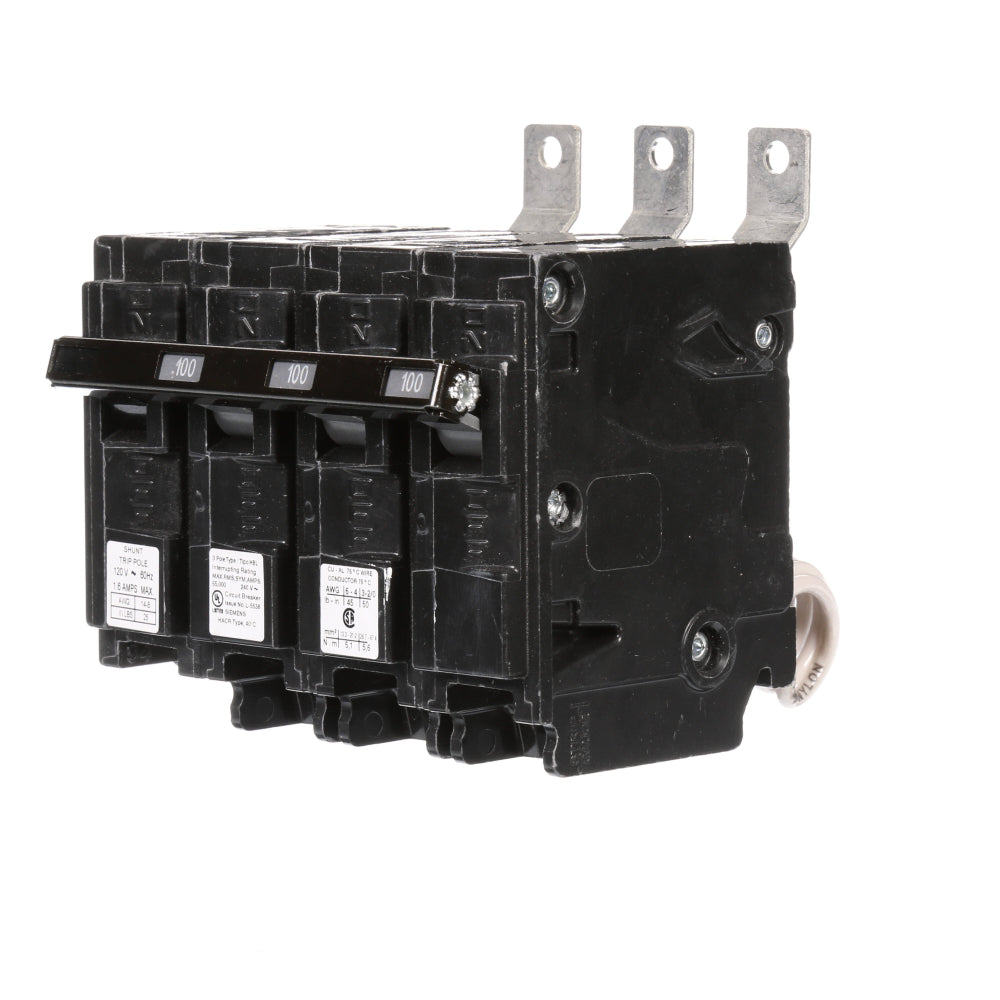

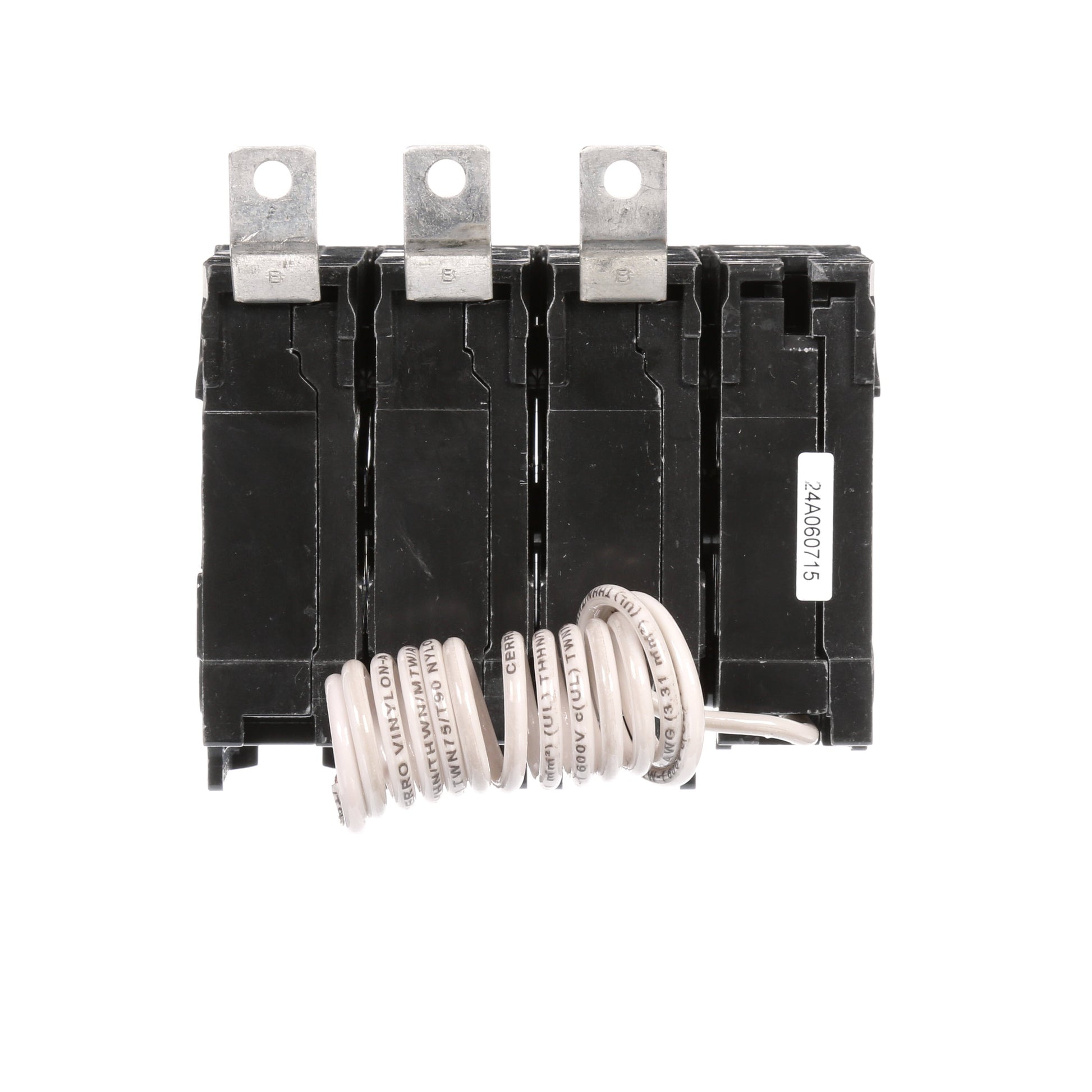

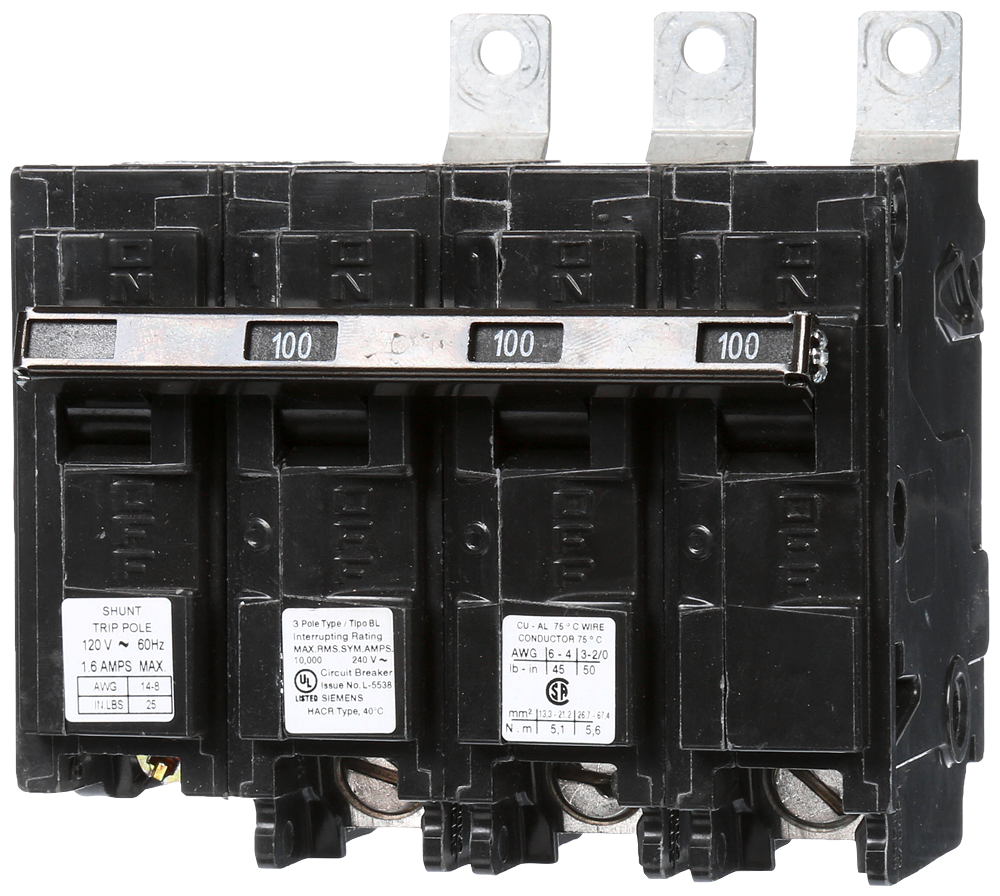

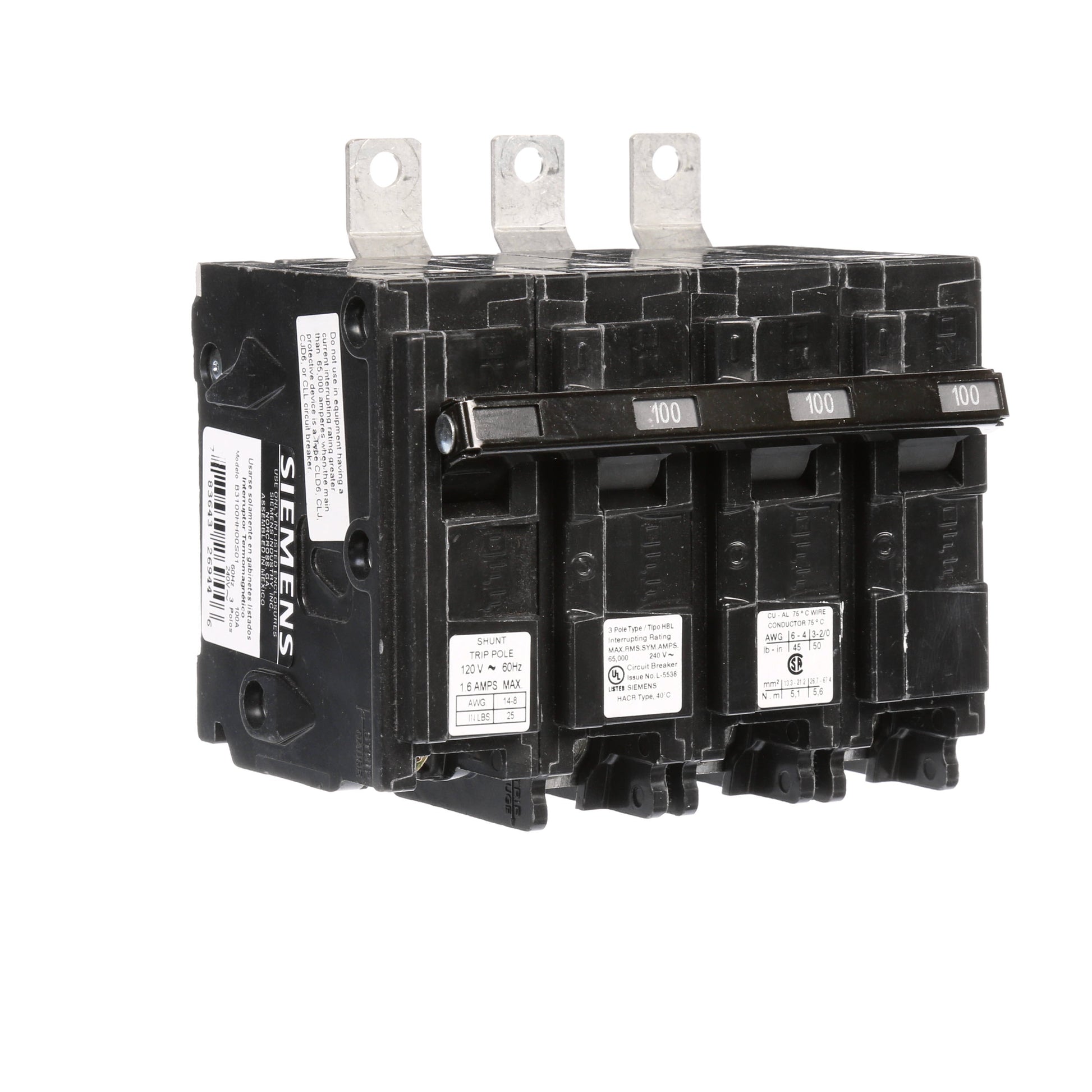

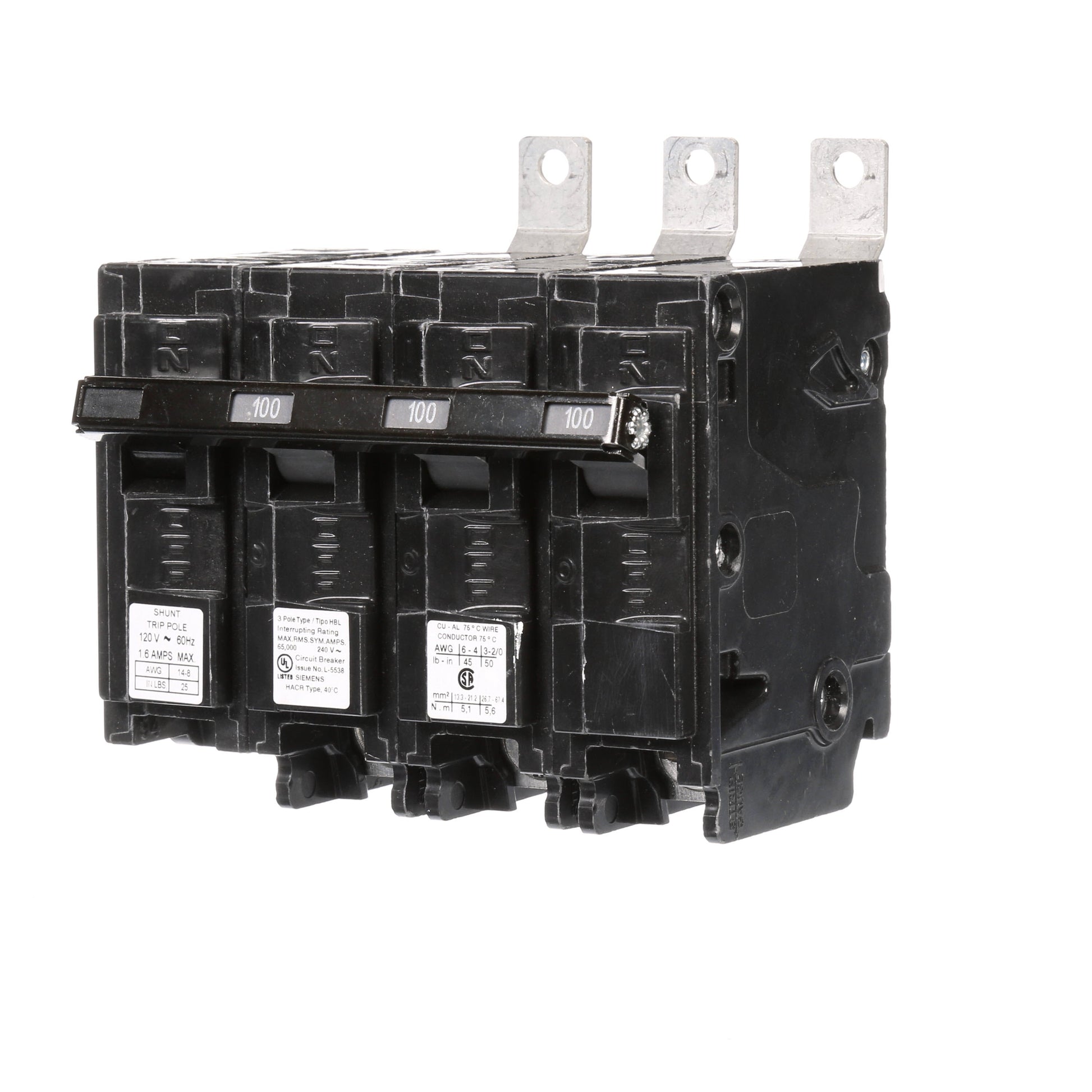

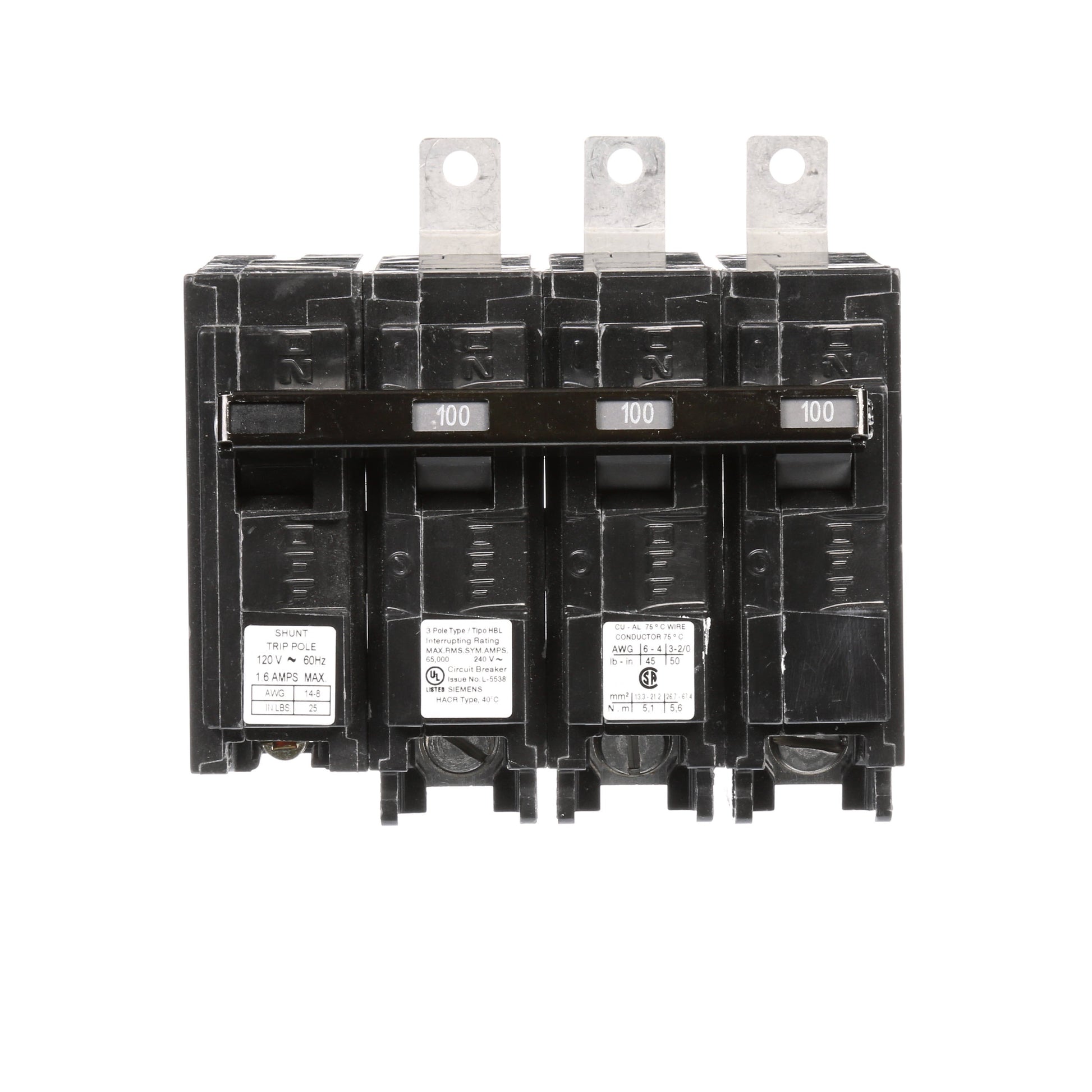

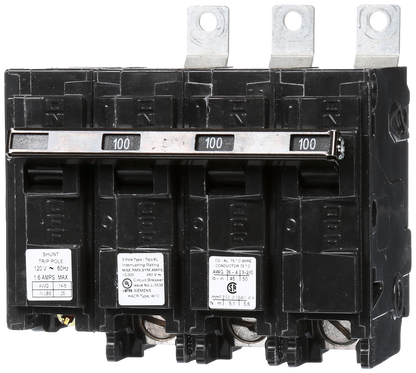

Siemens B3100HH00S01 Molded Case Circuit Breaker 240V 100A 3P 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B3100HH00S01 is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 100 amp breaker rated for 240 volts with an AIC rating of 65kA@240V and uses a bolt-on connection. This model includes thermal magnetic protection and comes complete with a 120V shunt trip. It is designed for use in Siemens P1 Panelboards and meets CSA, HACR, and UL standards.

Key Features:
✔ Part Number: B3100HH00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 240
✔ Amperage: 100
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643269446
✔ GTIN: 00783643269446
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 1.65
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
