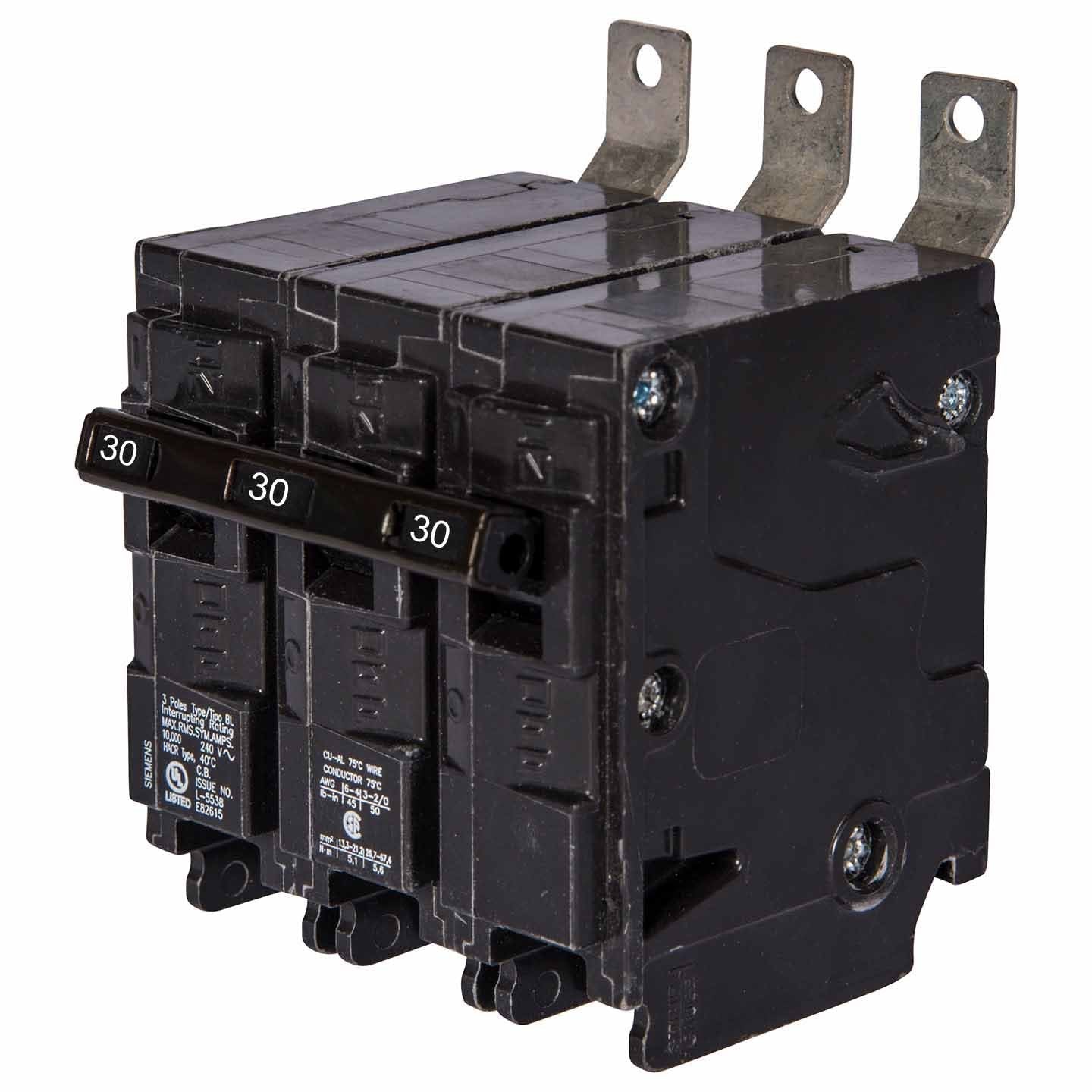

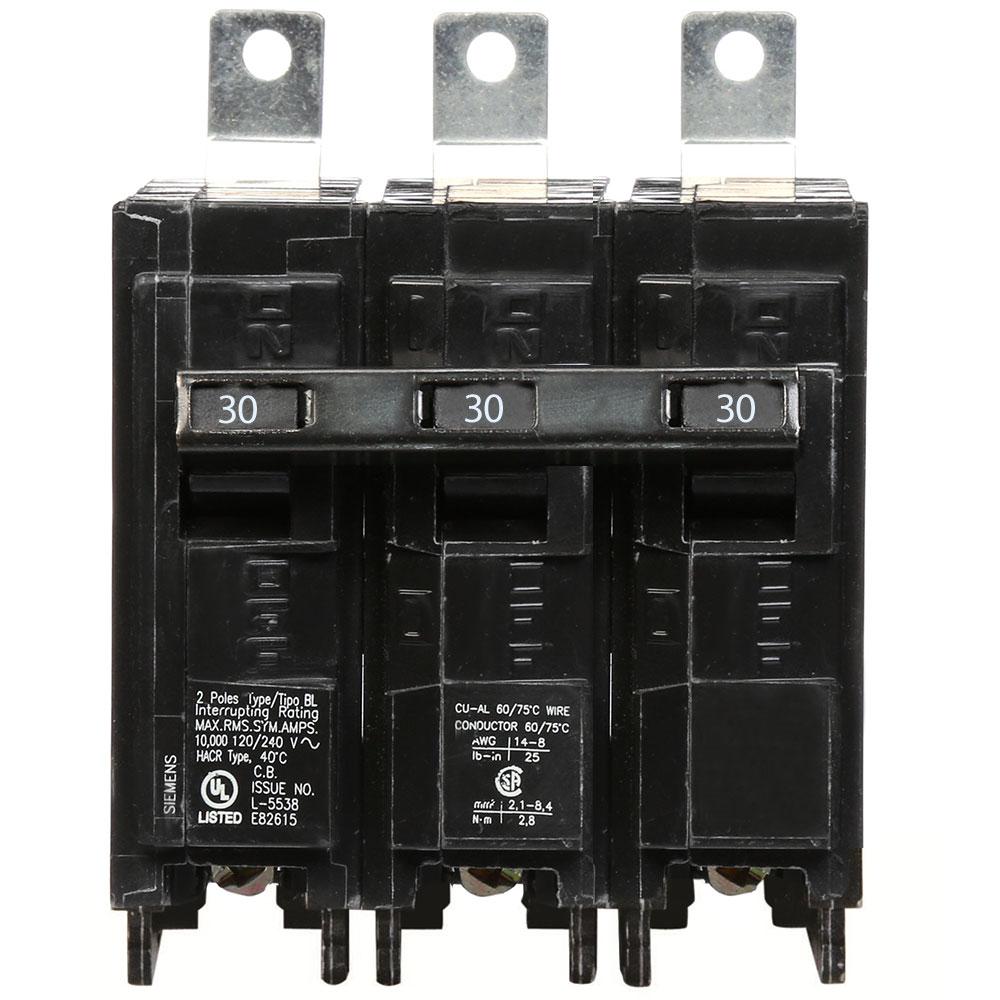

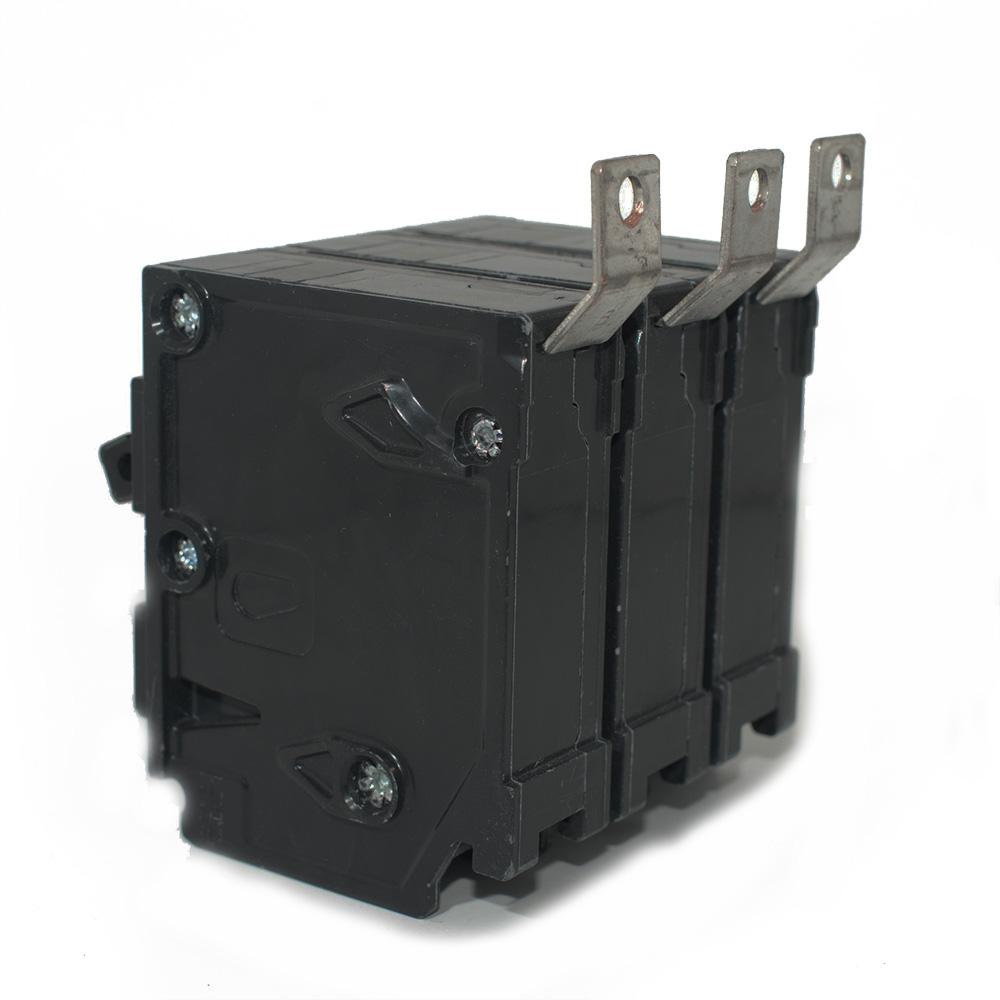

Siemens B330 Circuit Breaker | 240V 30A 3P 10kA@240V Bolt-on BL Series

Product Description:
The Siemens B330 is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 30 amp breaker rated for 240 volts with a 10kA interrupting capacity. This model features bolt-on connections and provides thermal magnetic protection for reliable circuit safety.

Key Features:
✔ Part Number: B330
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643263710
✔ GTIN: 00783643263710
✔ Country of Origin: Mexico
✔ Dimensions: 3.0 in x 3.57 in x 2 in
✔ Weight: 1 lb
✔ Panel Type: Siemens Panelboards
✔ Standards: CSA Certified, HACR Rated, NOM Certified, UL Listed
✔ Certification: CSA Certified, HACR Rated, NOM Certified, UL Listed
