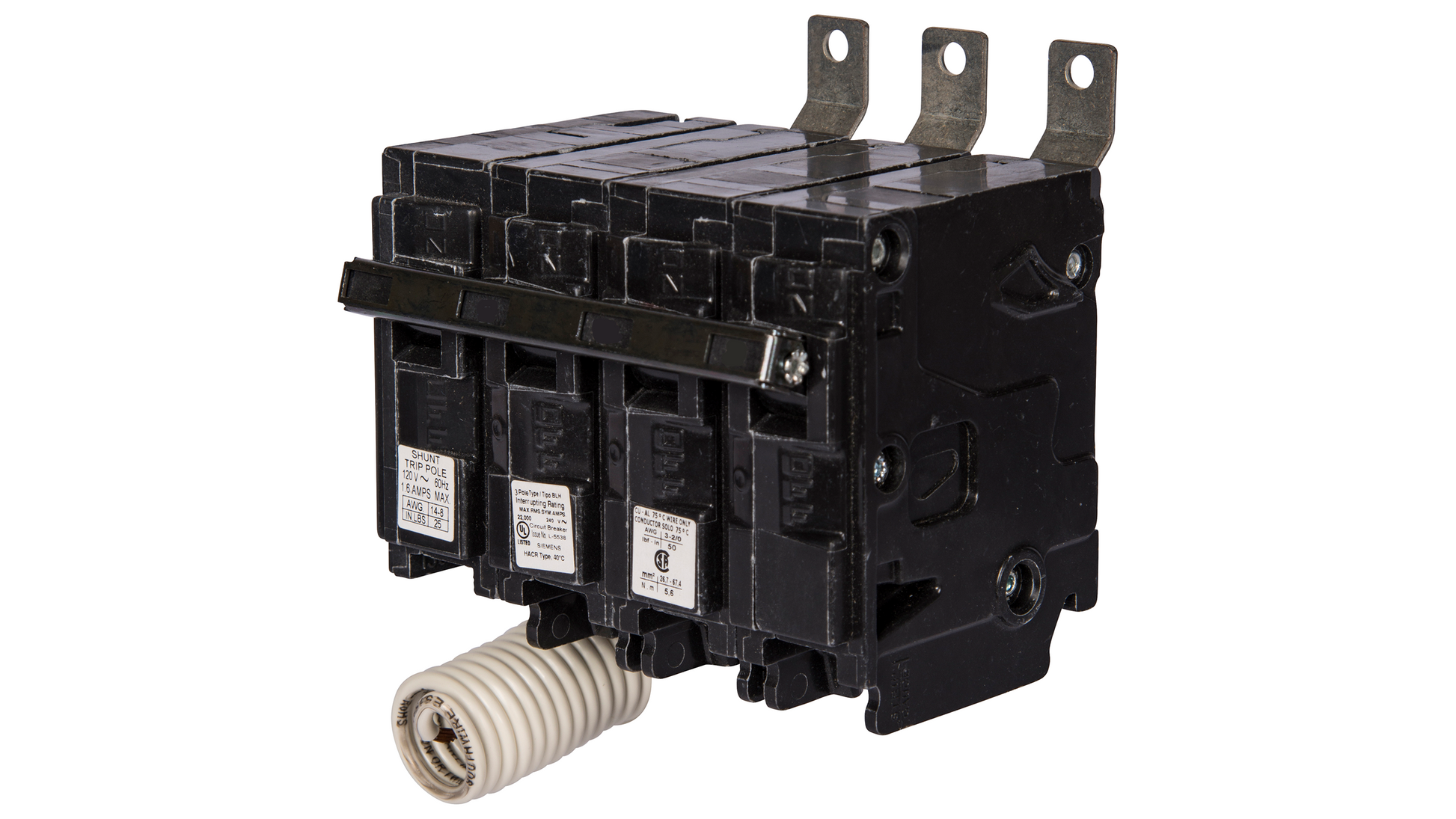

Siemens B330H00S01 Molded Case Circuit Breaker | 240V 30A 3P 22kA@240V Bolt-on BL Series
Siemens B330H00S01 Molded Case Circuit Breaker | 240V 30A 3P 22kA@240V Bolt-on BL Series
Price:
Sale
Sold out
Regular price
$262.62 USD
Regular price
$1,422.00 USD
Sale price
$262.62 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Siemens B330H00S01 is a molded case circuit breaker designed for reliable electrical protection. It features a 3-pole configuration with a 240V voltage rating and 30A amperage capacity. This BLH type breaker includes thermal magnetic protection and a bolt-on connection for secure installation. It is complete with a 120V shunt trip function for enhanced control.
Key Features:
✔ Part Number: B330H00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268937
✔ GTIN: 00783643268937
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 3
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
