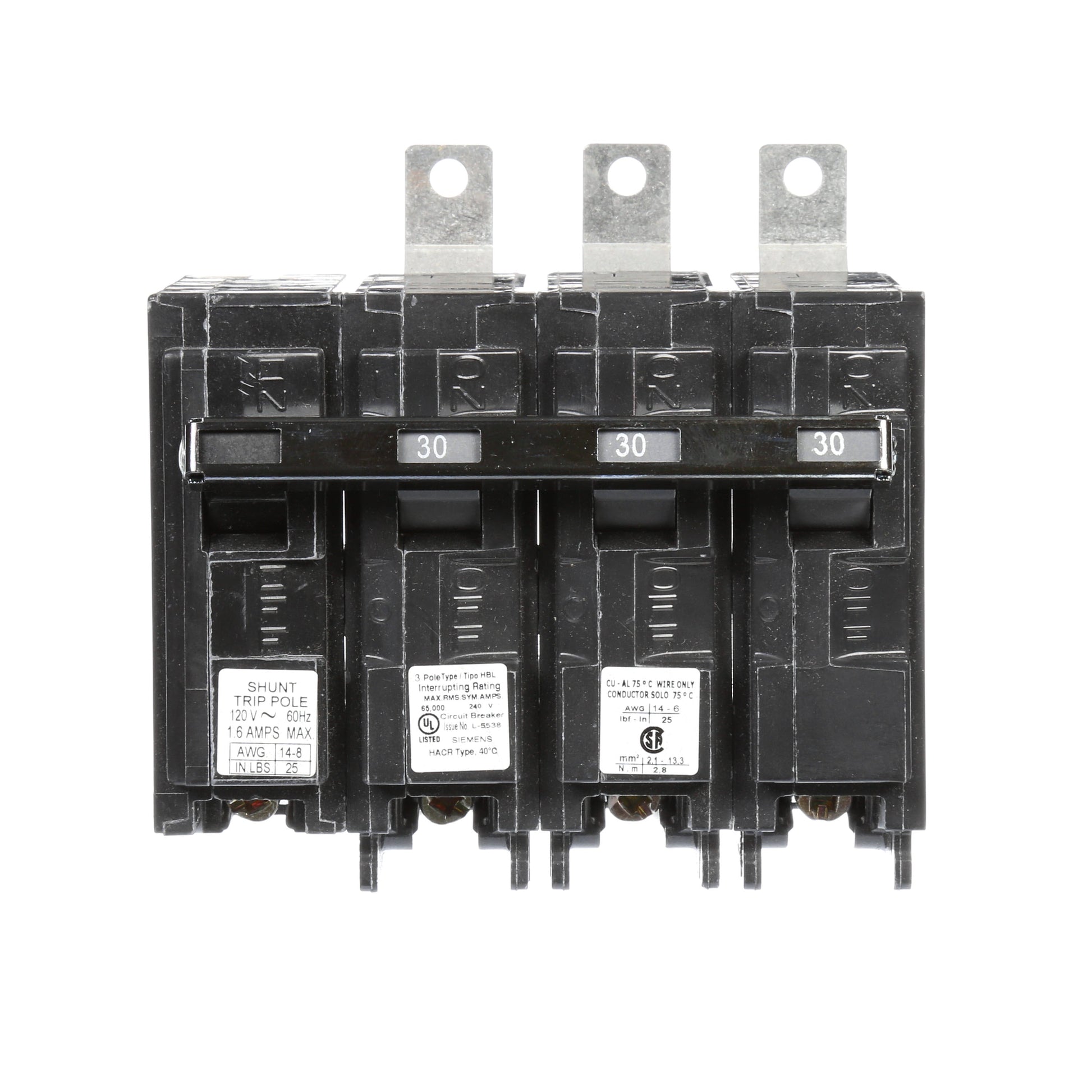

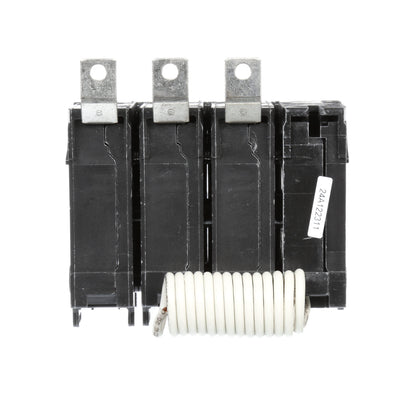

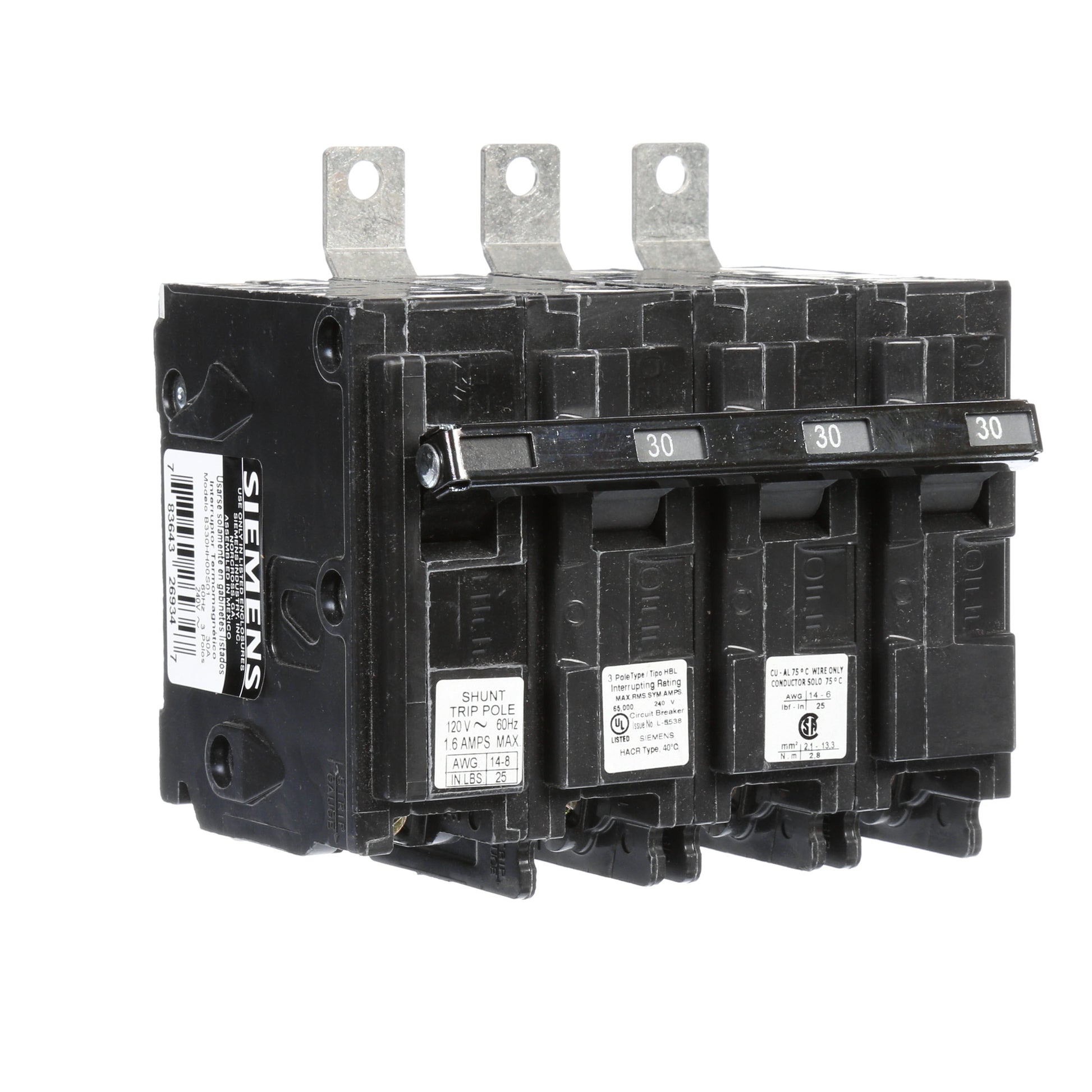

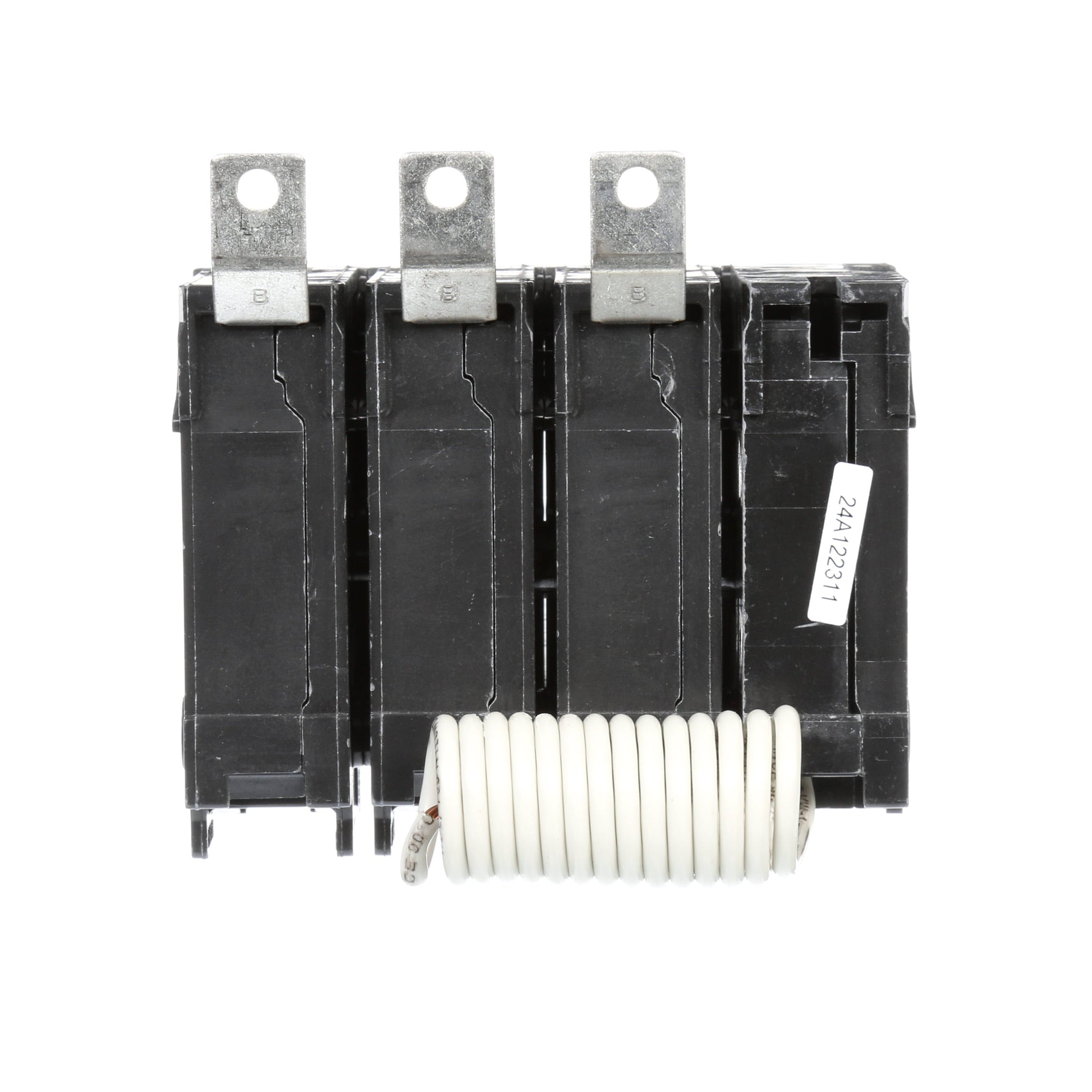

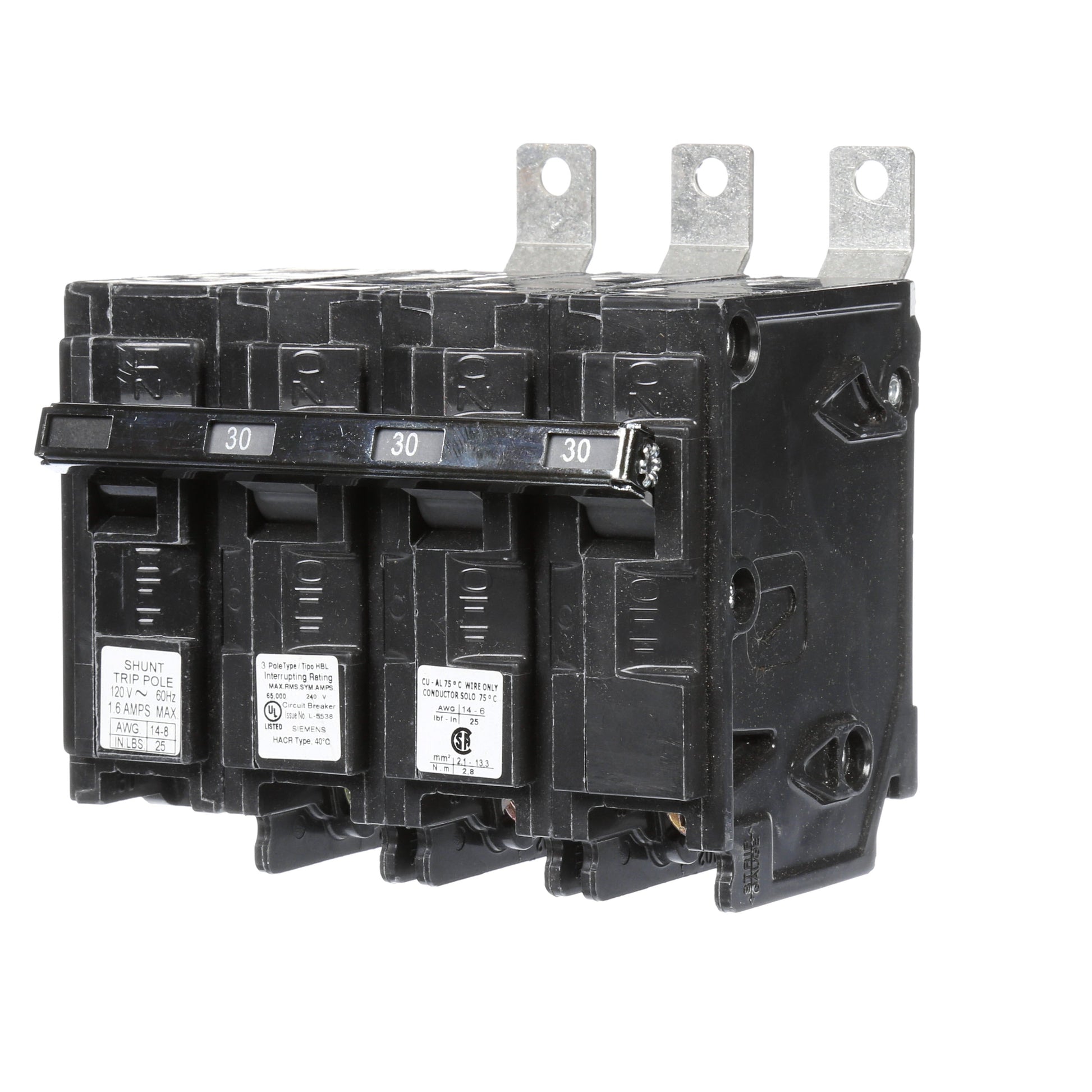

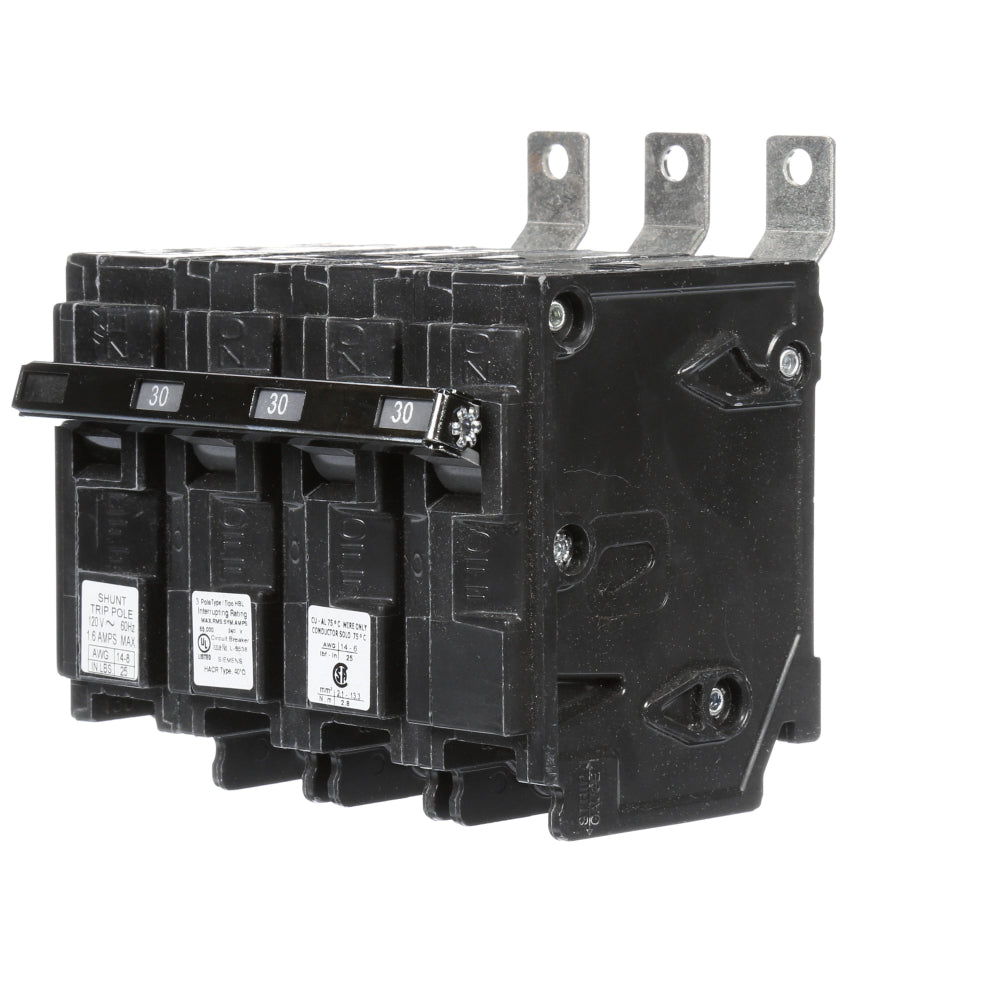

Siemens B330HH00S01 Molded Case Circuit Breaker | 240V 30A 3P 65kA@240V Bolt-on BL Series
Siemens B330HH00S01 Molded Case Circuit Breaker | 240V 30A 3P 65kA@240V Bolt-on BL Series
Price:
Sale
Sold out
Regular price
$340.13 USD
Regular price
$1,680.00 USD
Sale price
$340.13 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 2 left
Couldn't load pickup availability
Product Description:
The Siemens B330HH00S01 is a molded case circuit breaker designed for reliable electrical protection in industrial and commercial settings. It features thermal magnetic protection and is rated for 240 volts and 30 amps with a 65kA interrupting capacity. This 3-pole breaker uses a bolt-on connection and includes a 120V shunt trip function for enhanced control.
Key Features:
✔ Part Number: B330HH00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 240
✔ Amperage: 30
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643269347
✔ GTIN: 00783643269347
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 3
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: HACR Rated, UL Listed
✔ Certification: HACR Rated, UL Listed
