Siemens B34000S01 Circuit Breaker | 240V 40A 3P 10kA@240V Bolt-on BL Series

Product Description:

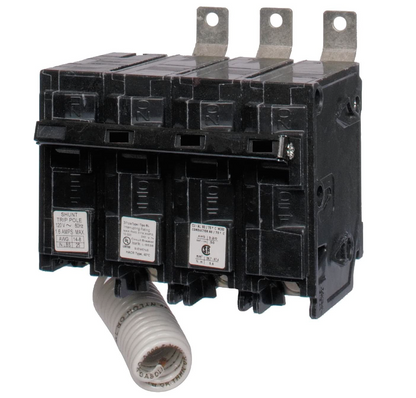

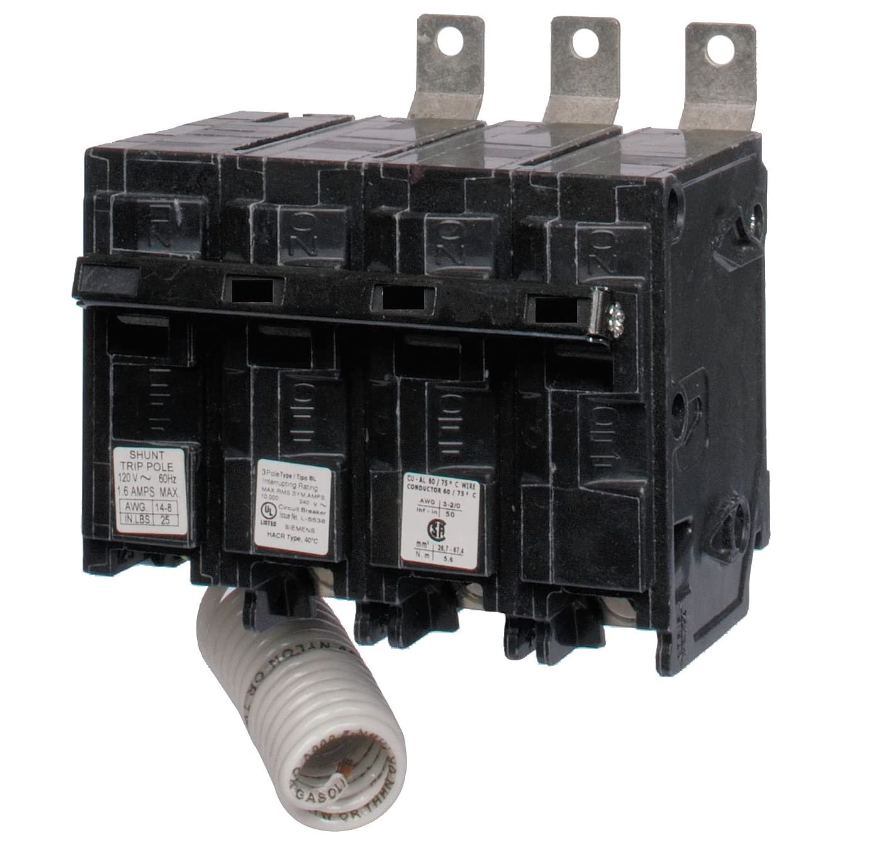

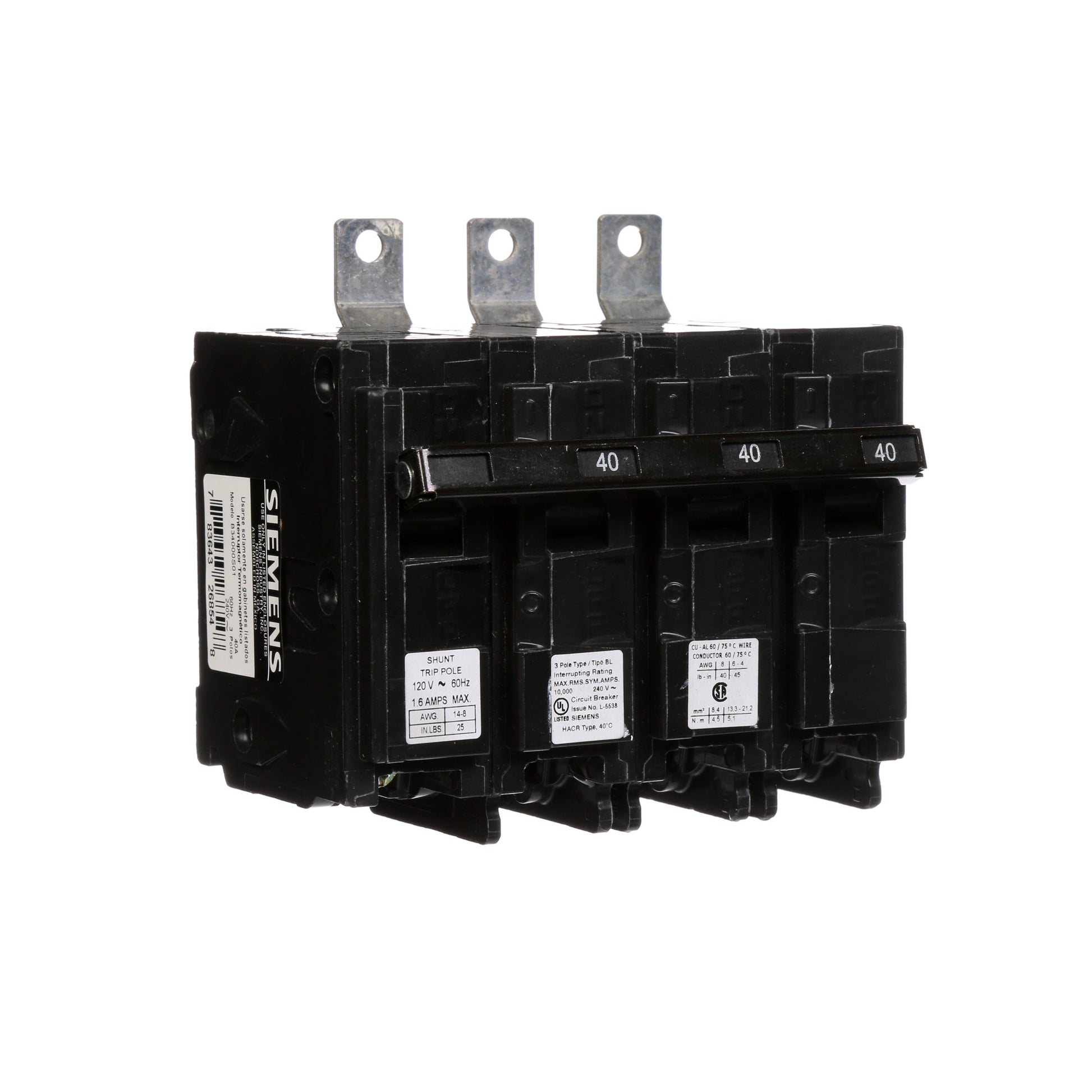

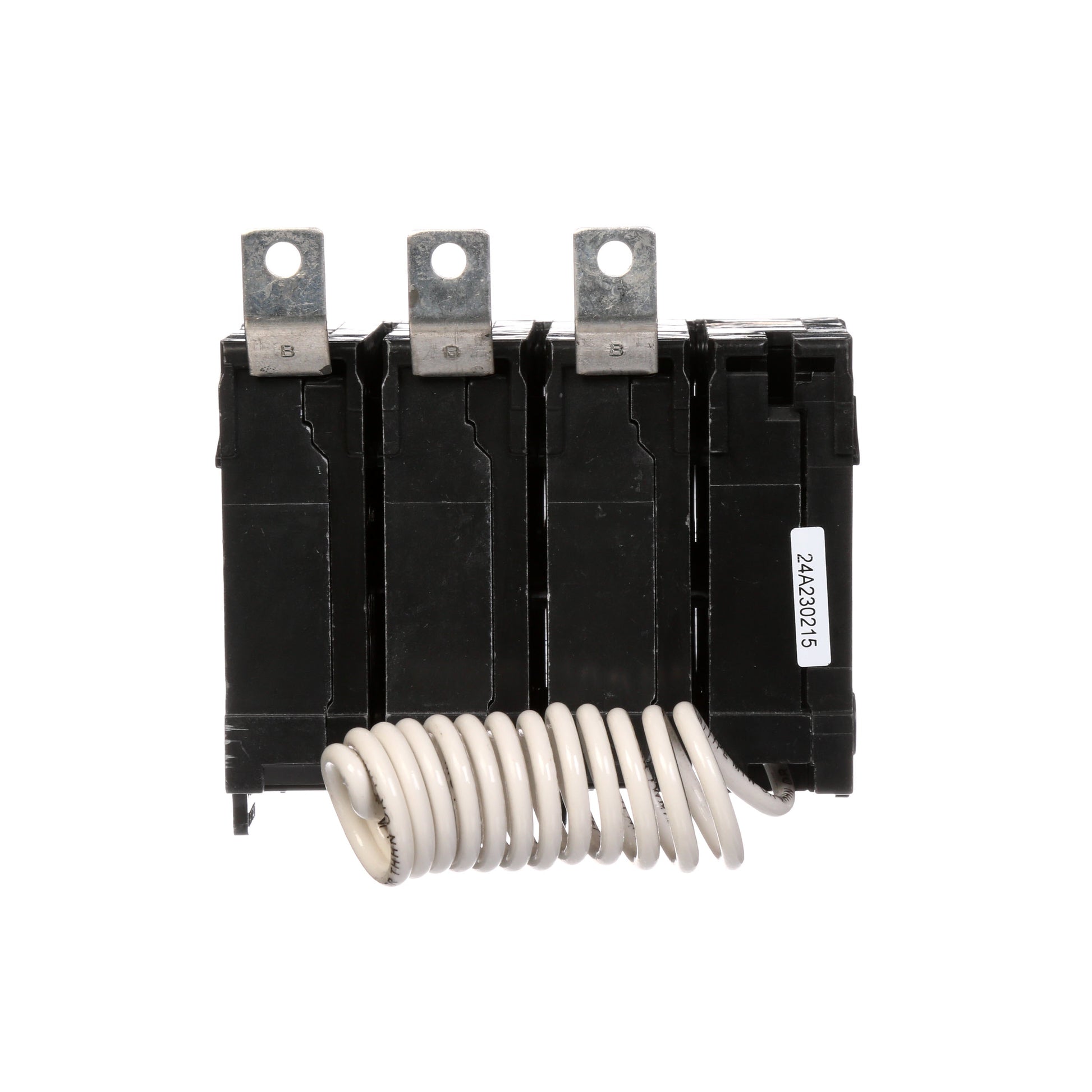

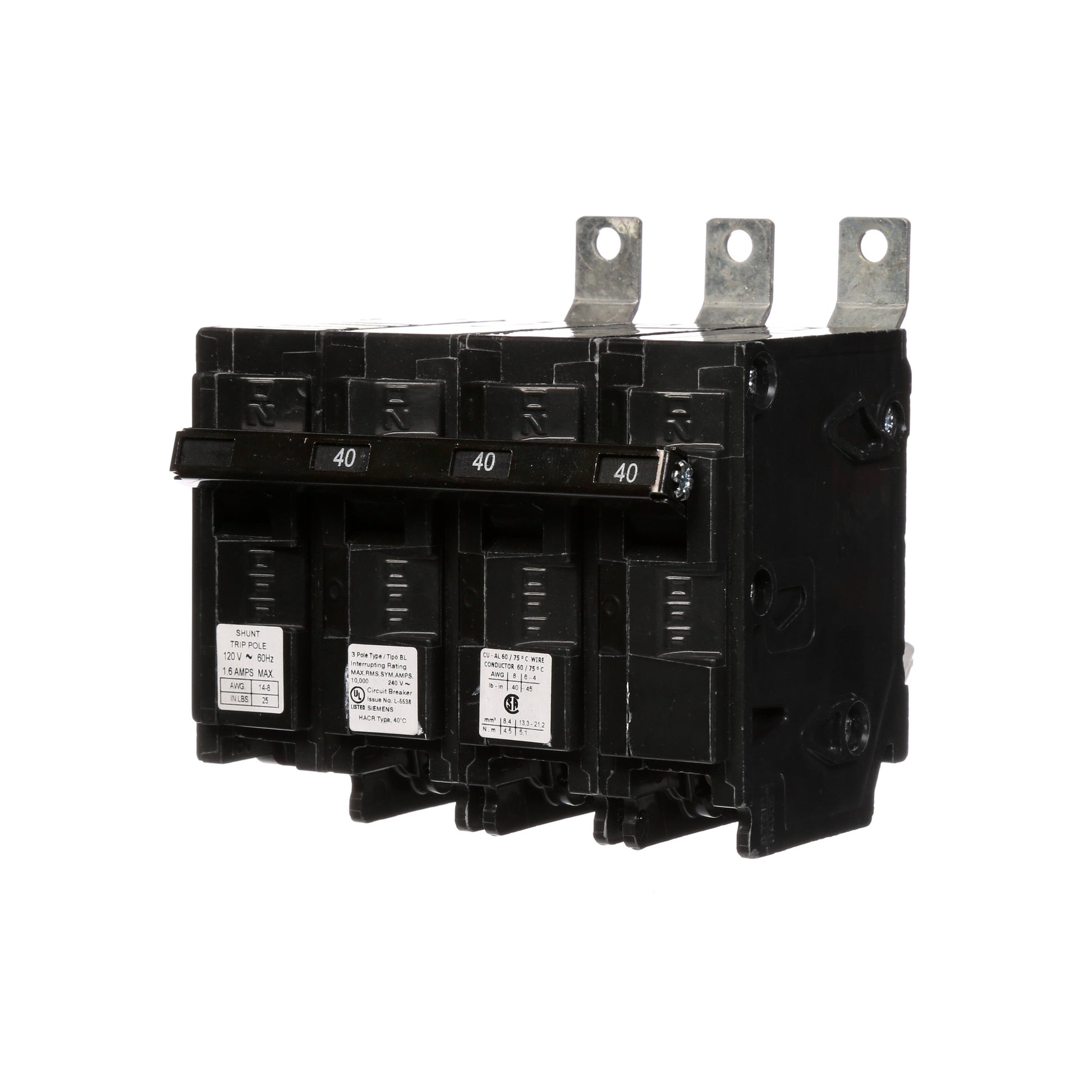

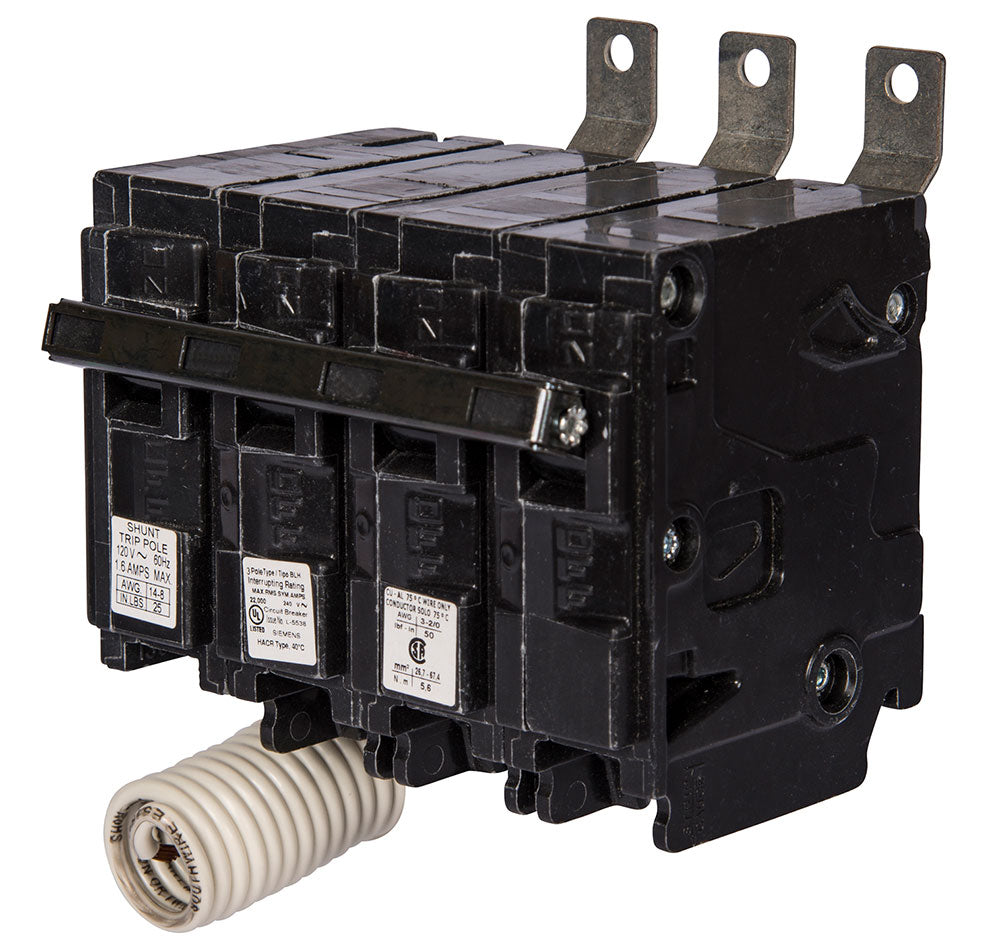

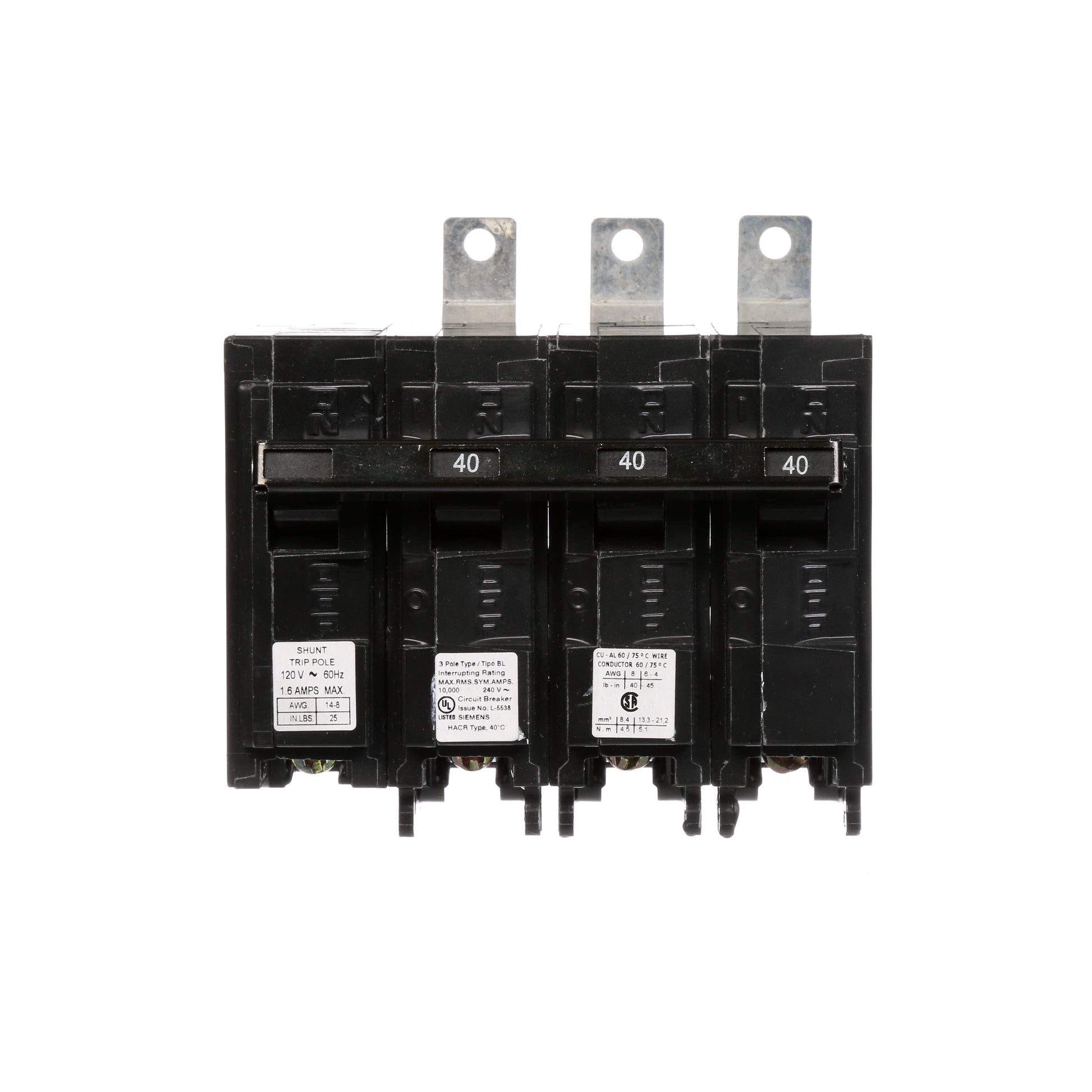

The Siemens B34000S01 is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 40 amp breaker rated for 240 volts with an AIC rating of 10kA@240V. This thermal magnetic circuit breaker features a bolt-on connection for secure installation.

Key Features:
✔ Part Number: B34000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268548
✔ GTIN: 00783643268548
✔ Country of Origin: Mexico
✔ Dimensions: 5.5 in x 3.7 in x 3.7 in
✔ Weight: 1
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL 489
✔ Certification: UL 489
