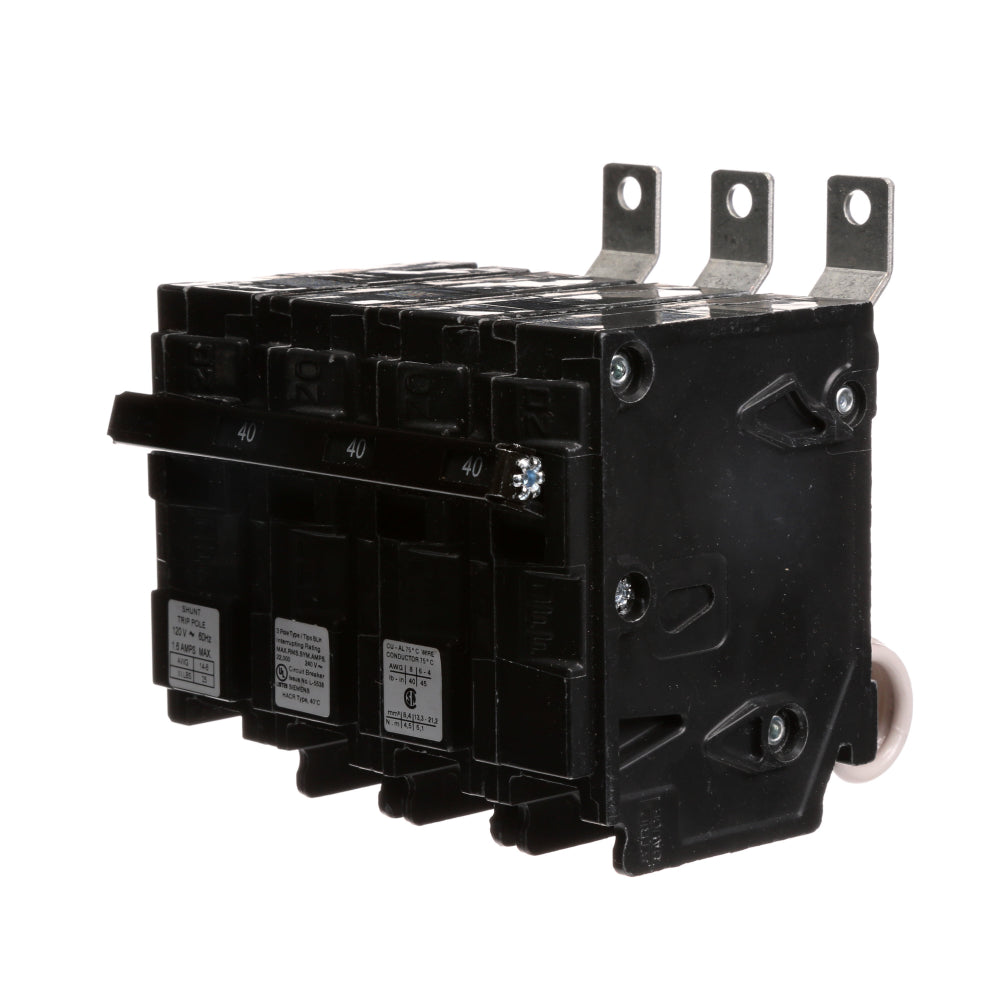

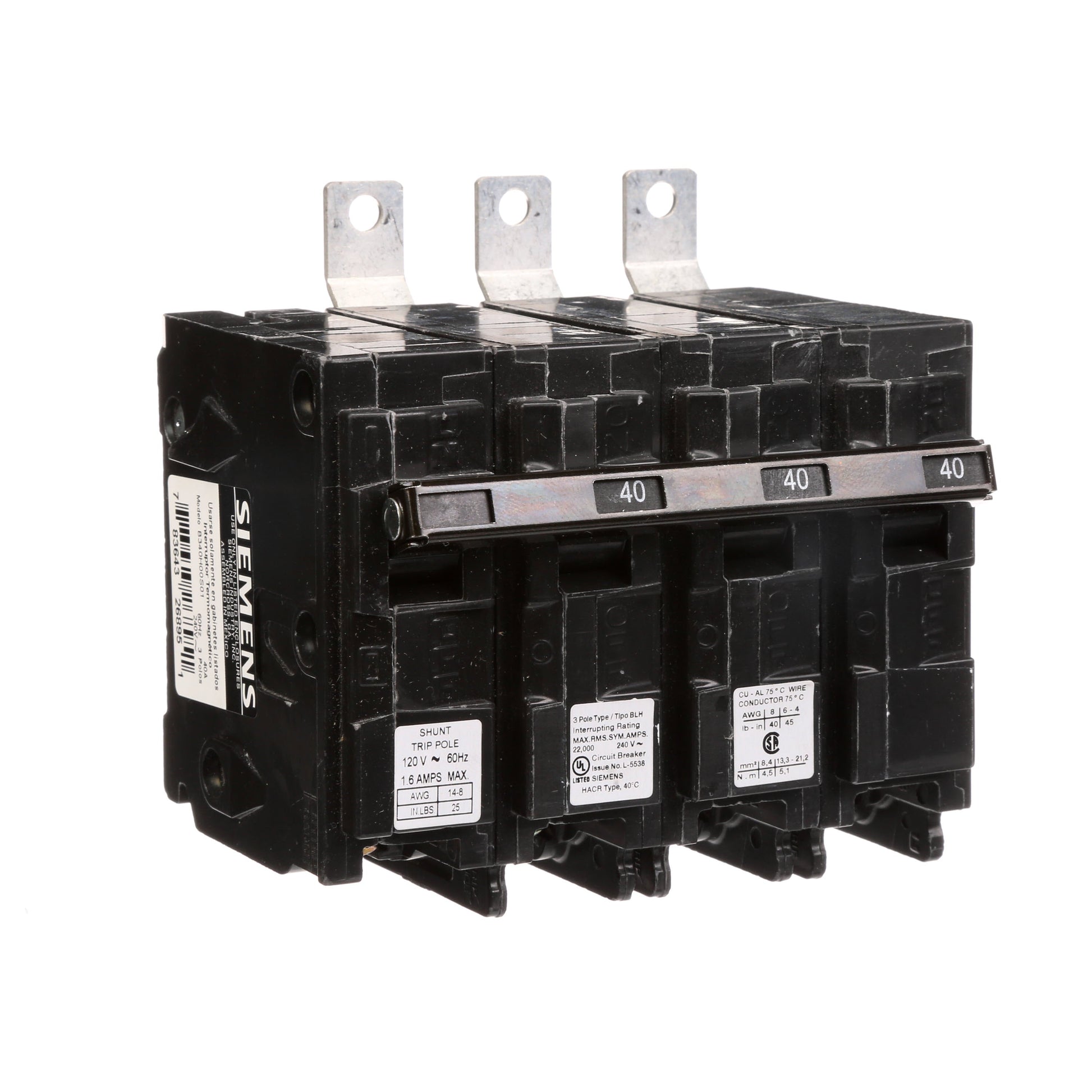

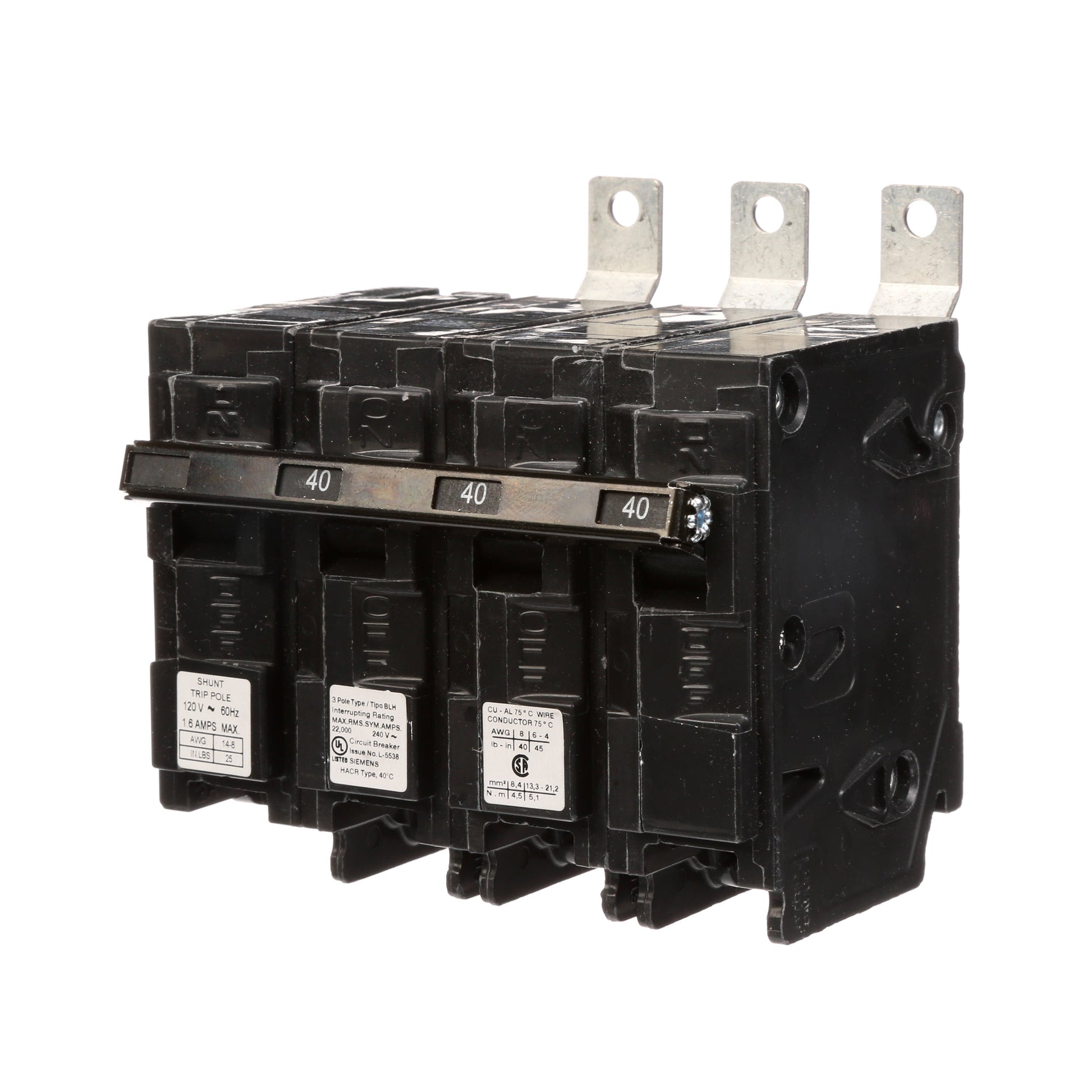

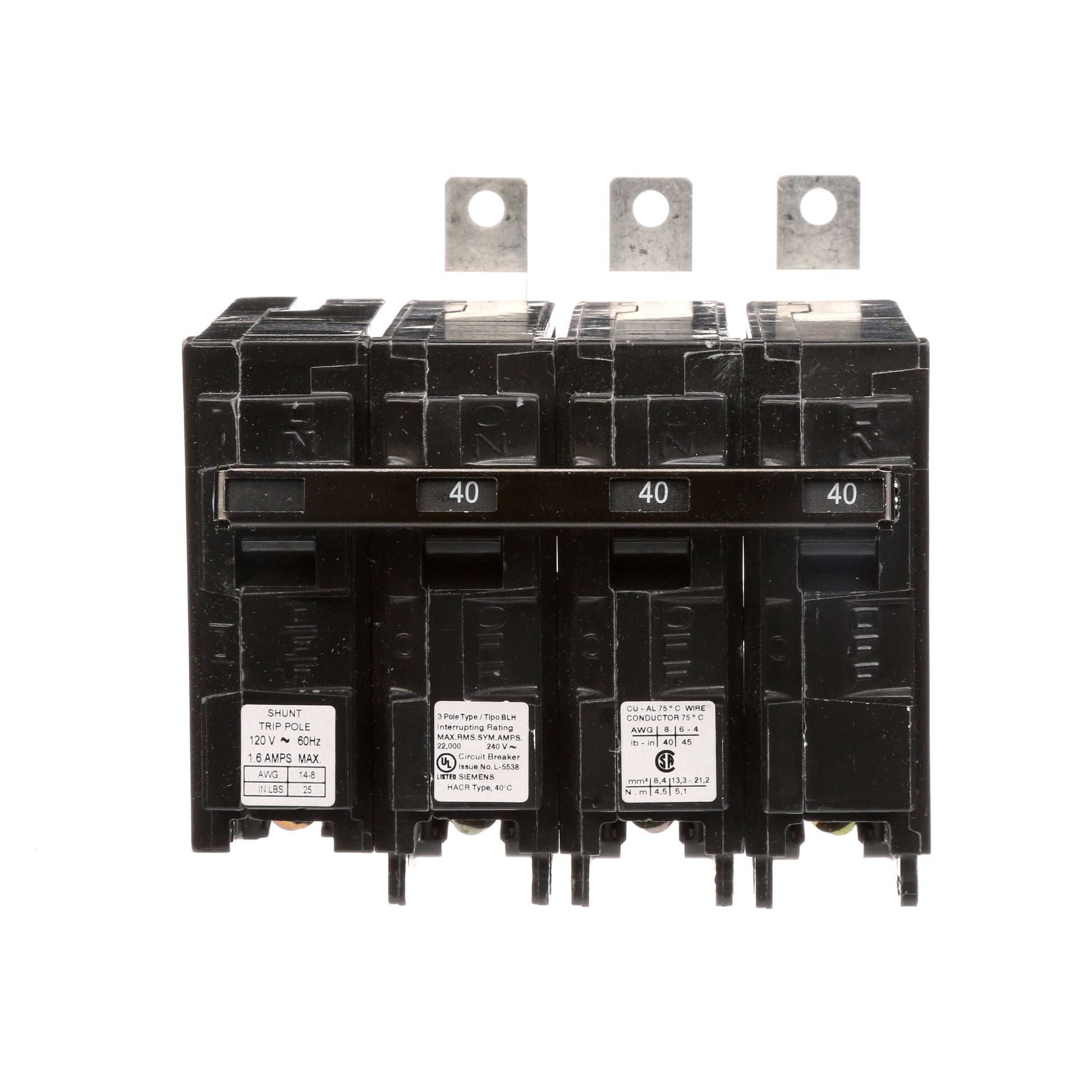

Siemens B340H00S01 Molded Case Circuit Breaker | 240V 40A 3P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens B340H00S01 is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 40 amp breaker rated for 240 volts with an AIC rating of 22kA@240V. This thermal magnetic circuit breaker features a bolt-on connection and includes a 120V shunt trip. It is designed for use in Siemens P1 Panelboards.

Key Features:
✔ Part Number: B340H00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 40
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG

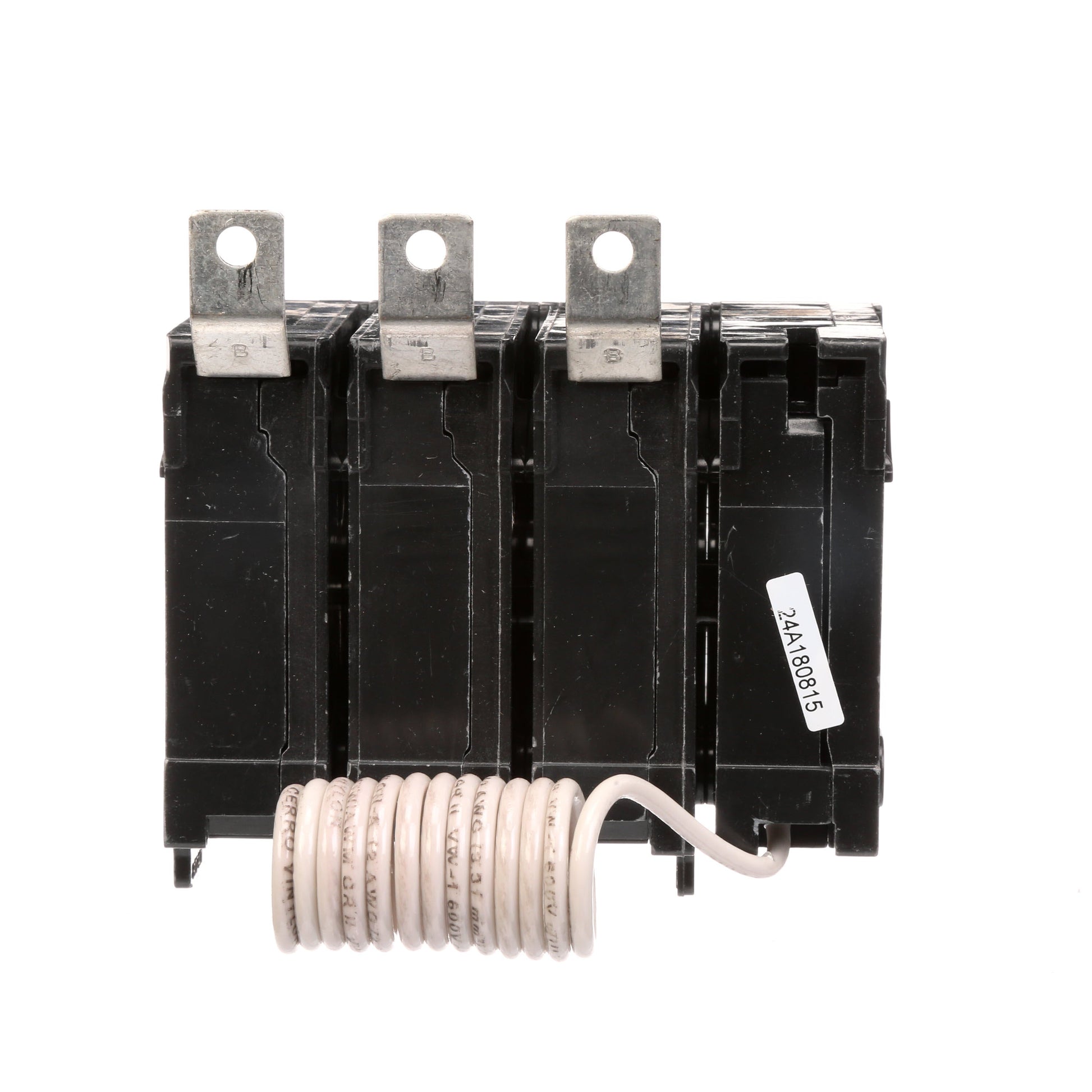

✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268951
✔ GTIN: 00783643268951
✔ Country of Origin: Mexico
✔ Dimensions: 5 in x 3 in x 4 in
✔ Weight: 1.43
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: UL 489
✔ Certification: UL 489
