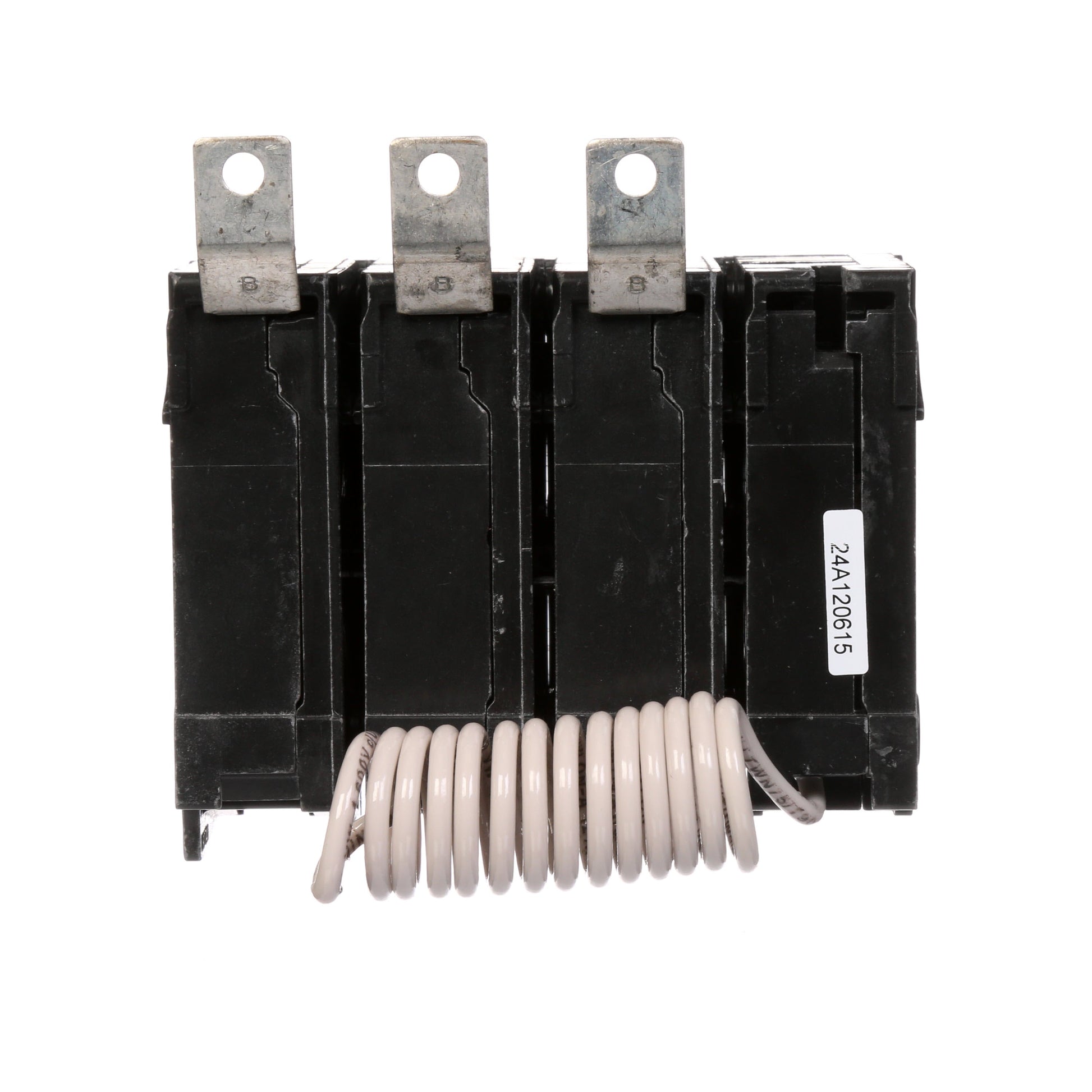

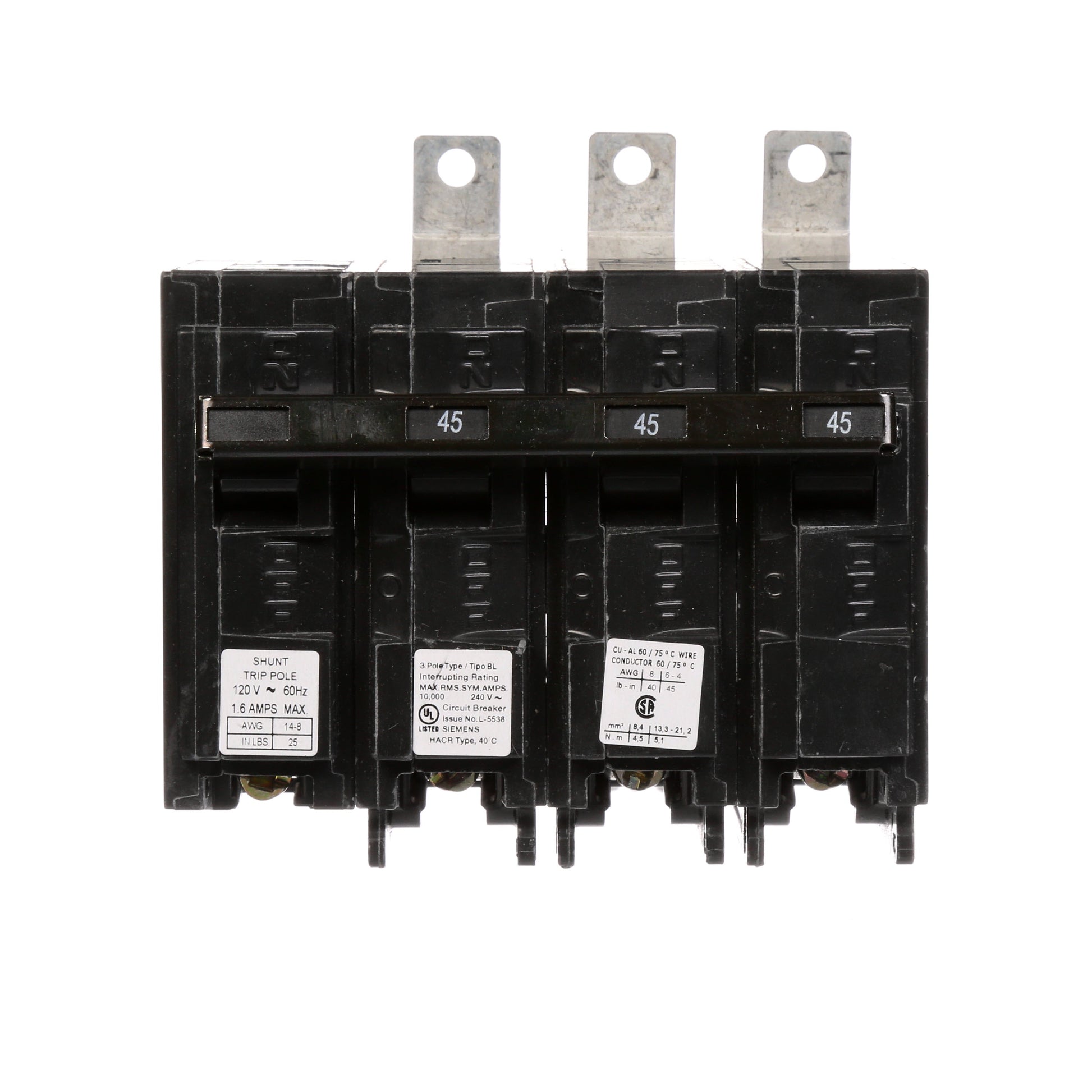

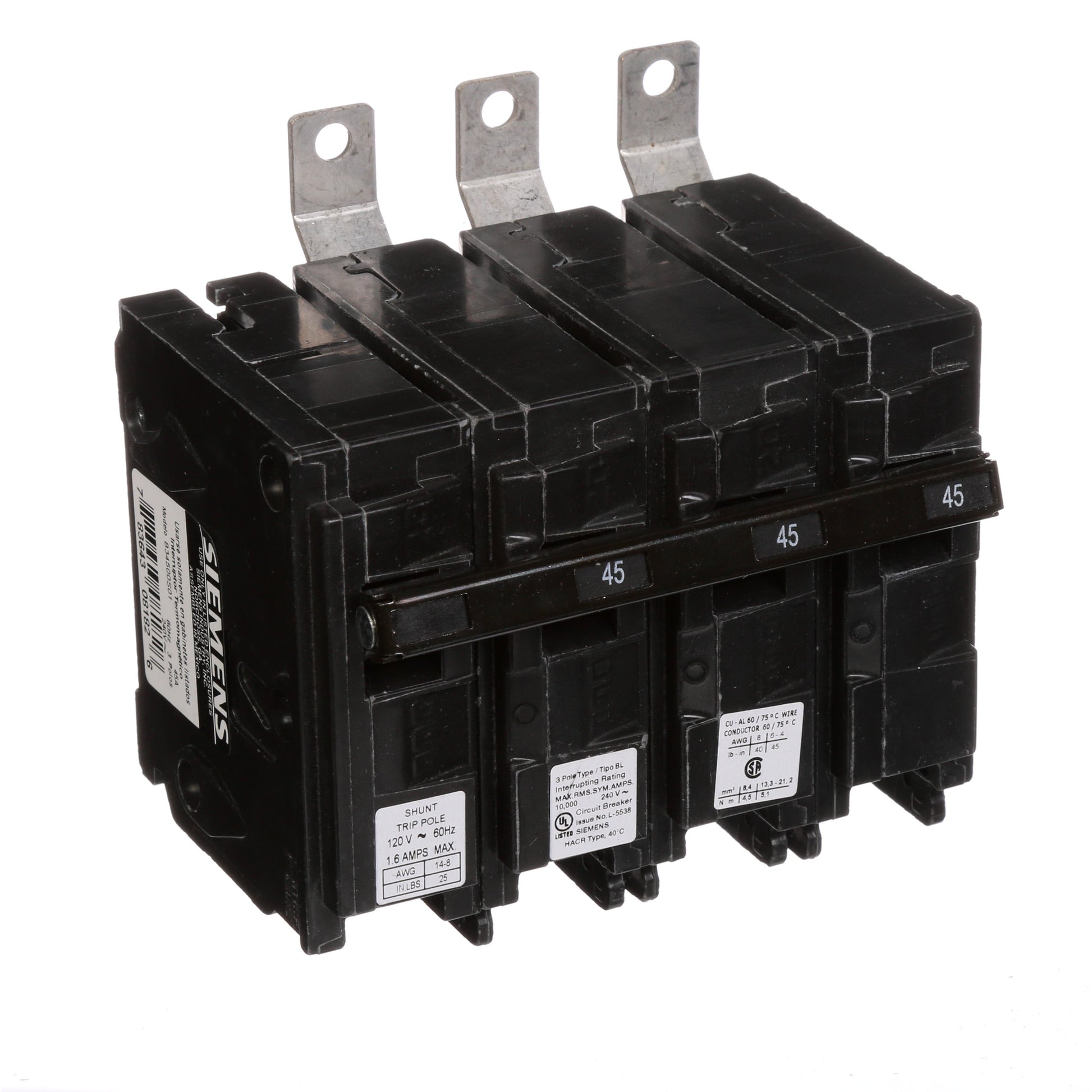

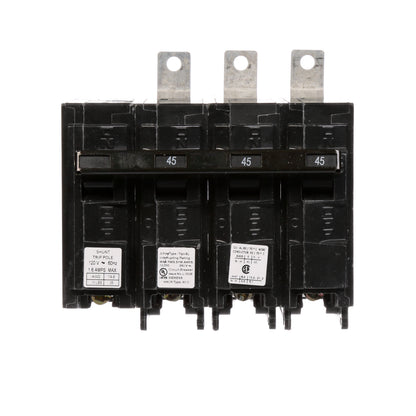

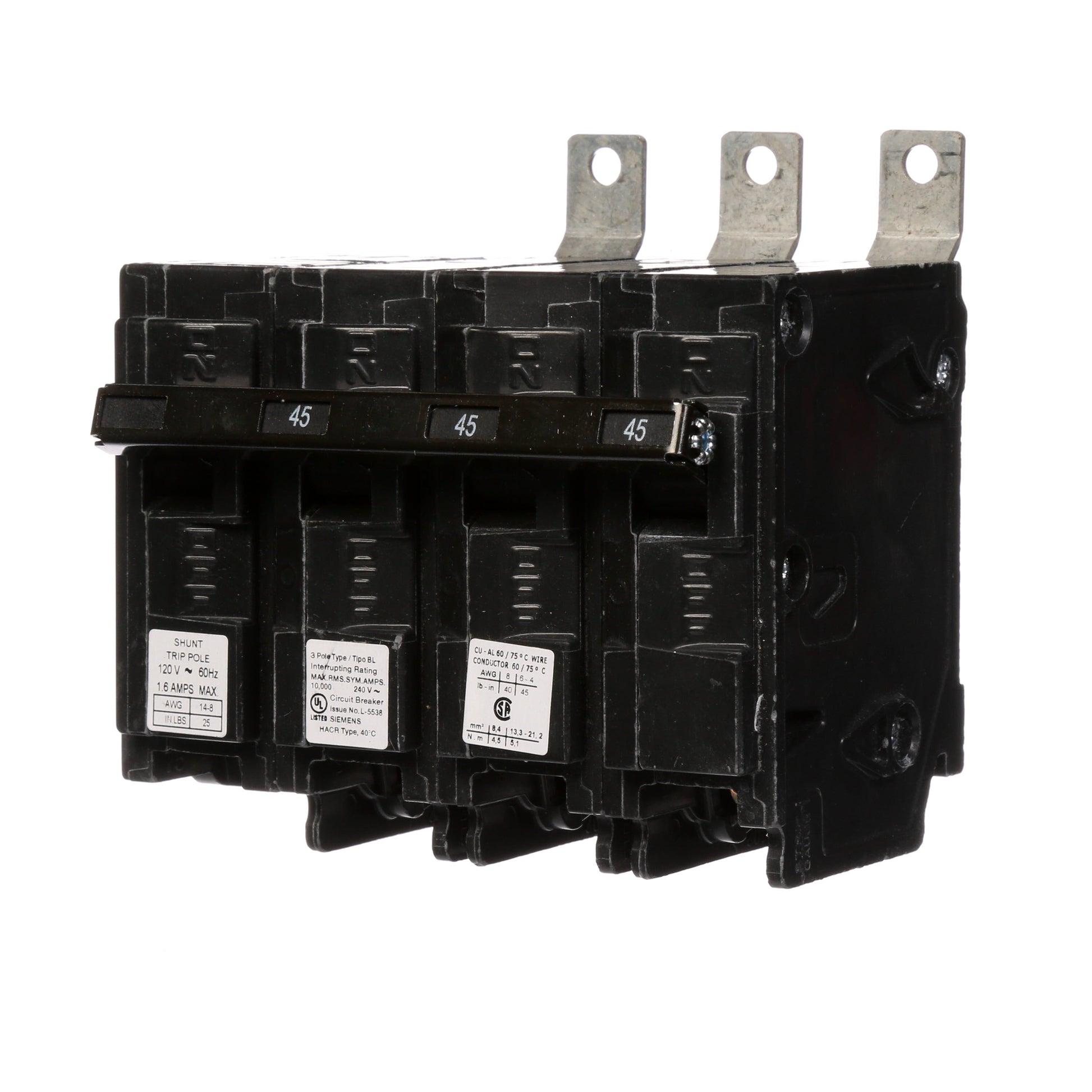

Siemens B34500S01 Molded Case Circuit Breaker | 240V 45A 3P 10kA@240V Bolt-on BL Series
Siemens B34500S01 Molded Case Circuit Breaker | 240V 45A 3P 10kA@240V Bolt-on BL Series
Price:
Sale
Sold out
Regular price
$185.19 USD
Regular price
$979.00 USD
Sale price
$185.19 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Out of stock
Couldn't load pickup availability
Product Description:
The Siemens B34500S01 is a molded case circuit breaker designed for reliable electrical protection. It features a 3-pole configuration with a 240V voltage rating and 45A amperage capacity. This thermal magnetic breaker offers long-time and instantaneous protection functions. It is compatible with Siemens P1 panelboards and meets industry standards including UL listing and CSA certification.
Key Features:
✔ Part Number: B34500S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 45
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643081826
✔ GTIN: 00783643081826
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 5 in x 5 in
✔ Weight: 1.61
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
The Siemens B34500S01 is a molded case circuit breaker designed for reliable electrical protection. It features a 3-pole configuration with a 240V voltage rating and 45A amperage capacity. This thermal magnetic breaker offers long-time and instantaneous protection functions. It is compatible with Siemens P1 panelboards and meets industry standards including UL listing and CSA certification.
