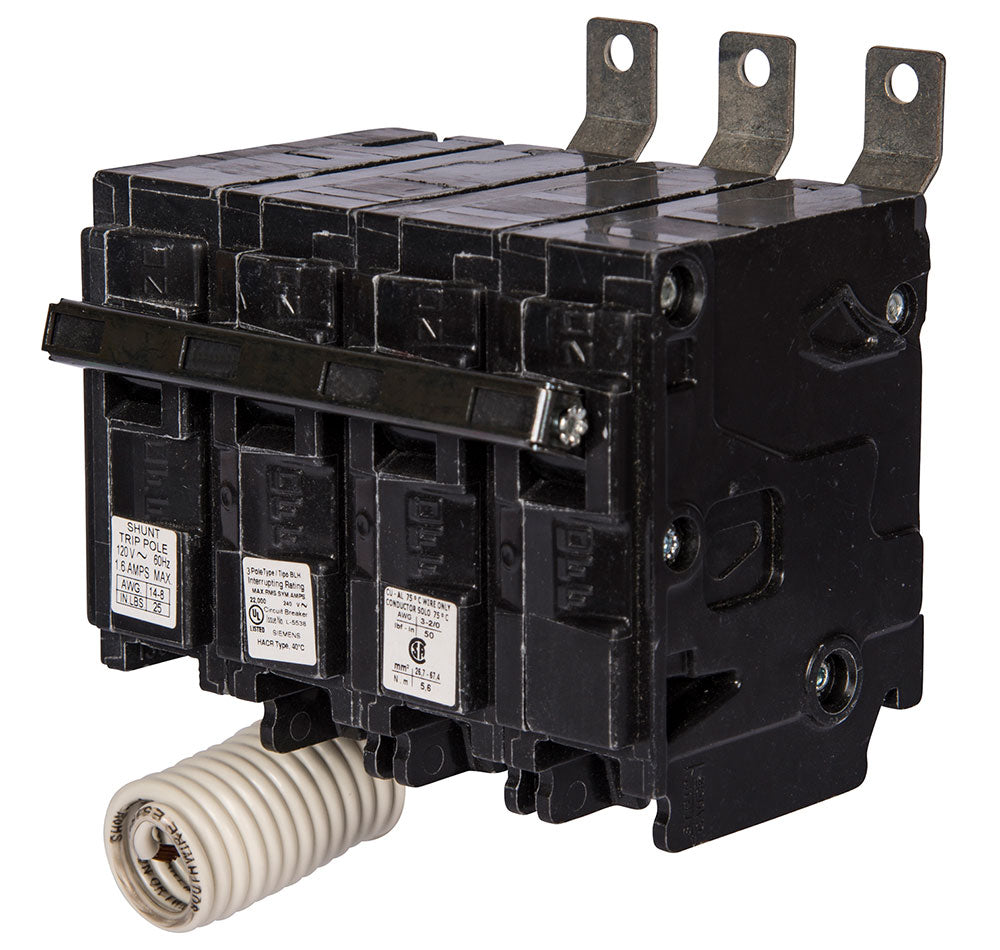

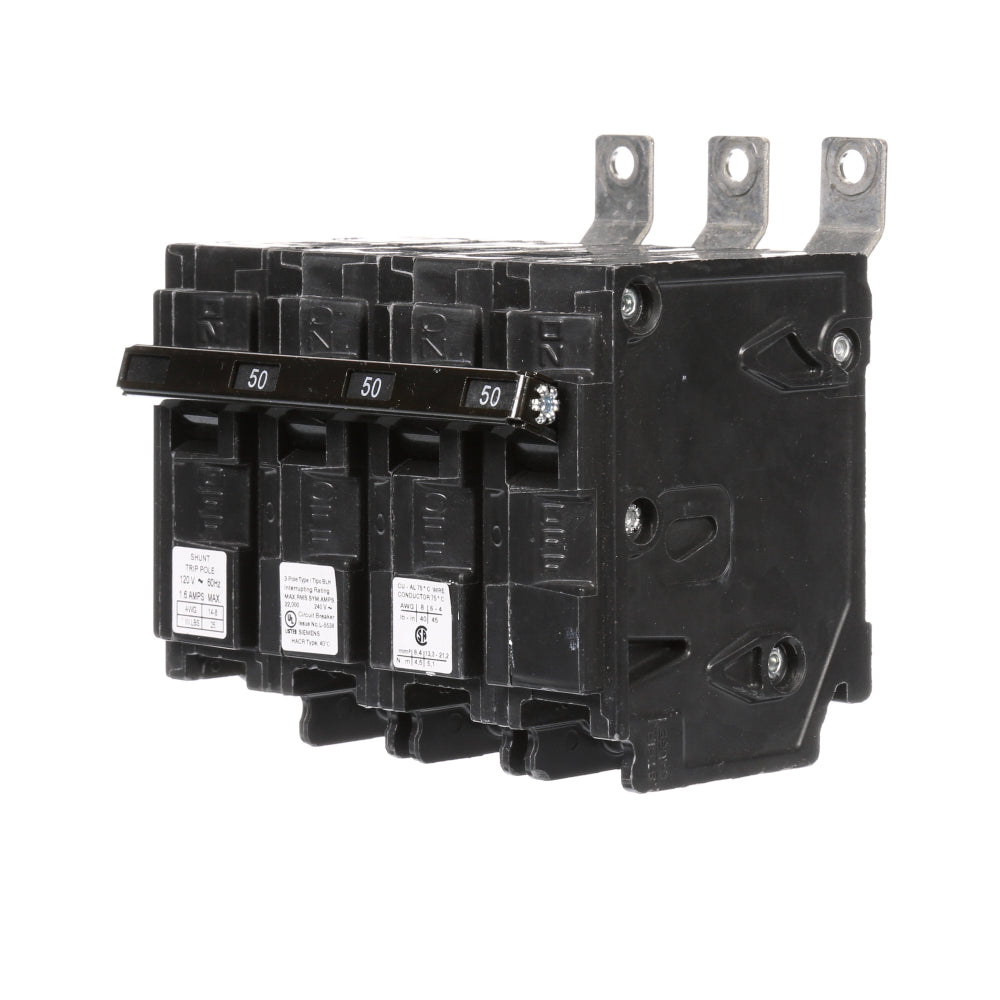

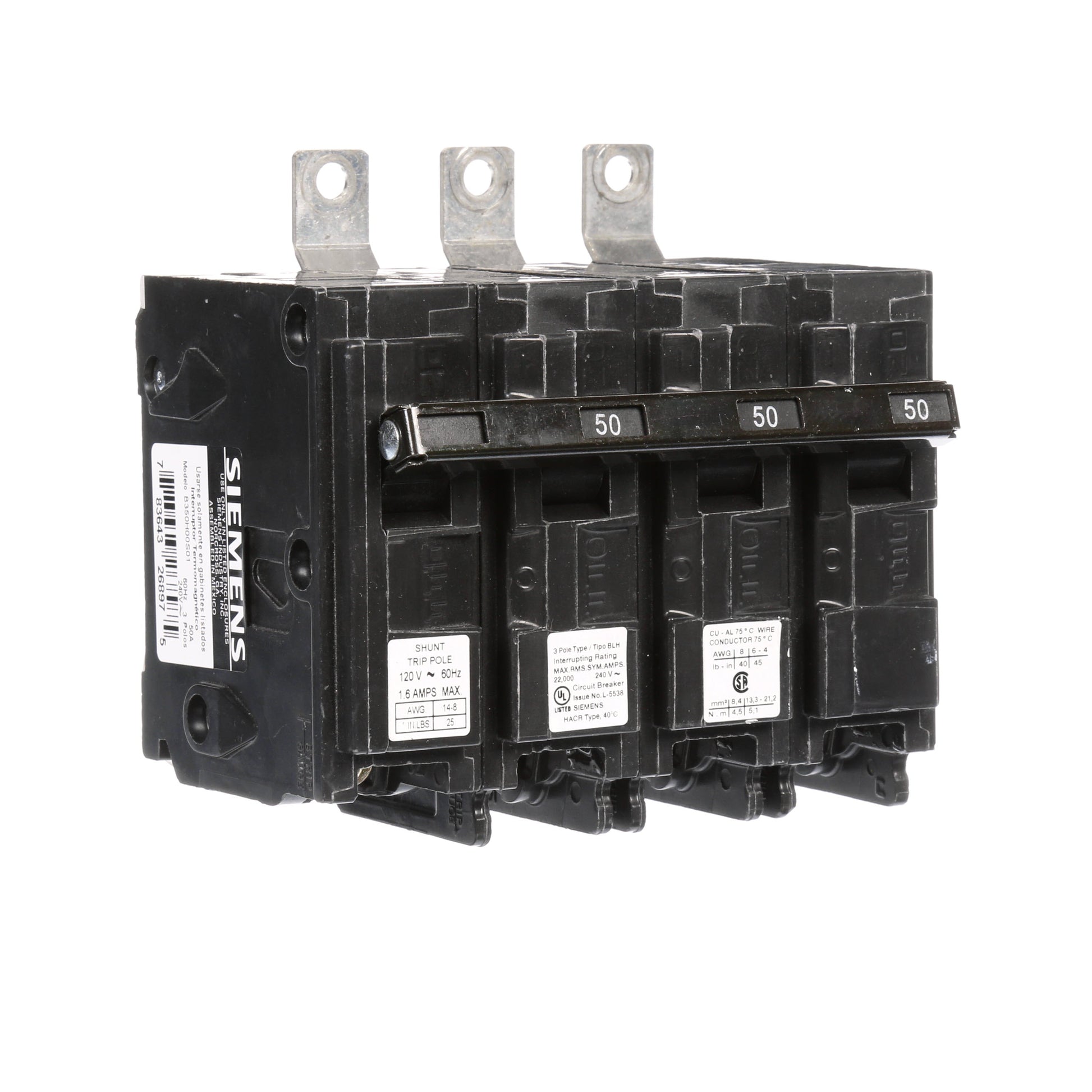

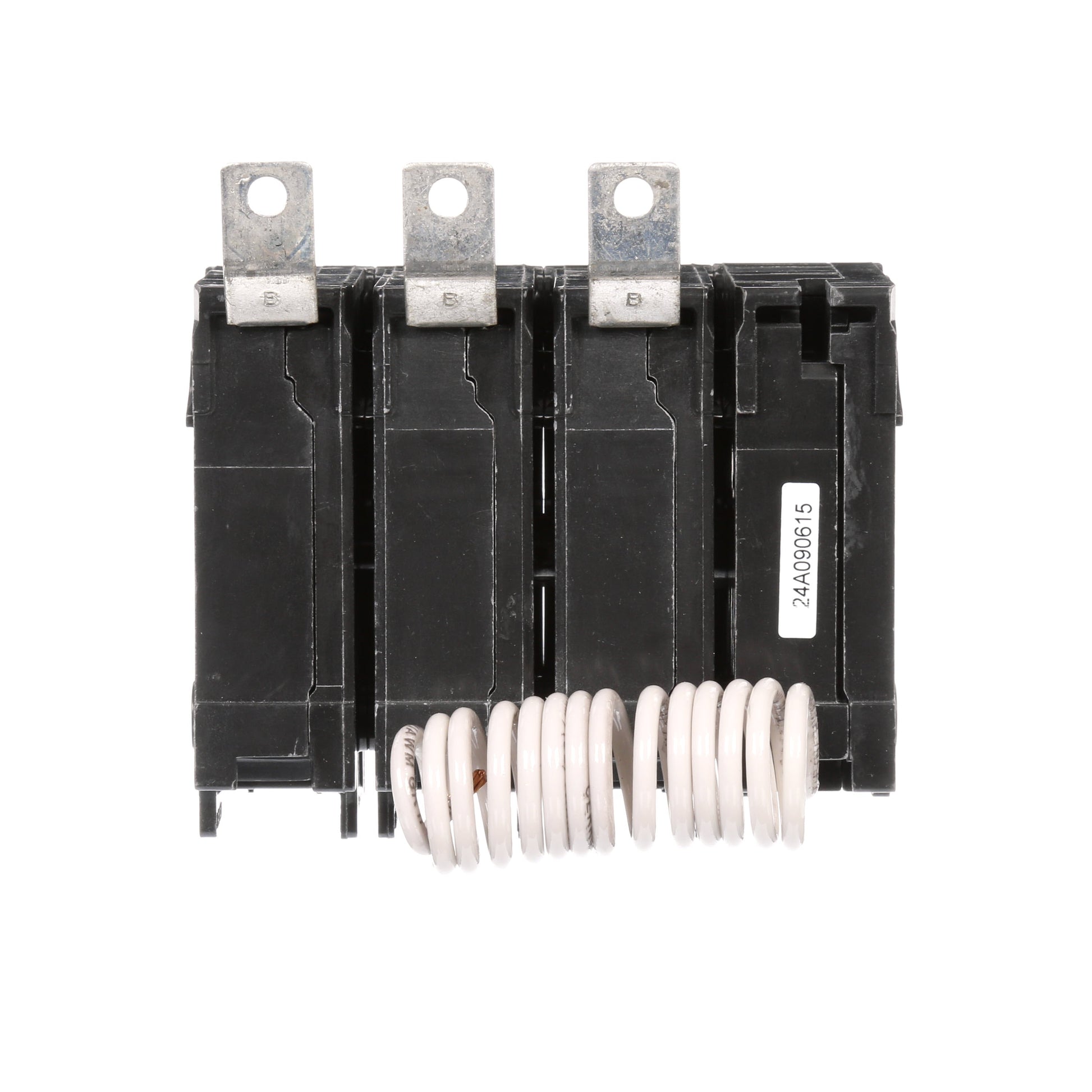

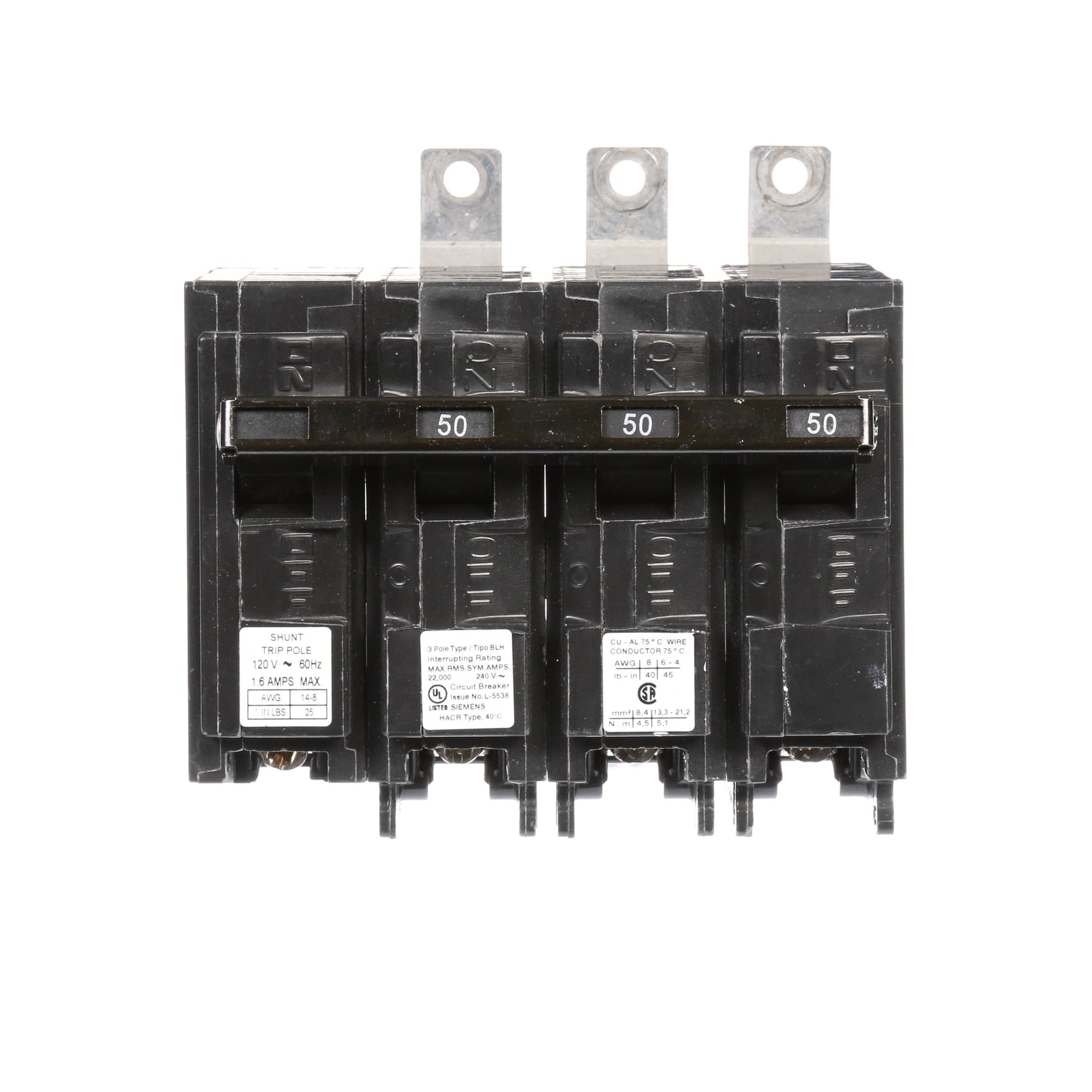

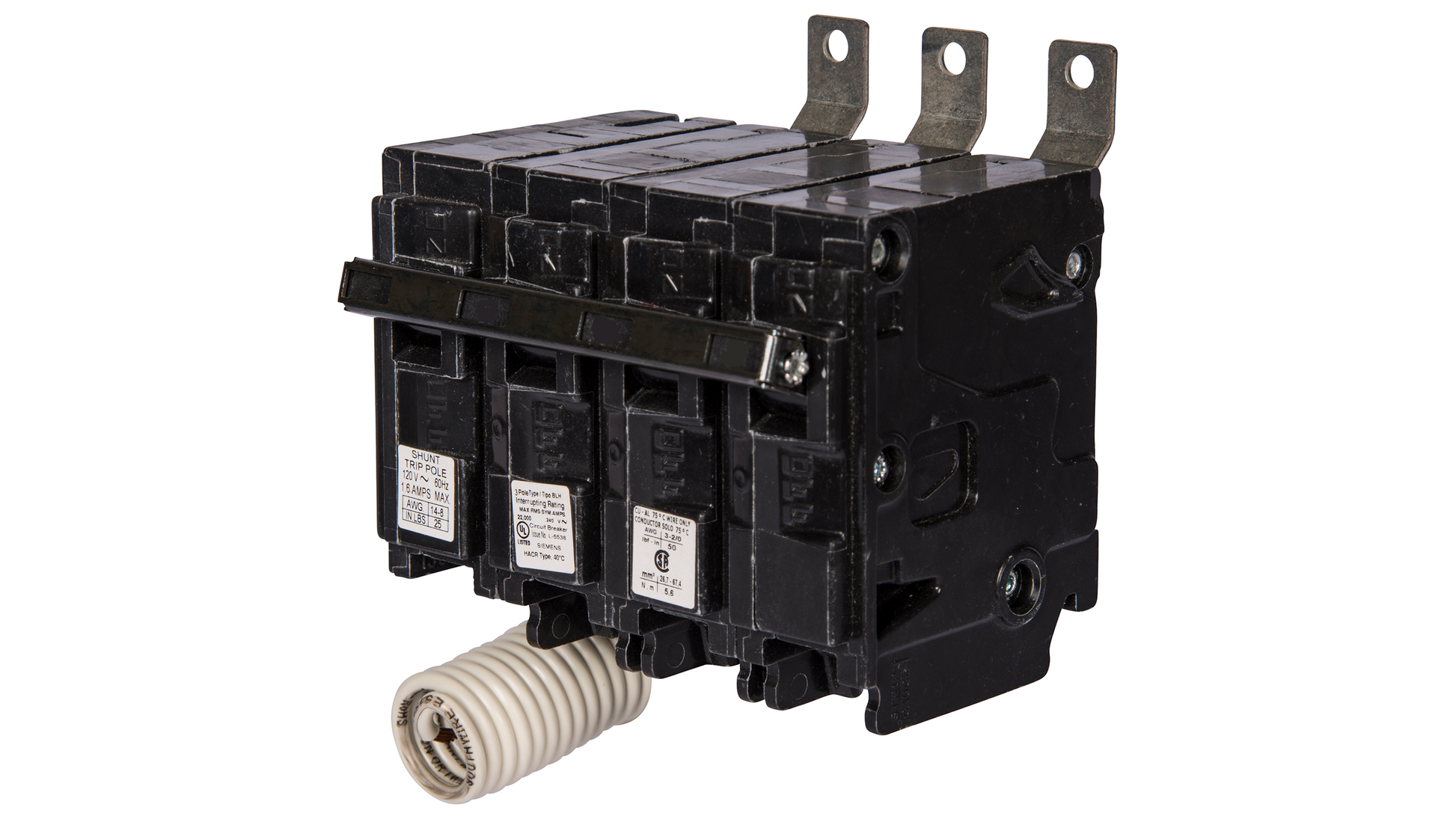

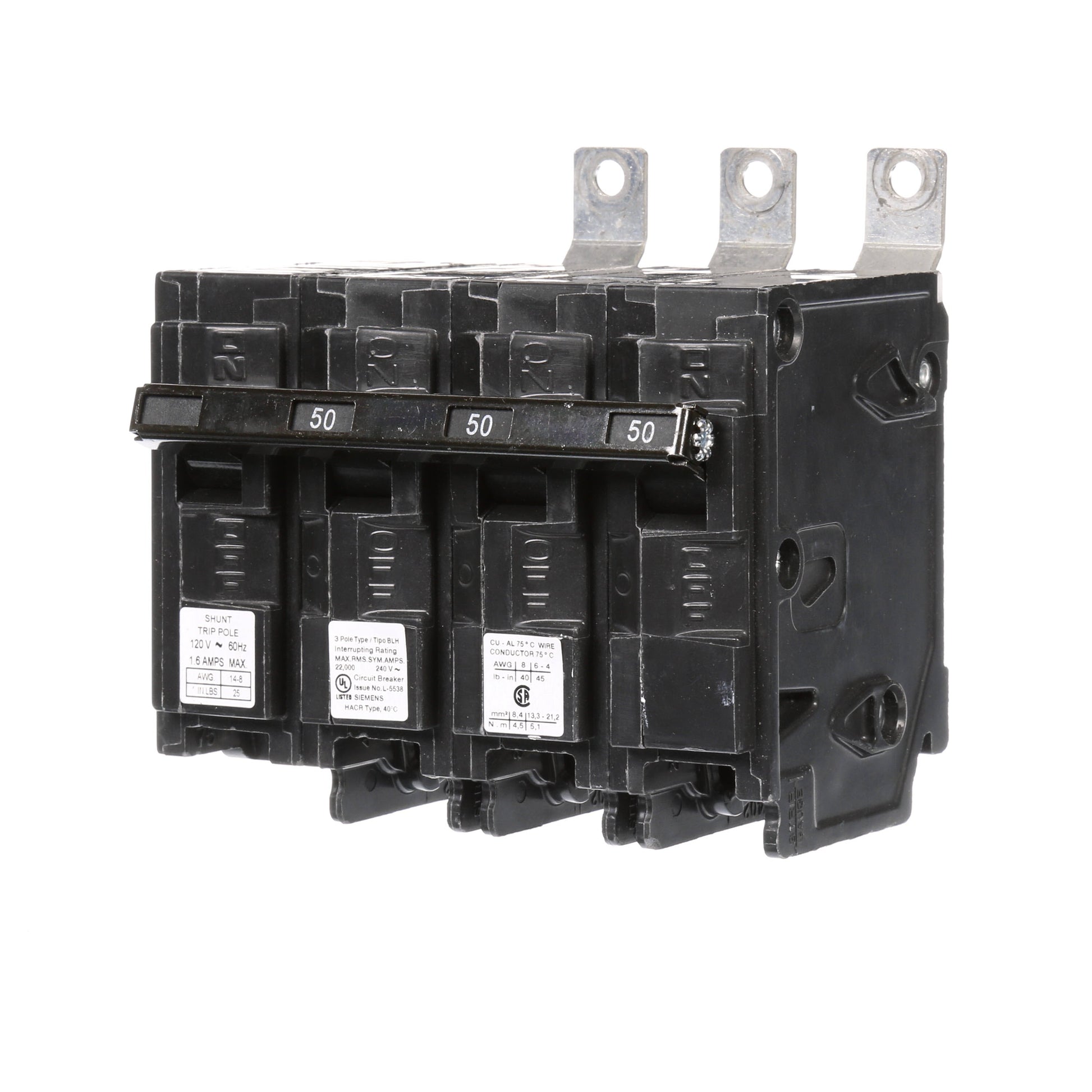

Siemens B350H00S01 Molded Case Circuit Breaker | 240V 50A 3P 22kA@240V Bolt-on BL Series

Product Description:
The Siemens B350H00S01 is a molded case circuit breaker designed for reliable electrical protection in industrial and commercial settings. It features a 3-pole configuration with a 50 amp rating and 240V operational voltage. This model includes thermal magnetic protection and a 22kA interrupting capacity for enhanced safety. It is complete with a 120V shunt trip function for remote operation.

Key Features:
✔ Part Number: B350H00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268975
✔ GTIN: 00783643268975
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 5 in x 5 in
✔ Weight: 1.63
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
