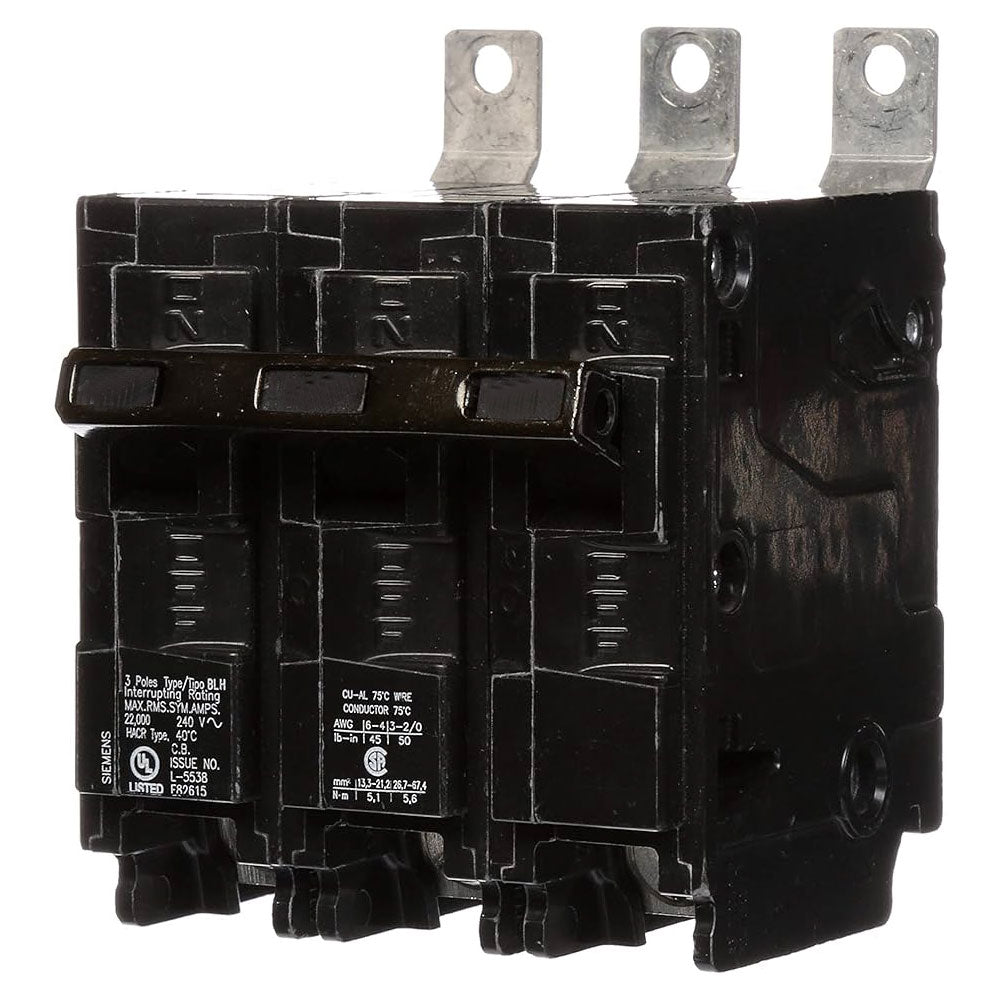

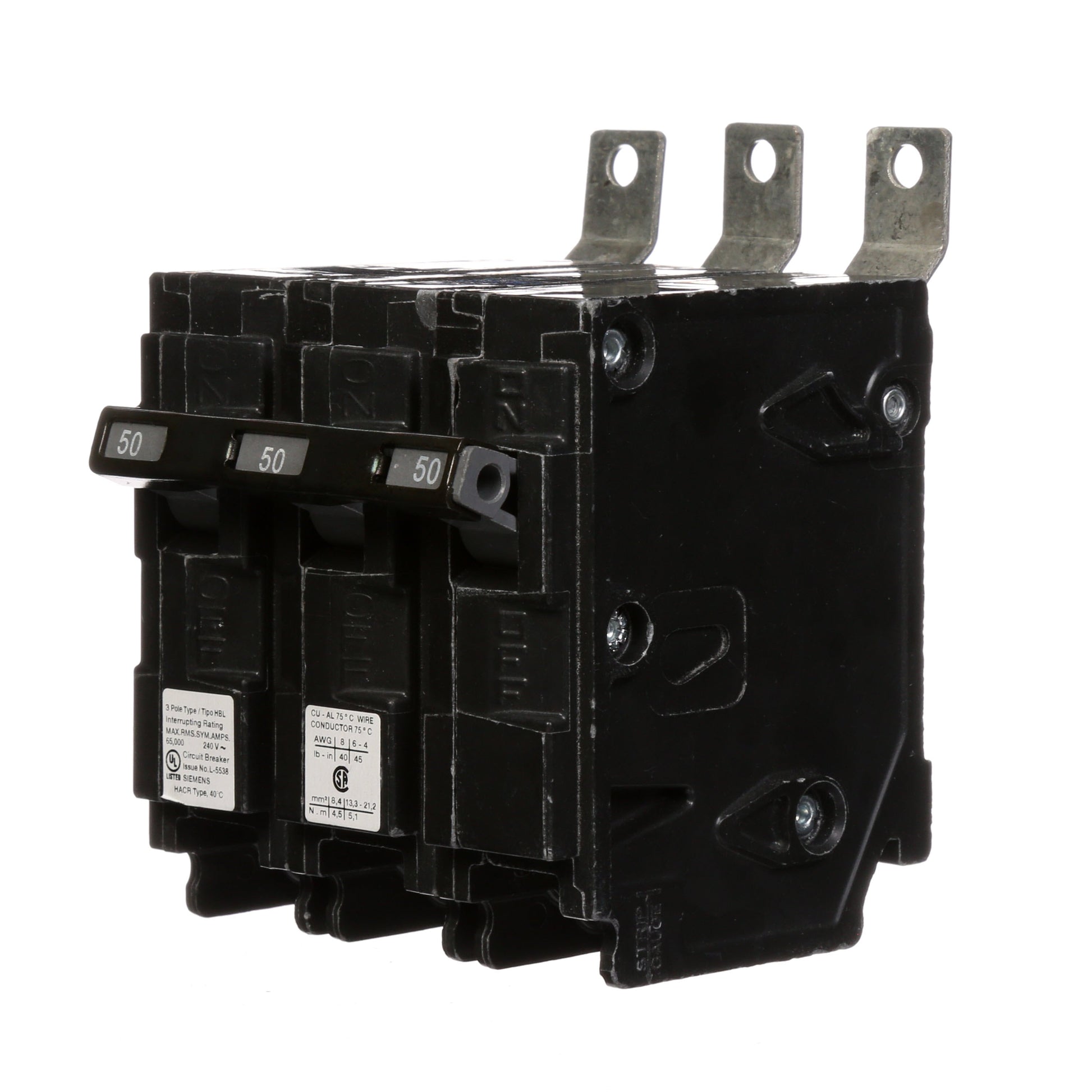

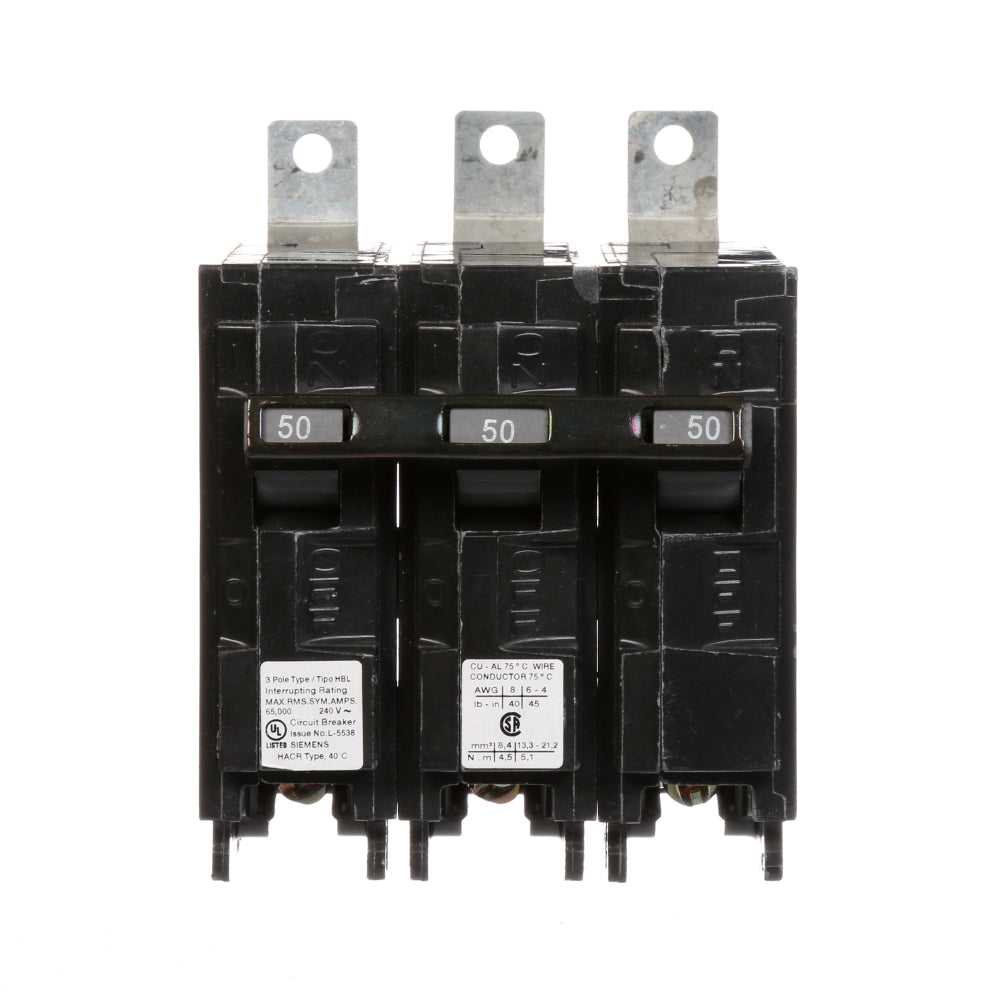

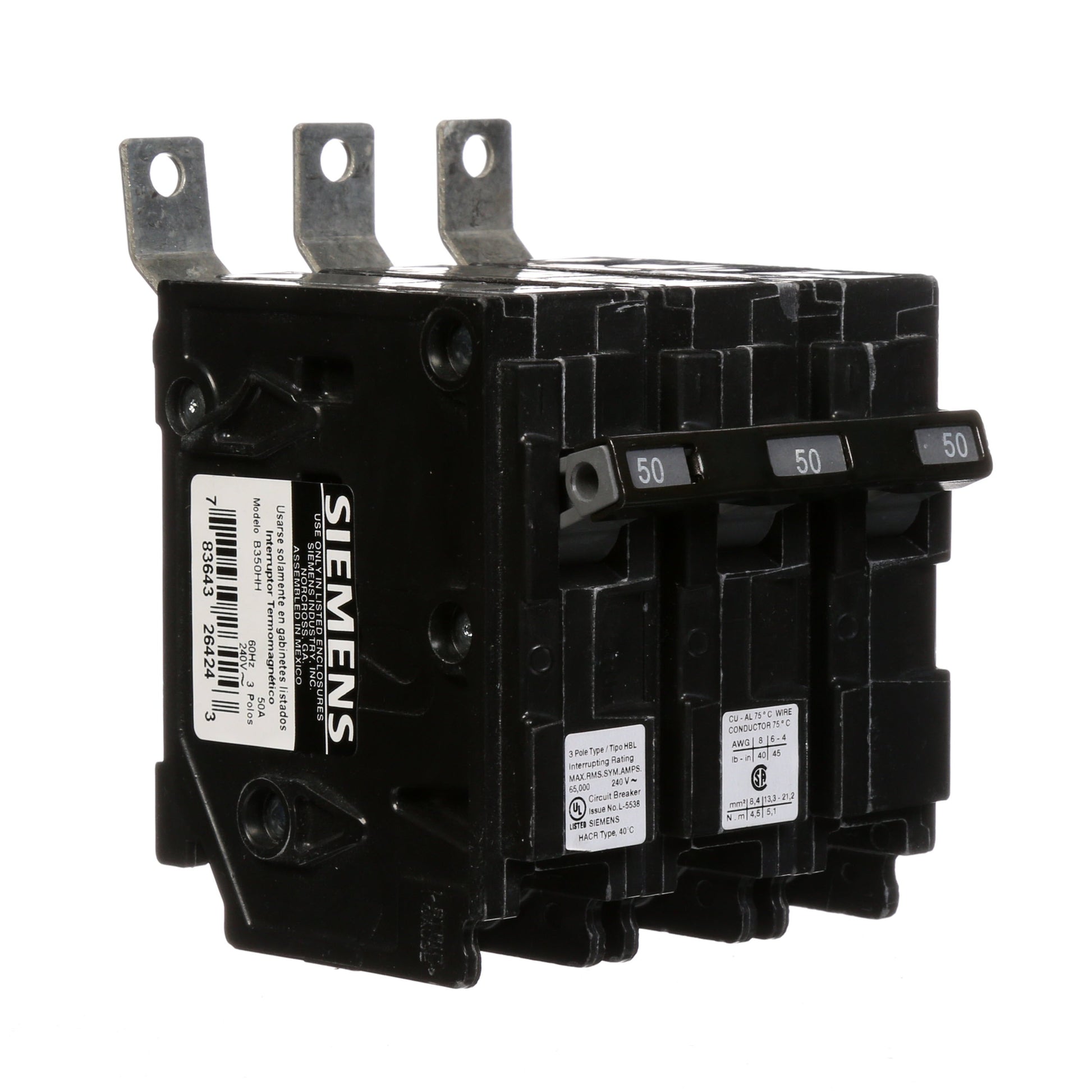

Siemens B350HH Circuit Breaker | 240V 50A 3P 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B350HH is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 240V, 50A breaker with a 65kA@240V AIC rating and bolt-on connections. This model provides thermal magnetic protection for reliable performance.

Key Features:
✔ Part Number: B350HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 240
✔ Amperage: 50
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/HBL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643264243
✔ GTIN: 00783643264243
✔ Country of Origin: Mexico
✔ Dimensions: 4.5 in x 3.7 in x 3.7 in
✔ Weight: 1
✔ Panel Type: P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
