Siemens B36000S01 Molded Case Circuit Breaker | 240V 60A 3P 10kA@240V Bolt-on BL Series

Product Description:

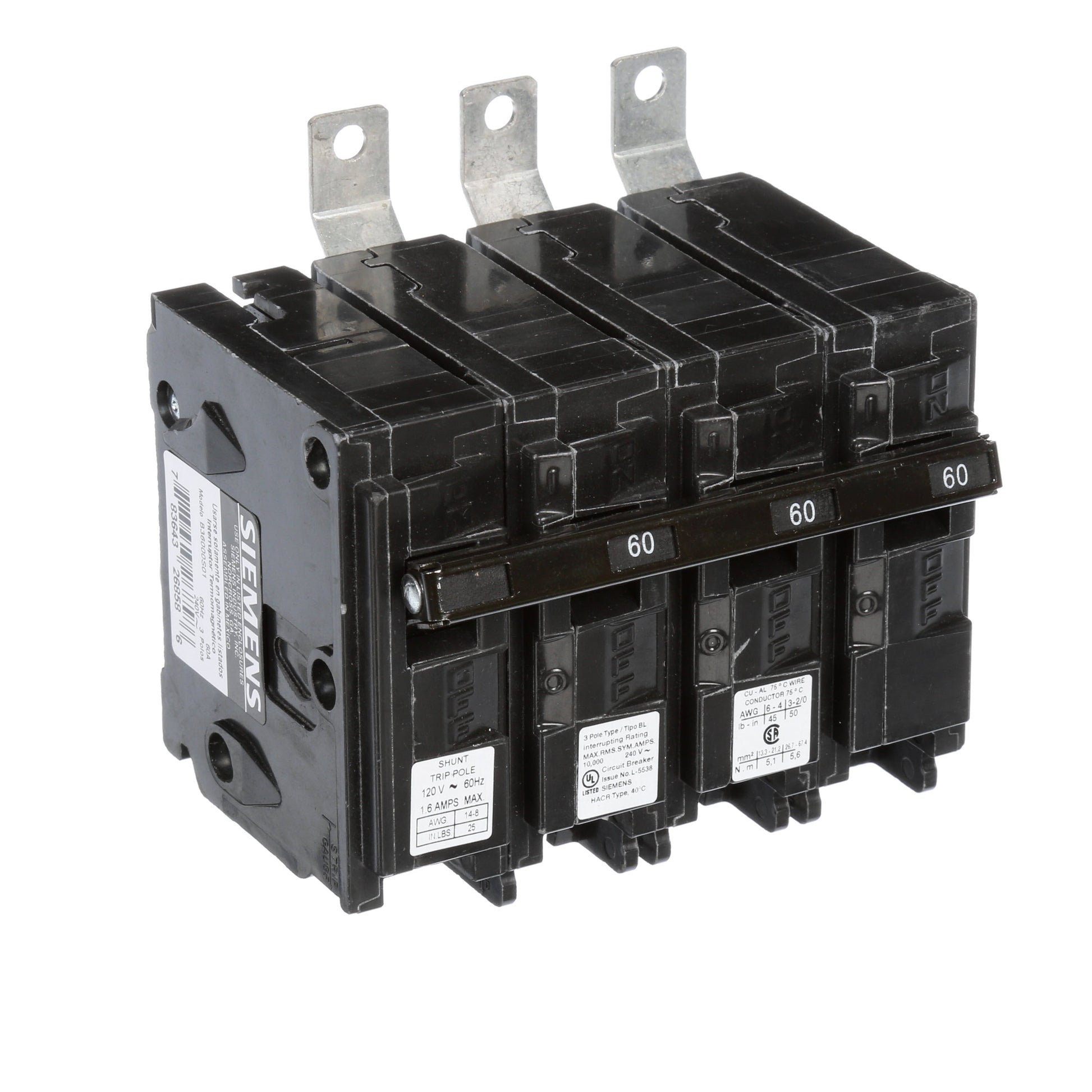

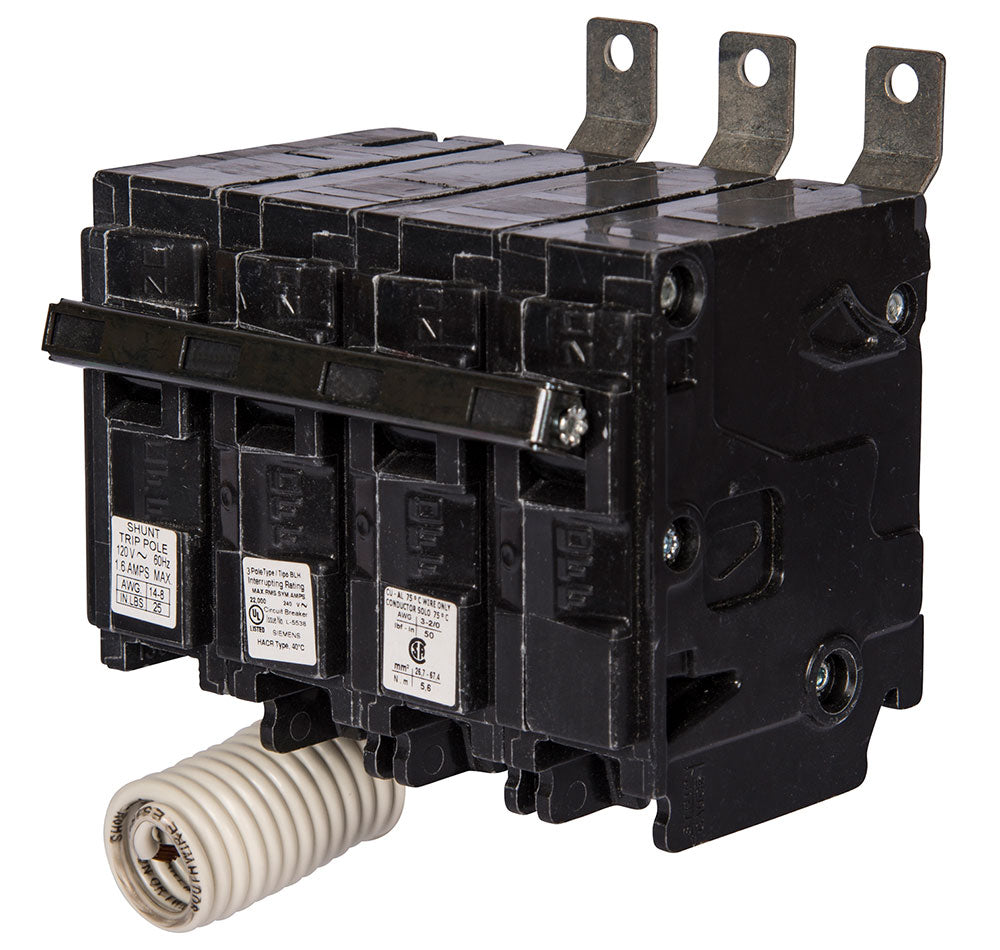

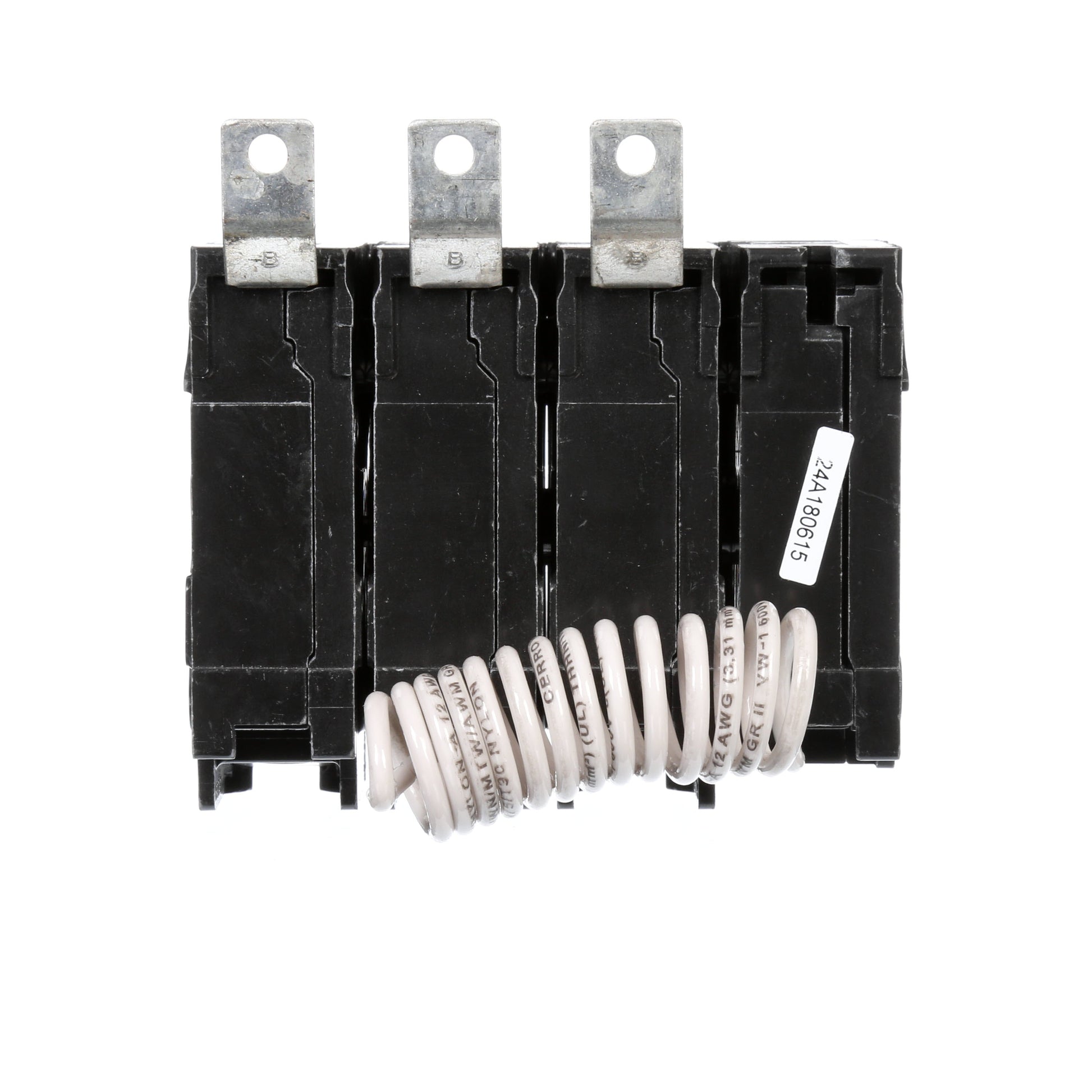

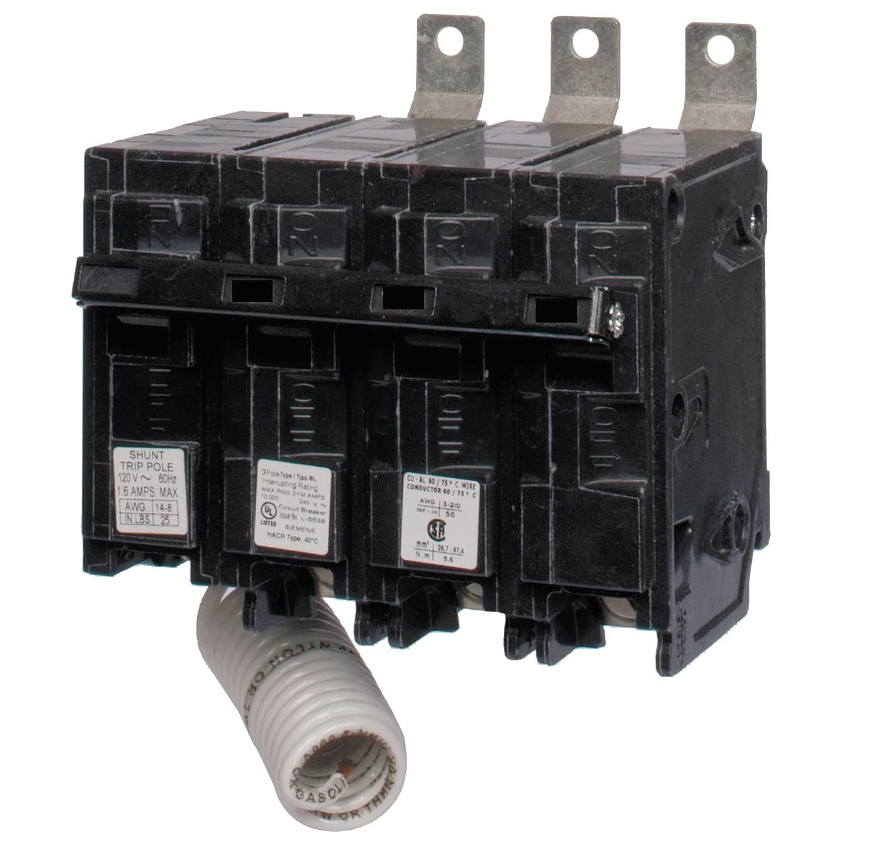

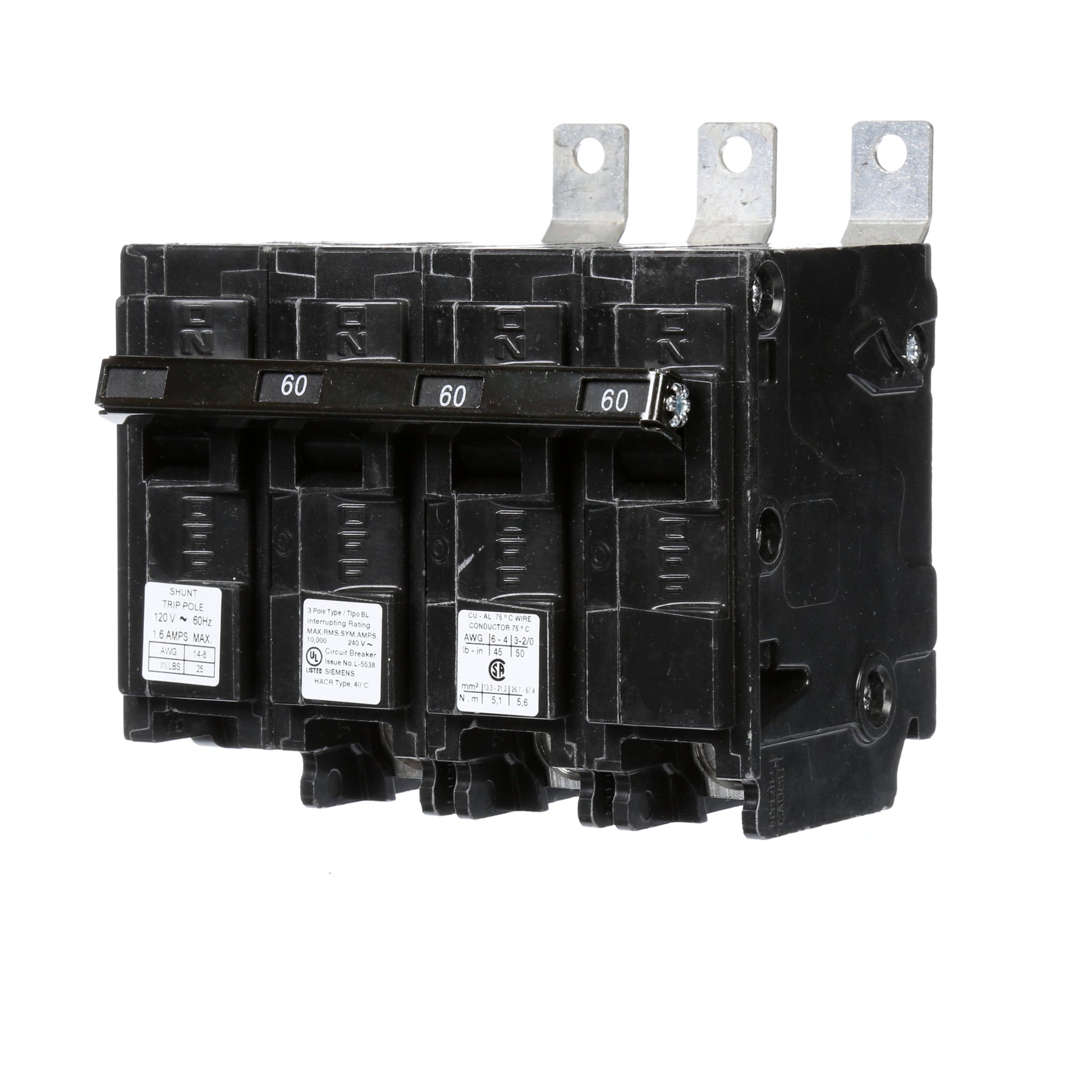

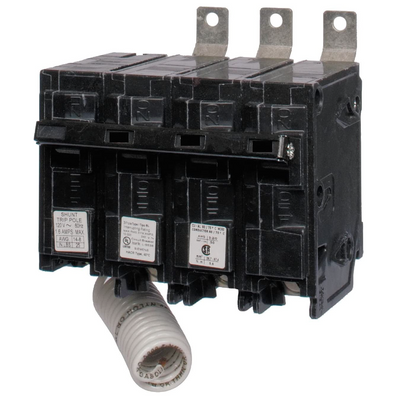

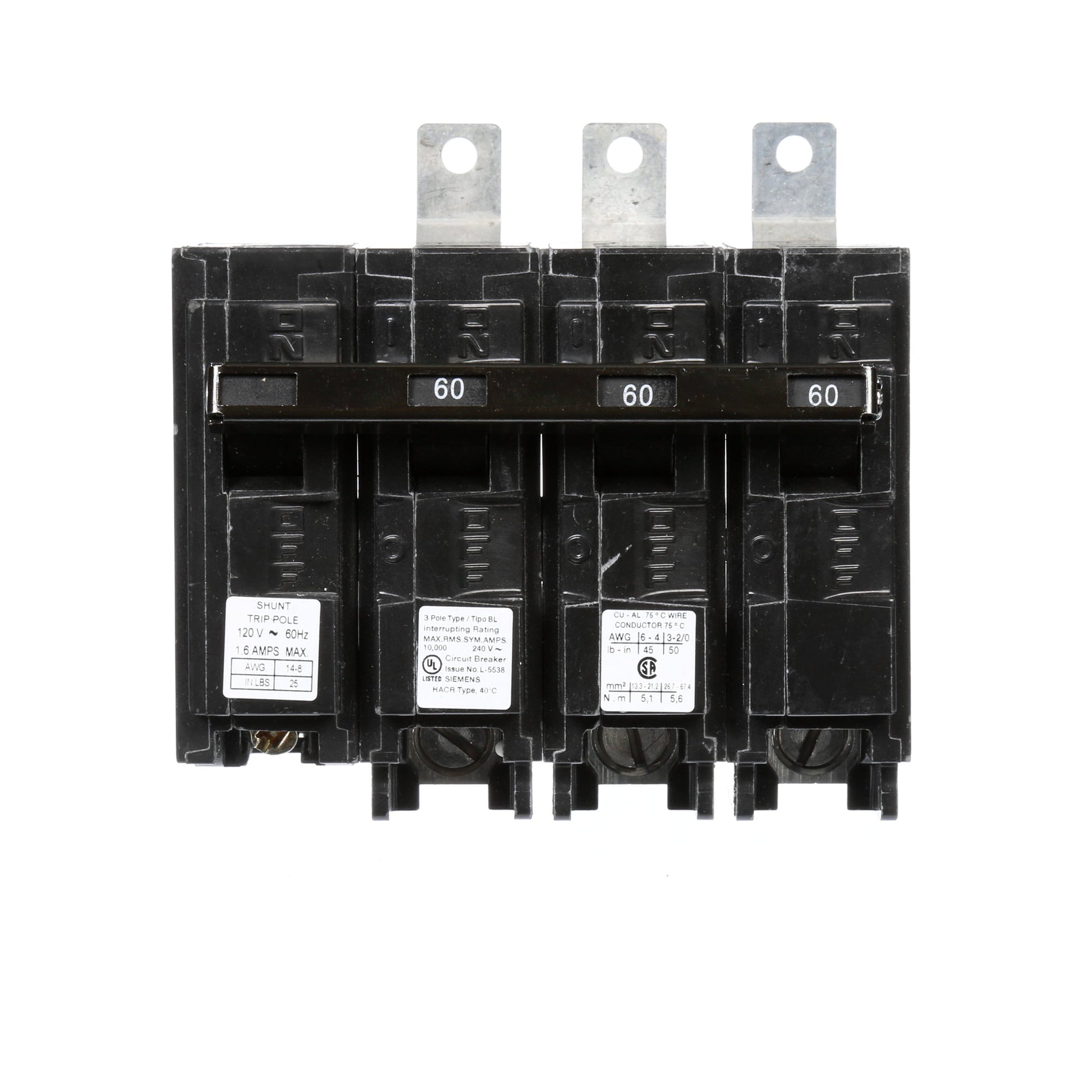

The Siemens B36000S01 is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 60 amp breaker rated for 240 volts with an AIC rating of 10kA@240V. This model features bolt-on connections and thermal magnetic protection for reliable performance. It is designed for use in Siemens P1 panelboards and meets CSA, HACR, and UL standards.

Key Features:
✔ Part Number: B36000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268586
✔ GTIN: 00783643268586
✔ Country of Origin: Mexico
✔ Dimensions: 4.3 in x 3.8 in x 3.8 in
✔ Weight: 1.06
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
