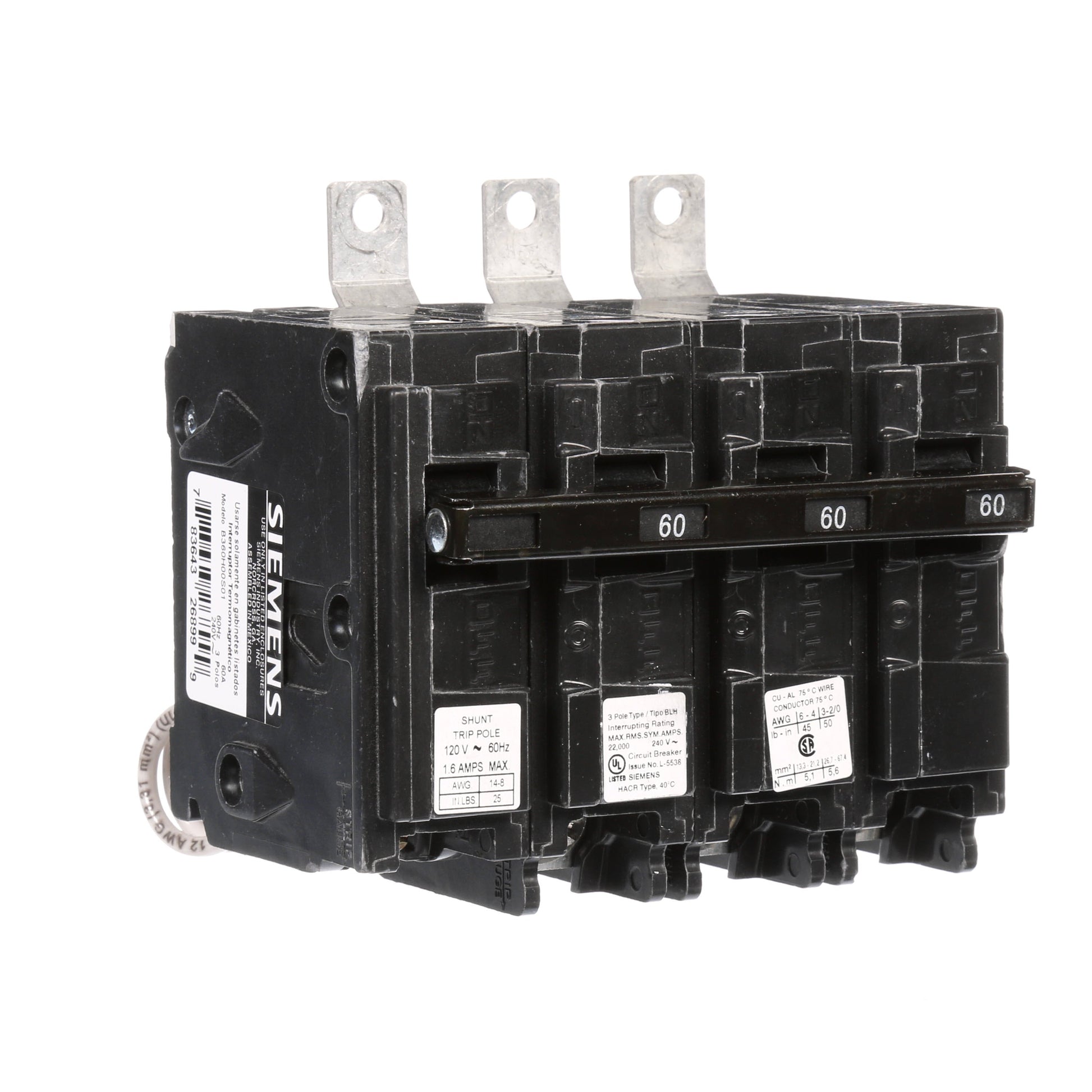

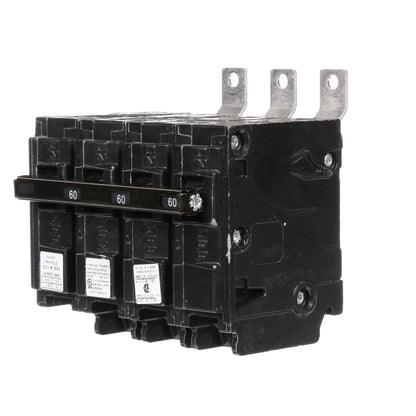

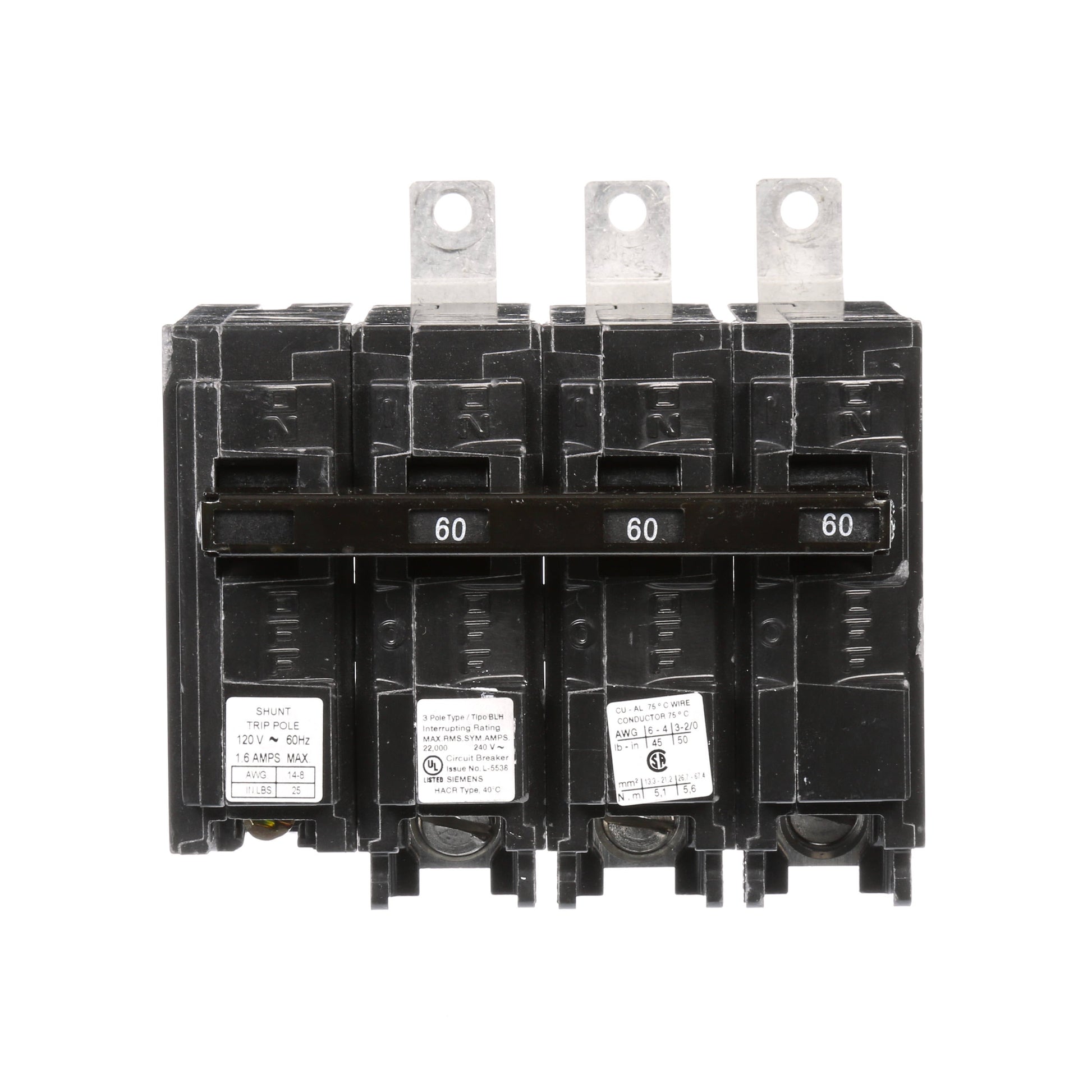

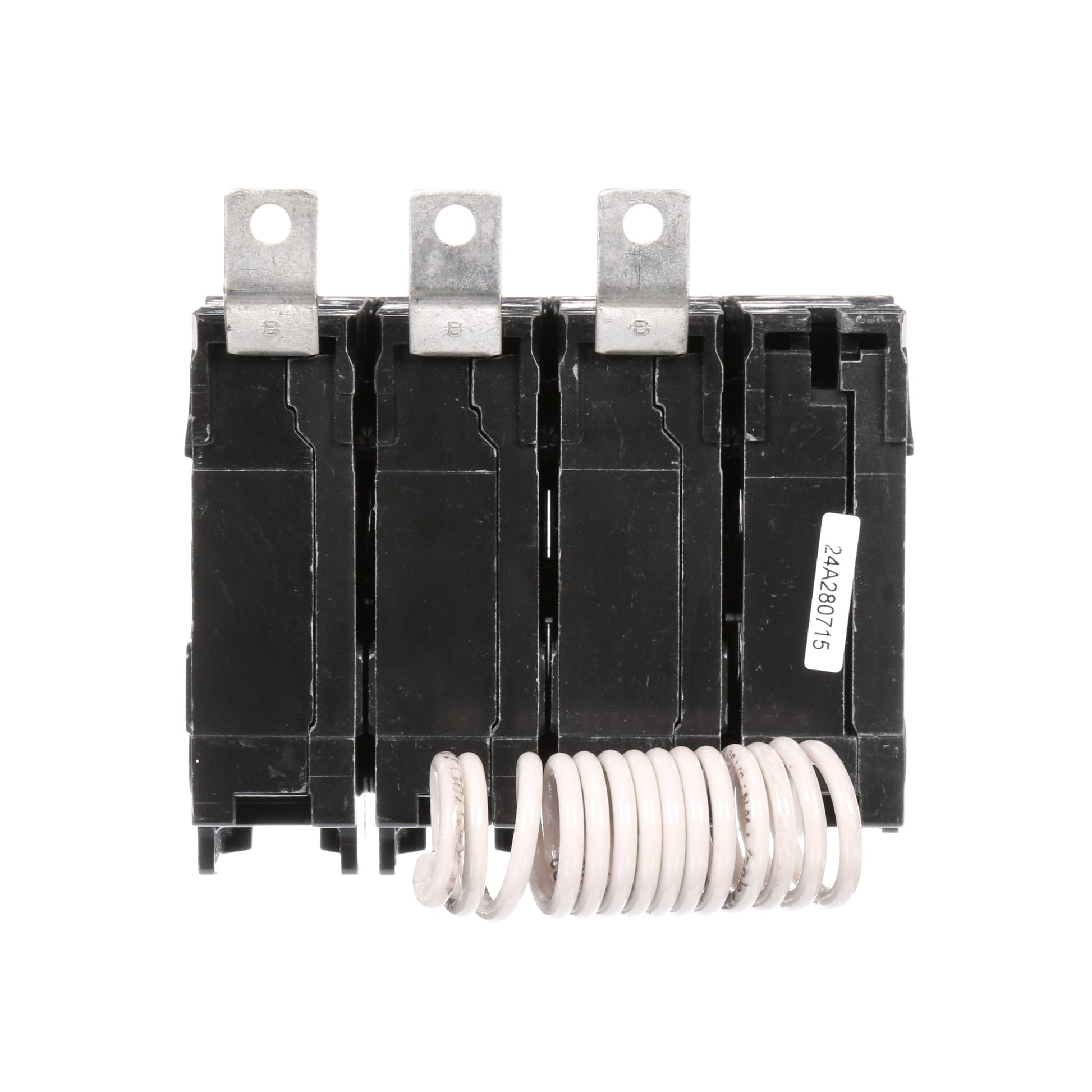

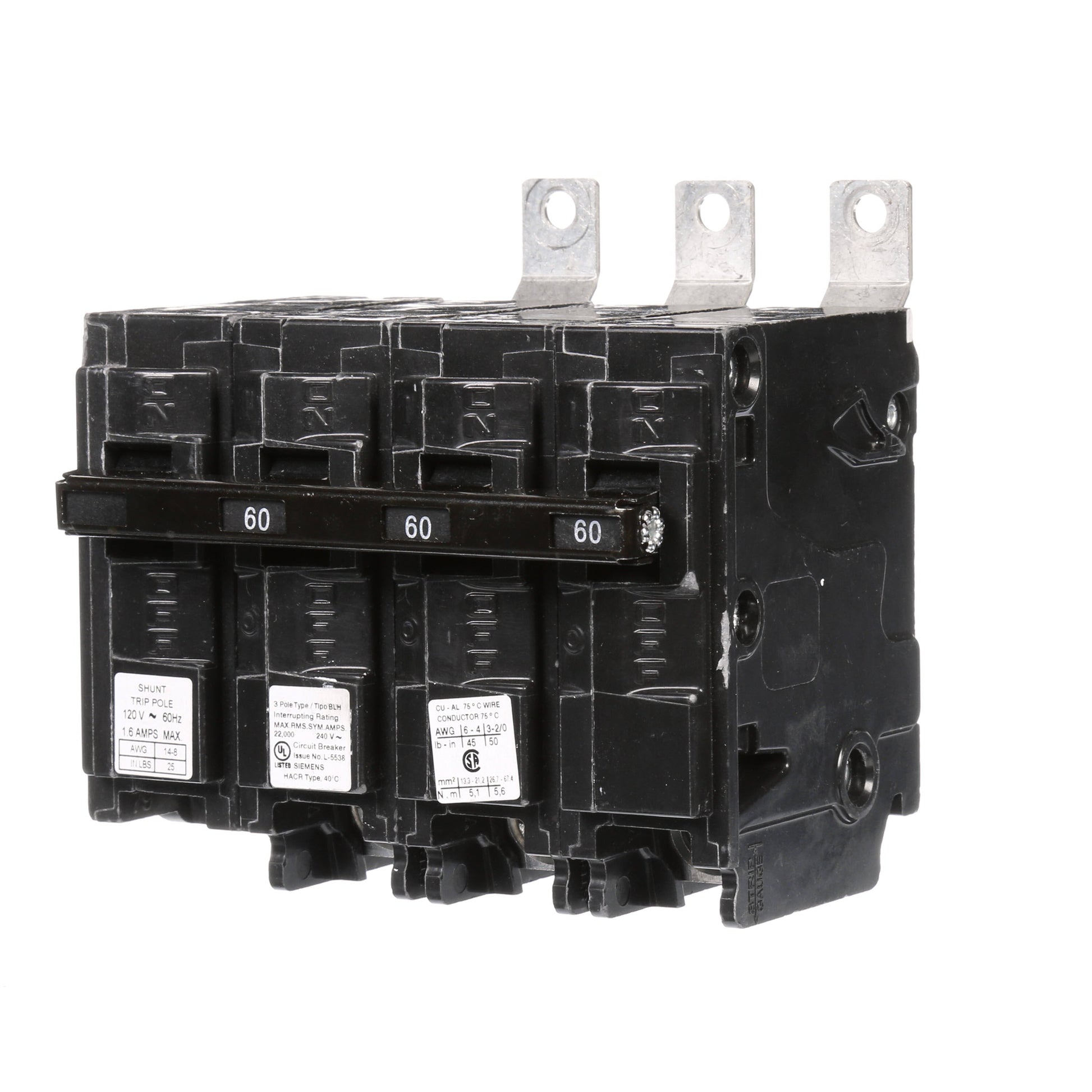

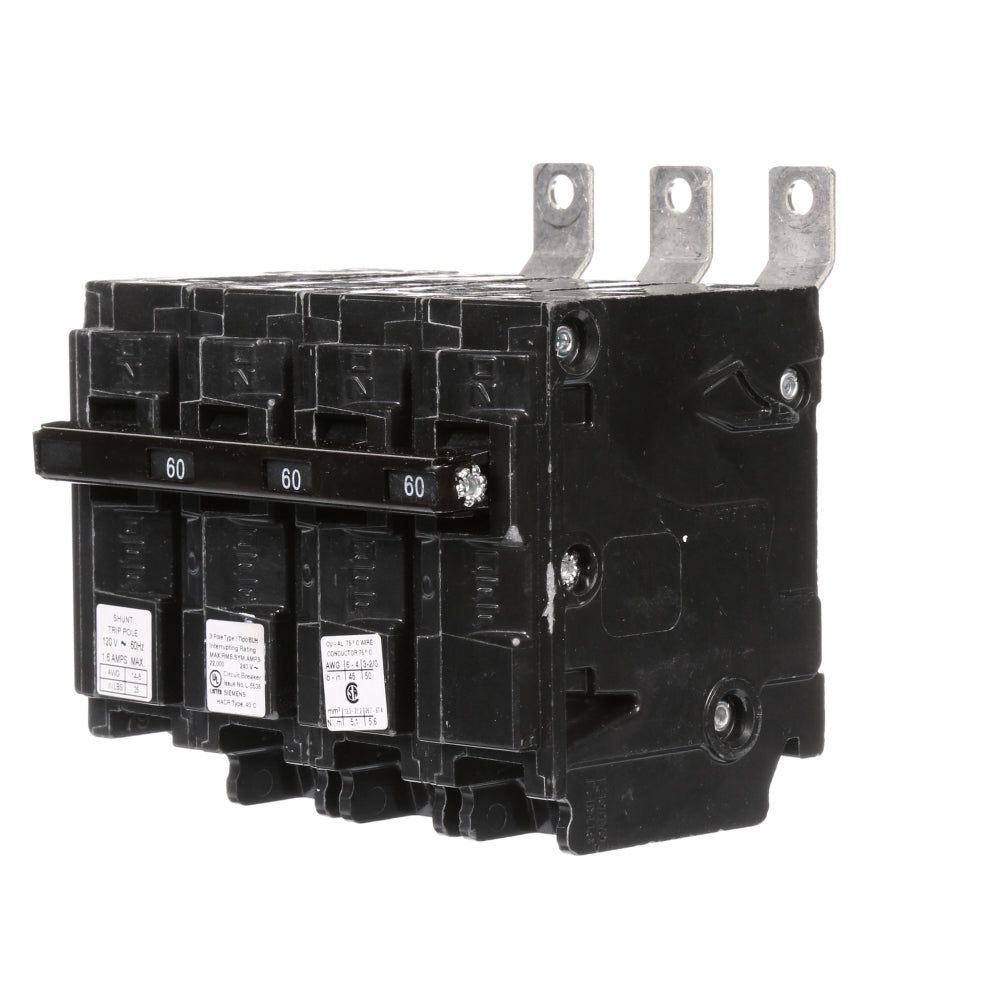

Siemens B360H00S01 Molded Case Circuit Breaker | 240V 60A 3P 22kA@240V Bolt-on BL Series
Siemens B360H00S01 Molded Case Circuit Breaker | 240V 60A 3P 22kA@240V Bolt-on BL Series
Price:
Sale
Sold out
Regular price
$317.14 USD
Regular price
$1,422.00 USD
Sale price
$317.14 USD
Unit price
per
Shipping calculated at checkout.
Stock:
Low stock: 5 left
Couldn't load pickup availability
Product Description:
The Siemens B360H00S01 is a molded case circuit breaker designed for reliable electrical protection in industrial and commercial applications. It features thermal magnetic protection and is rated for 240 volts and 60 amps. This 3-pole breaker includes a 120V shunt trip function for enhanced control and safety.
Key Features:
✔ Part Number: B360H00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268999
✔ GTIN: 00783643268999
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 3
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
