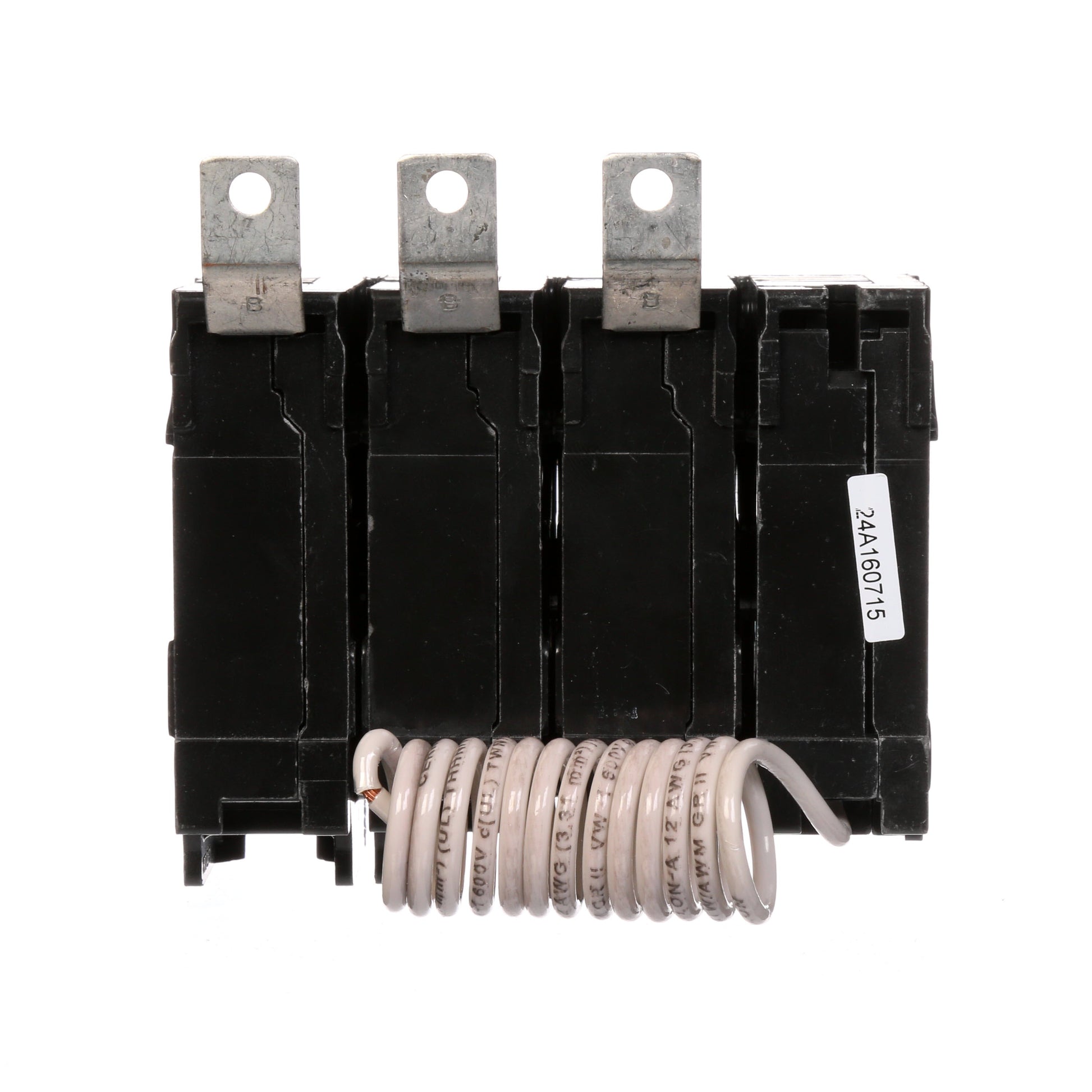

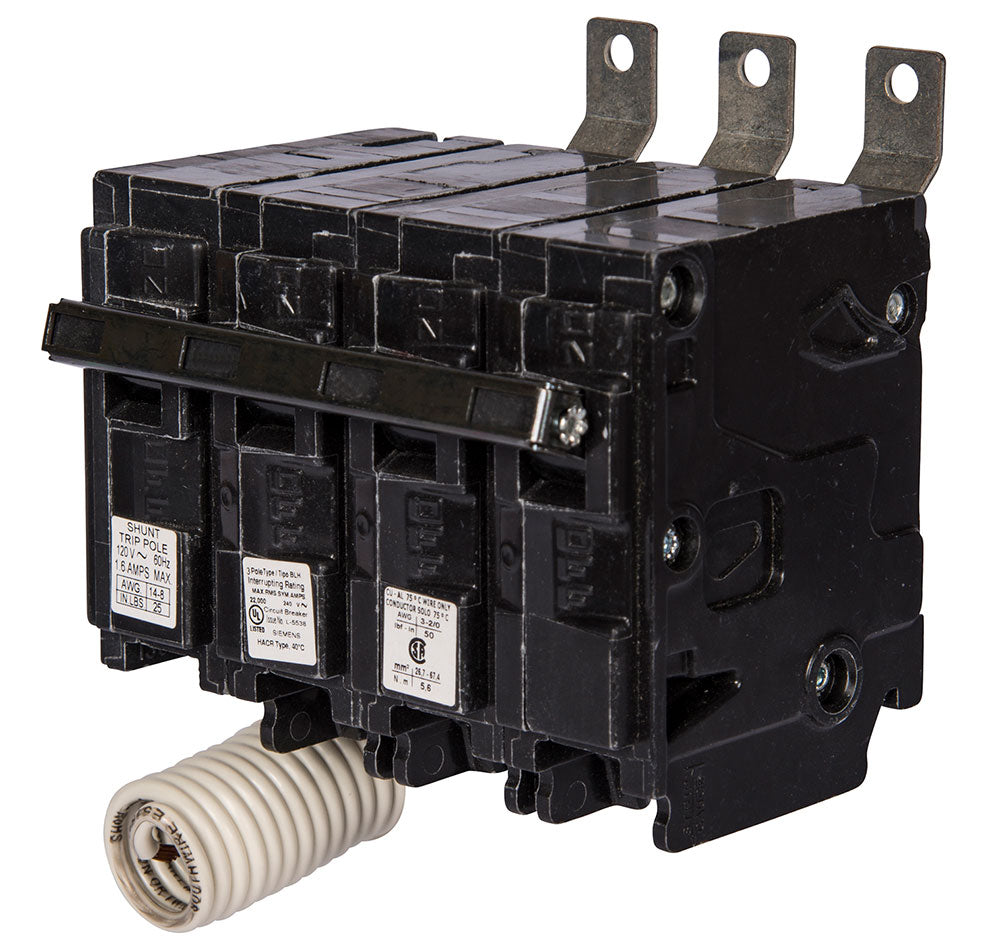

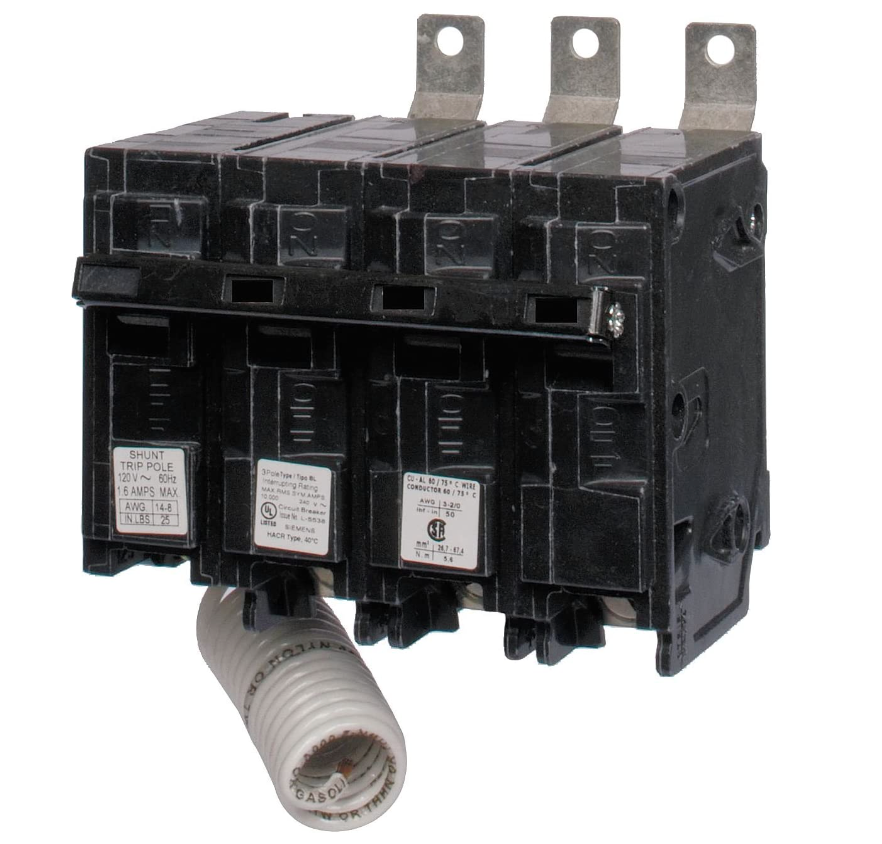

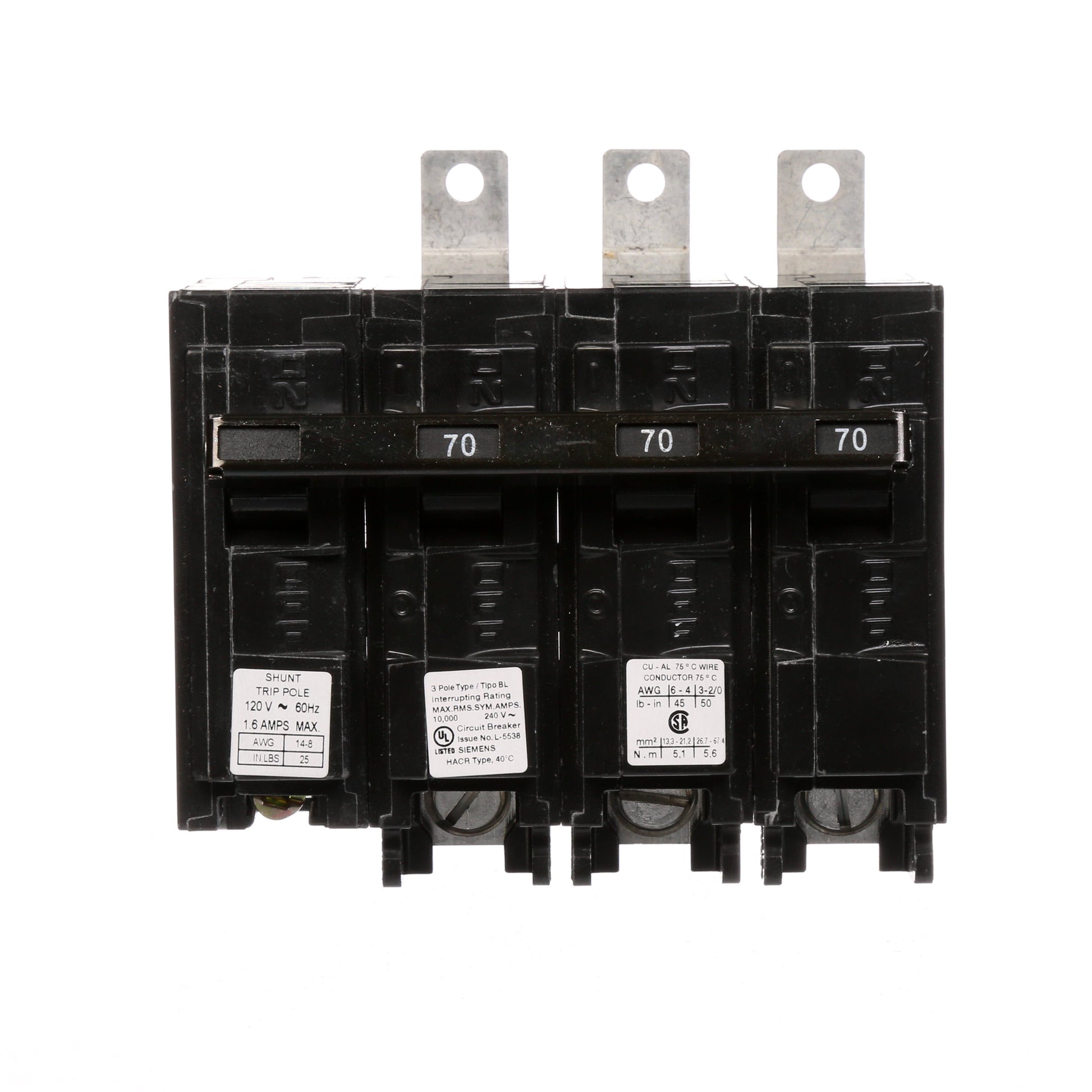

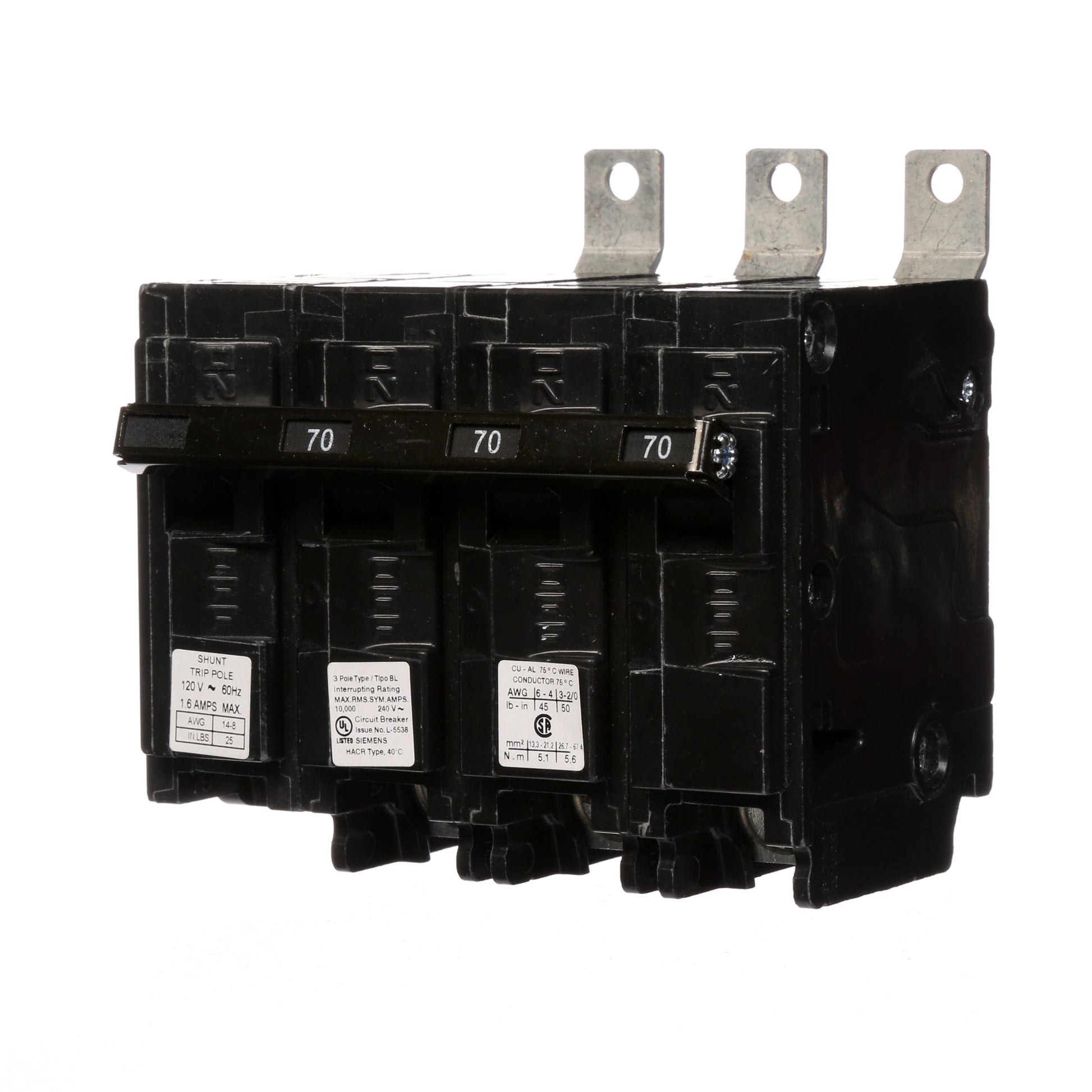

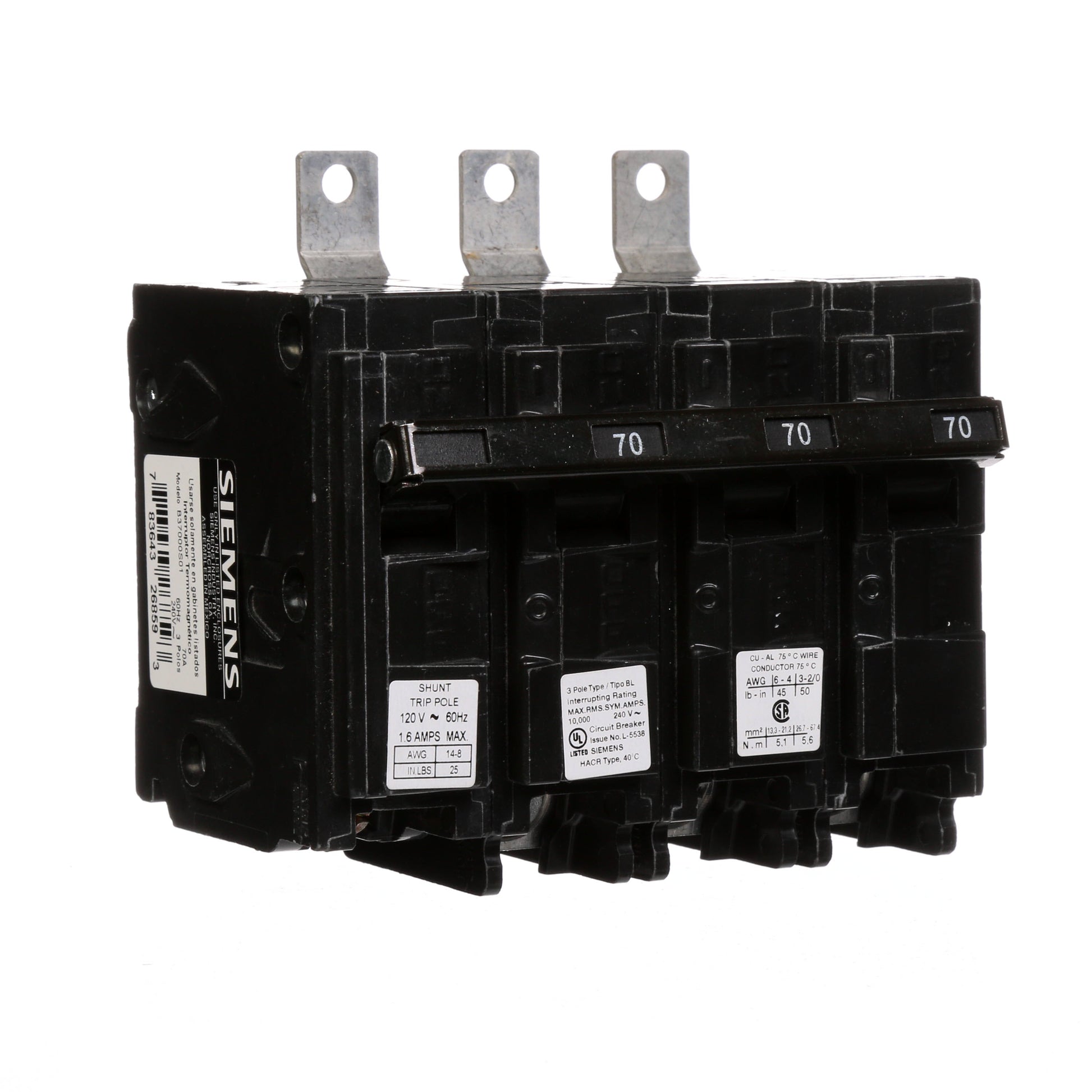

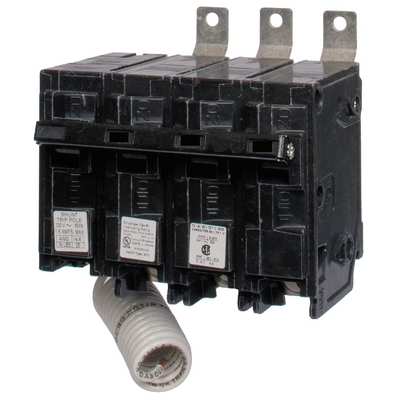

Siemens B37000S01 Molded Case Circuit Breaker | 240V 70A 3P 10kA@240V Bolt-on BL Series

Product Description:
The Siemens B37000S01 is a molded case circuit breaker designed for reliable electrical protection in industrial and commercial settings. It features thermal magnetic protection and is rated for 240 volts and 70 amps. This 3-pole breaker is part of the BL Series and is compatible with Siemens P1 panelboards.

Key Features:
✔ Part Number: B37000S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BL
✔ Voltage: 240
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BL
✔ MCM Size: Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643268593
✔ GTIN: 00783643268593
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 1.57
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
