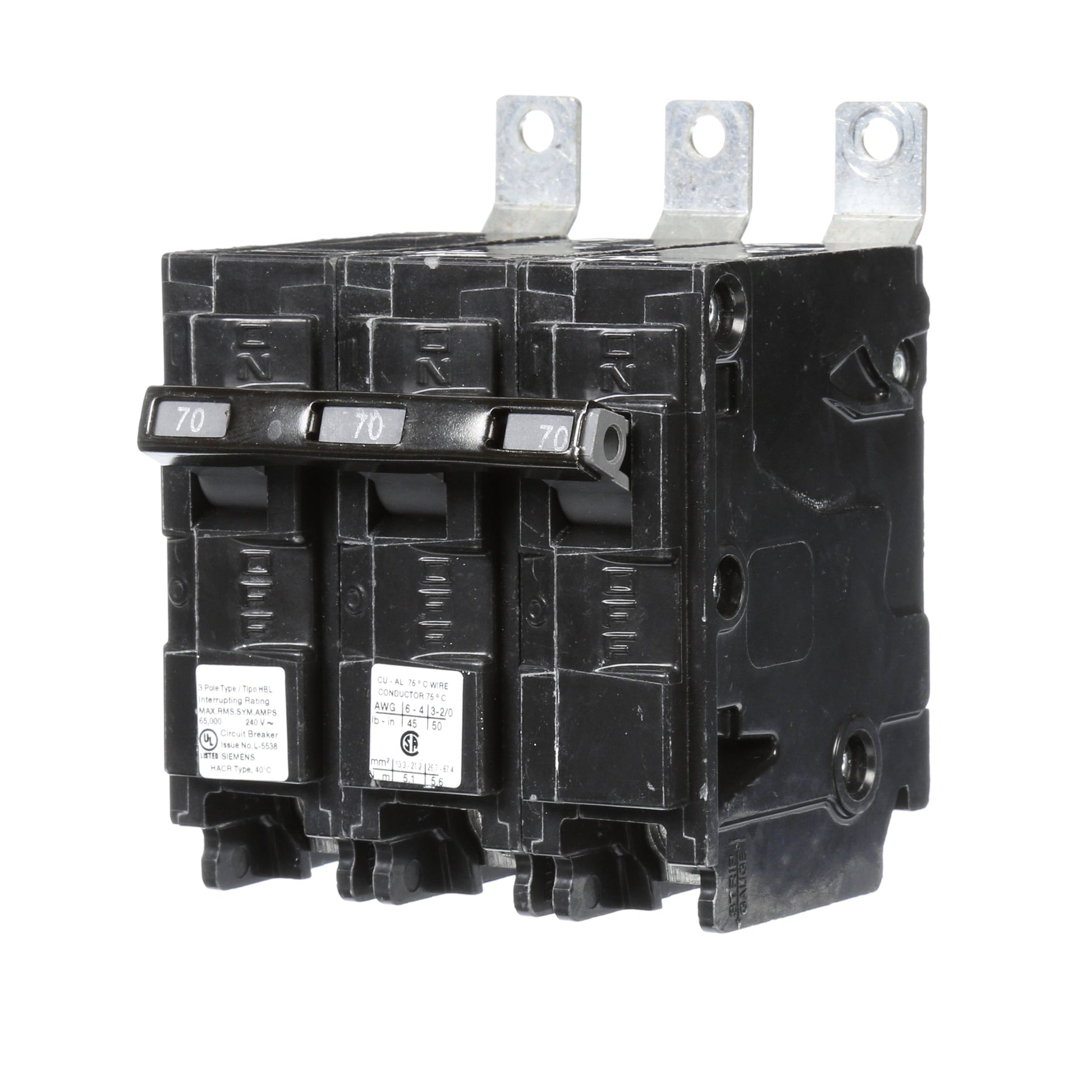

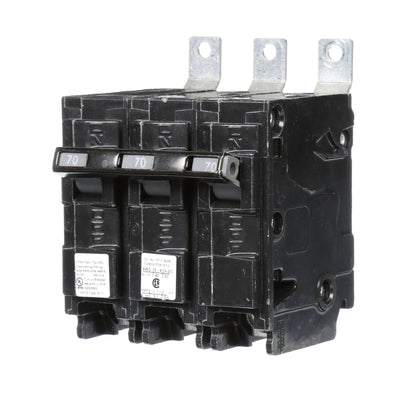

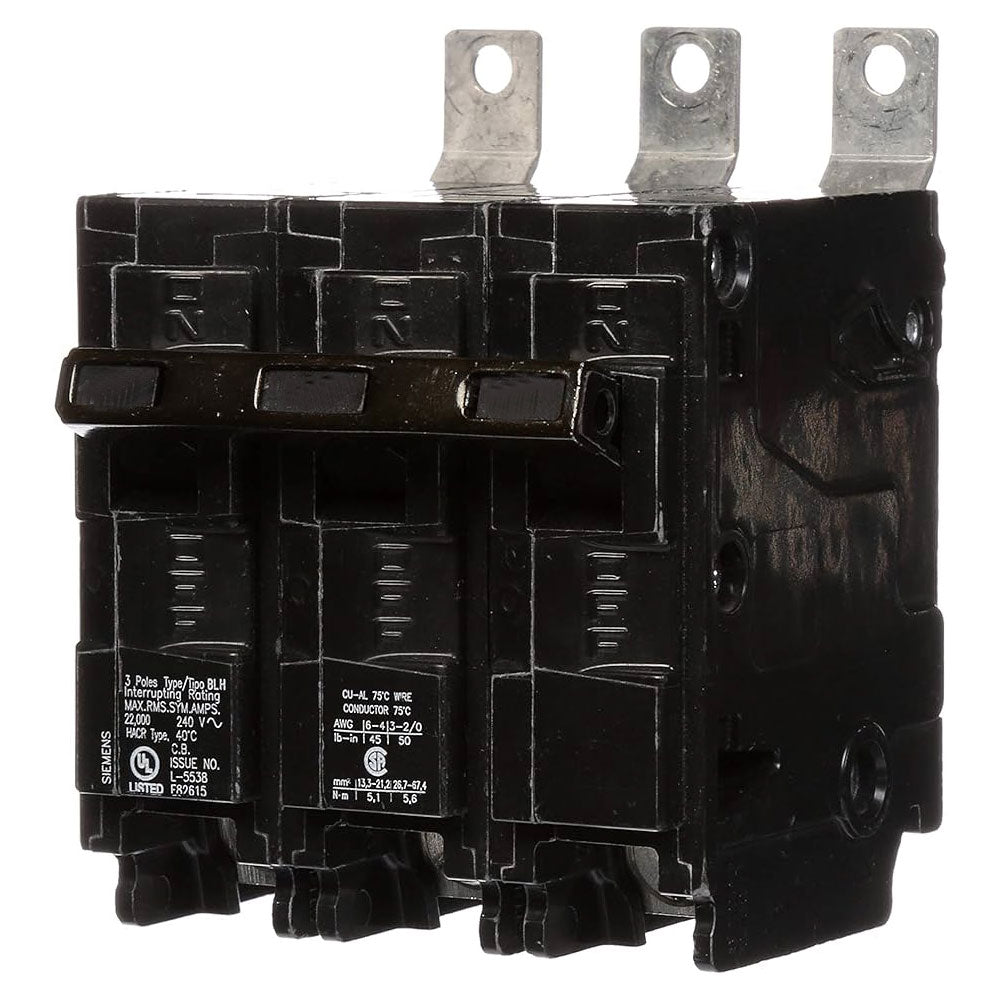

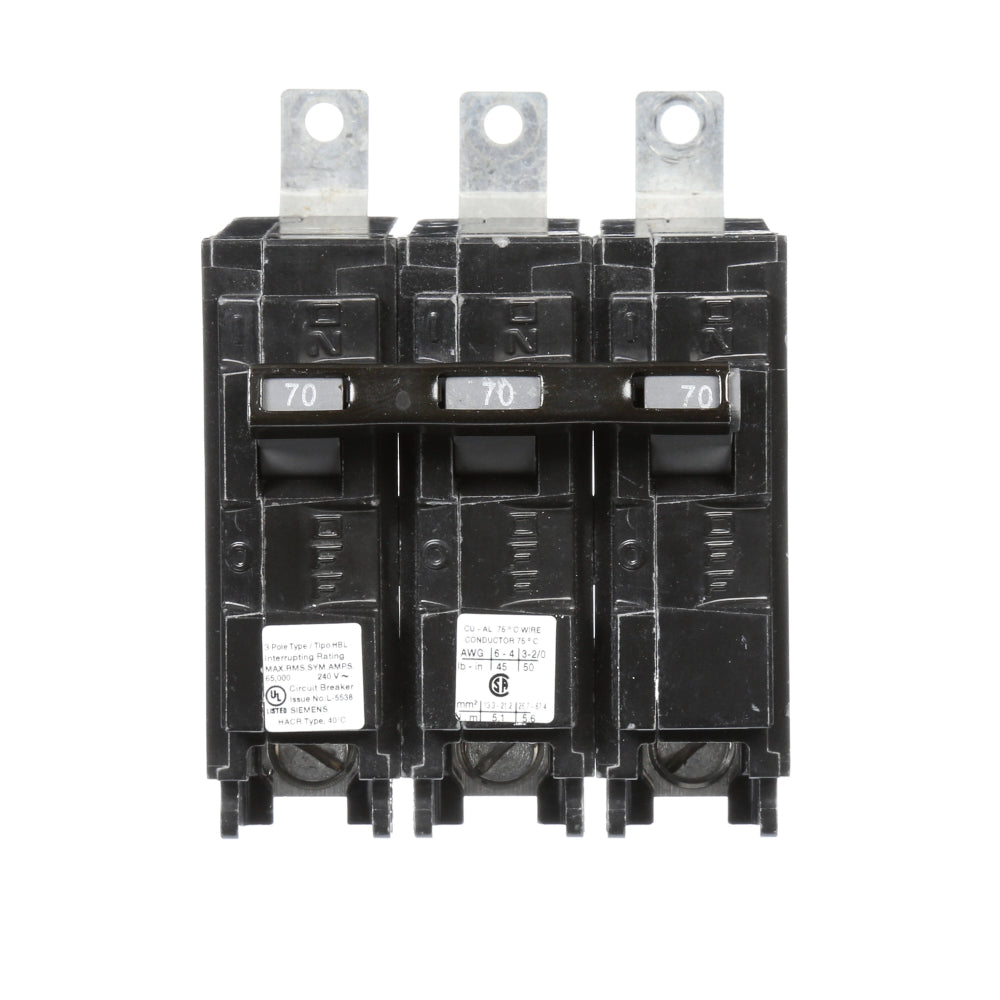

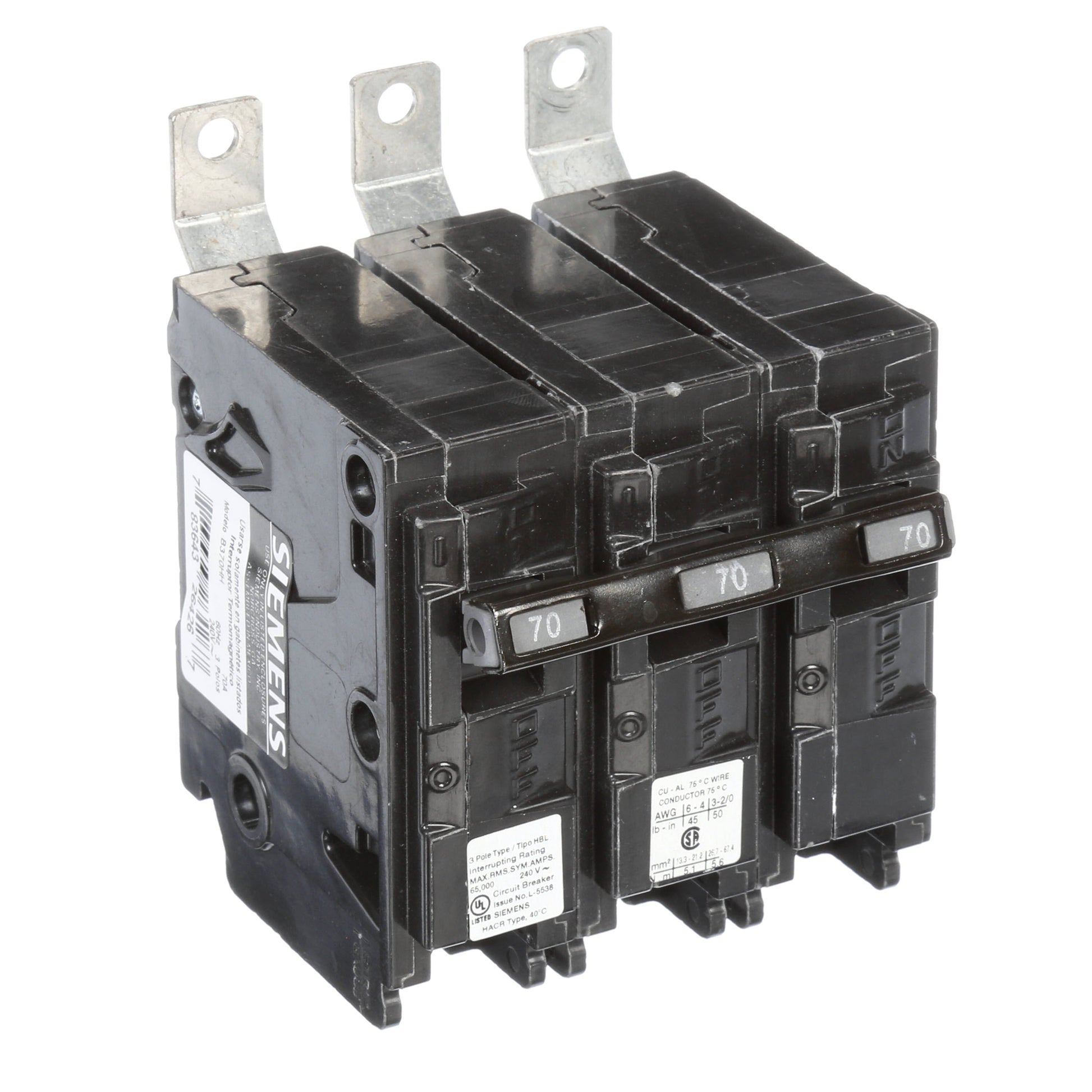

Siemens B370HH Circuit Breaker | 240V 70A 3P 65kA@240V Bolt-on BL Series

Product Description:
The Siemens B370HH is a Molded Case Circuit Breaker from the BL Series family. It is a 3-pole, 70 amp breaker rated for 240 volts with an AIC rating of 65kA@240V. This model features bolt-on connections and thermal magnetic protection for reliable circuit interruption.

Key Features:
✔ Part Number: B370HH
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: HBL
✔ Voltage: 240
✔ Amperage: 70
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/HBL
✔ MCM Size: Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643264267
✔ GTIN: 00783643264267
✔ Country of Origin: Mexico
✔ Dimensions: 3 in x 4 in x 4 in
✔ Weight: 1.04
✔ Panel Type: P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
