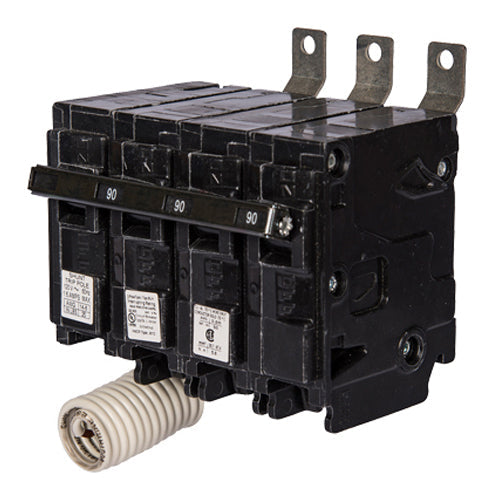

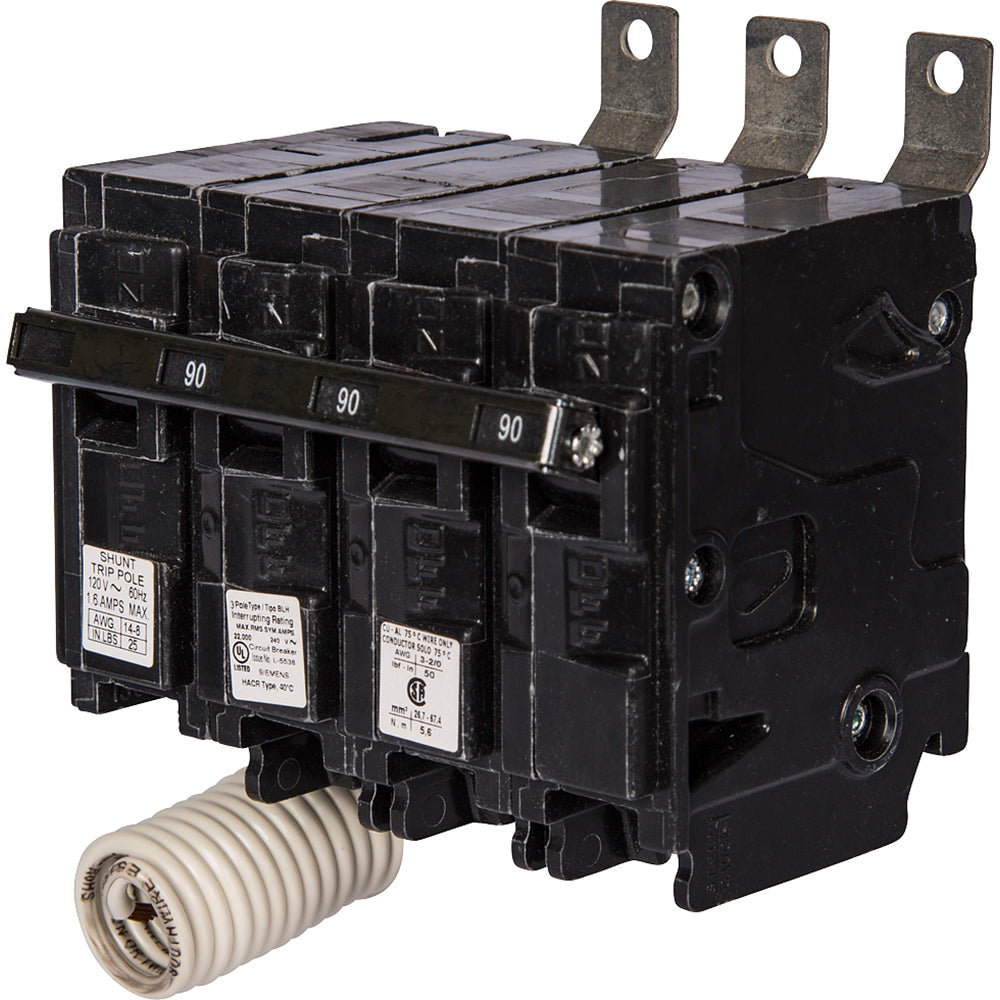

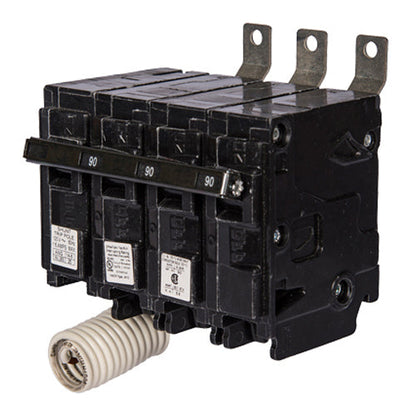

Siemens B380H00S01 Circuit Breaker | BL Series BLH 240VACV 80A

Product Description:
The Siemens B380H00S01 is a Molded Case Circuit Breaker from the BL Series family. It features a 3-pole design with a 240VAC voltage rating and 80A amperage. This breaker includes thermal magnetic protection and a 22kA@240V AIC rating. It uses a bolt-on connection and comes with a 120V shunt trip. Key Features:
✔ Part Number: B380H00S01
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240VAC
✔ Amperage: 80A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Shunt Trip
✔ Protection: Thermal Magnetic
✔ UPC: 783643269019
✔ GTIN: 00783643269019
✔ Country of Origin: Mexico
✔ Dimensions: 4 in x 4 in x 4 in
✔ Weight: 1.6 lbs
✔ Panel Type: Siemens P1 Panelboards
✔ Standards: CSA Certified, HACR Rated, UL Listed
✔ Certification: CSA Certified, HACR Rated, UL Listed
