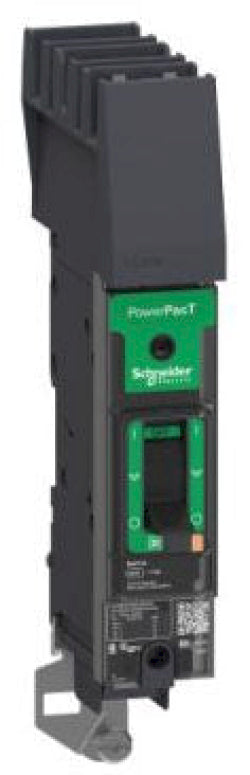

Square D BDA140205 Circuit Breaker | 480V 20A 1P 25kA@240V I-Line Plug-In Powerpact

Product Description:
The Square D BDA140205 is a Molded Case Circuit Breaker from the Powerpact family. It is a 1-pole, 480 Volt, 20 amp rated breaker with an AIC rating of 25kA@240V. This circuit breaker uses an I-Line Style Plug-In connection and provides Thermal Magnetic protection.

Key Features:
✔ Part Number: BDA140205
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 480
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 25kA@240V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: C
✔ UPC: 060648115153
✔ GTIN: 03606481151537
✔ Country of Origin: Mexico
✔ Dimensions: 1.06 in x 5.39 in
✔ Weight: 1
✔ Standards: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Certification: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
