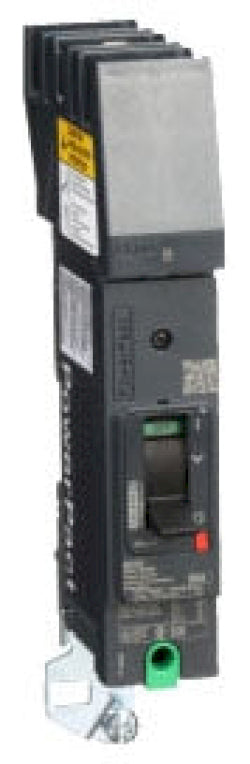

Schneider Electric BDA160203 Circuit Breaker | 600V 20A 1P 25kA@240V I-Line Powerpact

Product Description:
The Schneider Electric BDA160203 is a Molded Case Circuit Breaker from the Powerpact family. It features 1 pole, 600V voltage, and 20A amperage with a 25kA@240V AIC rating. This breaker uses I-Line connection and offers Thermal Magnetic protection for reliable performance.

Key Features:
✔ Part Number: BDA160203
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 20
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 25kA@240V
✔ Connection: I-Line
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: D
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
✔ Protection: Thermal Magnetic
✔ Phase Connection: B
✔ UPC: 060648115116
✔ GTIN: 03606481151162
✔ Country of Origin: Mexico
✔ Dimensions: 1.06 in x 5.39 in
✔ Standards: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
✔ Certification: UL 489, CSA C22.2 No 5, IEC, CCC, EAC, NOM, CE, NEMA AB1, NMX J-266
