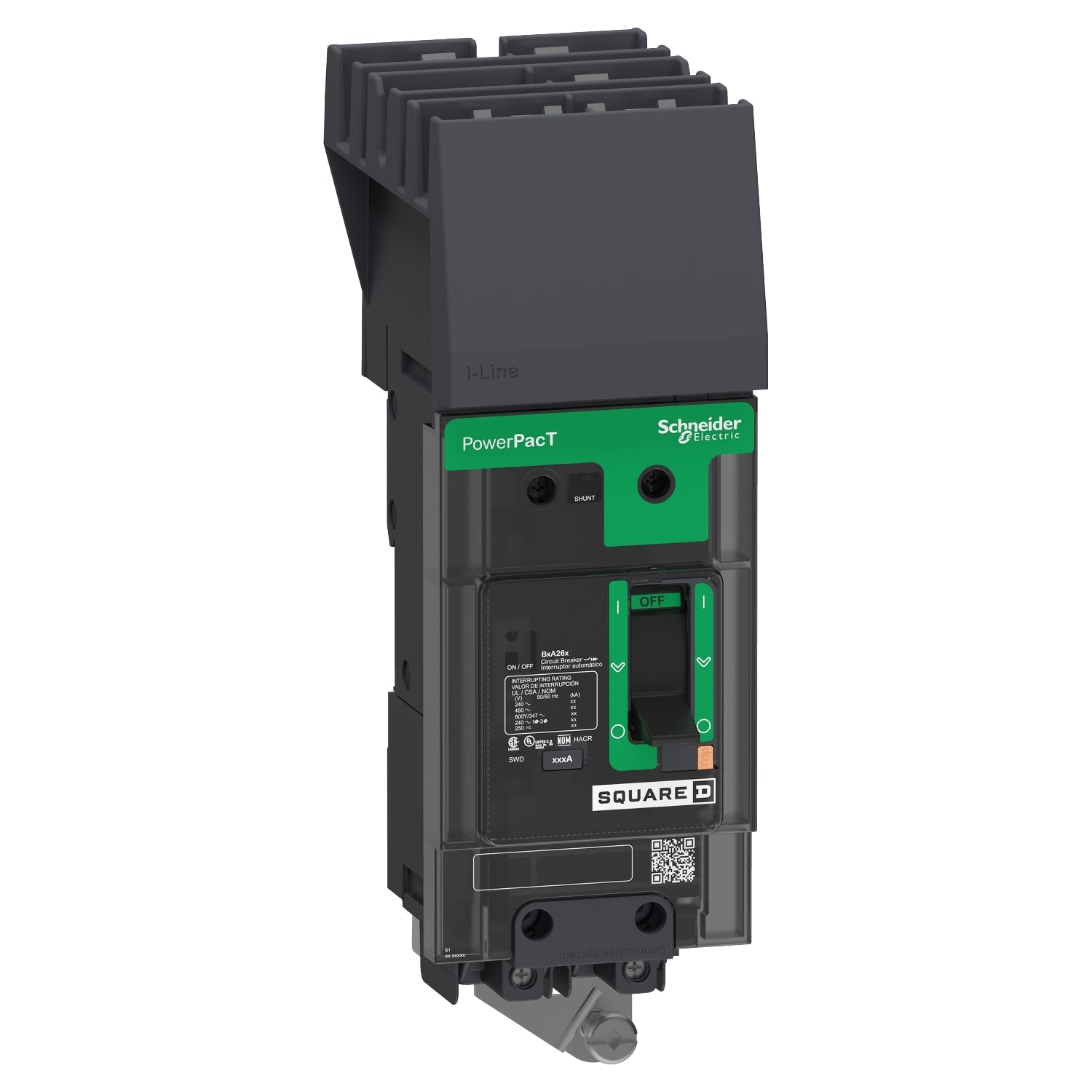

Square D BDA24050Y1 Circuit Breaker | PowerPact B BDA 480V 50A

Product Description:
The Square D BDA24050Y1 is a Molded Case Circuit Breaker from the PowerPact B family. It features 2 poles, 480V voltage, and a 50A amperage rating with an 18@480VAC AIC rating. This breaker uses an I-Line connection and includes Thermal Magnetic protection for reliable performance. Key Features:
✔ Part Number: BDA24050Y1
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: PowerPact B
✔ Type: BDA
✔ Voltage: 480
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 18@480VAC
✔ Connection: I-Line
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: AB
✔ UPC: 606481151851
✔ GTIN: 03606480000000
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.32
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
