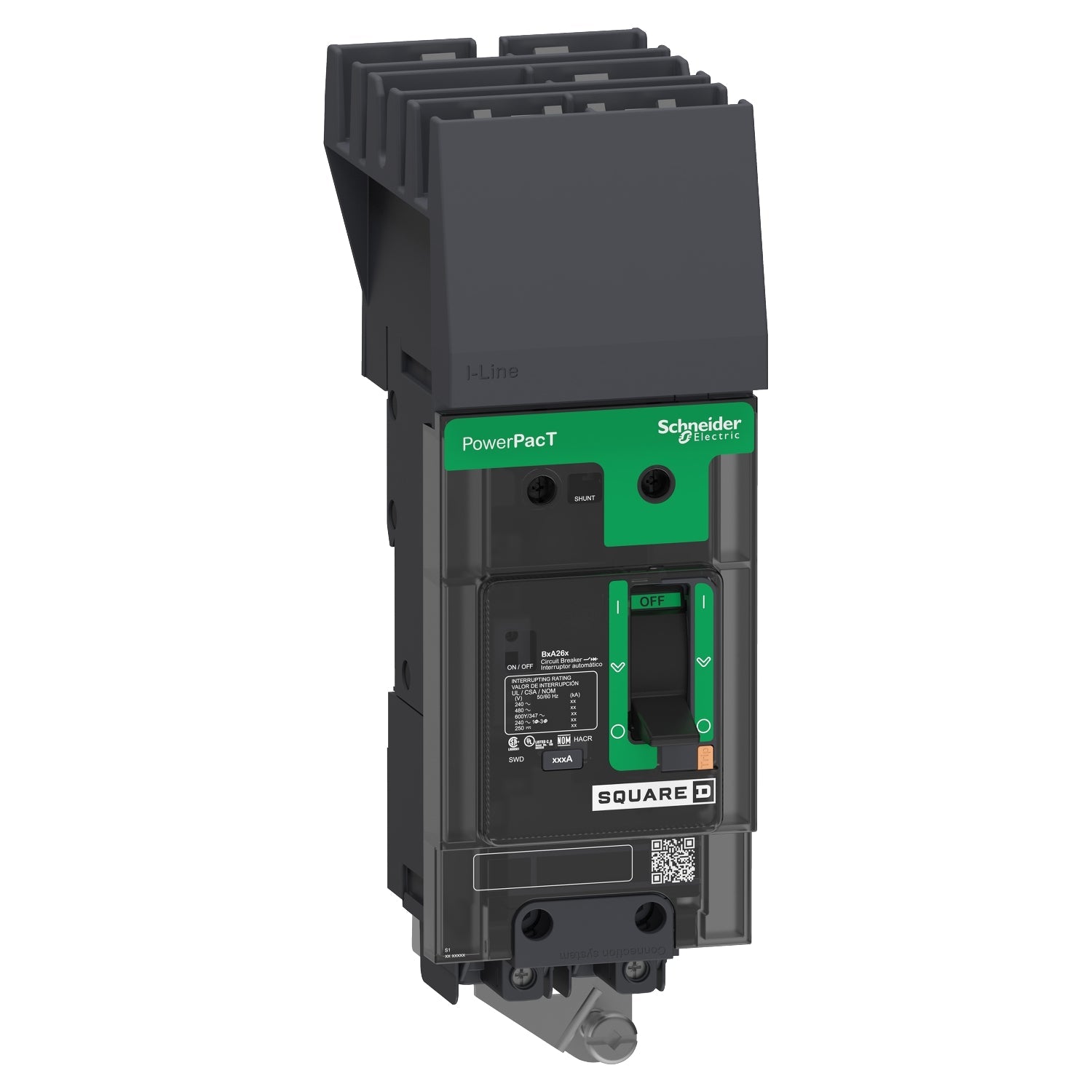

Square D BDA24100Y1 Circuit Breaker | 480Y/277V 100A 2P 18kAIC@480V PowerPact Series

Product Description:
The Square D BDA24100Y1 is a Molded Case Circuit Breaker from the PowerPact BDA family. It is a 2-pole breaker rated for 100 amps at 480Y/277 volts with an interrupting rating of 18kAIC at 480V. This circuit breaker provides reliable thermal magnetic protection for electrical systems.

Key Features:
✔ Part Number: BDA24100Y1
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BDA
✔ Type: PowerPact Series
✔ Voltage: 480Y/277
✔ Amperage: 100
✔ Poles: 2
✔ AIC Rating: 18kAIC@480V
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Line and Load Lug
✔ Wire Size: AWG 14 to AWG 2/0 Aluminum/Copper
✔ Functions: Long Time and Instantaneous Trip
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ UPC: 60648115195
✔ GTIN: 03606481151957
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Standards: CE, UL, GB, NEMA, EN/IEC, CSA, NMX, CCC, EAC, NOM, RoHS
