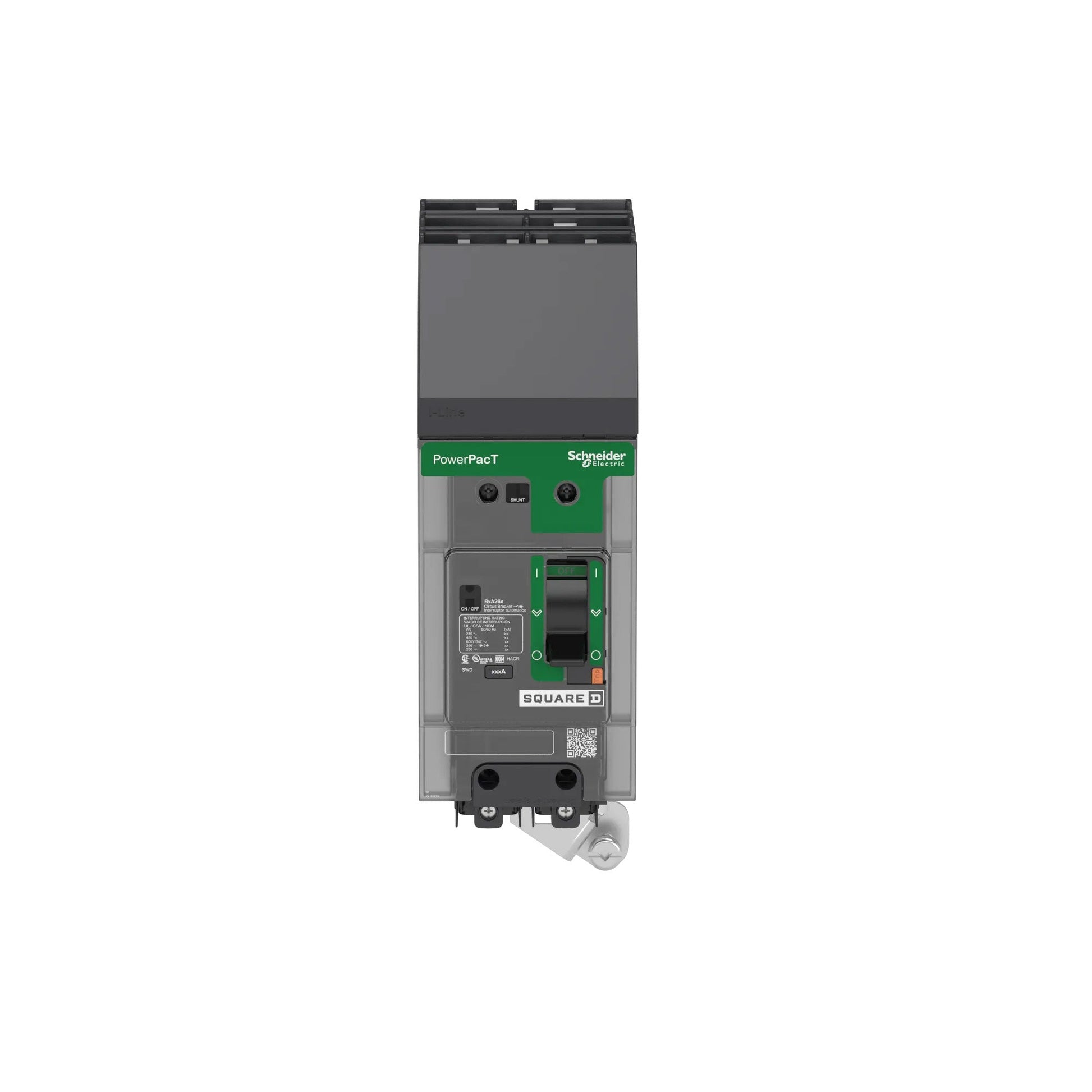

Square D BDA260151 Circuit Breaker | 600V 15A 2P 18kA@480V I-Line Powerpact

Product Description:
The Square D BDA260151 is a Molded Case Circuit Breaker from the Powerpact family. It is a 2-pole, 15 amp breaker rated for 600 Volts with an AIC rating of 18kA@480V. This thermal magnetic circuit breaker uses an I-Line connection for reliable performance in electrical distribution systems.

Key Features:
✔ Part Number: BDA260151
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600
✔ Amperage: 15
✔ Poles: 2
✔ AIC rating: 18kA@480V
✔ Connection: I-Line
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Al Mechanical Lug OFF End, I-Line ON End
✔ Frame Size: 125A/BD
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: AB
✔ UPC: 078590109393
✔ GTIN: 03606481151988
✔ Country of Origin: Mexico
✔ Dimensions: 2.12 in x 5.39 in
✔ Weight: 1.44
✔ Panel Type: Electrical Distribution Equipment, Industrial Control Panels
✔ Standards: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
