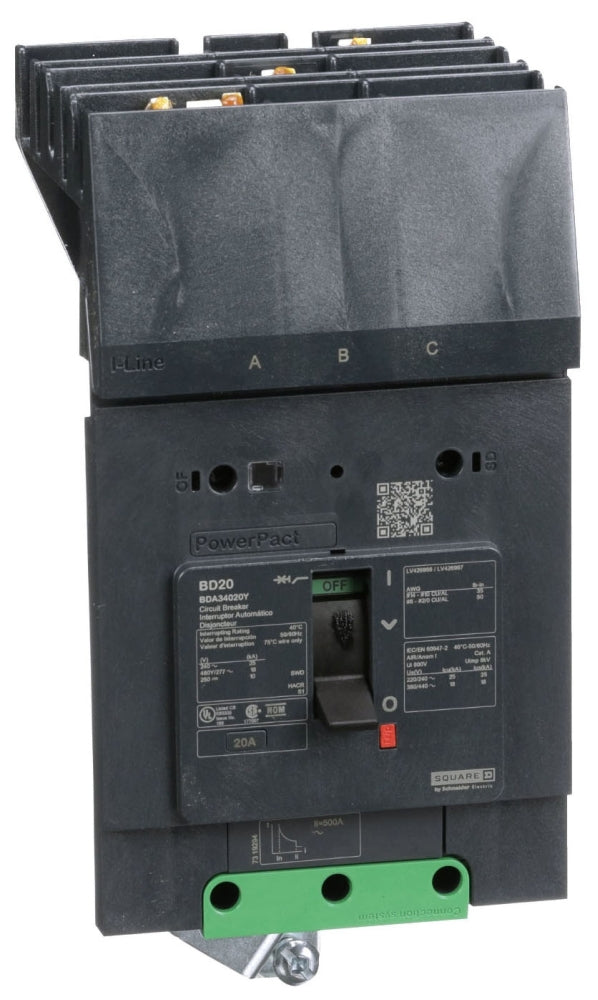

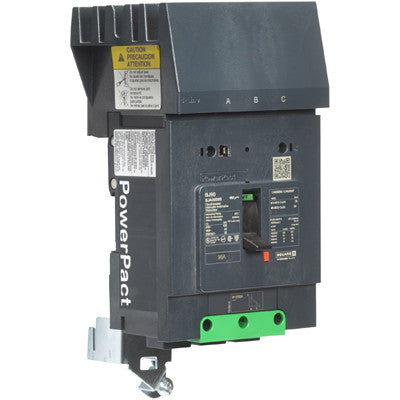

Schneider Electric BDA34015Y Molded Case Circuit Breaker | 480V 15A 3P 18kA@480V I-Line Style Plug-In Powerpact

Product Description:
The Schneider Electric BDA34015Y is a Molded Case Circuit Breaker from the Powerpact family. It is a 3-pole, 15 amp breaker rated for 480 volts with an interrupting capacity of 18kA. This model features an I-Line Style Plug-In connection and provides reliable Thermal Magnetic protection for electrical systems.

Key Features:
✔ Part Number: BDA34015Y
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 480
✔ Amperage: 15
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Wire Size: AWG 14...AWG 2/0 aluminum/copper
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
